AV3X

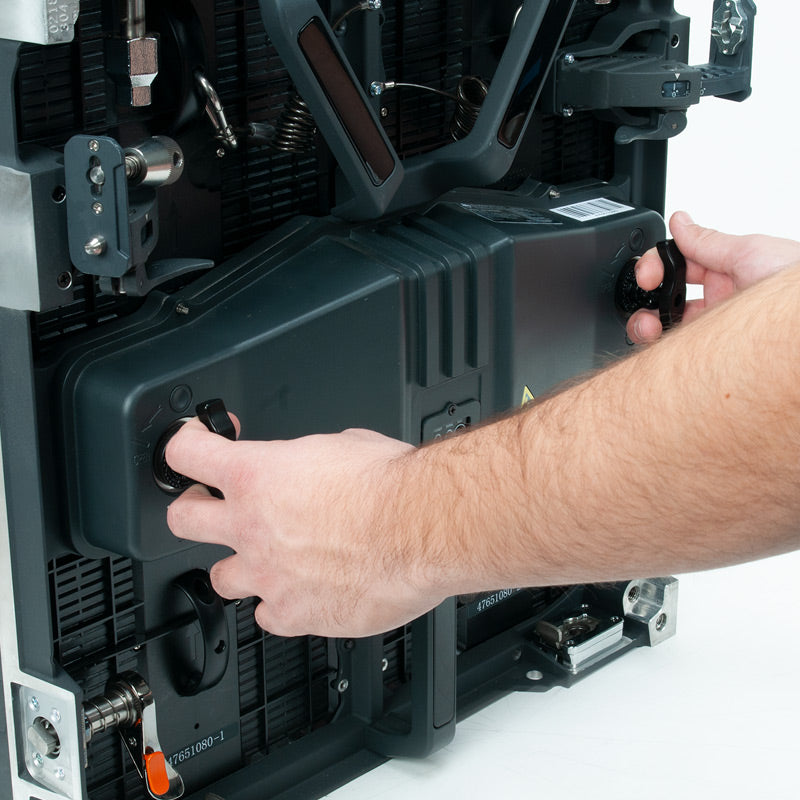

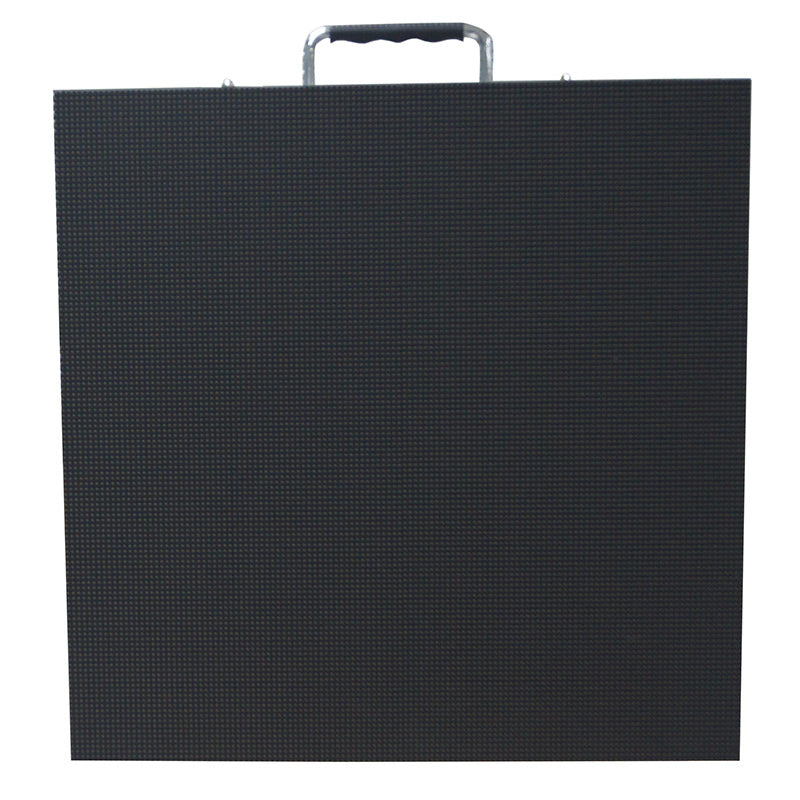

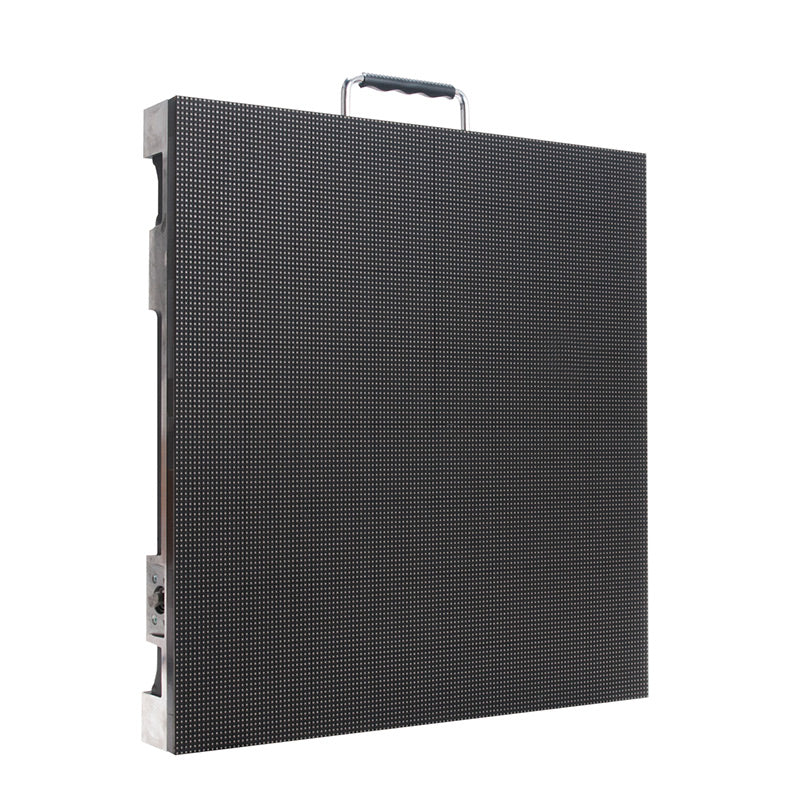

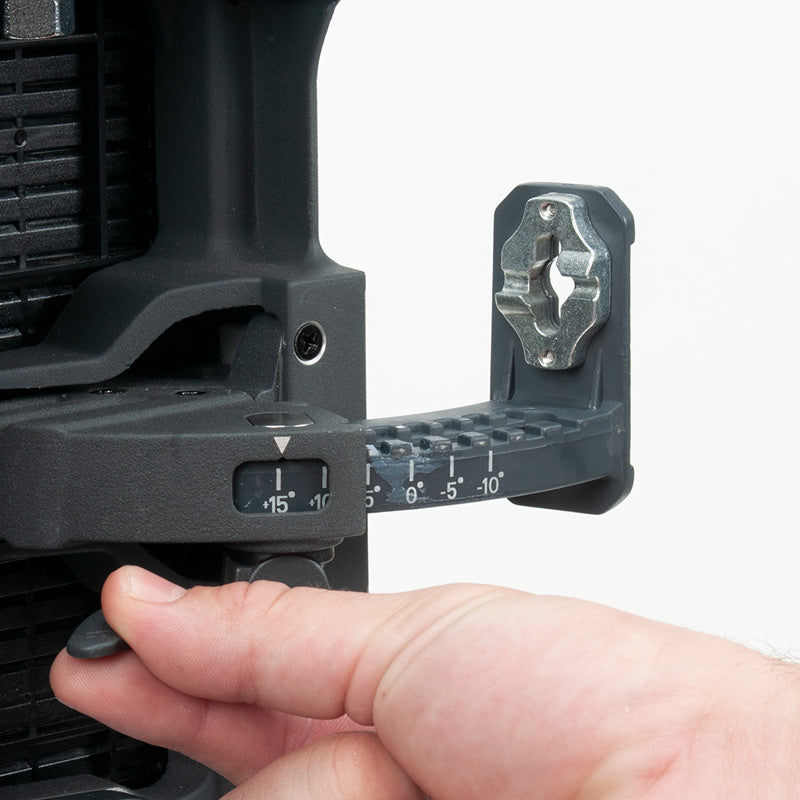

Available now from ADJ USAThe AV3X is a high resolution, flexible video panel from ADJ. Each panel has a pixel pitch of 3.91mm with a configuration of a 3-in-1 RGB SMD2121 LED. The panel can curve in convex or concave up to 15°. The brightness is 1000NITS. There are 2 LED modules per panel. This allows for easy serviceability. The AV3X connections include locking power In/Out and locking RJ45 In/Out connections. This panel also features a Novastar receiving card.
ADJ offers full packages with video processors, software, cabling, rigging bars and flight cases so that you have everything you need to get up and running.Up to 8 AV3X video panels fit inside the AV3FC flight case. Learn more about the AV3FC HERE.Learn more about the AV3X in this product spotlight: http://tinyurl.com/z99rwk8Learn more about AVX3 package options:AV3X 4x2: http://www.adj.com/av3-4x2AV3X 4x3: http://www.adj.com/av3-4x3AV3X 5x3: http://www.adj.com/av3-5x3AV3X 7x4: http://www.adj.com/av3-7x4AV3X 9x5: http://www.adj.com/av3-9x5
Specifications
SPECIFICATIONS:
• Pixel Pitch: 3.91mm (0.25”)
• LED Configuration: 3-in-1 SMD2121 LED
• Pixel Density: 128x128; 65536 per square meter
• Size :19.75” x 19.75” x 4” / 500 x 500 x 100mm
• Module Quantity: 2
• Weight: 20 lbs. / 9kg.
MECHANICAL RATINGS:
• Surface Flatness: Gaps<0.5mm
OPTICAL RATINGS:
• Brightness: 1000 NITS
• View Angle: Horizontal 120°/Vertical 120° @ 13 ft. (4m)
• Gray Scale / Display Color: 14-bit
• Brightness Adjustment: 0~100% 100 Levels
• Processing: 14-bit
POWER SUPPLY:
• Operation Power: 100~240V 50-60Hz
• Max. Power Consumption: 170W/per panel
• Ave. Power Consumption: 70W/per panel

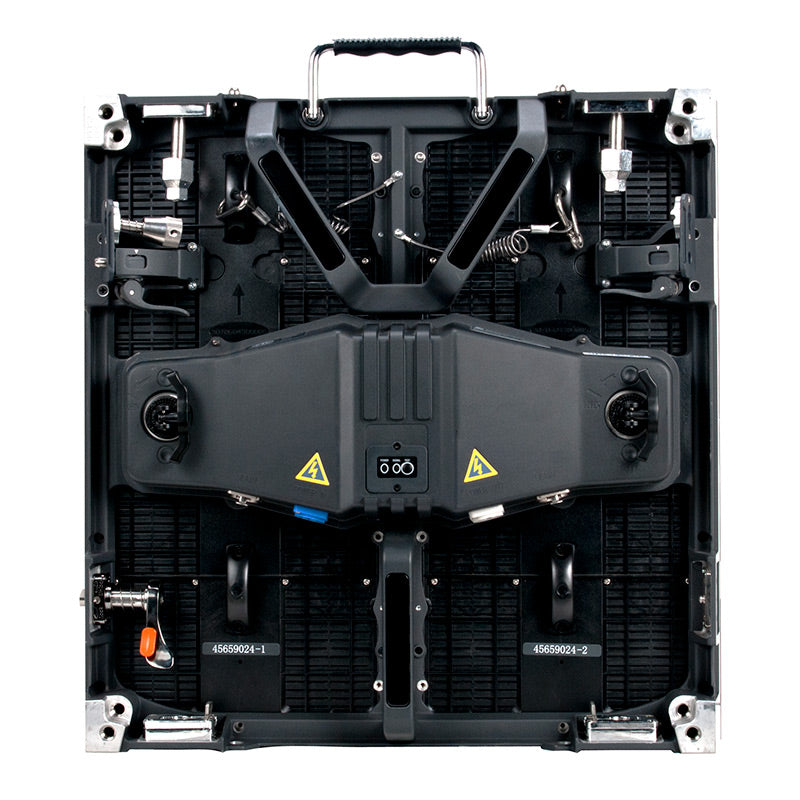

• Connections Power/Data: Locking Power In/Out; Locking Data RJ45 In/Out
CONTROL SYSTEM:
• Control Mode: Nova Star Synchronous System with Control via DVI
• Frame Update Frequency: 50-60Hz
• Scan Mode: 1/16
• Refresh Rate: 1920Hz
• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
• Control Distance: Ethernet Cable <100m or Fiber Optic>120m
• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
• Brightness Correction: Pixel, Module, Cabinet
• With Wired Digital Communication Network
ENVIRONMENTAL:
• Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)
• Operating Life / MTBF: 50,000 Hours / 5,000 Hours
• Protection Level: IP20 (Front and Back)
• Out of Control Rate: <0.02%
• Listings: ETL, CE, FCC Class A
OPTIONAL ACCESSORIES:

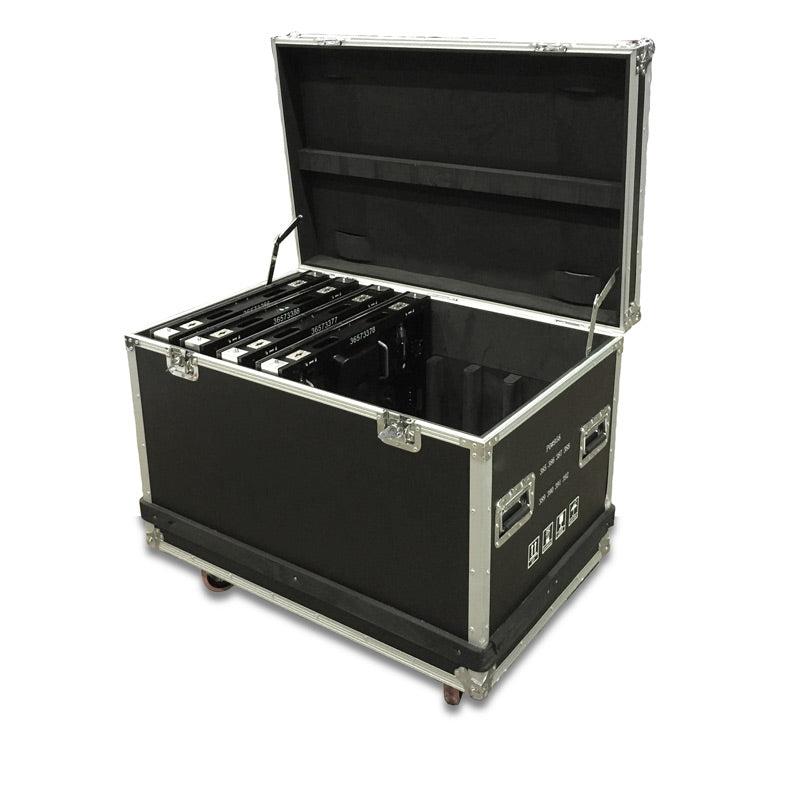

AV3FC (AV3095): Flight Case - fits 8 AV3X Video Walls

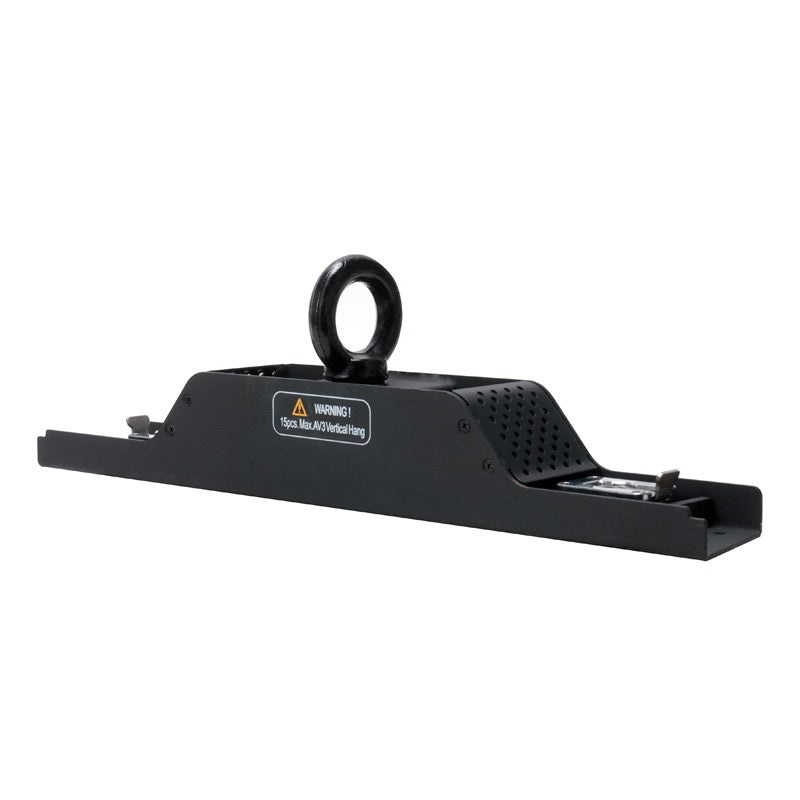

AV3RB1 (AV3070): Rigging Bar - Connect up to 15 AV3X Video Panels
AV3RSB (AV3111): Rear Support Bracket
Novastar VX4S: Video Processor
Novastar MCTRL-300: Video Processor
Media Master Express 4: Video Software
GrandVJ 2.0: Video Software
CABLES:
Cabinet to Cabinet Data Link Cables
MCTRL-300 Processor to Cabinet
VX4S Processor to Cabinet
NOVA PRO HD Processor to Cabinet
Locking Power Link Cables
Locking Main Power Cables
ETL Approved
