AV3 4x3

UPC#: 818651023794
Advantage Points: 19150
Redemption Points: 383000
SKU
AV3 4x3

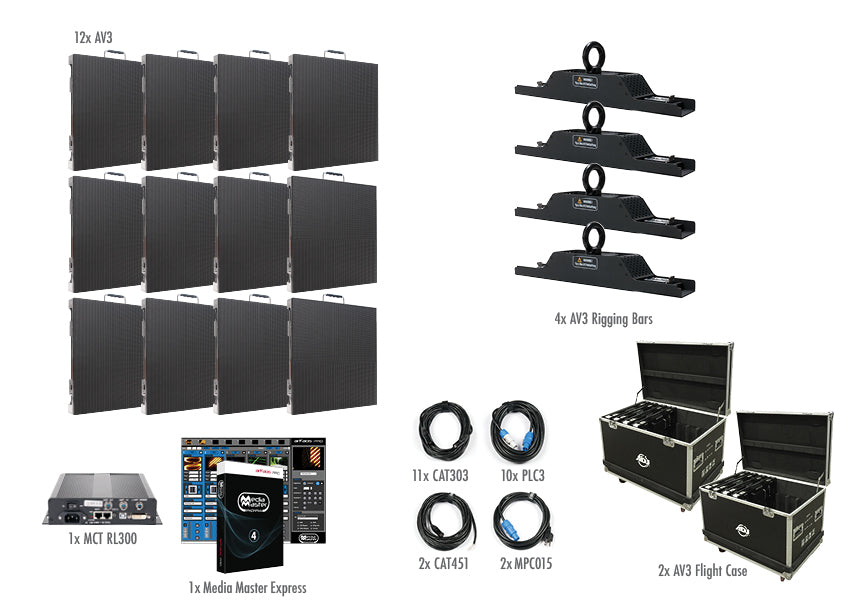

Includes: 12x AV3 (6.56' x 4.92'), 4x AV3 Rigging Bars, 11x CAT303, 10x PLC3, 1x CAT461, 2x MPC015, 1x MCT RL300, 2x AV3 Flight Case, 1x Media Master Express

Where to Buy

Enter your zip code below to find this product at a retailer near you!

SPECIFICATIONS:

• LED Configuration: 3-in-1 SMD2121 LED

• Pixel Density: 128x128; 65536 per square meter

• Size :19.75” x 19.75” x 4” / 500 x 500 x 100mm

• Outer Dimensions: 6.56' x 4.92'

• Module Quantity: 2

• Weight: 20 lbs. / 9kg.

MECHANICAL RATINGS:

• Surface Flatness: Gaps<0.5mm

OPITCAL RATINGS:

• Brightness: 1000 NITS

• View Angle: Horizontal 120°/Vertical 120° @ 13 ft. (4m)

• Gray Scale / Display Color: 14-bit

• Brightness Adjustment: 0~100% 100 Levels

• Processing: 14-bit

POWER SUPPLY:

• Operation Power: 100~240V 50-60Hz

• Max. Power Consumption: 170W/per panel

• Ave. Power Consumption: 70W/per panel

• Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out

CONTROL SYSTEM:

• Control Mode: Nova Star Synchronous System with Control via DVI

• Frame Update Frequency: 50-60Hz

• Scan Mode: 1/16

• Refresh Rate: 1920Hz

• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

• Control Distance: Ethernet Cable <100m or Fiber Optic>120m

• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280

• Brightness Correction: Pixel, Module, Cabinet

ENVIRONMENTAL:

• Operating Temp / Humidity:  Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)

• Operating Life / MTBF: 50,000 Hours / 5,000 Hours

• Protection Level: IP20 (Front and Back)

• Out of Control Rate: <0.02%

• Listings:  ETL, CE, FCC Class A

OPTIONAL ACCESSORIES:

AV3FC (AV3095): Flight Case - fits 8 AV6 Video Walls

AV3RB1 (AV3070): Rigging Bar - Connect up to 15 AV3 Video Panels

AV3FWA (AV3111): Rear Support Bracket

Novastar VX4S: Video Processor

Novastar MCTRL-300: Video Processor

Media Master Express 4: Video Software

GrandVJ 2.0: Video Software

CABLES:

Cabinet to Cabinet Data Link Cables (NEUTRIK Ethercon Connectors)

MCTRL-300 Processor to Cabinet (NEUTRIK Ethercon Connectors)

VX4S Processor to Cabinet (NEUTRIK Ethercon Connectors)

NOVA PRO HD Processor to Cabinet (NEUTRIK Ethercon Connectors)

NEUTRIK powerCON Link Cables

NEUTRIK powerCON Main Power Cables

ETL Approved

Videos

There are currently no videos available for this product.

Downloads

The following downloads are available for this product:

Title Description
AV3 USER GUIDE USER GUIDE Download
