AV2

New Product
High resolution flexible Video Panel system with 2.97mm pixel pitch High resolution flexible Video Panel system with 2.97mm pixel pitch High resolution flexible Video Panel system with 2.97mm pixel pitch High resolution flexible Video Panel system with 2.97mm pixel pitch High resolution flexible Video Panel system with 2.97mm pixel pitch High resolution flexible Video Panel system with 2.97mm pixel pitch
SKU: AV2002 | UPC: 818651025620
High resolution flexible Video Panel system with 2.97mm pixel pitch
Advantage Points: 1580

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Available now from ADJ USA

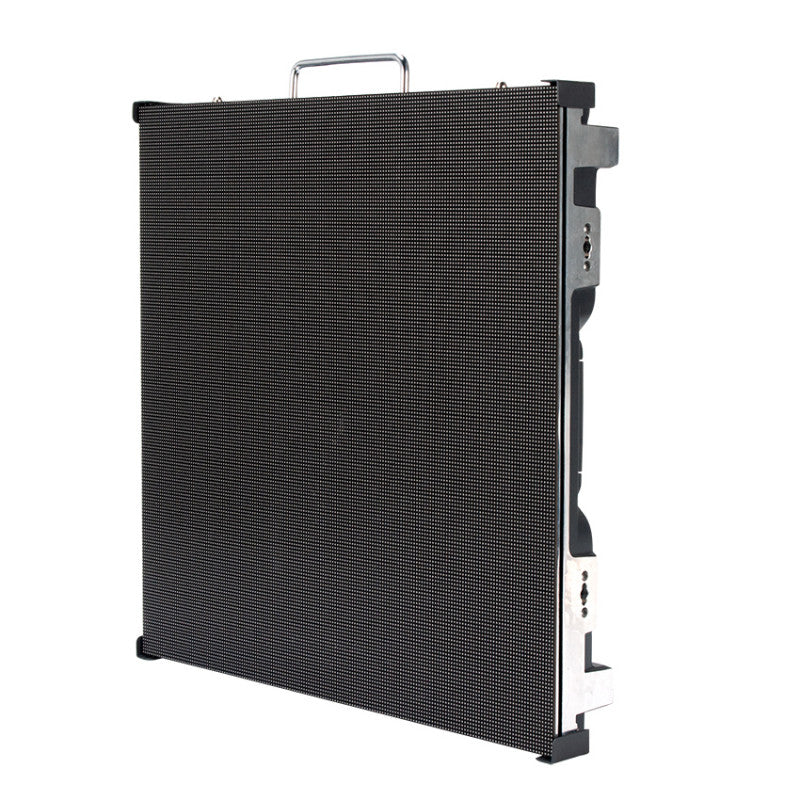

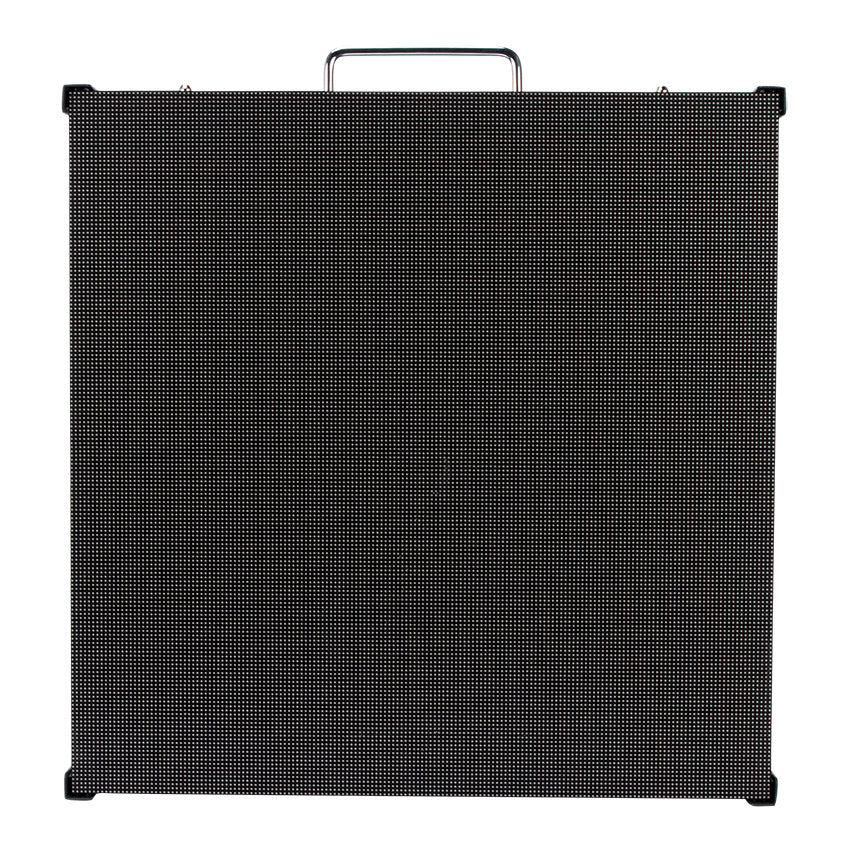

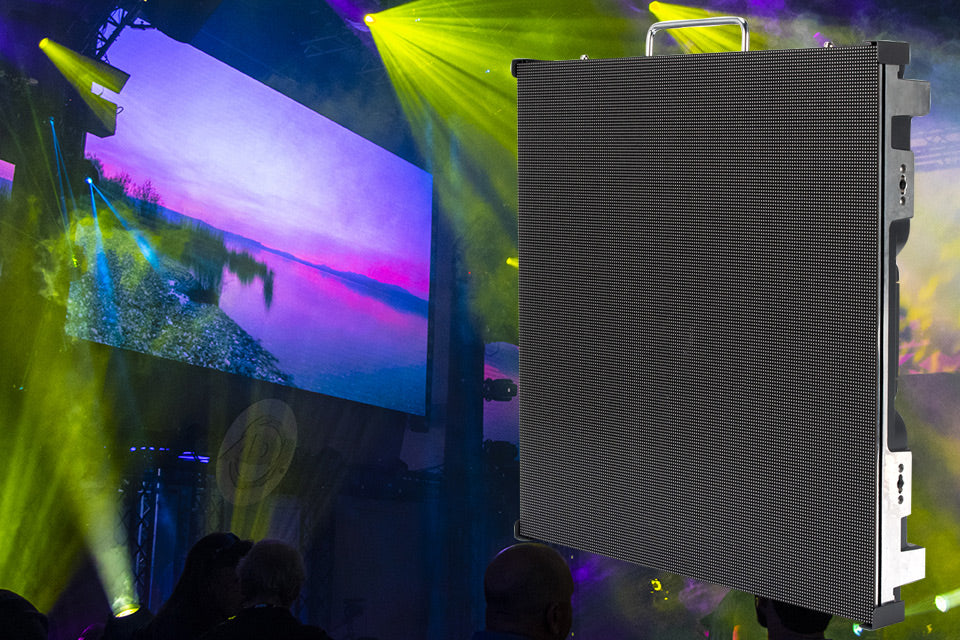

The AV2 is a high resolution, flexible video panel from ADJ. Each panel has a pixel pitch of 2.97mm with a configuration of a 3-in-1 RGB SMD2121 LED. The panel can curve in convex or concave +/-5°. The brightness is 1000 NITS. There are 4 LED modules per panel. This allows for easy serviceability. The AV2 connections include powerCon In/Out and Ethercon In/Out. This panel also features a Novastar A5s receiving card.

ADJ offers full packages with video processors, software, cabling, rigging bars and flight cases so that you have everything you need to get up and running.

Up to 8 AV2 video panels fit inside the AV2FC flight case.

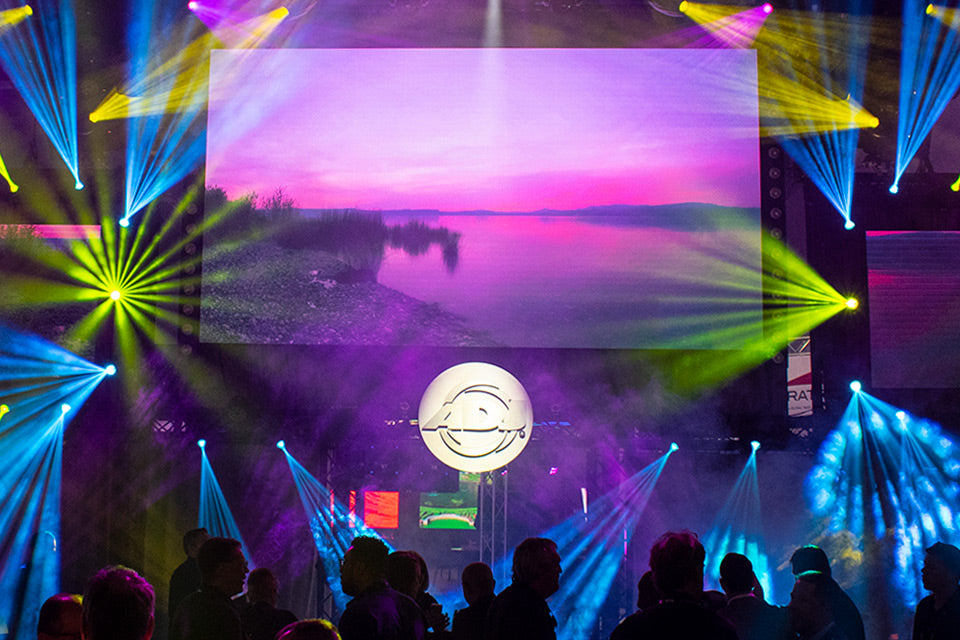

Learn more about the AV2 LED video panels from this product spotlight article: CLICK HERE



Specifications

Specifications

 SPECIFICATIONS:

• Pixel Pitch: 2.97mm (0.17”)

• LED Configuration: 3-in-1 SMD2121 LED

• Pixel Density: 168x168; 112896 per square meter

• Size :19.75” x 19.75” x 3” / 500 x 500 x 73mm

• Module Quantity: 4

• Weight: 17.64 lbs. / 8kg.


FEATURES:

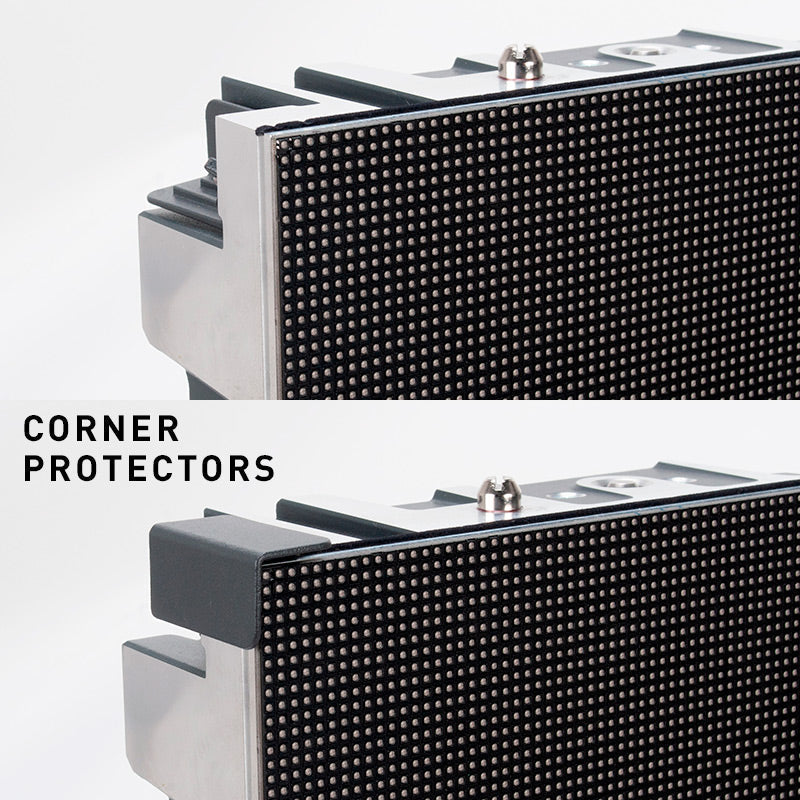

• Corner Protectors to protect the corners of the AV2 during transport, set-up and teardown

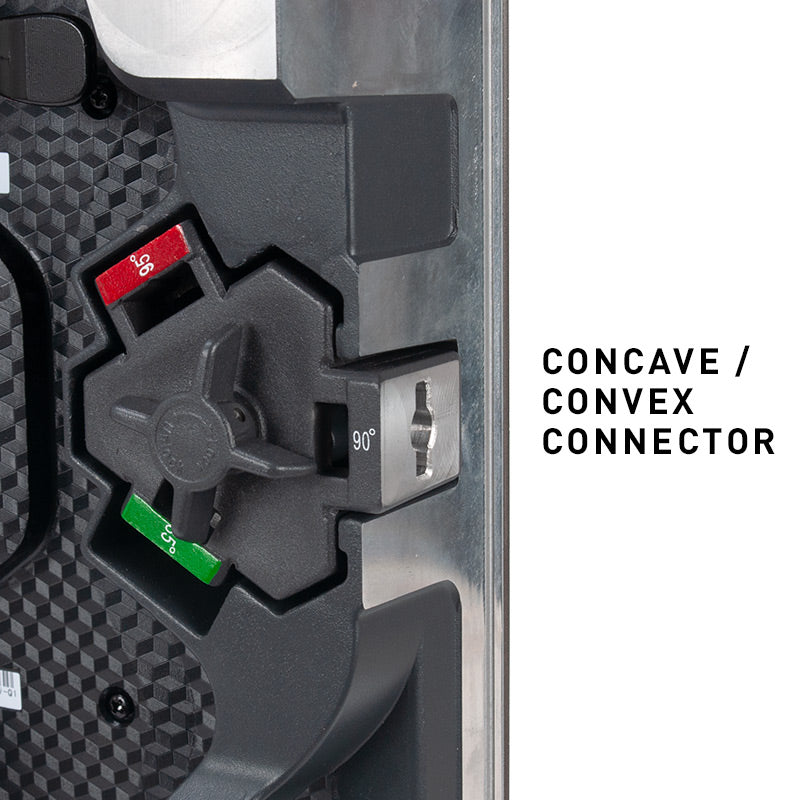

• Concave /convex option: set-up straight, 5% concave or 5% convex

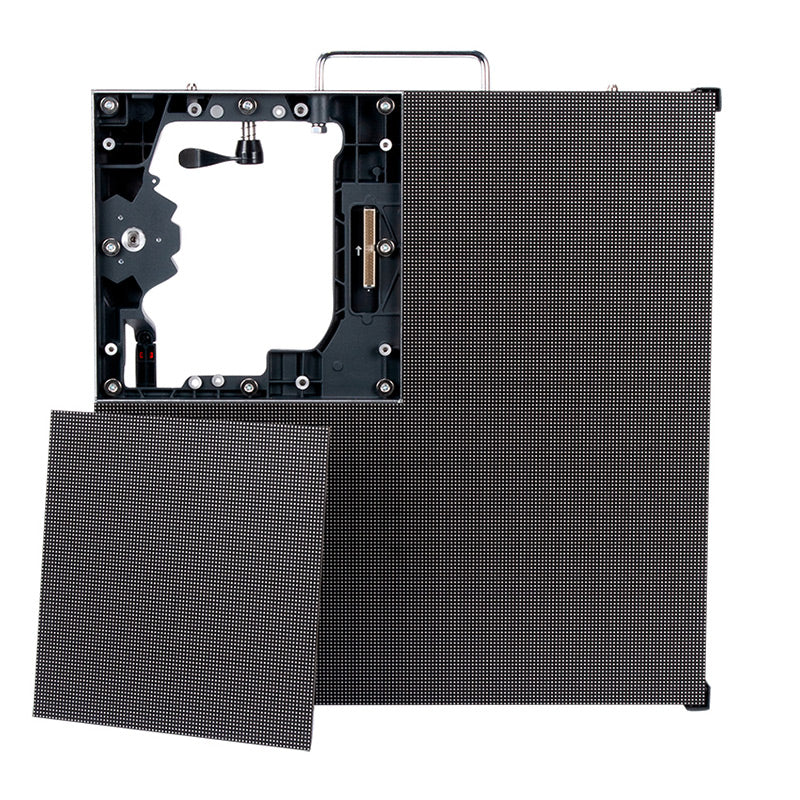

• 4 easy to replace video modules on each panel



MECHANICAL RATINGS:

• Surface Flatness: Gaps<0.5mm



OPTICAL RATINGS:

• Brightness: 1000 NITS

• View Angle: Horizontal 160°/Vertical up 60° down 60° @ 9.75 ft. (2.97m)

• Gray Scale / Display Color: 14-bit

• Brightness Adjustment: 0~100% 100 Levels

• Processing: 14-bit



POWER SUPPLY:

• Operation Power: 100~240V 50-60Hz

• Max. Power Consumption: 115W/per panel

• Ave. Power Consumption: 35W/per panel

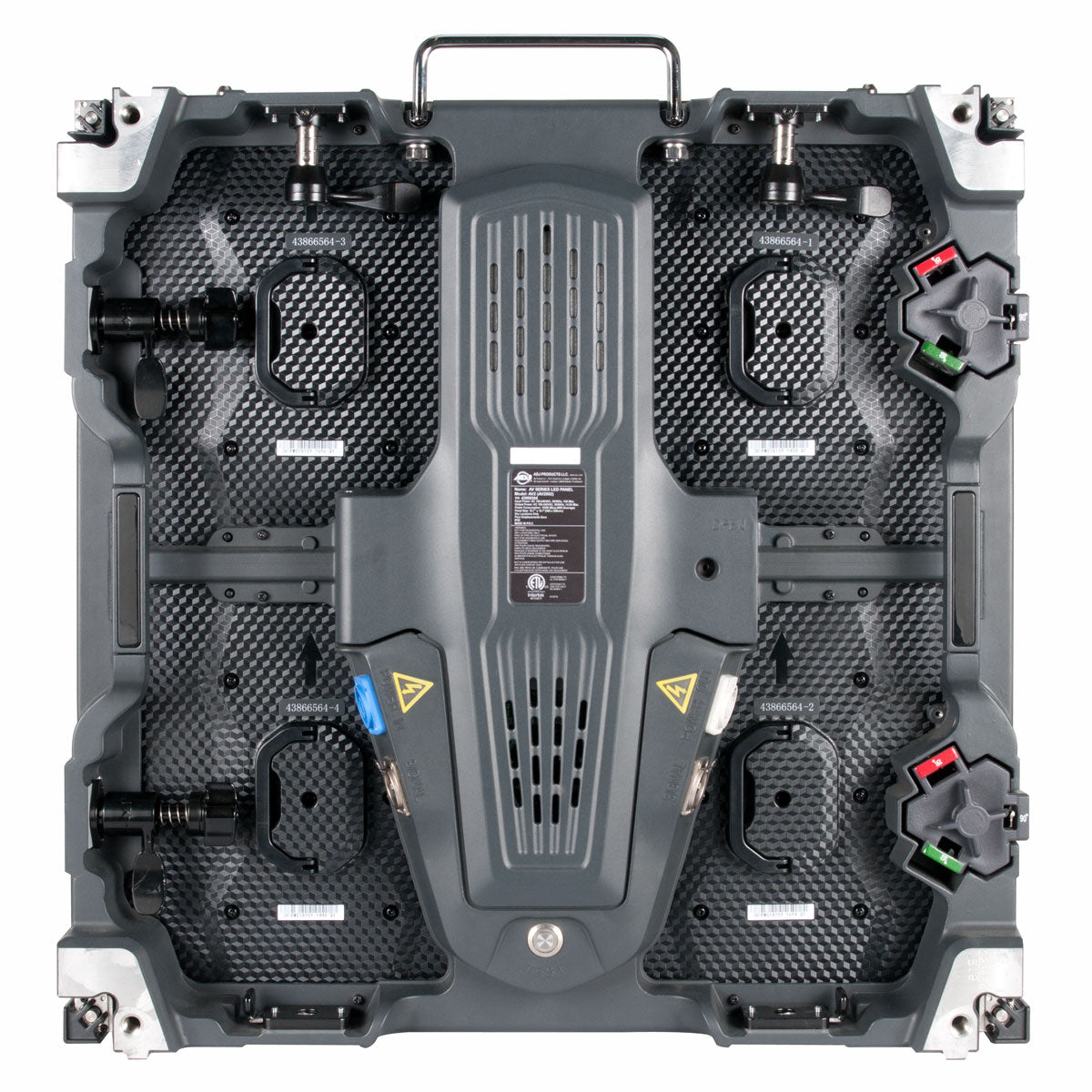

• Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out



CONTROL SYSTEM:

• Control Mode: Nova Star Synchronous System with Control via DVI

• Frame Update Frequency: 50-60Hz

• Scan Mode: 1/21

• Refresh Rate: ≥1920Hz

• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

• Control Distance: Ethernet Cable <100m or Fiber Optic>120m

• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280

• Brightness Correction: Pixel, Module, Cabinet



ENVIRONMENTAL:

• Operating Temp / Humidity:  Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)

• Operating Life / MTBF: 50,000 Hours / 5,000 Hours

• Protection Level: IP20 (Front and Back)

• Out of Control Rate: <0.02%

• Listings:  cETLus



OPTIONAL ACCESSORIES:

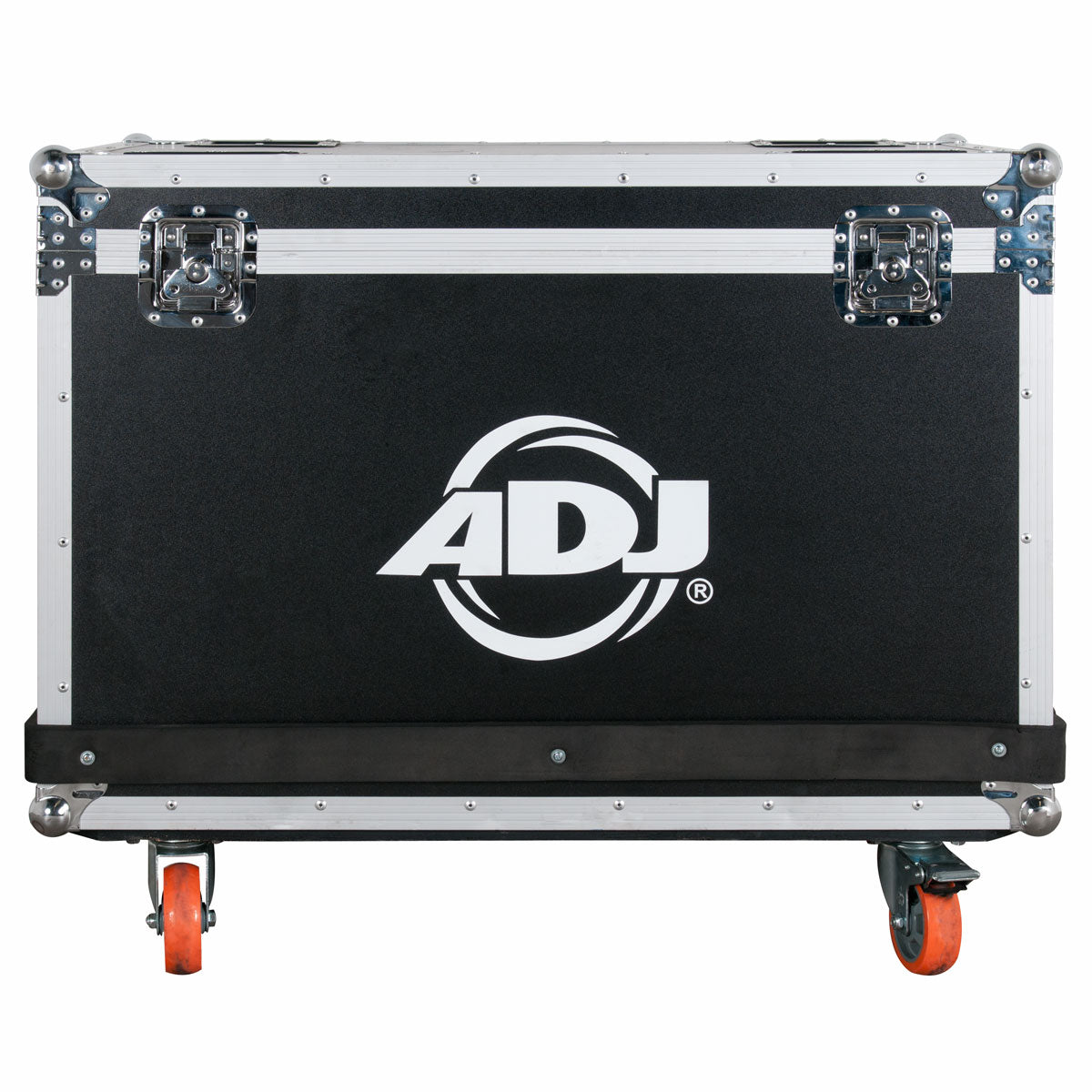

AV2FC (AV2066): Flight Case – Fits 8 AV2 panels

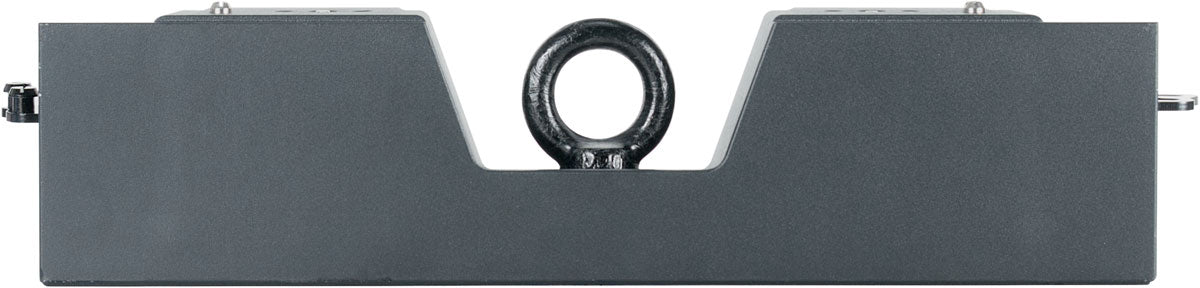

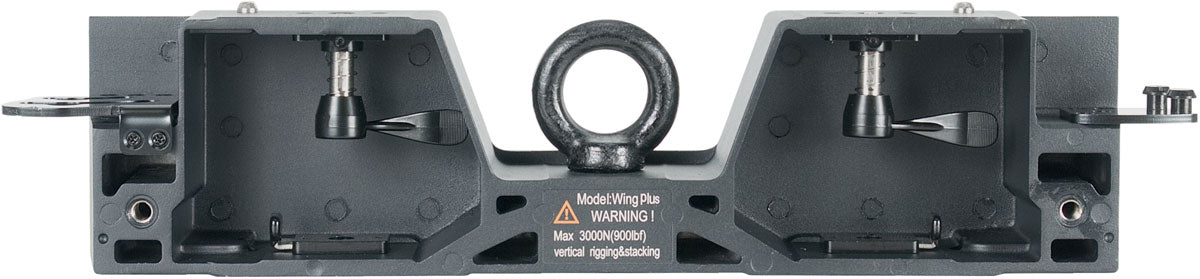

AV2RB (AV2035): Rigging Bar - Connect up to 15 AV2 Video Panels

AV2RSB (AV2084): Rear Support Bracket
Novastar VX4S: Video Processor

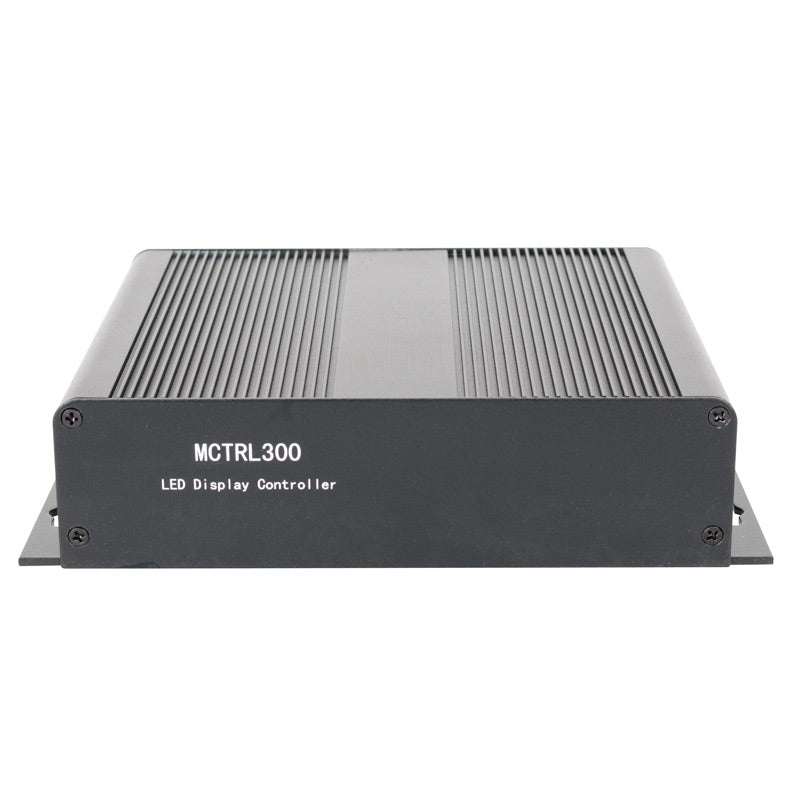

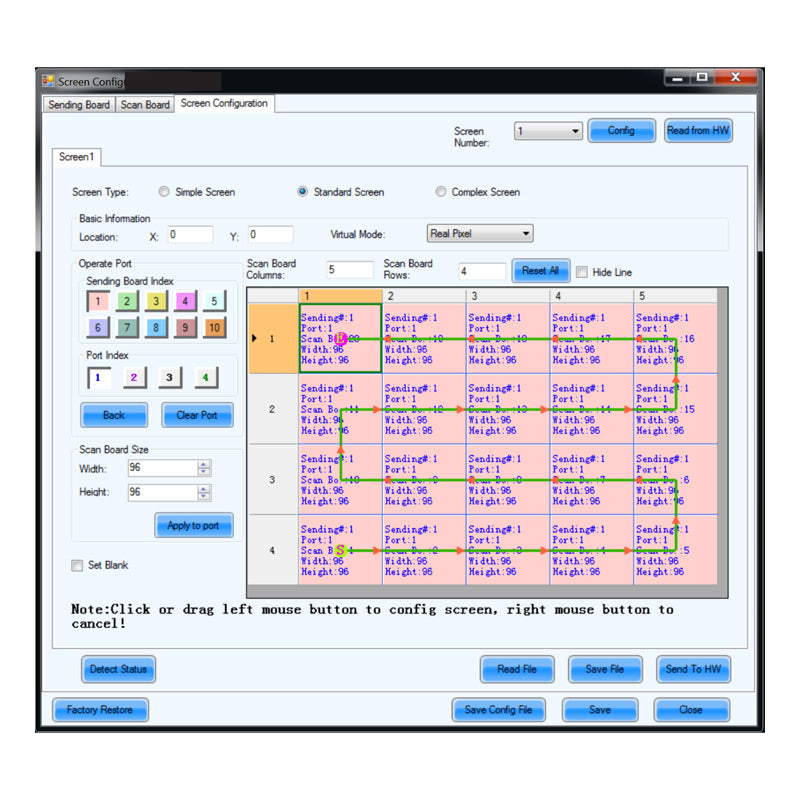

Novastar MCTRL-300: Video Processor

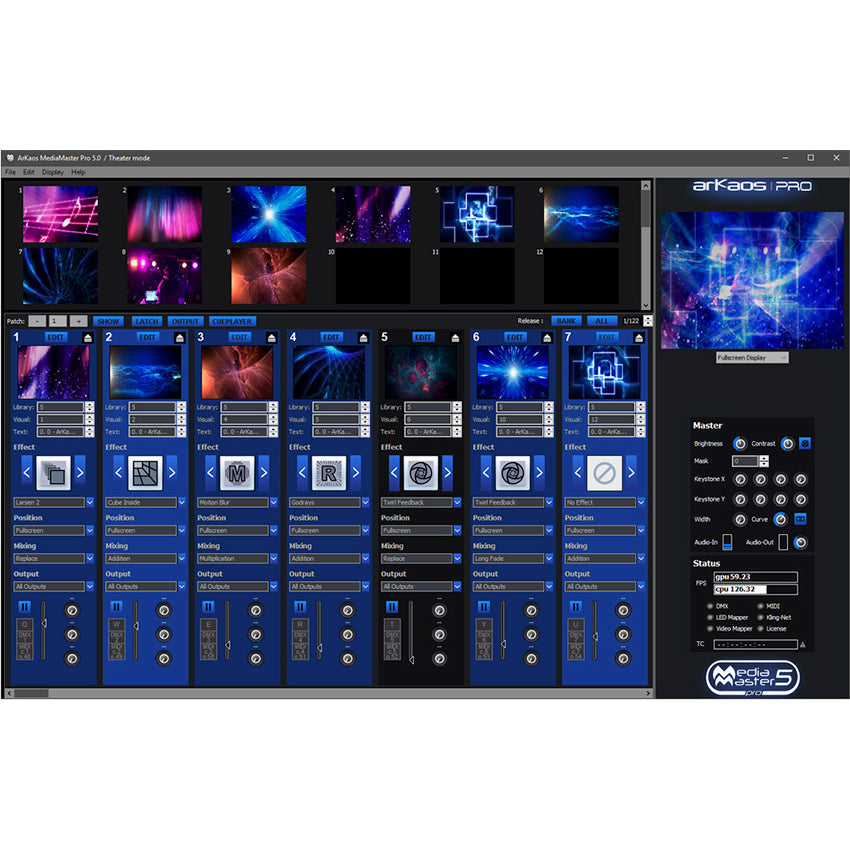

Arkaos Media Master: Video Software

Arkaos GrandVJ 2.0: Video Software



CABLES:

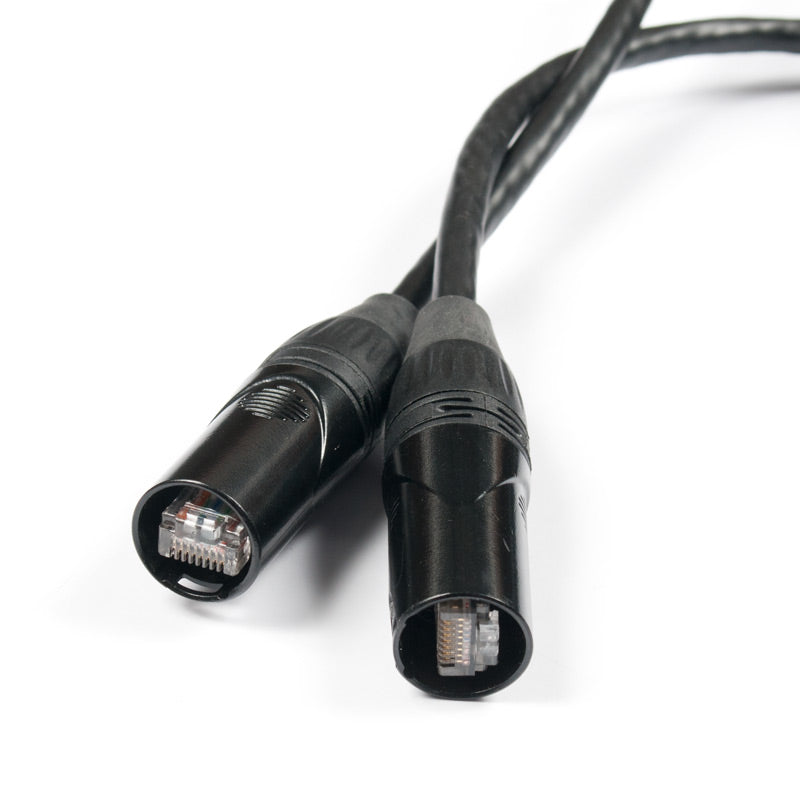

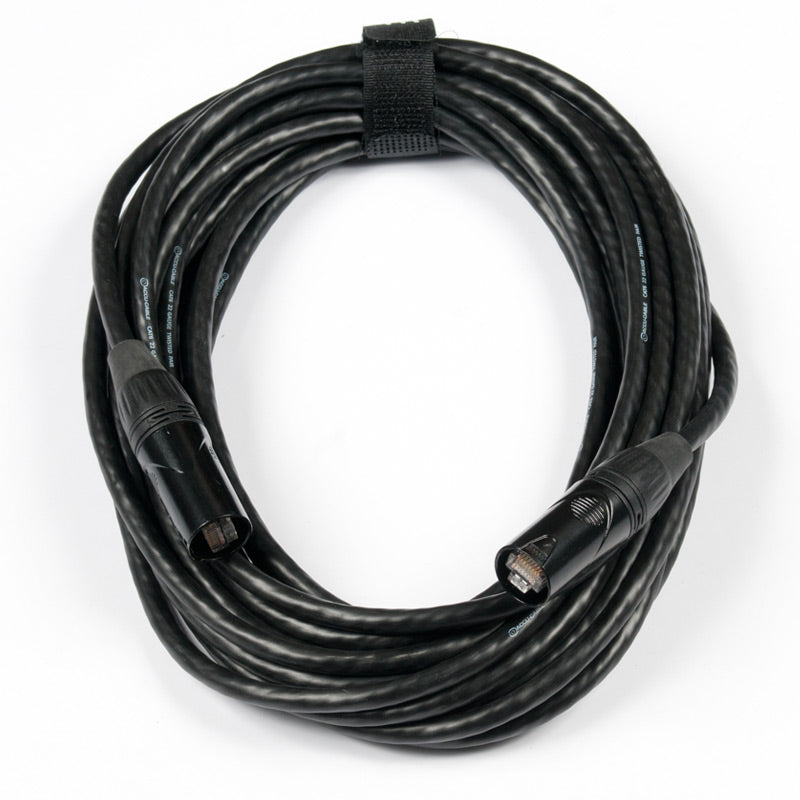

Cabinet to Cabinet Data Link Cables (Ethercon Connectors)

MCTRL-300, VX4S, NOVA PRO HD Processor to Cabinet (Ethercon Connectors)

powerCON Link Cables

powerCON Main Power Cables

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
AV2 USER GUIDE Download
