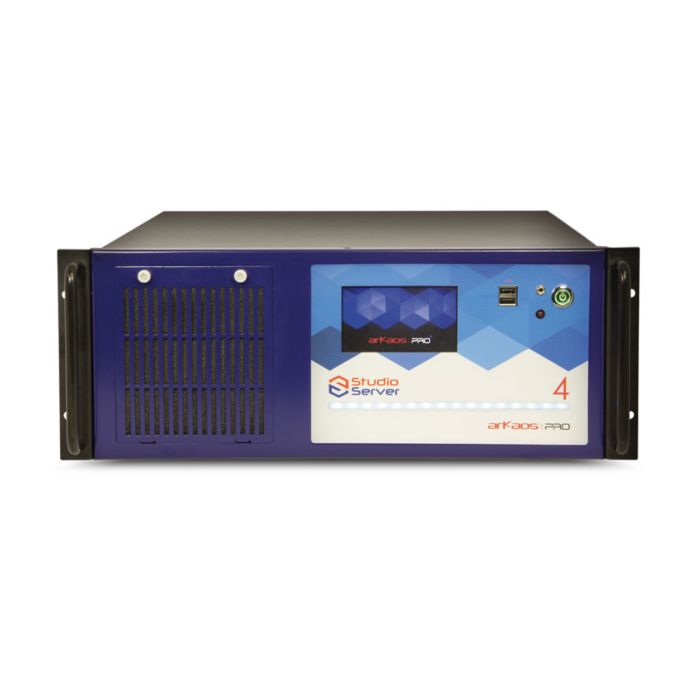

ArKaos Studio Server

SKU: MED223 | UPC: 837874004854

The ArKaos Studio Server is a powerful system designed for Professional Lighting Designers.

Advantage Points: 0

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Features

Plug and Play Simplicity
Vast library of high quality digital media from world’s best visual content providers

Comes installed with MediaMaster Pro


Smart Design
Runs full HD video on up to four EDID managed outputs

One HD-SDI input and fast SSD drive

Large LED status strip for quick visual feedback on the server’s operation state

Front display allows use of server without the need of additional screens

Fast recovery system by Acronis allows extremely simple reset from the boot menu

Pre-configured to work directly with all market-leading DMX lighting desks


Blistering Performance
Shock-resistant up to 2G

Easy access to fans and filters

Thoroughly tested in structural strength, and toleration of heat and vibration

Specifications

Specifications

Specifications

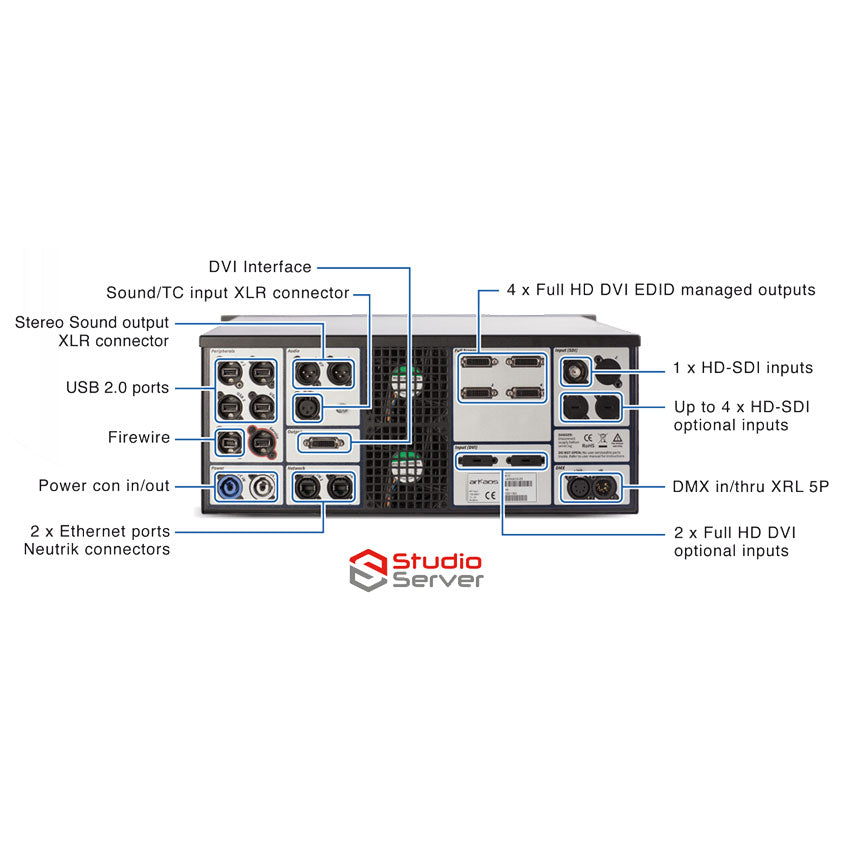

I/O

Interface Output: 1 (DVI)
Output: 4 (DVI)
EDID Management: Yes
Input (Standard): 1x HD-SDI
Input (Upgrade): Up to 4 x HD-SDI & 2 x DVI
Output Resolution: 4 x Full HD
DMX 5pin Connectors: Yes
Genlock: No
Framelock: No
USB: 2 x USB 3.0 + 4 x USB 2
Balanced Audio In/Out (XLR): Yes
Network: 2

STORAGE
System Drive: SSD 128 GB
Separate Drive: SSD 256 GB

SOFTWARE

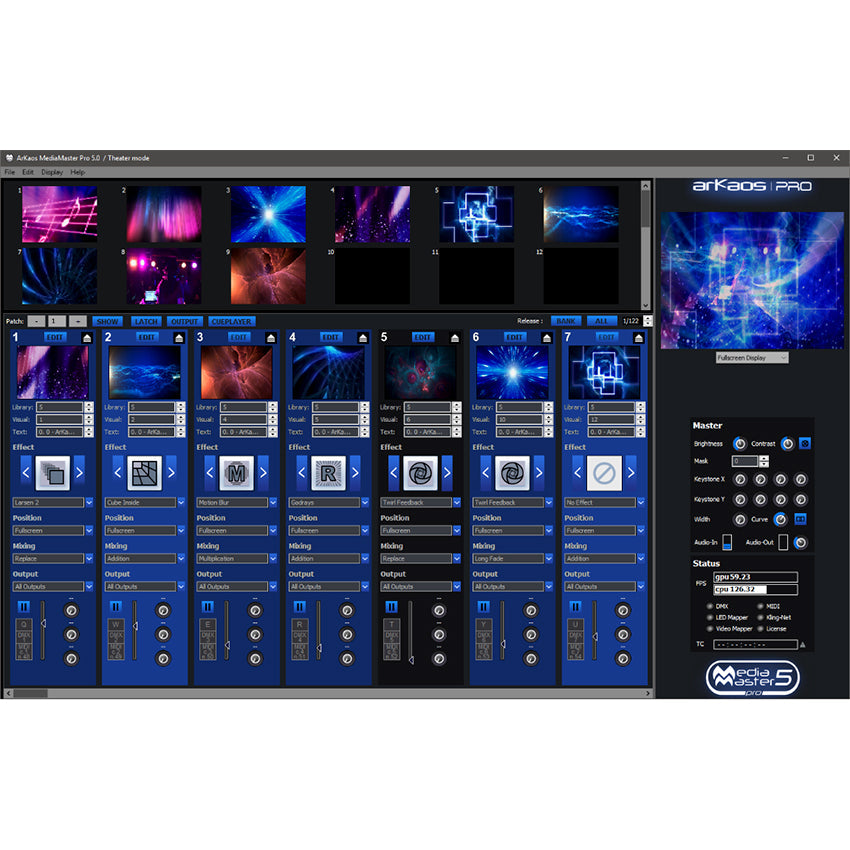

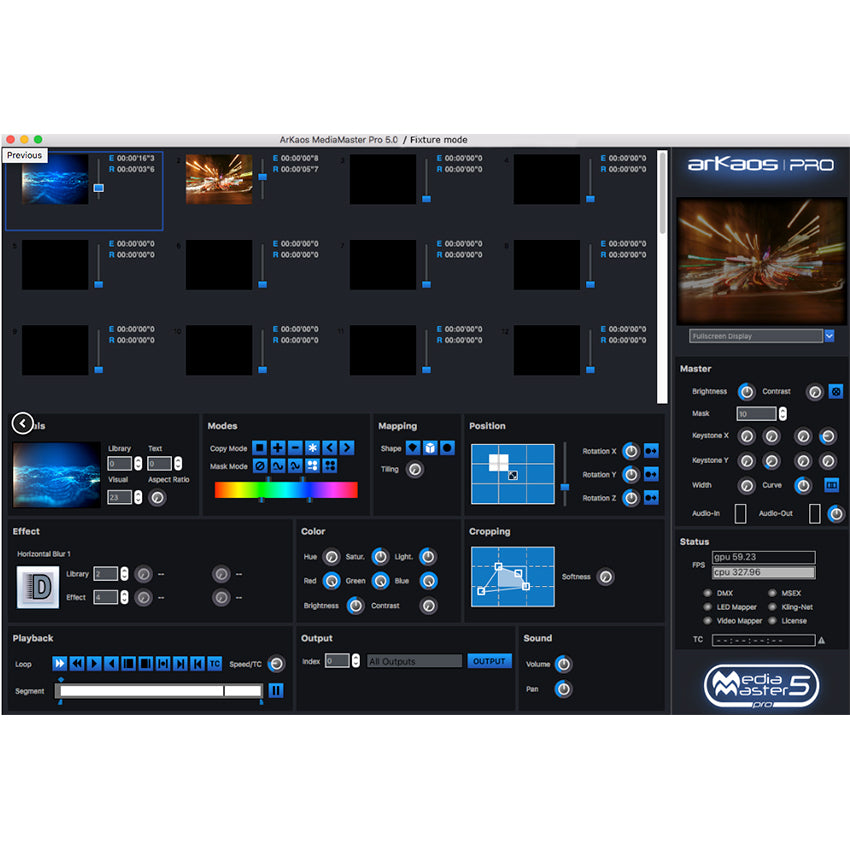

MediaMaster: Pro
CuePlayer (Theater mode): Yes

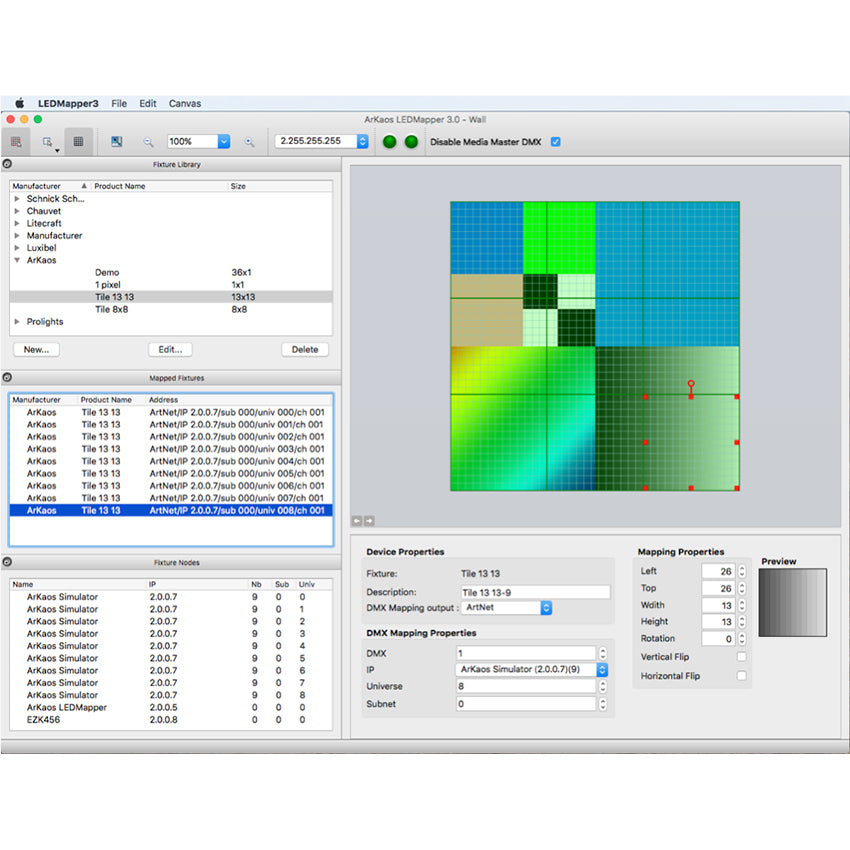

LED Mapper: Yes
Kling-Net Mapper: Yes

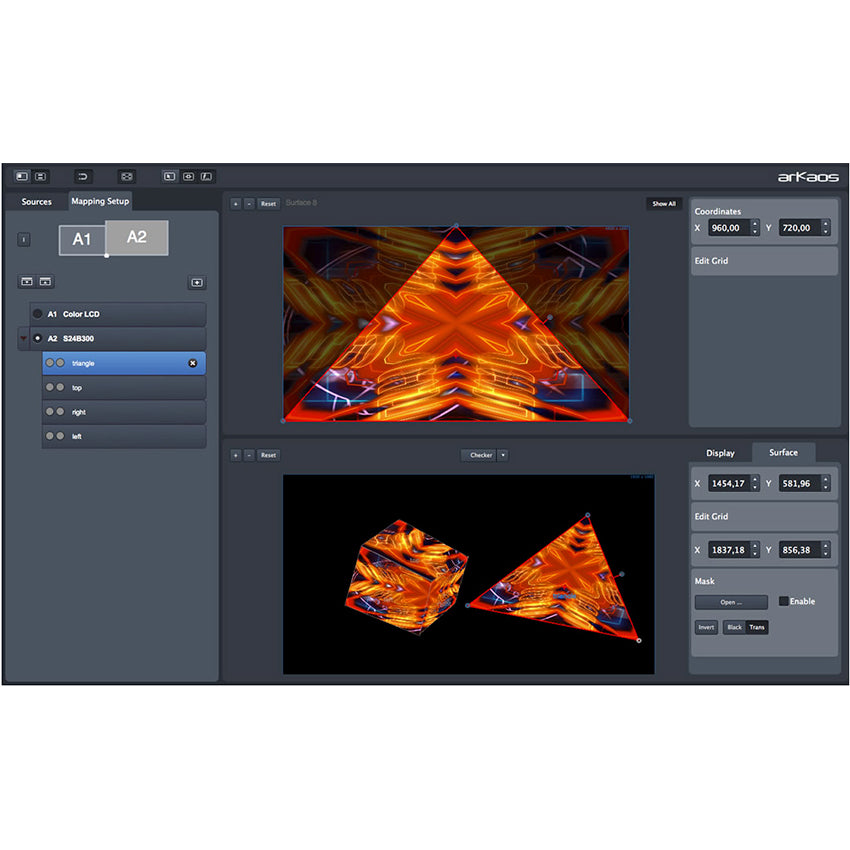

Video Mapper: Yes
Acronis Backup System: Yes
Layers Full HD: Up to 12
Layers HD: 12
Soft-Edge / Geometrical Correction; Yes

CONTROL
Control Display (Front Panel): Yes
LED Strip (Front Panel): Yes
DMX / MIDI / Keyboard: Yes
ArtNet / MA-Net: Yes

HARDWARE

Voltage: 107-240V Auto Switching
Professional Connectors: Yes

SIZE / WEIGHT
Height: 6.9” (176mm)
Length: 16.8” (426mm)
Depth: 20.0” (510mm)
Unit Weight 55.1 lbs. (25kg)




Specifications and documentation subject to change without notice.
