7P HEX IP

This product is CE certified. This product is ETL certified.

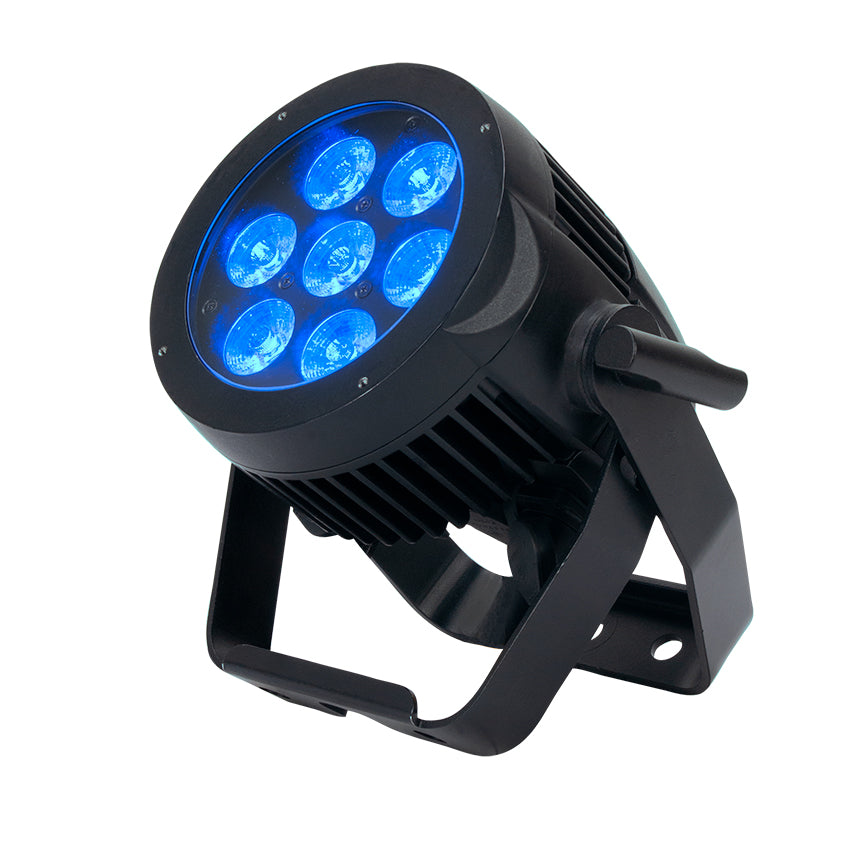

The ADJ 7P HEX IP is a versatile, heavy duty Par with HEX LEDs, a 25-degree beam angle, and all metal construction. It is IP65 outdoor rated to protect against, rain, snow and dust for temporary outdoor events.
UPC: 818651025118SKU: HEX700

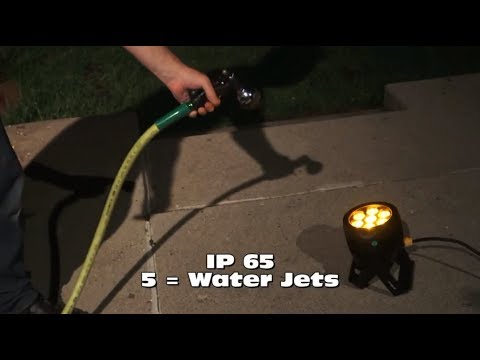

Video

7P HEX IP

Available now form ADJ USA

The ADJ 7P Hex IP is a versatile IP65 outdoor rated Par with 7 x 12-Watt  (6-IN-1 HEX) LEDs. With a 25-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Par great for lighting indoor stages and venues, but with IP 65 rating, it is a great solution for temporary outdoor lighting of stages or events. The IP 65 rating helps protect the fixture from rain, snow and dust.

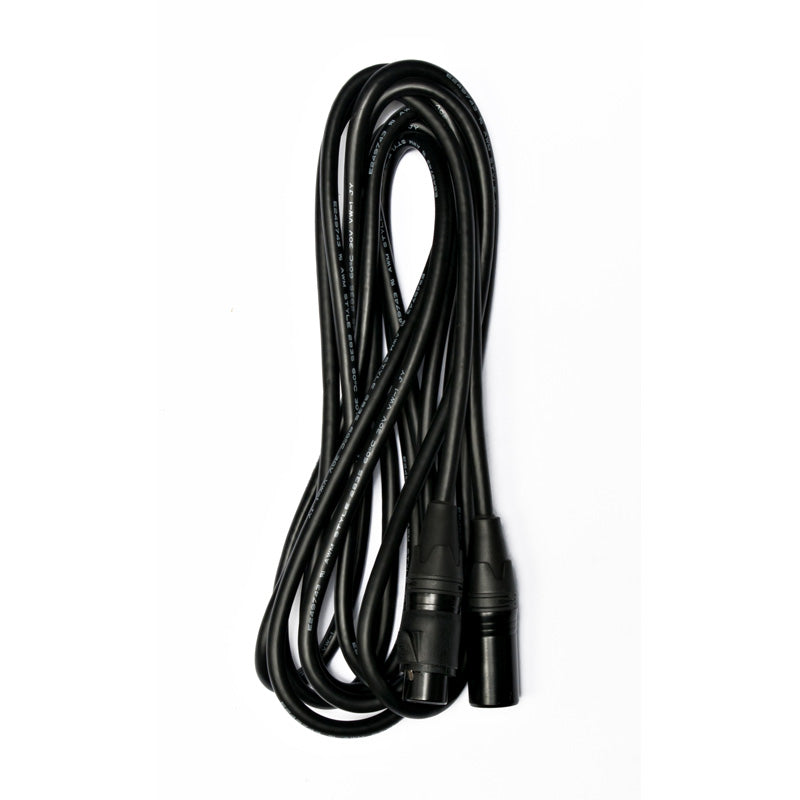

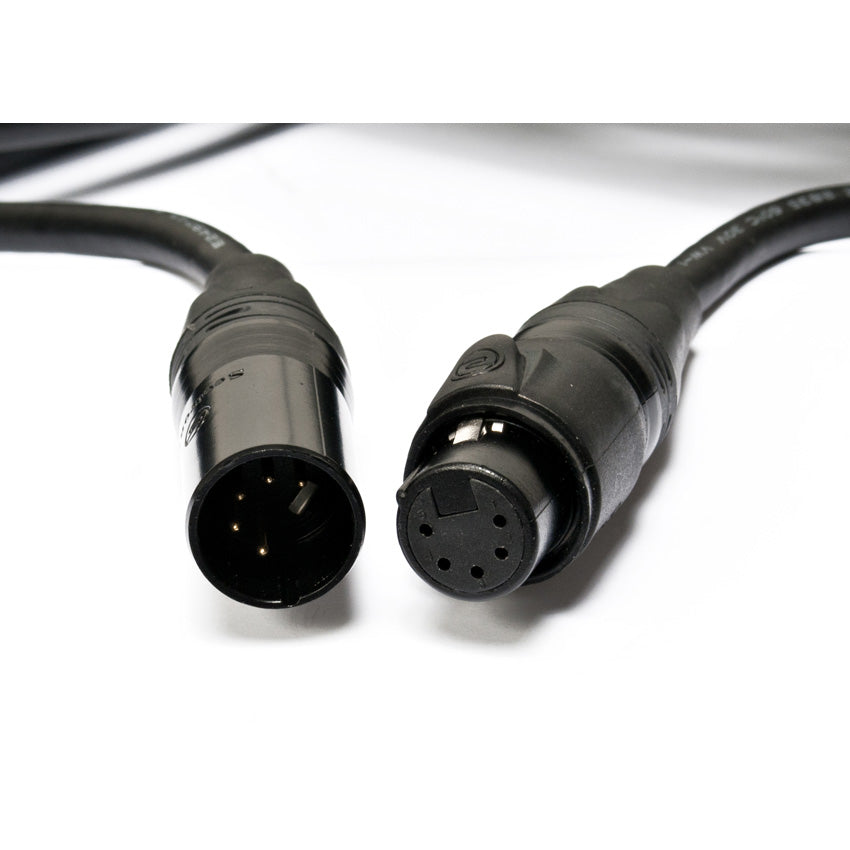

7P HEX IP professional features include: 4 DMX modes, 5 operational modes, 5 dimming curves, flicker free operation and a 4-Button DMX menu with digital display. The unit is equipped with outdoor Locking Power connectors and IP rated 5-pin (Older models may be 3-pin) DMX rubber covers and connectors. IP rated power linking and DMX cables are available, but standard 5-pin DMX cables may also be used for indoor applications (standard cables will not create an IP65 seal).

Learn more about the HEX IP series from this product spotlight article CLICK HERE.Check out the HEX IP Series press release CLICK HERE.



Specifications

Optical:

• Light Source: 7 x 12-Watt RGBAW + UV LEDs (Red, Green, Blue, Amber, White UV LED) - Rated at approximately 50,000 hrs.)

• Beam angle: 25-degree


Features:

• 4 Operational modes: Static Color Mode, RGBAW UV Dimmer Mode, Program Mode and DMX Controlled

• 63 built-in Color Macros

• Flicker Free operation (No flickering on camera)

• 5 selectable Dim Curves (Standard, Stage, TV, Architectural Theatre)

• LED pulse and strobe effect

• Electronic Dimming: 0 - 100%

• Supports RDM (Remote Devise Management)

• Scissor Yoke safety eye

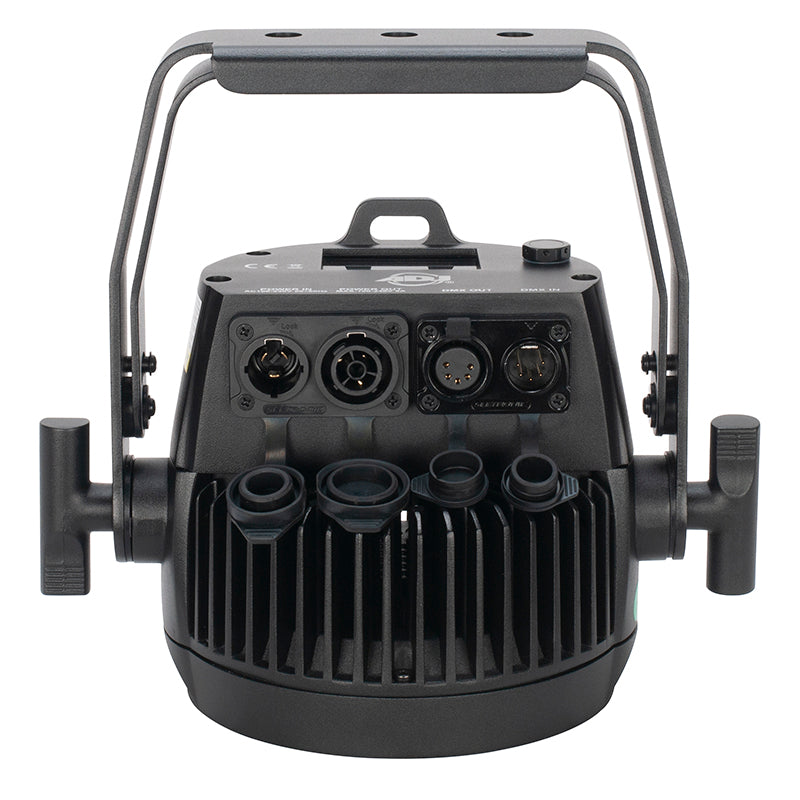

Connections:

• IP65 PowerLock AC In/Out connections

• IP65 Data linkable via 5-pin XLR cables

• Daisy chain: 16 units (120V); 34 units (220V)


Control:

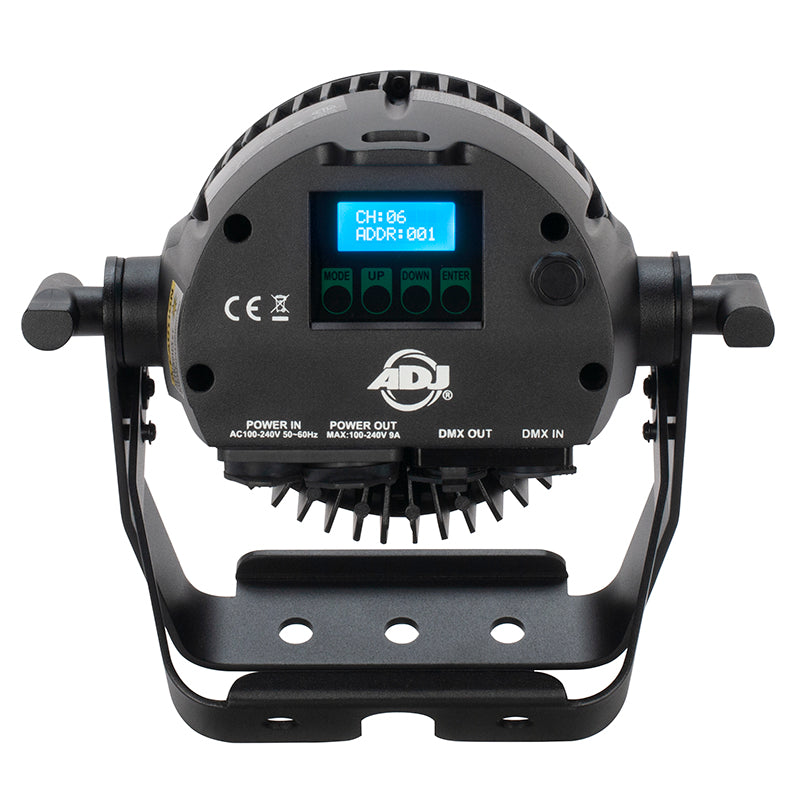

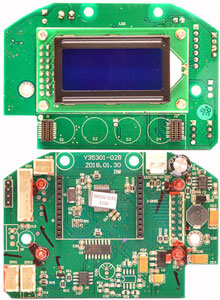

• 4-button, DMX digital display on rear panel

• 4 DMX Modes: 6, 7, 8, 13-channel


Dimensions / Weight:

• Dimensions (LxWxH): 10” x 6.5” x 9.25” / 256x161.7x232.5mm

• Weight: 7.5 lbs. / 3.3 kg.


Certifications:

• IP Rating: IP65 Outdoor Rated

• cETLus (Control # 4010765)


Included in Box:

• IP65 PowerLocking cable


Specifications subject to change without notice.
