18P HEX IP
Optical:
• Light Source: 18 x 12-Watt RGBAW + UV LEDs (Red,
Green, Blue, Amber, White & UV LED) - Rated at
approximately 50,000 hrs.)
• Beam angle: 25-degree
Features:
• 6 DMX Modes: 6, 6+, 9, 9+, 10, & 12-channel
• 4 Operational modes: Static Color Mode, RGBAW & UV Dimmer Mode and Program Mode
Mode and DMX Controlled
• 63 built-in Color Macros
• Flicker Free operation (No flickering on camera)
• 5 selectable Dim Curves (Standard, Stage, TV,
Architectural & Theatre)
• LED pulse and strobe effect
• Electronic Dimming: 0 - 1000%
• Supports RDM (Remote Devise Management)

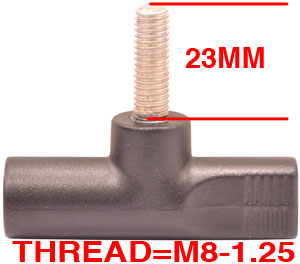

• Scissor Yoke & safety eye

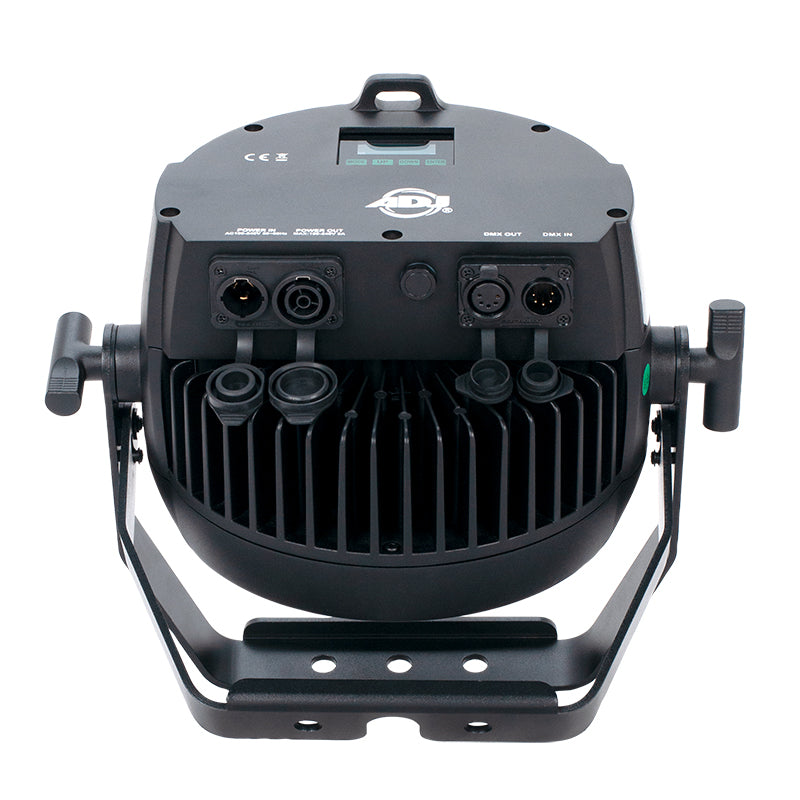

Connections:
• IP65 PowerLock AC In/Out connections
• IP65 Data linkable via 5-pin XLR cables
• Daisy chain: 12 units (120V); 24 units (220V)
Control:

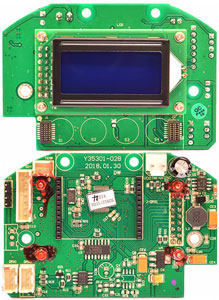

• 4-button, DMX digital display on rear panel
• 4 DMX Modes: 6, 7, 8, & 13-channel
Dimensions / Weight:
• Dimensions (LxWxH): 13.25” x 9.25” x 11” / 336x233x279mm
• Weight: 13.5 lbs. / 6.1 kg.
Certifications:
• IP Rating: IP65 Outdoor Rated
• cETLus (Control # 4010765)
Included in Box:
• IP65 PowerLocking cable
Specifications subject to change without notice.
Videos
Downloads
The following downloads are available for this product:
| Title | Description | |
|---|---|---|
| 18 Hex IP - Series Brochure | Brochure (Rev. Oct 2021) | Download |
| 18P Hex IP - Photometric IES Files | Photometric IES Files | Download |
| 18P Hex IP - Photometric Test Reports | Photometric Test Reports | Download |
| 18P Hex IP - User Manual | User Manual | Download |
Available now from ADJ USA

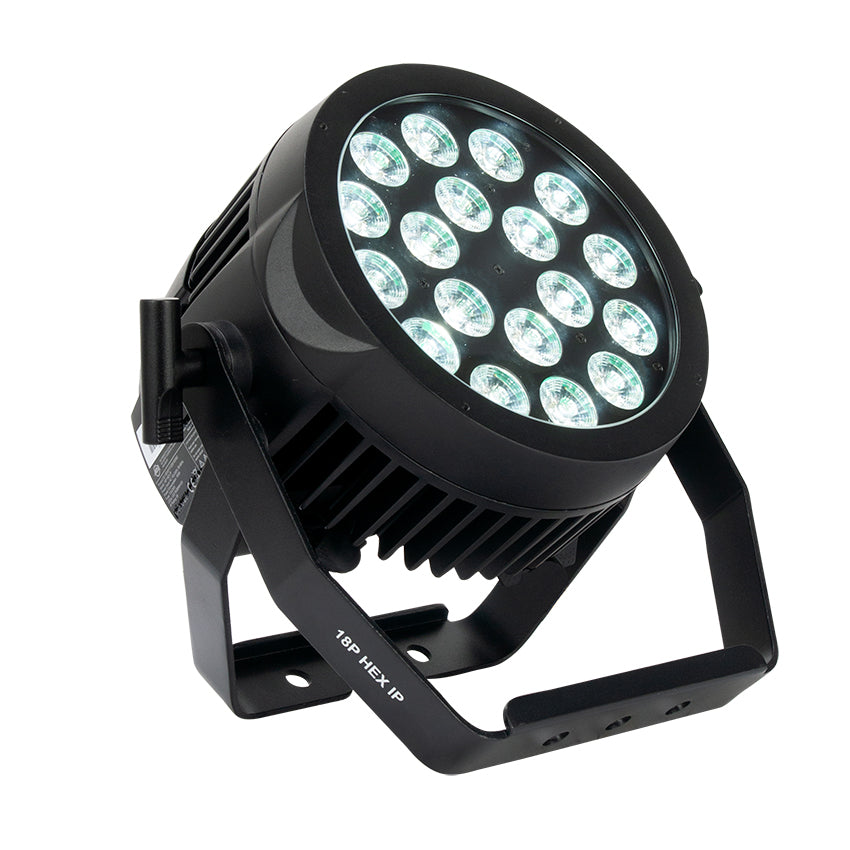

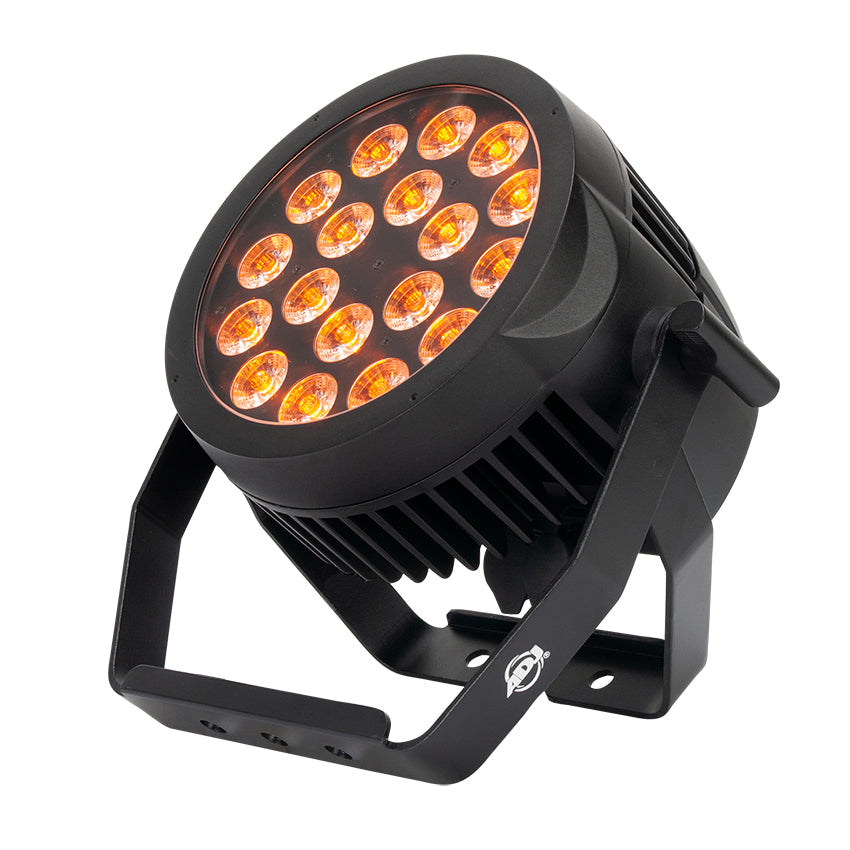

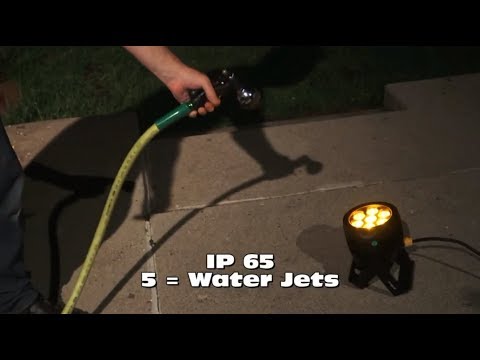

The ADJ 18P Hex IP is a versatile IP65 outdoor rated Par with 18 x 12-Watt (6-IN-1 HEX) LEDs. With a 25-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Par great for lighting indoor stages and venues, but with IP 65 rating, it is a great solution for temporary outdoor lighting of stages or events. The IP 65 rating helps protect the fixture from rain, snow and dust.
18P HEX IP professional features include: 4 DMX modes, 5 operational modes, 5 dimming curves, flicker free operation and a 4-Button DMX menu with digital display. The unit is equipped with outdoor Locking Power connectors and IP rated 5-pin DMX rubber covers and connectors. IP rated power linking and DMX cables are available, but standard 5-pin DMX cables may also be used for indoor applications (standard cables will not create an IP65 seal).
Learn more about the HEX IP series from this product spotlight article CLICK HERE.
Check out the HEX IP Series press release CLICK HERE.
