10 MXR

SKU: MXR926 | UPC: 819730017260
The American Audio MXR Series offers DJs the tactile feel and operation of a traditional DJ mixer while playing and controlling music from software on their computer.
Advantage Points: 200

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

The American Audio MXR Series offers DJs the tactile feel and operation of a traditional DJ mixer while playing and controlling music from software on their computer.

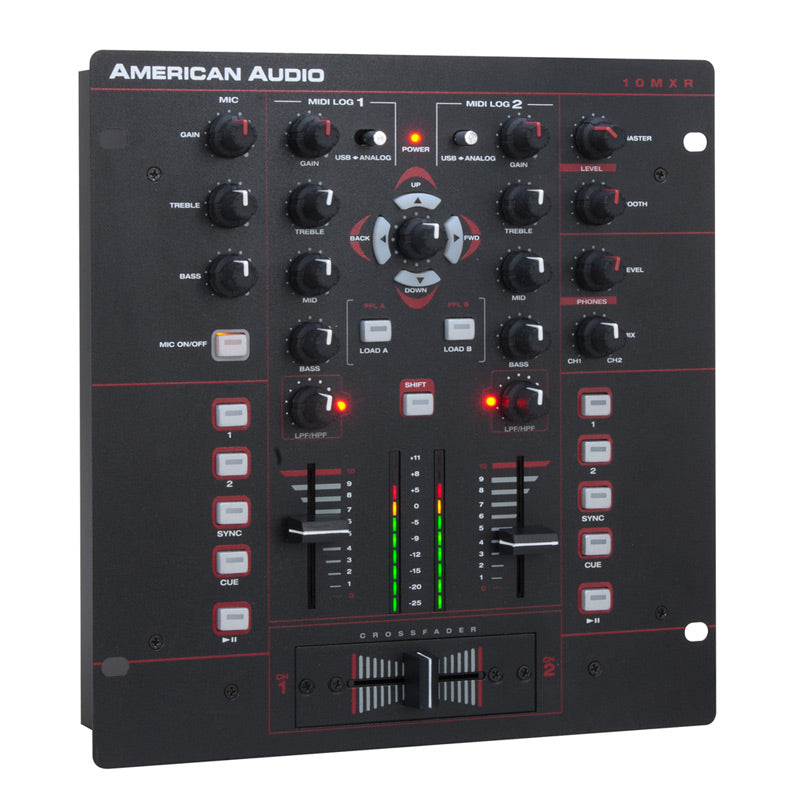

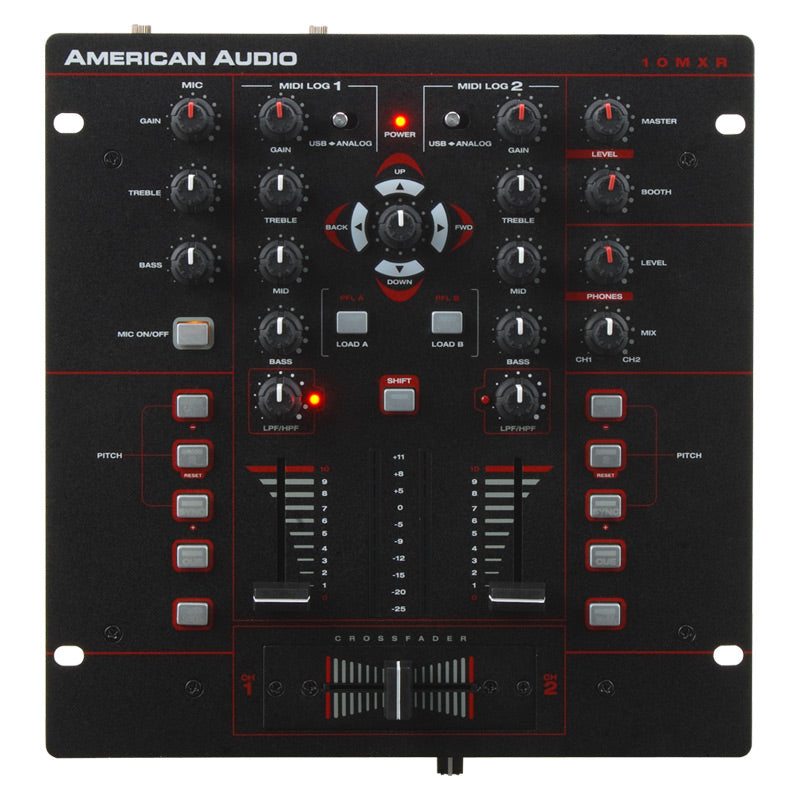

The 10 MXR is a 10-inch, 2-Channel MIDILOG™ Mixer with Midi/Analog control, built-in DSP D-Core Sound Card with 4-In/4-Out audio interface, Balanced XLR Outputs, MIDI Navigation Controls and user assignable control buttons to make it easy to customize and play your music.

Specifications

Specifications

• 10-inch, 2-Channel MIDILOG™ Mixer (compatible with any “Midi Learn” Software or Analog Inputs – such as CD Players, Turntables, etc.)

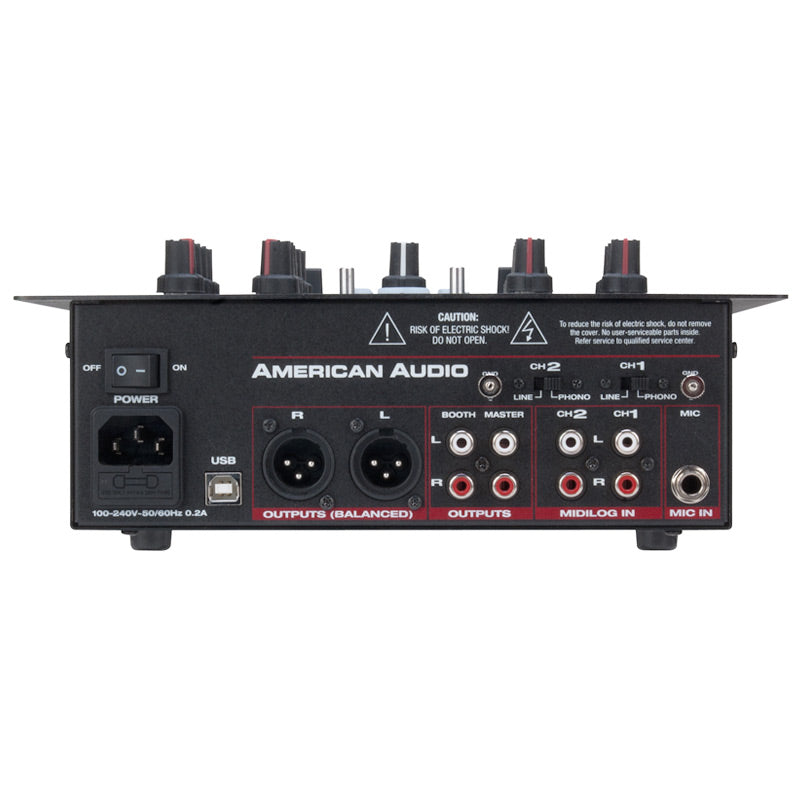

• Inputs: 2 Line, 2 Phono, 1 Mic

• 18 On-board Midi Control Buttons (Mapable)

MIDI interface (USB MIDI I/O)

• Built-in DSP D-Core™ Sound Card with 4-In/4-Out audio interface

• Balanced XLR Outputs

• 3-Band EQ with Rotary Kills (Treble, Mid, Bass)

• Midi Navigation Controls to allow easy software navigation of your music library

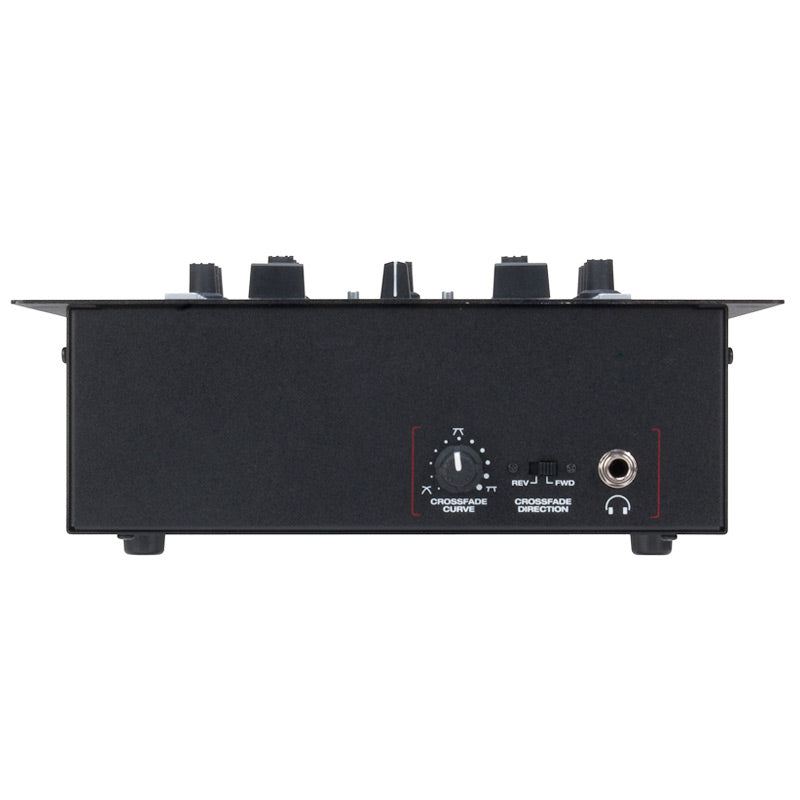

• Crossfader Curve Adjustment

• Crossfader Direction Switch (Forward/Reverse)

• Master, Booth, Headphone Level & Mix Controls

• Microphone Volume Control + 2-Band EQ (Treble & Bass)

• Low/High Pass Filter Control per channel

• 10 segment VU meter

• Audio inputs: RCA

• Microphone input: ¼” Balanced

• Headphone input: ¼” Stereo

• Multi-voltage operation: AC 100V~240V 50/60Hz

• Dimensions (LxWxH): 10.25”x10”x 3.5” / 260x254x85mm

• Weight: 6 lbs. / 2.5 kg.

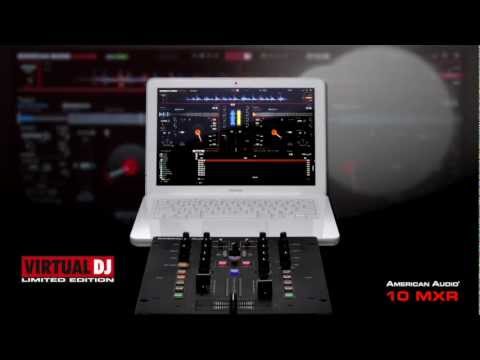

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
10MXR User Manual Download
ASIO Drivers 1.22 Download
Virtual DJ LE 10MXR MAC V7.3 Virtual DJ LE 10MXR - MAC - Version 7.3 Download
Virtual DJ LE 10MXR PC v7.3 Virtual DJ LE 10MXR - PC - Version 7.3 Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

when I connect my usb cord to my laptop using scratch live, all of a sudden my midi presets does not work anymore and it's mapping the controls itself to channel 3 and it should be channel 1. What is going on?

Please contact support@americandj.com for assistance.
