XS 200

(Discontinued)
A new revolution in Moving Heads, the XS 200 is a rotating head Moving Head with two lenses. The head rotates continuously 360-degrees. The ADJ XS 200 is compatible with the UC IR or Airstream IR wireless controllers. A new revolution in Moving Heads, the XS 200 is a rotating head Moving Head with two lenses. The head rotates continuously 360-degrees. The ADJ XS 200 is compatible with the UC IR or Airstream IR wireless controllers. A new revolution in Moving Heads, the XS 200 is a rotating head Moving Head with two lenses. The head rotates continuously 360-degrees. The ADJ XS 200 is compatible with the UC IR or Airstream IR wireless controllers. A new revolution in Moving Heads, the XS 200 is a rotating head Moving Head with two lenses. The head rotates continuously 360-degrees. The ADJ XS 200 is compatible with the UC IR or Airstream IR wireless controllers. A new revolution in Moving Heads, the XS 200 is a rotating head Moving Head with two lenses. The head rotates continuously 360-degrees. The ADJ XS 200 is compatible with the UC IR or Airstream IR wireless controllers.
SKU: XS2200 | UPC: 819730017758
A new revolution in Moving Heads, the XS 200 is a rotating head Moving Head with two lenses. The head rotates continuously 360-degrees. The ADJ XS 200 is compatible with the UC IR or Airstream IR wireless controllers.
Advantage Points: 220

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

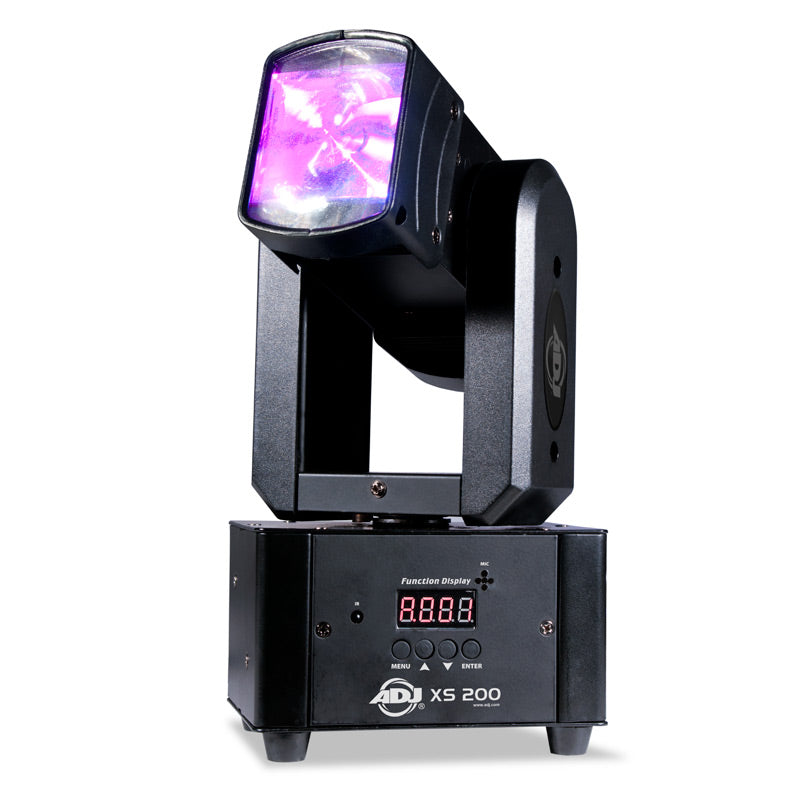

The ADJ XS 200 is a new revolution in moving lights. It features a single Axis head that has continuous 360 degree tilt rotation. The XS 200 utilizes 2 x 10-Watt LED that project sharp beams of light. Its compact size and lightweight makes it ideal for mobile entertainers, small club and bars, roller rinks, bowling centers or any mobile production.

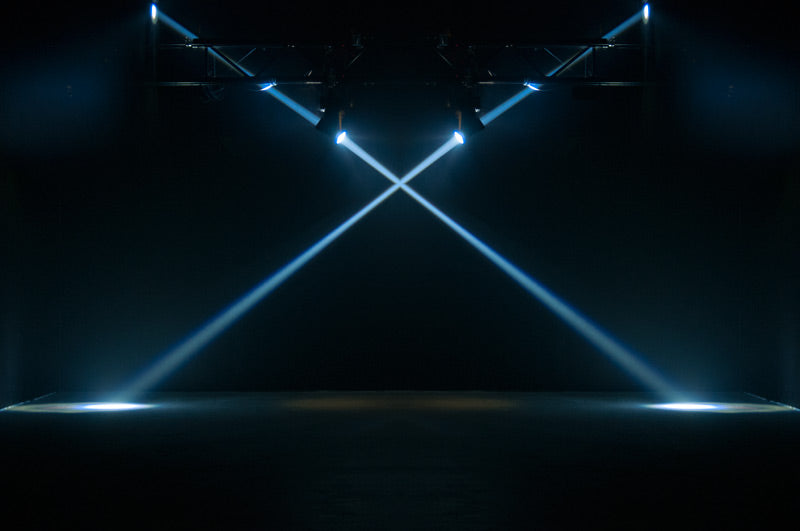

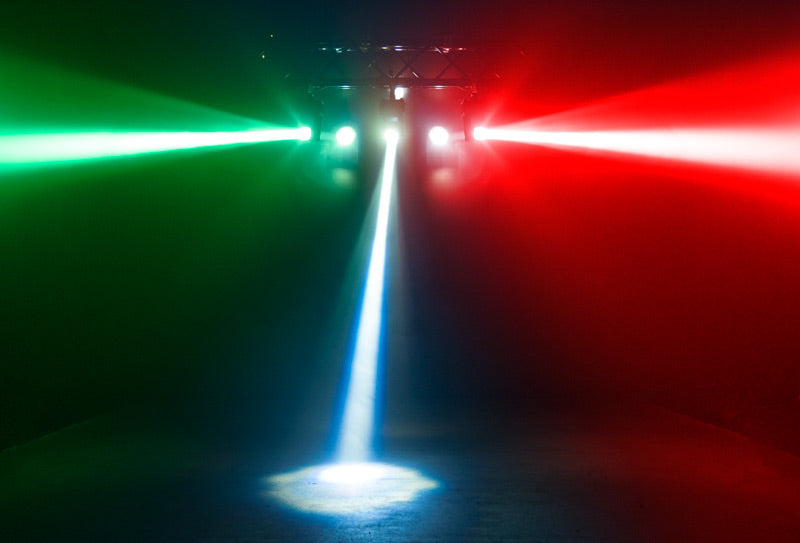

The XS 200 creates the ultimate visual effect that involves fast moving beams and color changes. In show mode you can access 9 different built in shows or create your own color palette by color mixing the RGBW LEDs via DMX control.

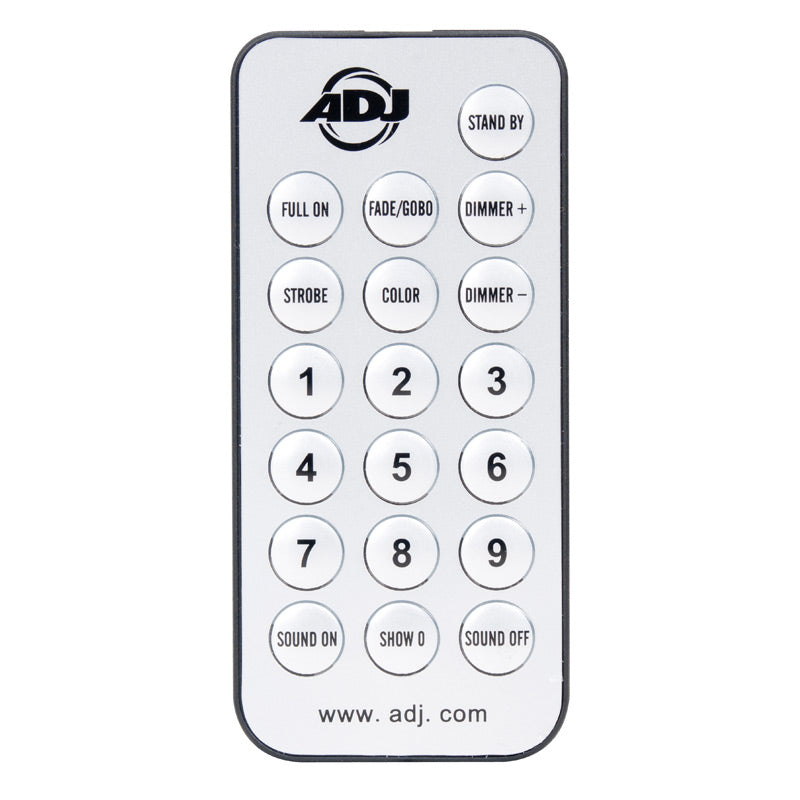

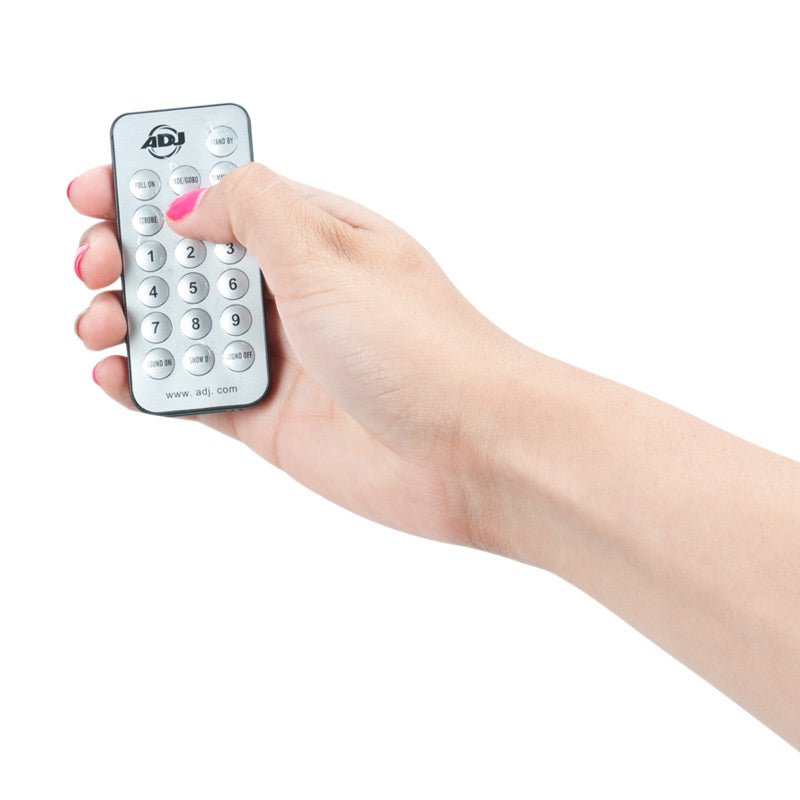

The XS 200 comes with 3 different operating modes; sound active mode with sound sensitivity adjustment, show mode, or DMX control, used to create your own moving light shows or color combinations. The XS 200 can be used as a stand alone unit or in master-slave set up. The XS 200 is UC IR compatible (Sold Separately). The UC IR is used to control various functions for the XS 200.


Specifications

Specifications

• Single axis Moving Head

• 360-degree continuous tilt rotation

• 2 x 10W RGBW (4-in-1) LEDs

• Pixel control of each LED

• RGBW Color Mixing in DMX mode

• 3 Operational modes: DMX, Show Mode & Sound Active

• Stand Alone or Master-slave set up

• 2 DMX Channel modes: 16 Channels & 18 Channels

• 4-Button menu system LED Display making it easy to navigate

• 9 Built-in shows

• 5-degree Beam Angle
• 5531 LUX @2M; 1242 LUX @4M (5-degree beam)

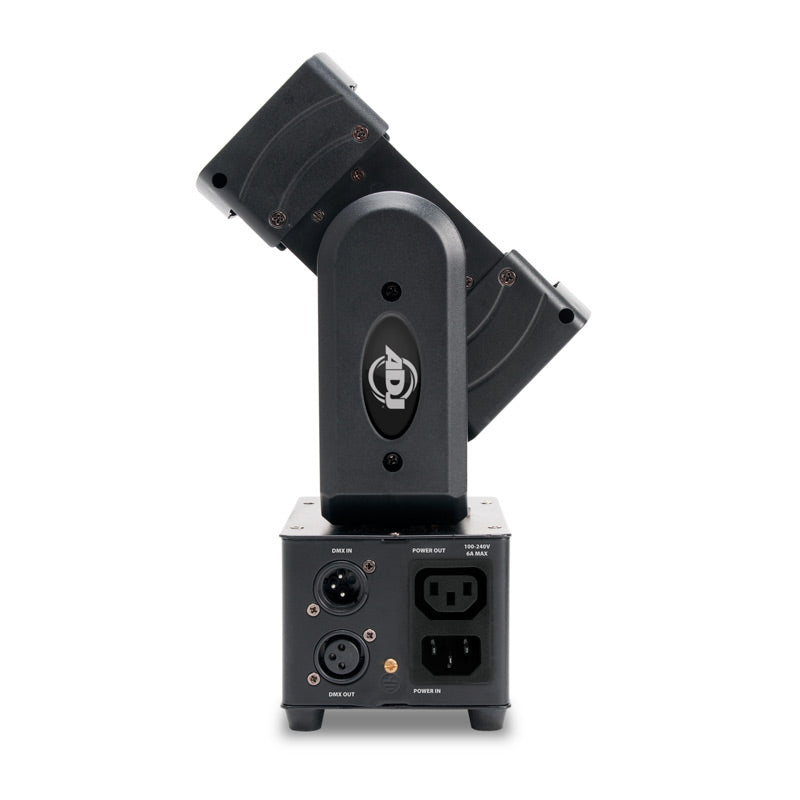

• 3-pin XLR DMX connectors

• Lifetime of the LEDs (50,000 hr. rating)

• Power consumption: 20W total
• Power Cable Length: 1.2m (IEC)

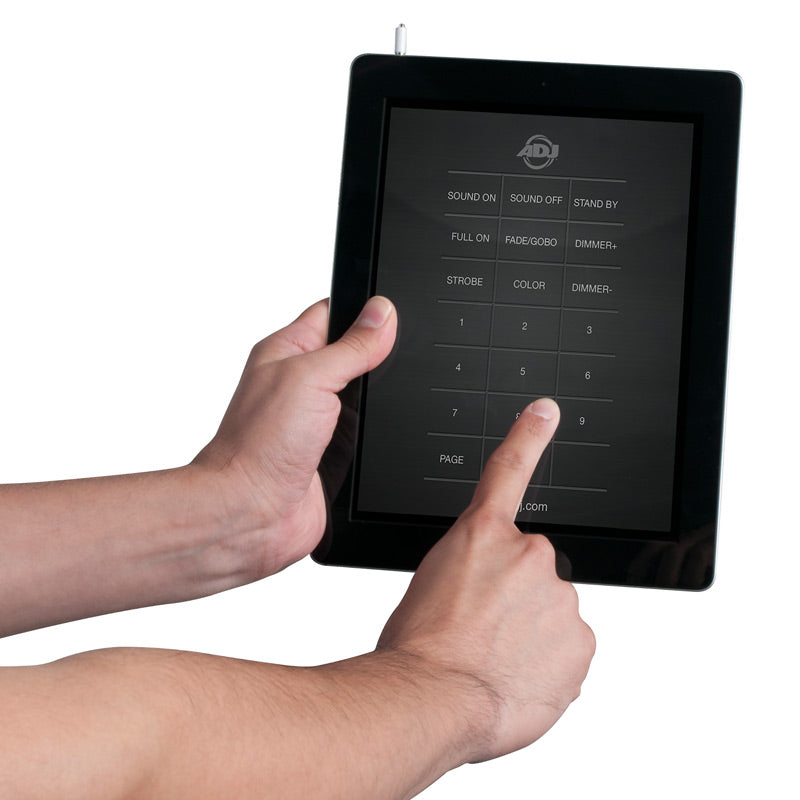

• UC IR wireless controller & Airstream IR wireless App compatible (sold Separately)

IEC In & Out to Daisy chain Power (Connect up to 8 Fixtures)

• Multi-voltage operation: AC 100-240V 50/60Hz (IEC input only)

• Dimensions (LxWxH): 5.75” x 4” x 11.25” / 145 x 100 x 285mm

• Weight: 4 lbs. / 2 kgs.

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
XS Photometric Chart Download
XS 200 User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

Dose the sx 600 has the same light actions as the sx200

Hello Daniela,

No, these two lights do not have the same light action at all. The XS600 has a 6 light output effect and the XS200 has a two light output effect. Here are the links below for both products. Let me know if you have any further questions. http://www.adj.com/xs-200 http://www.adj.com/xs-600

Thanks,

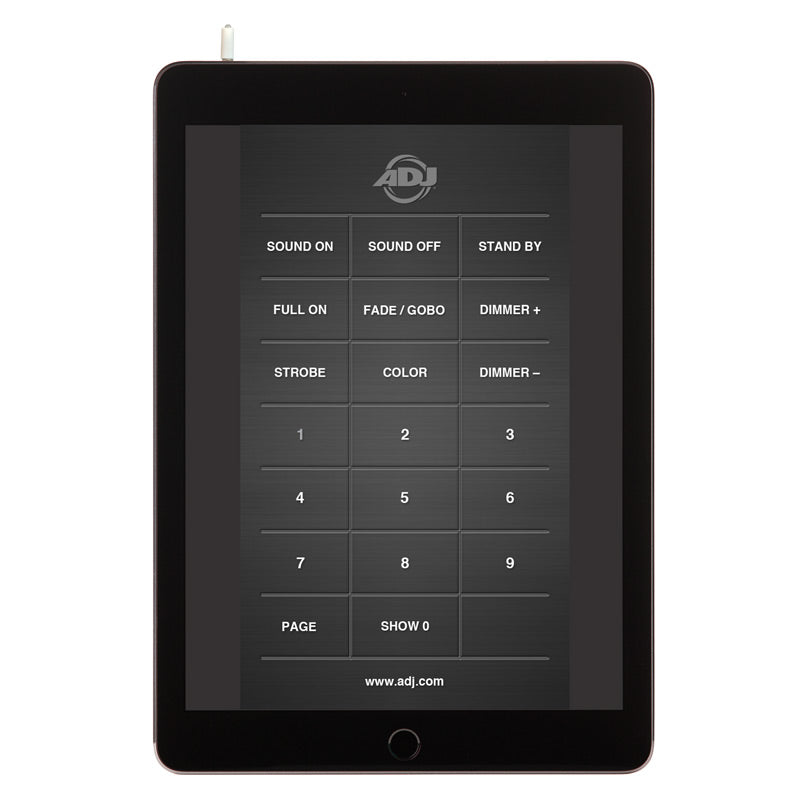

How or where do I put my xs 200 to work with the airstream ir app, what setting?

The XS 200 is designed to automatically respond to the IR remote, there's no way to disable the sensor. You simply need to make sure that the remote is pointed directly at the sensor which is located next to the display. You must also be within 30 feet of the light fxture,
