Available now from American Audio USA • $279.99

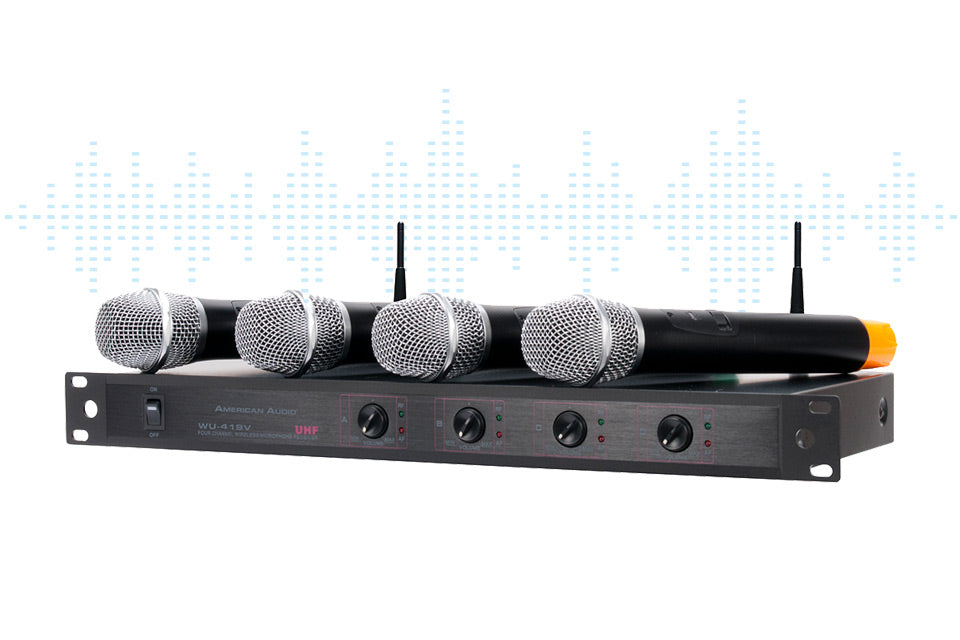

The American Audio WU-419V is a 4-channel UHF wireless microphone system that includes four wireless microphones, four different color coded rings (to differentiate each microphone) and a wireless receive with individual volume control and audio input for each microphone.
The WU-419V is designed for use in PA, karaoke, mobile entertainers, schools and houses of worship. It has a wireless range of 300 feet / 90M (line of site) and each microphone has 6-10 hour battery life.
WU-419V UHF frequencies are: 556.0MHz, 553.5MHz, 514.0MHz & 513.5MHz.
Also available is the WU-419VZ with UHF frequencies: 555.8Mhz, 551.4MHz, 511.3MHz & 510.0Mhz.
• Individual volume controls on each channel
• On/Off power switch
• 4 Individual 3-pin XLR balanced microphone outputs + One 1/4-inch mixed output
• 2 removable antennas
• Rugged 1RU Metal Receiver Chassis
• Quartz Controlled Fixed Frequency
• 4x Hand Held Wireless Microphones (AA batteries not included)
• 4x Microphone Colored Rings
• 1x 4-Channel UHF Wireless Receiver
• 2x Detachable UHF Antennas
• 1x Power Cable
• Wireless Range: 300 ft. (90M) line of site*
• Battery life with full charge: 6-10 hours
• Frequency Range: UHF 510-556MHz
• Dynamic Range: >95dB
• Total Harmonic Distortion: <0.5%
• Frequency Response: 40HZ ~ 18Hz 3dB
• Signal to Noise Ratio: >98dB
• Audio Output Level: 0-400mV (Balanced: 0-2V)
• Power: 10mW
*Actual wireless range will depend on RF signal absorption and interference
DIMENSIONS / WEIGHT:
• Receiver Dimensions (LxWxH): 19”x10.4”x1.9” / 482x260x49mm
• Receiver Weight: 4.25 lbs. / 1.9kg.
• XL-3: 3-foot (0.9m) 3-pin microphone cable
• XL-6: 6-foot (1.8m) 3-pin microphone cable
• XL-12: 12-foot (3.6m) 3-pin microphone cable
• XL-25: 25-foot (7m) 3-pin microphone cable
• XL-50: 50-foot (15m) 3-pin microphone cable
• XL-100: 100-foot (30m) 3-pin microphone cable
The following downloads are available for this product:
|American Audio WU-419V User Manual||User Manual||Download|
