WiFLY NE1

SKU: WIF929 | UPC: 819730014351
Advantage Points: 300

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

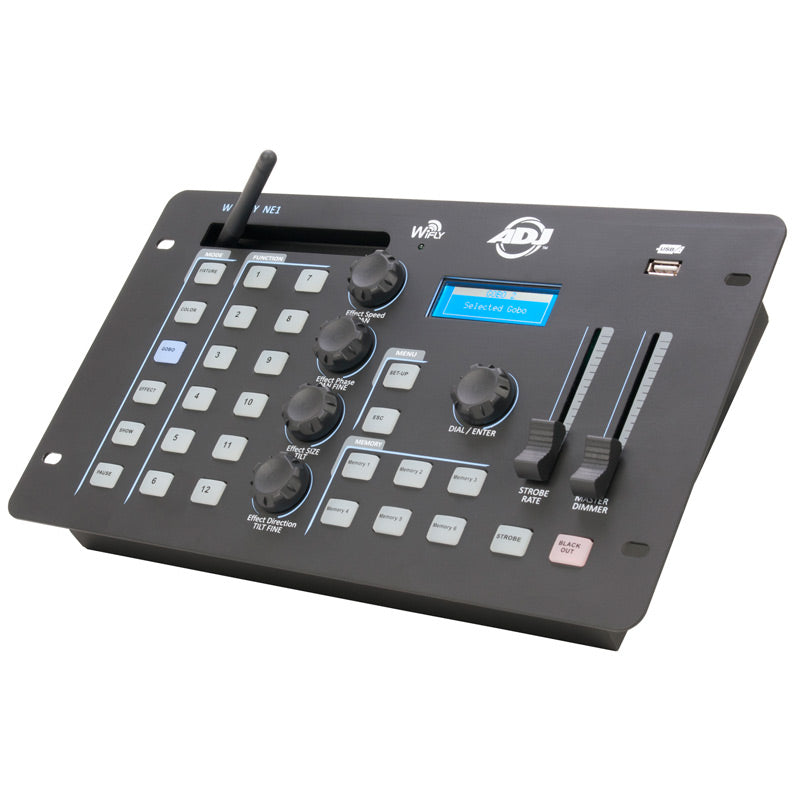

No matter what your knowledge of DMX is, ADJ’s new WiFLY NE1 controller combines a user-intuitive interface with built-in WiFLY to provide a wireless DMX solution that’s revolutionary in its simplicity.

The WiFLY NE1 from ADJ is the DMX controller you’ve all been waiting for; a real game changer and the most universally-accessible ever. Offering you a versatile DMX control solution, the WiFLY NE1 is equipped with a built-in FX generator, for both LED and Moving Lights, and WiFLY transmitter, making it compatible with a range of fixtures from ADJ’s WiFLY series. Along with wireless DMX transmission, the WiFLY NE1 also has a 3-pin DMX output for fixtures without wireless DMX.

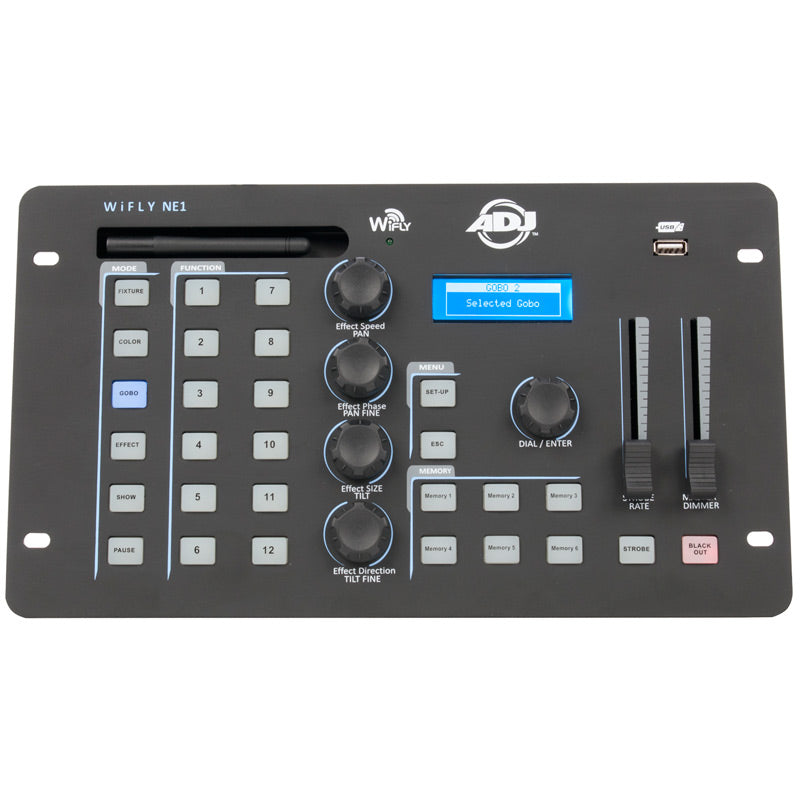

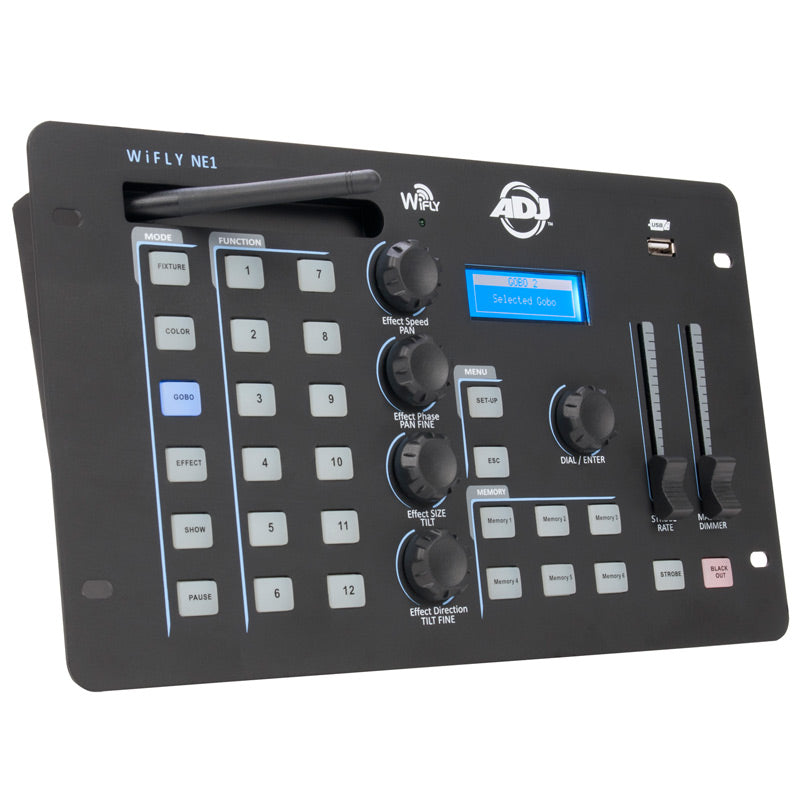

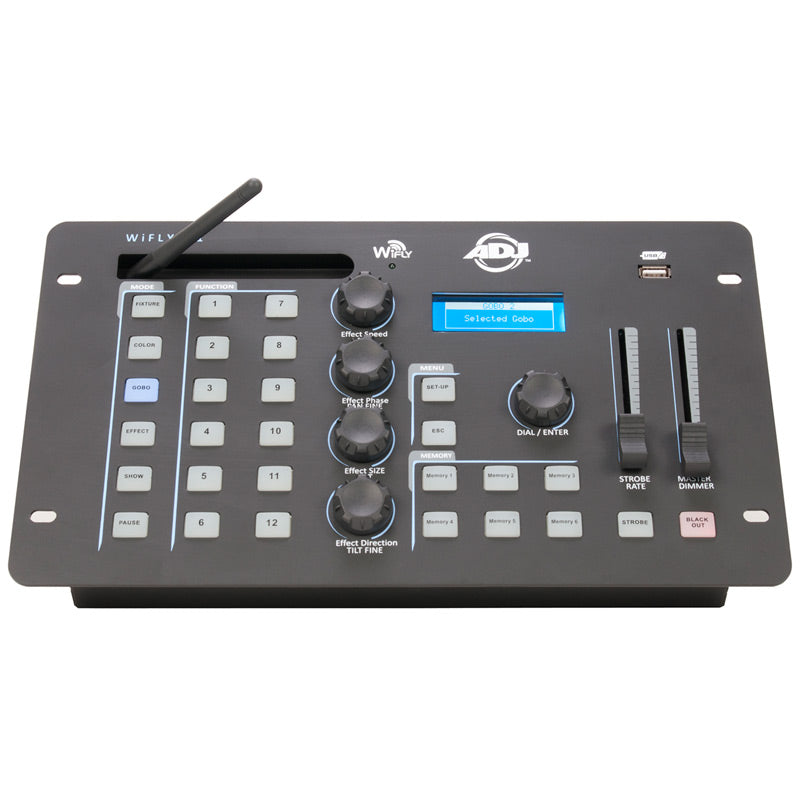

There’s a reason ADJ named this user-friendly controller the WiFLY NE1, and that’s because it really can be used by just about “anyone” – no matter what your level of experience or knowledge of the DMX protocol. Because the compact controller simplifies each element, giving you the features of a larger, more powerful controller laid out in a convenient, user-intuitive way, a basic grasp of DMX is all that you need. With no sub-menus to complicate things, you can click the setting you want to adjust – with buttons for fixture, color, gobo, effect, show and pause – and change it using the on-board dials and numbered buttons. So, you can easily select between 1 and 12 fixtures, as well the pan/tilt settings, color settings and effect settings for each. With independent faders and buttons for the strobe effects and master dimmer, you also have easily accessible control over these atmosphere-enhancing features, allowing you to create more pure lighting excitement from behind the desk.

You’ll find that setup is simple too. Fitted with a blue-backlit LED screen, the WiFLY NE1 lets you select the lights you’re using from its fixture library, which includes an expansive list of popular ADJ products. You can also create profiles within the library with our NE1 Profile creator program; adding your own fixture profiles and data using the controller’s universal USB port.

As well as offering this extensive profile library, ADJ has equipped the WiFLY NE1 with a built-in FX generator, which lets you choose from a plethora of movements for moving lights and LED chase effects, saving you the hassle and complication of creating your own. Whether you want to produce eye-catching color changing effects from your RGB par cans or program your moving lights to follow energetic patterns of movement, the WiFLY NE1 lets you do so with unprecedented ease.

While the WiFLY NE1 is incredibly easy to operate, it's versatility really comes from the built-in WiFLY, which enables you to control as many as 12 individual WiFLY-compatible ADJ fixtures using wireless DMX. This means you can increase the scope of your wireless setup, while still enjoying access to the simple but effective DMX operation offered by the unit’s user-friendly layout. For those of you that also want control over your non-WiFLY units, the WiFLY NE1 comes fitted with a standard 3-pin DMX output.

If you’re a mobile DJ or entertainer on the move, the WiFLY NE1 controller really lets you take your lighting system to the next level, not only allowing you to do more with your dance-floor but giving you exciting creative options for the first dance, cake cutting and evening reception at events such as weddings, bar/bat mitzvahs, birthdays and other special occasions. On the other hand, if you’re the owner of a small club or venue, using the WiFLY NE1 means that you can act independently, without having to rely on a lighting designer, thanks to its user-friendly layout. No matter who you are, with the WiFLY NE1 at your fingertips you don’t need ‘big desk’ knowledge to get creative or achieve professional results.

Putting the creativity of DMX in the hands of anyone who wants it, the WiFLY NE1 is an inexpensive but game-changing product in the world of professional lighting. It promises to provide you with the ultimate user-intuitive DMX control solution, free from the complexities of bigger, more powerful desks but offering the same incredible control.

Furthermore, with built-in WiFLY, the controller is compatible with a range of wireless ADJ fixtures, allowing you to further the scope of your wireless setup to create pure lighting excitement for your audiences, while offering simple but effective DMX operation.

Specifications

Specifications

Features:

• 432 channel DMX Controller with ADJ’s WiFLY Transceiver   Wireless DMX on-board.  (Can also be hard wired via 3 pin   DMX cables)

• Designed for Inno Series and RGB, RGBW, RGBA,
  RGBWA and RGBWA+UV LED’s but can control most
  DMX products that consist of 36 channels or less

• Built-in effects generator for moving lights and LED’s

• Control up to 12 individual fixtures

• 12 Memories via 2 Banks

• 4 Rotary Encoders for Channel & Function Control

• Master Dimmer Fader Control

• Strobe Rate Fader Control

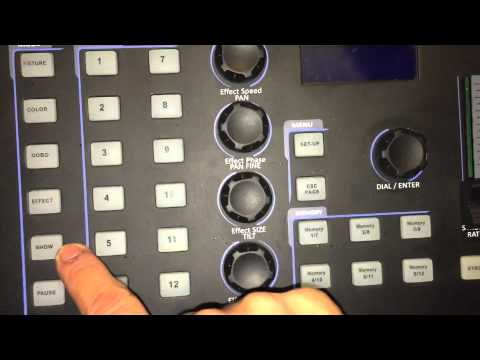

• 6 Mode buttons (Fixture, Color, Gobo, Effect, Show, &
  Pause)

• 12 Multi-Function buttons

• Blackout button

• Universal USB Port (USB Stick Included)



Tech Specs:

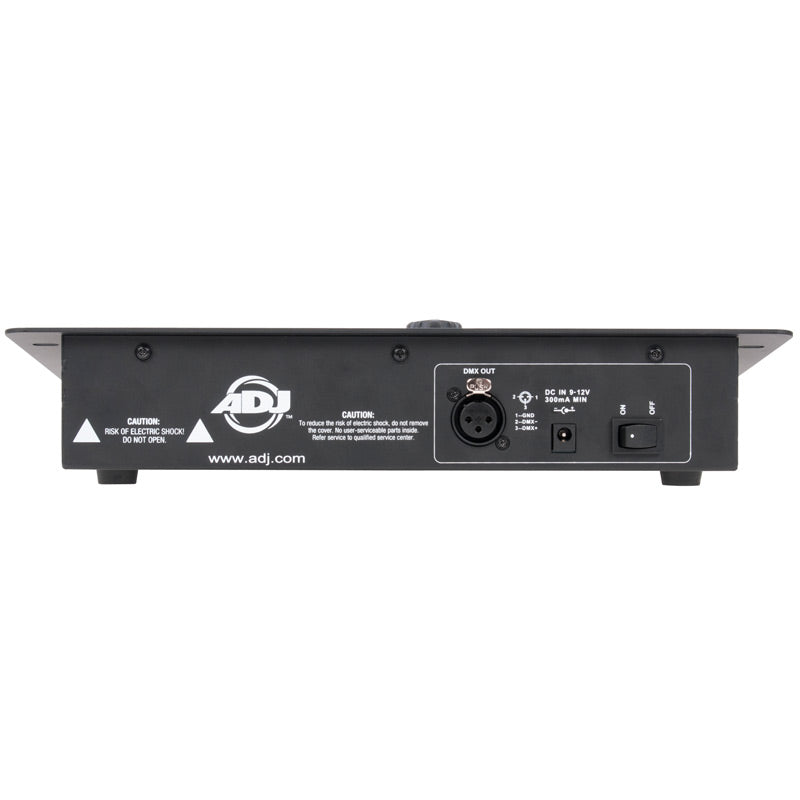

• DMX output connector: 3-pin XLR

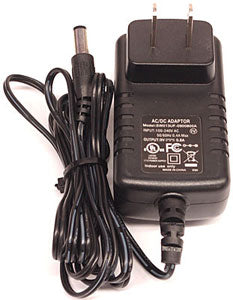

• Power In: 9-12V DC min 300mA UL approved power
  supply (Included)

• Power consumption: 2.7 Watts

• Size: 12.8” x 7.25” x 2.75” (325 x 185 x 68.7mm)

• Weight: 4.4 lbs. (2 kgs.)

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
WiFLY NE1 Cut Sheet Download
WiFly NE1 User Manual 4/15 Download
WiFly NE1 Profile Creator Instructions Download
WiFly NE1 Profile Creator June 18,2015 Download
ADJ Fixture Profiles for NE1 Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

Will this work perfectly with the, Inno beam 12s?

Sorry but no, as this controller does not have the controlls needed to operate a moving fixture. Look at a DMX OPERATOR to start.

you say the NE1 is not any good for Moving Fixtures but on video it say for moving Heads ?? as i have 4 inno spot leds 12 5q5 uplighters a equinox rgb starcloth for booth and will be getting 2 StarBursts when released

It will work for moving heads also, but the library that is built in has American Dj product only.

Does it work with all the inno pocket range

Yes it will as it can use a DMX cable to talk to the fixtures.

Hi ADJ Team, is the ne-1 controller suitable for dotz1.4 and which functions could be controlled?

Yes the NE-1 will controll the DOTZ 1.4 but since we don't yet have the owners manual avaliable, I am unable to confirm how many functions it can control. We are looking to recieve the information around end of April.

Which fixtures are already built in to the ne1 library

There are 60 profiles in the library. Please let us know which fixture or fixtures you are looking for.

My goal is to use 6 par QA5 in combination with the NE1. How can I use the sound active mode program For example, two colors switching on the beat of the music. Please help!

Sound active mode will only trigger built in programs.You can't choose colors but you can choose a program from 1-16 for sound active mode.

I recently just purchased the NE1. Is it possible to get a profile made for non ADJ fixtures? I'm looking for the Chauvet Intimidator Spot 250, and the Chauvet Freedom Par Hex-4. I hope you can help with this matter.

Yes they can be made. Contact eries@americandj.com

will profiles work on a apple mac pro

The profile builder is only for P.C.

Hi, I have just purchased the NE1 for my current lighting system. Do you have profiles for Mega Tri 64 profiles, Freq 16, Fog Fury 3000 and fog fury faze? Non ADJ stuff I have is Pulse LED Bar 320 and Kam Laserscan 500? Many thanks Chris

Please contact support@americandj.com

Will this control the octobeam ww Will it control the stinger Will it control the royal sky Will it control a chauvet color strip mini

The WIFLY NE1 will controll all the fixtures you have mentioned by 3 pin DMX connection.
