WiFLY EXR QA12BAR IP

SKU: WIF120 | UPC: 819730014276

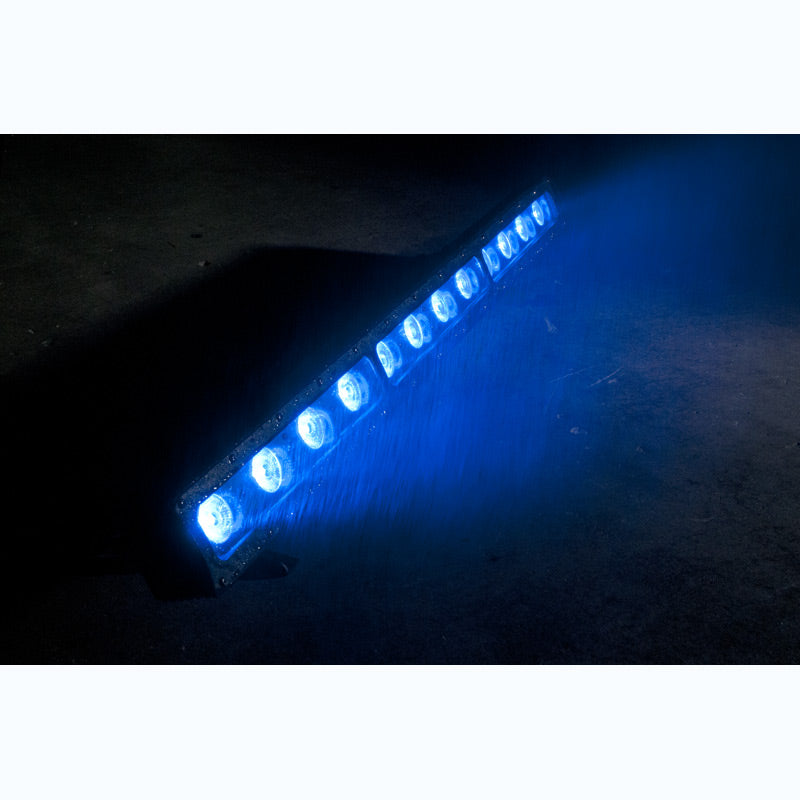

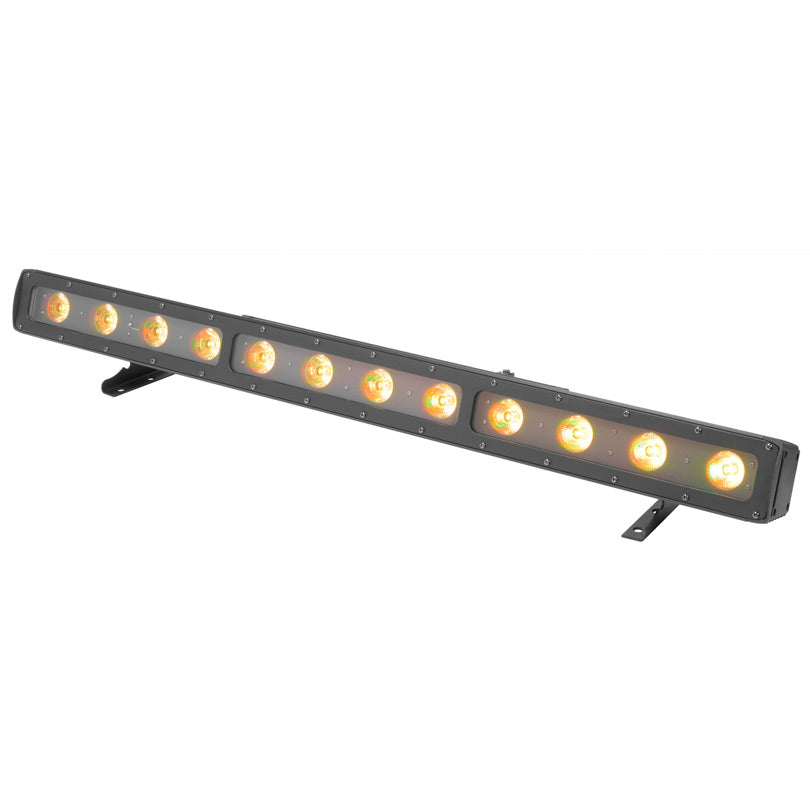

The WiFLY EXR QA12BAR IP is a 1-meter LED linear fixture made of robust metal and is IP65 outdoor rated. It features wireless DMX transmission up to 2,500 ft./760M.
Advantage Points: 500

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Specifications

Specifications

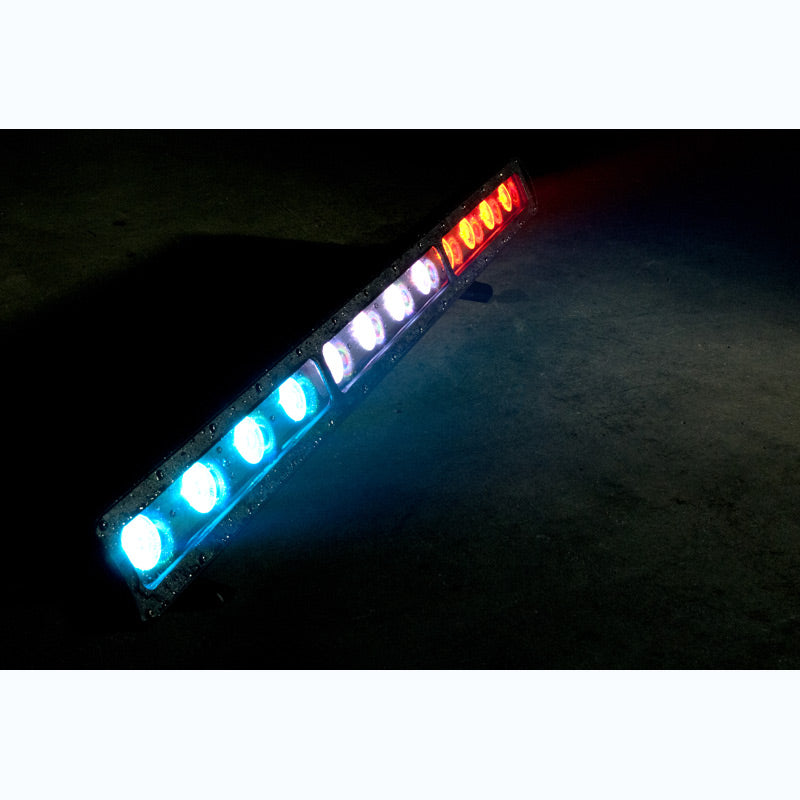

  • Light Source: IP65, Outdoor Rated, par fixture with 12x 5-Watt QUAD LEDs (4-in-1 RGBA- Red, Green, Blue & Amber LEDs, rated at approximately 50,000 hrs)

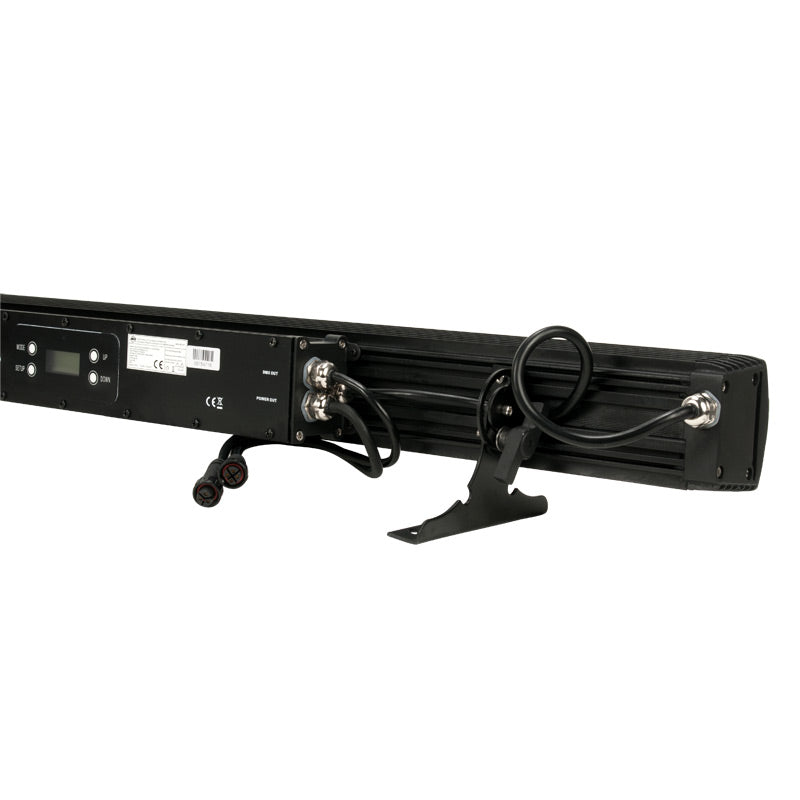

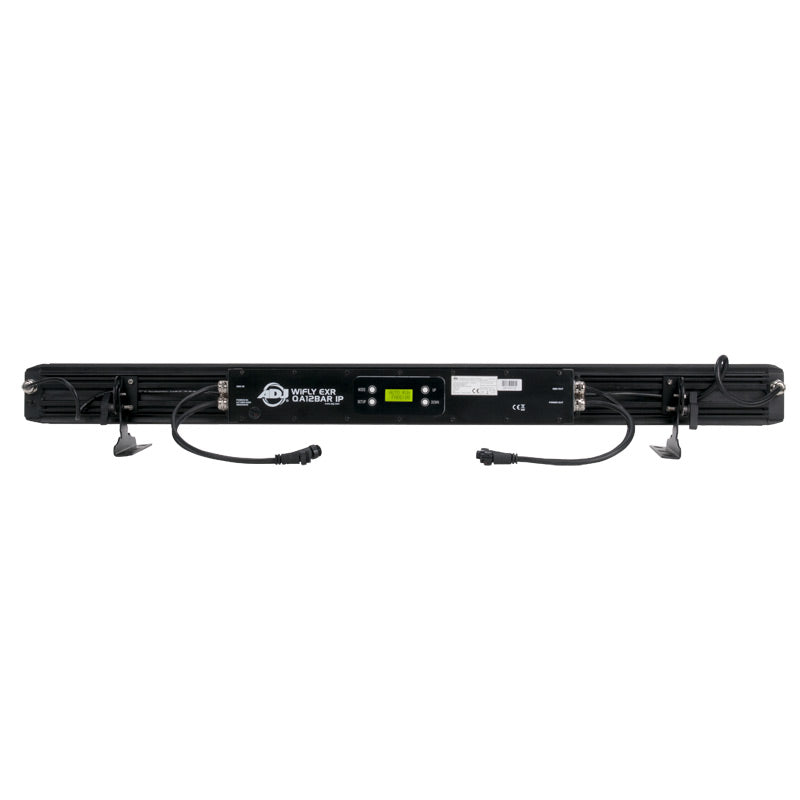

  • 4-button DMX Menu display on rear
  • Built-in WiFLY wireless DMX: compatible with ADJ’s WiFLY Transceiver (sold separately)
  • Extended wireless range - up to 2000 ft.
  • Creates no RGBA shadows / 64 built-in Color Macros
  • Compatible with ADJ RFC wireless remote control (sold separately)
  • Modes: Color Change; Color Jumping; Color Dreaming: Auto (Program Run); WiFLY and DMX Controlled
  • DMX Channel modes: 4, 6, 7, 8, 9, 12 and 14

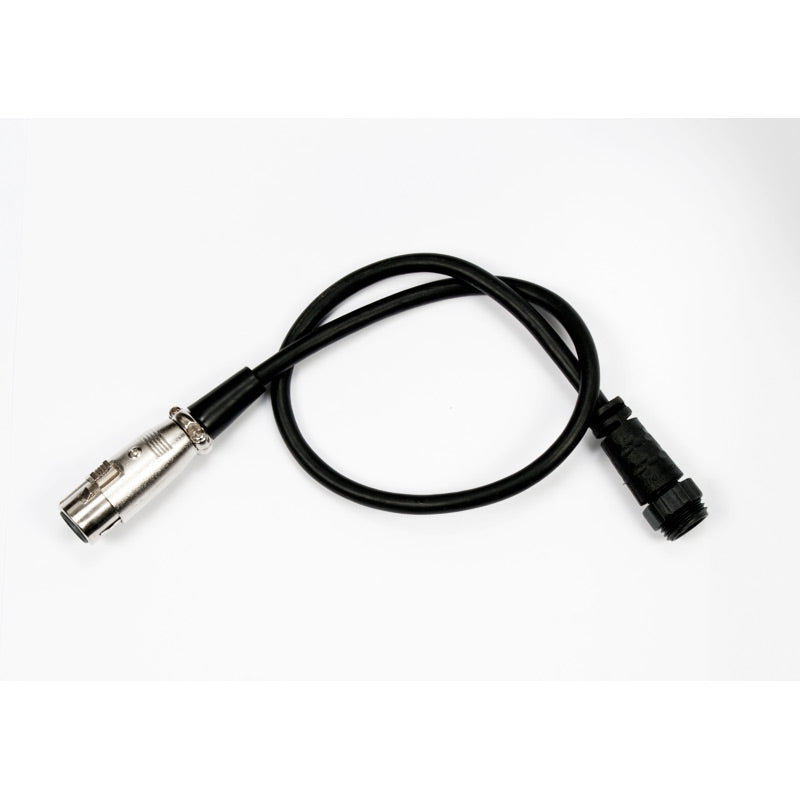

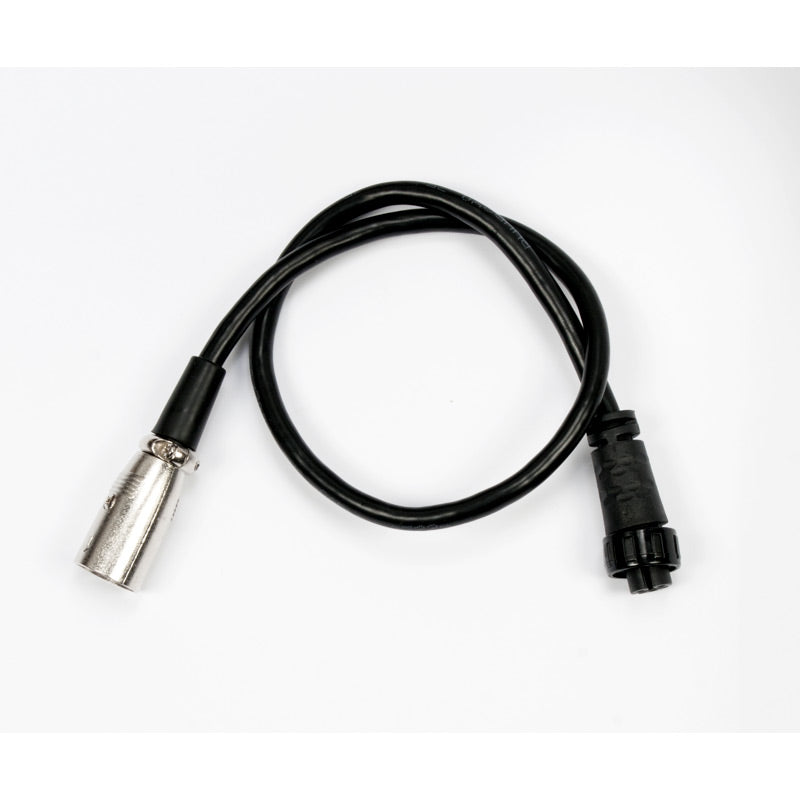

  • Beam angle: 25-degree / Linkable via 3-pin IP cable (In/Out)
  • Light Output: 2350 LUX @2M; 674 LUX @4M (25-Degree)
  • Refresh Rate: 1KHz

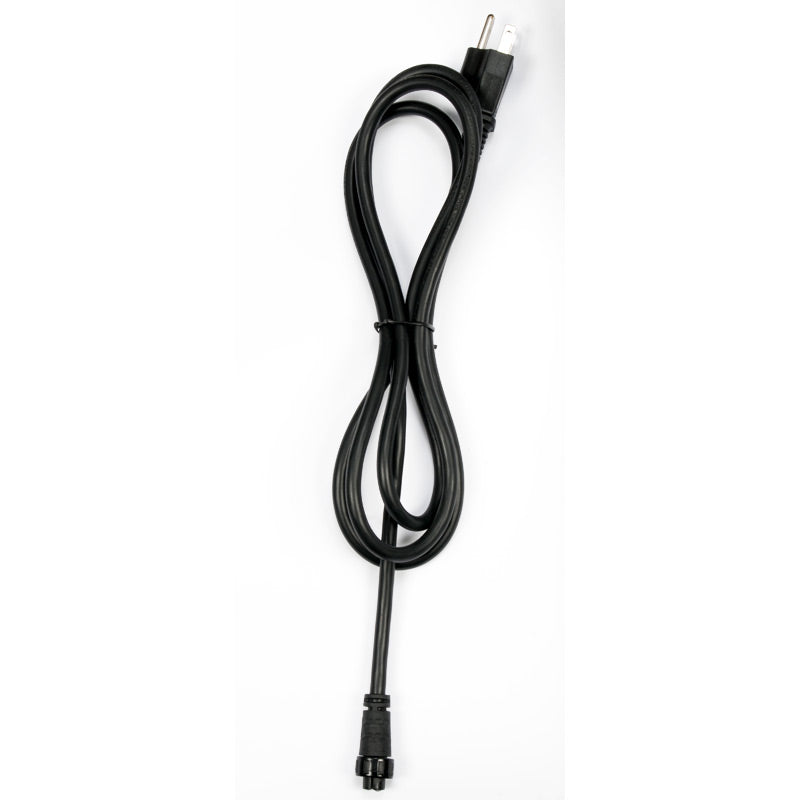

  • Power Cable Length: 1.8m (CHOGORI IP)
  • Total power consumption: 75W / Multi-voltage operation: AC 100-240V, 50/60Hz
  • Dimensions (LxWxH): 40.5” x 5.5” x 6” in. / 1029 x 140 x 152 mm
  • Weight: 14 lb. / 6.4 kg.

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
WiFly EXR QA12Bar IP User Manual Download
WiFly EXR QA12Bar IP Photometric Test Reports Photometric Test Reports Download
WiFly EXR QA12Bar IP Photometric IES Files Photometric IES Files Download
