Vizi Wash Z37

Name: Vizi Wash Z37
Brand: ADJ
SKU: VIZ370
Availability: InStock

This item is discontinued

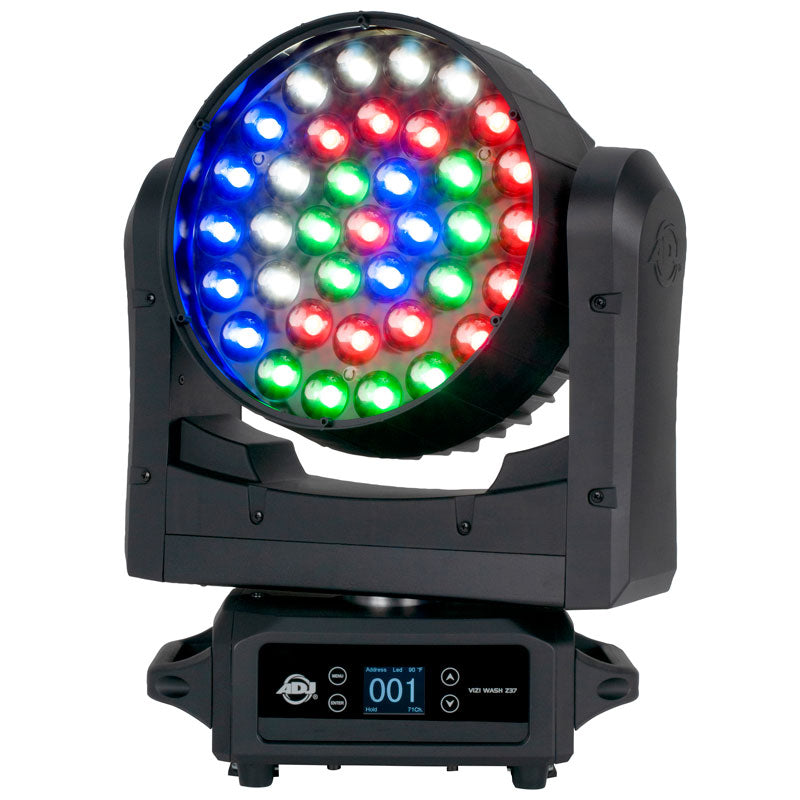

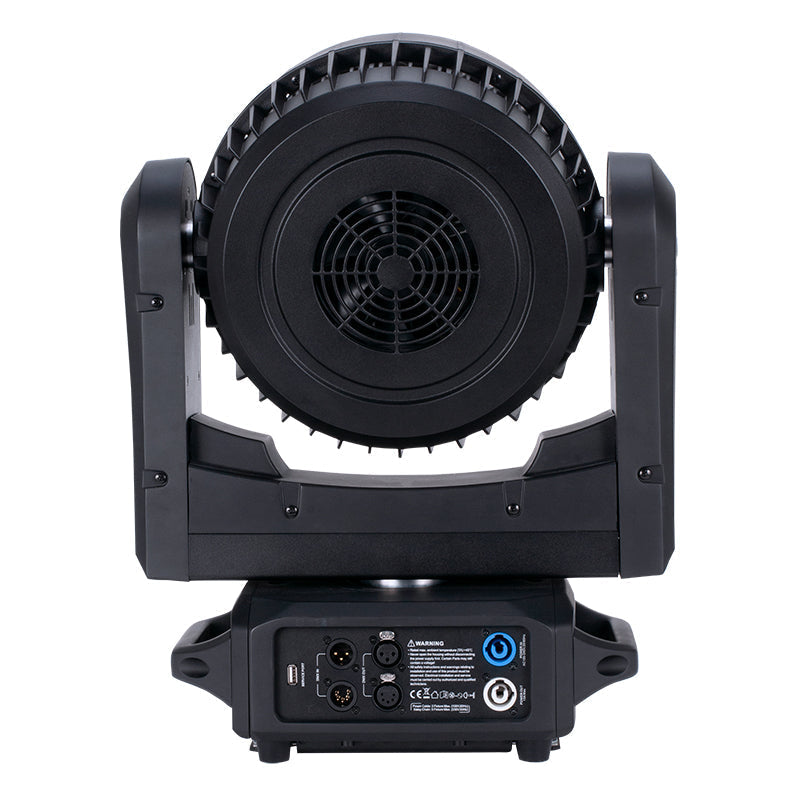

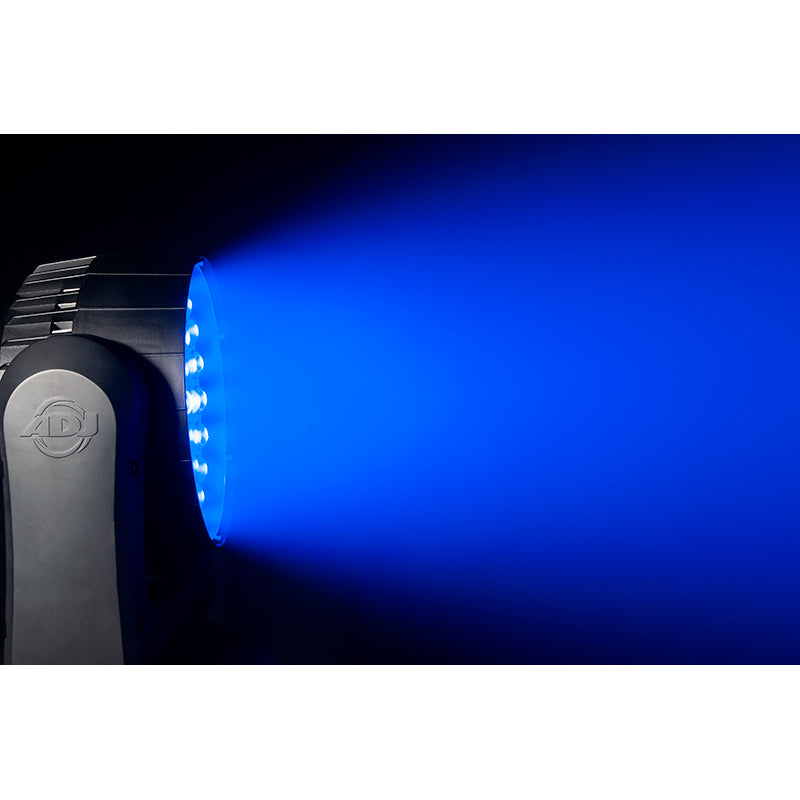

The Vizi Wash Z37 is a 740W professional moving head wash fixture with variable motorized zoom (10 ~ 60-degrees) and thirty-seven 20W Quad (RGBW / 4-IN-1) LEDs.

UPC: 818651026467

SKU: VIZ370

Vizi Wash Z37

$0.00

Video

Vizi Wash Z37

Available now from ADJ USA

The Vizi Wash Z37 is a 740W professional moving head wash fixture with variable motorized zoom (10 ~ 60-degrees) and thirty-seven 20W Quad (RGBW / 4-IN-1) LEDs. It features 11-zones of LED ring control, smooth dimming control from 0-100%, locking power In/Out to daisy chain power, both 3 and 5-pin XLR for DMX In/Out and a built-in USB port for a convenient connection to update software if needed. This fixture is ideal for washing larger stages, theaters, churches, nightclubs, concert venues and event productions.

There are 64 built-in color macros, 16-bit fine zoom control, 16 bit pan, 16-bit tilt and 4 DMX control modes (14, 16, 17, & 71 channels). Users also have control of 6 dim modes and 4 dim curves.

Click here to read the Vizi Wash Z37 press release.

Specifications

Light Source:

• 37x 20W RGBW (4-IN-1 - Red, Green Blue White) Osram LEDs

• 20,000 Hour Average LED Life

• LUX @ 5M: 15000 lux @ 10-degrees; 1100 lux @ 60-degrees

Effects:

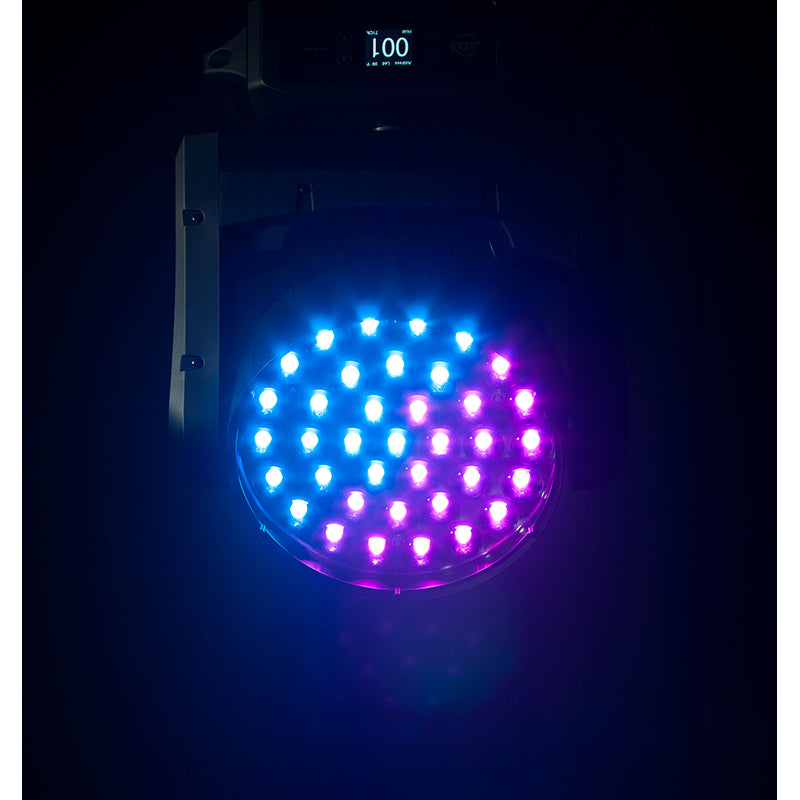

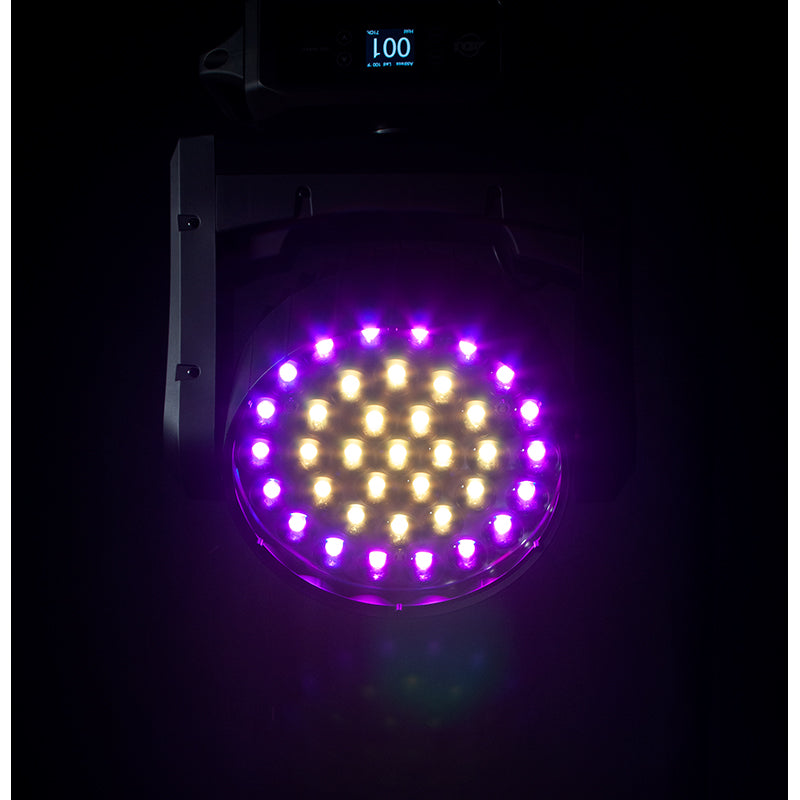

• 11-zone Ring Control with Color Macros

• Variable Strobe Pulse effects

Connections:

• Locking power In/Out to daisy chain power

• 3-pin and 5-pin DMX connections for data linking

• RDM (Remote Device Management)

• USB Input for Updating Fixture Firmware

Control:

• Motorized Linear Zoom: 10 ~ 60-degrees 

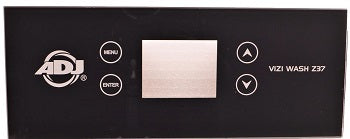

• 4-button Touch Control Panel with Large LED Screen

• Control: DMX-512 RDM (Remote Device Management)

• Multiple DMX Channel Modes

• Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre Stage 2)

• Dim Curves: 4 Presets (Square, Linear, Inv. Square, S. Curve)

• Dim Speed control (0.1~10 Seconds)

• Dimming: 0 - 100%

• Strobe pulse control

• Various Strobe speeds (1-40Hz)

• 16-bit fine zoom control

• 16-bit fine pan control

• 16-bit fine tilt control

• Color display with touch button on two sides

• With Wired Digital Communication Network

Electrical:

• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)

• Power Draw: 525W, 4.375A @ 120V or 700W 3A @ 230V

Dimensions/Weight:

• Dimensions (LxWxH): 16.1” x8.9” x 20.5” / 408.4x226x520.3mm

• Weight: 40 lbs. / 18 kg.

Included in box:

• Locking power cord

• Two (2) Omega brackets for truss mounting

Optional Road Cases:

• DRC MHX: two Vizi Wash Z37's fit in the DRC MHX Road Case

Ratings / Approval

• cETLus Approved (Control # 4000358)

Downloads

Cad drawing

Dimensional drawings

Vizi Wash Z37 Dimensional Drawing

Photometrics

User manual

Vizi Wash Z37 User Manual
