Vizi Wash Z19

New Product
Vizi Wash Z19 product photo Vizi Wash Z19 product photo Vizi Wash Z19 product photo Vizi Wash Z19 product photo Vizi Wash Z19 effects photo Vizi Wash Z19 effects photo Vizi Wash Z19 effects photo Vizi Wash Z19 effects photo Vizi Wash Z19 effects photo Vizi Wash Z19 omega brackets photo Vizi Wash Z19 accessories photo
SKU: VIZ195 | UPC: 818651025996
380W professional moving head wash fixture with variable motorized zoom (10 ~ 60-degrees), 19x 20W Quad (RGBW / 4-IN-1) LEDs and 3 or 7 zones of LED ring control.
Advantage Points: 1740

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Available now from ADJ USA • $1,739.99

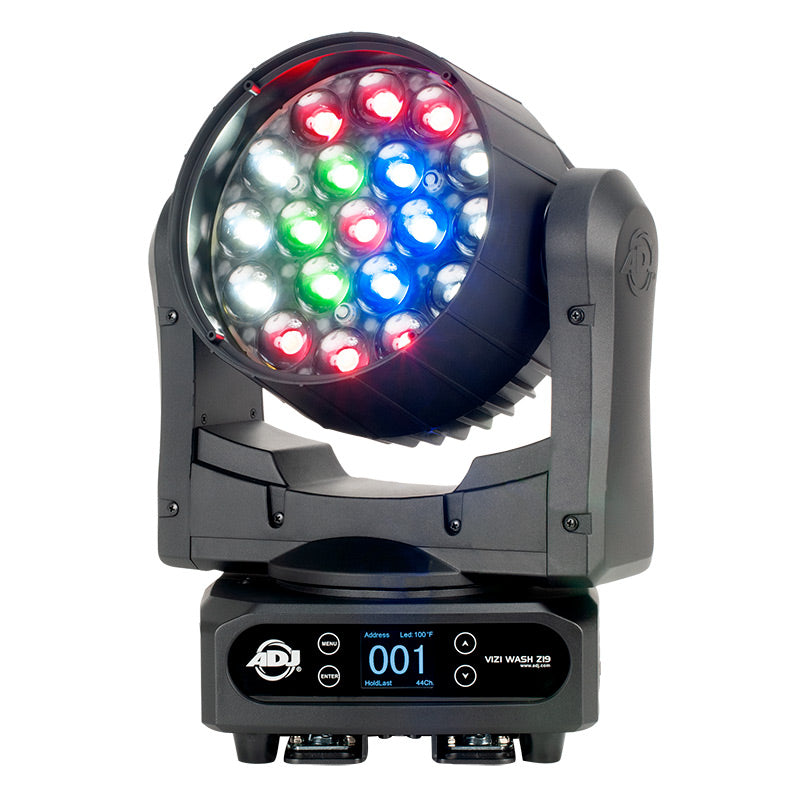

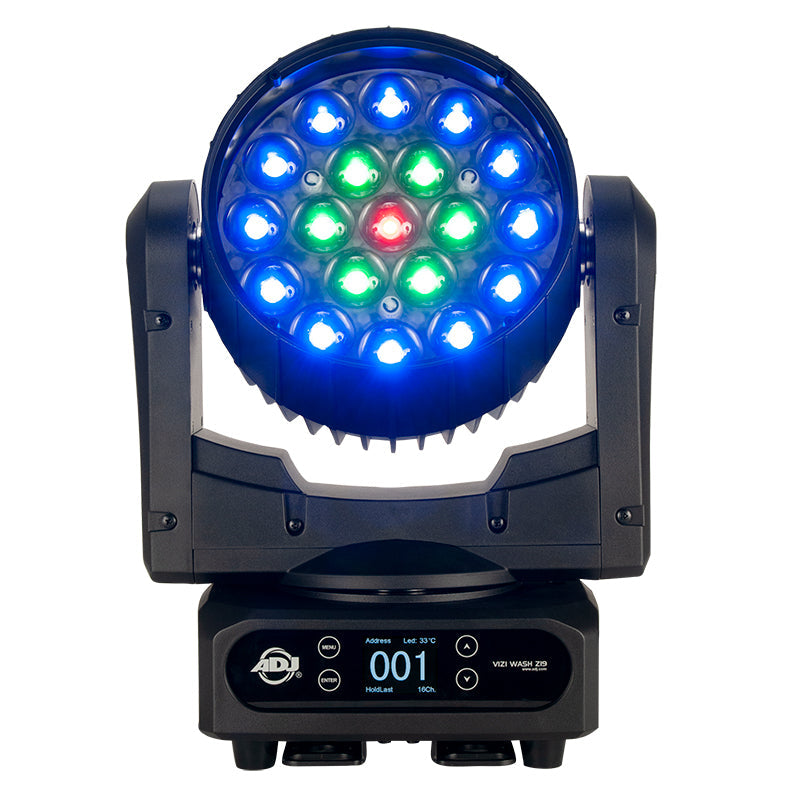

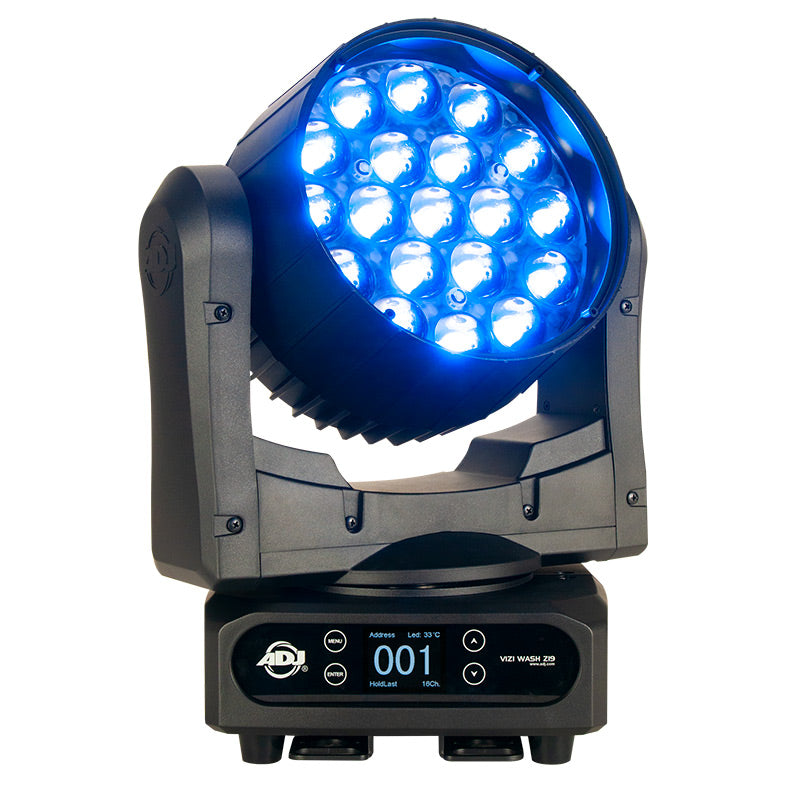

The Vizi Wash Z19 is a 380W professional moving head wash fixture with variable motorized zoom (10 ~ 60-degrees) and nineteen 20W Quad (RGBW / 4-IN-1) LEDs. It features 3 or 7 zones of LED ring control, smooth dimming control from 0-100% (plus 16-but fine dimming), twist lock power In/Out connections to daisy chain power, both 3-pin and 5-pin DMX In/Out and a built-in USB port for a convenient connection to update software if needed.


There are 64 built-in color macros, 16-bit fine zoom control, and 4 DMX control modes. This fixture is ideal for washing stages, theaters, churches, nightclubs, concert venues and event productions.


Click here to read to read the Vizi Wash Z19 press release.



Specifications

Specifications

Optical:

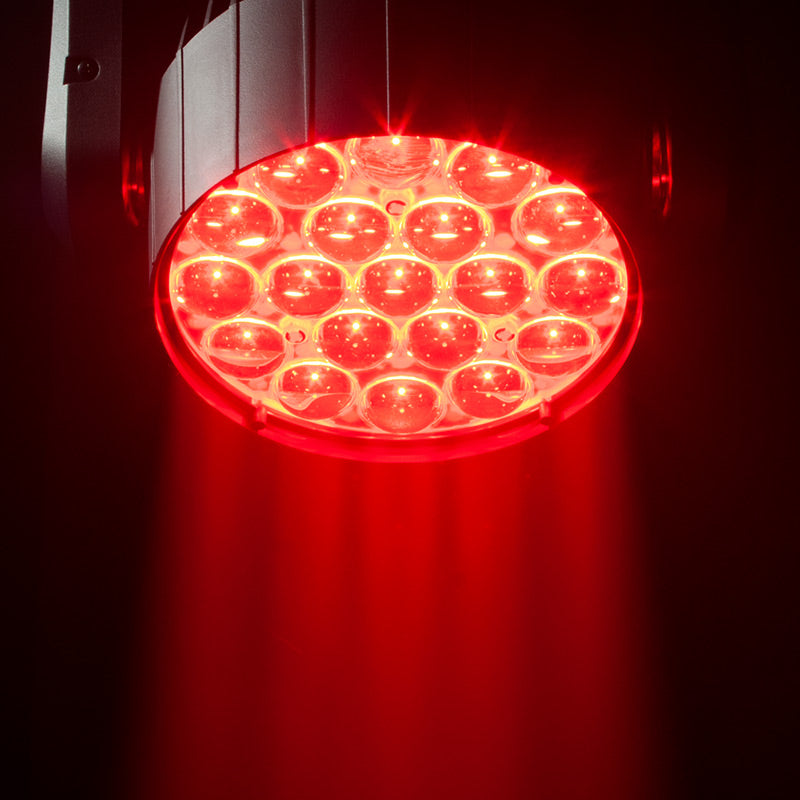

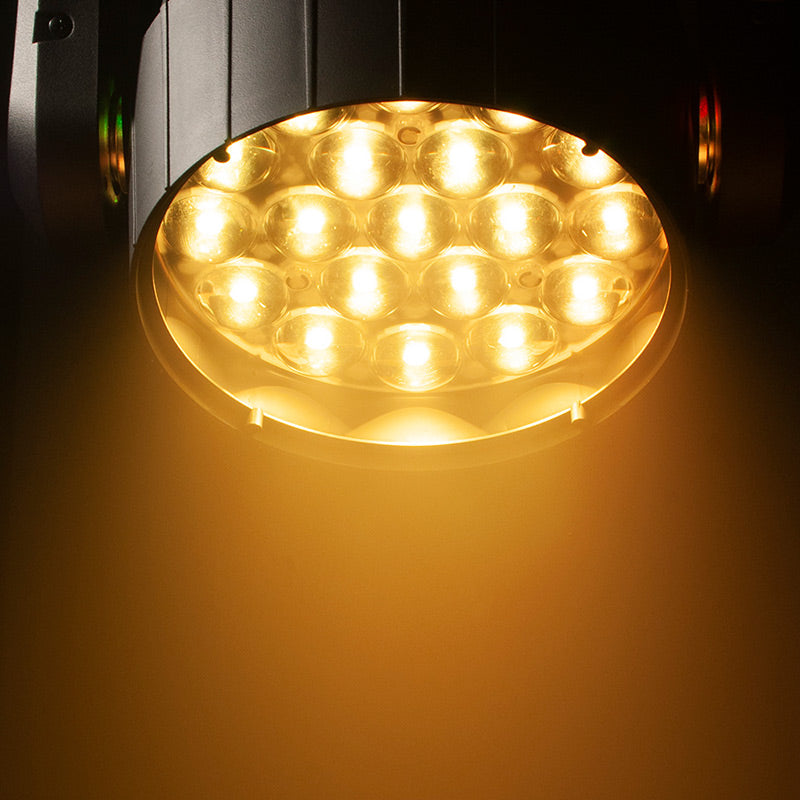

• 19x Osram 20W RGBW (4-IN-1) LEDs

• Motorized Zoom: 10 ~ 60-degrees


Connections:

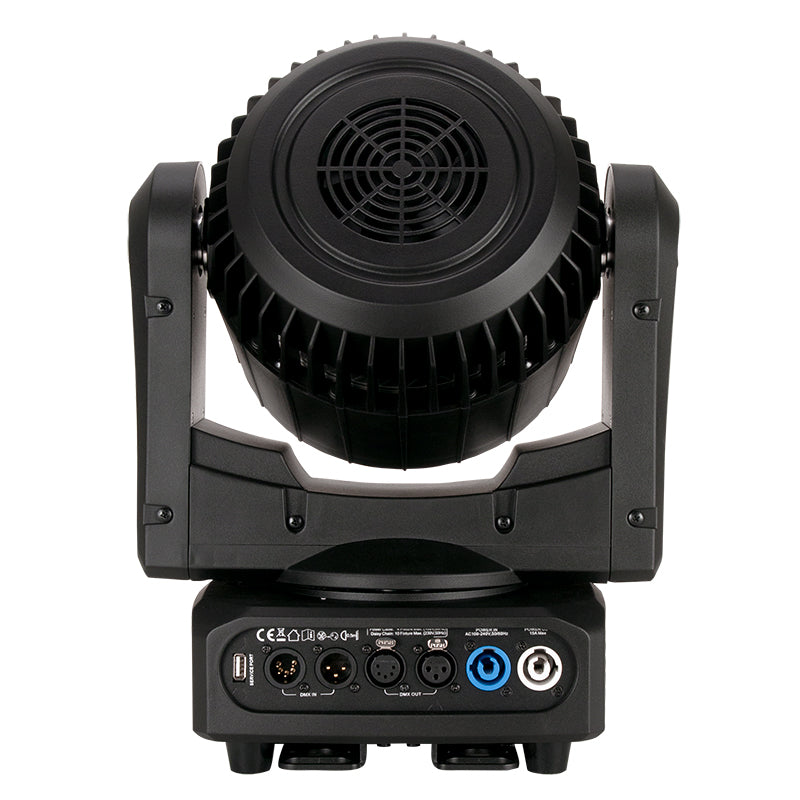

• Seetronic locking power In/Out to daisy chain power

• Daisy chain up to 5 fixtures @ 120V, 11 fixtures @ 230V

• 3-pin & 5-pin In/Out DMX Connections

• With Wired Digital Communications Network


Control:

• Control: DMX-512 & RDM

• 4 DMX Channel Modes: 12 / 16 / 28 / 44

• 64 built-in Color Macros

• Color display with touch buttons

• 3 or 7 zones of LED ring control

• Smooth 0-100% Dimming

• Fine 16-bit Dimming

• 6 Dimmer Curve modes

• Fine 16-bit Zoom control

• Built-in USB software upgrade port

• Various Strobe speeds (1-40Hz)

• Gamma Brightness control

• Pan: 540-degree (plus fine 16-bit pan)

• Tilt: 270-degrees (plus fine 16-bit tilt)


Electrical:

• Multi-voltage operation: 110-240V, 50-60Hz

• Power Consumption: 285W Max


Dimensions / Weight:

• Dimensions (LxWxH): 12.1”x7.7”x15.5” / 306.6×195×393.3mm

• Weight: 20 lbs. / 9.4kg.

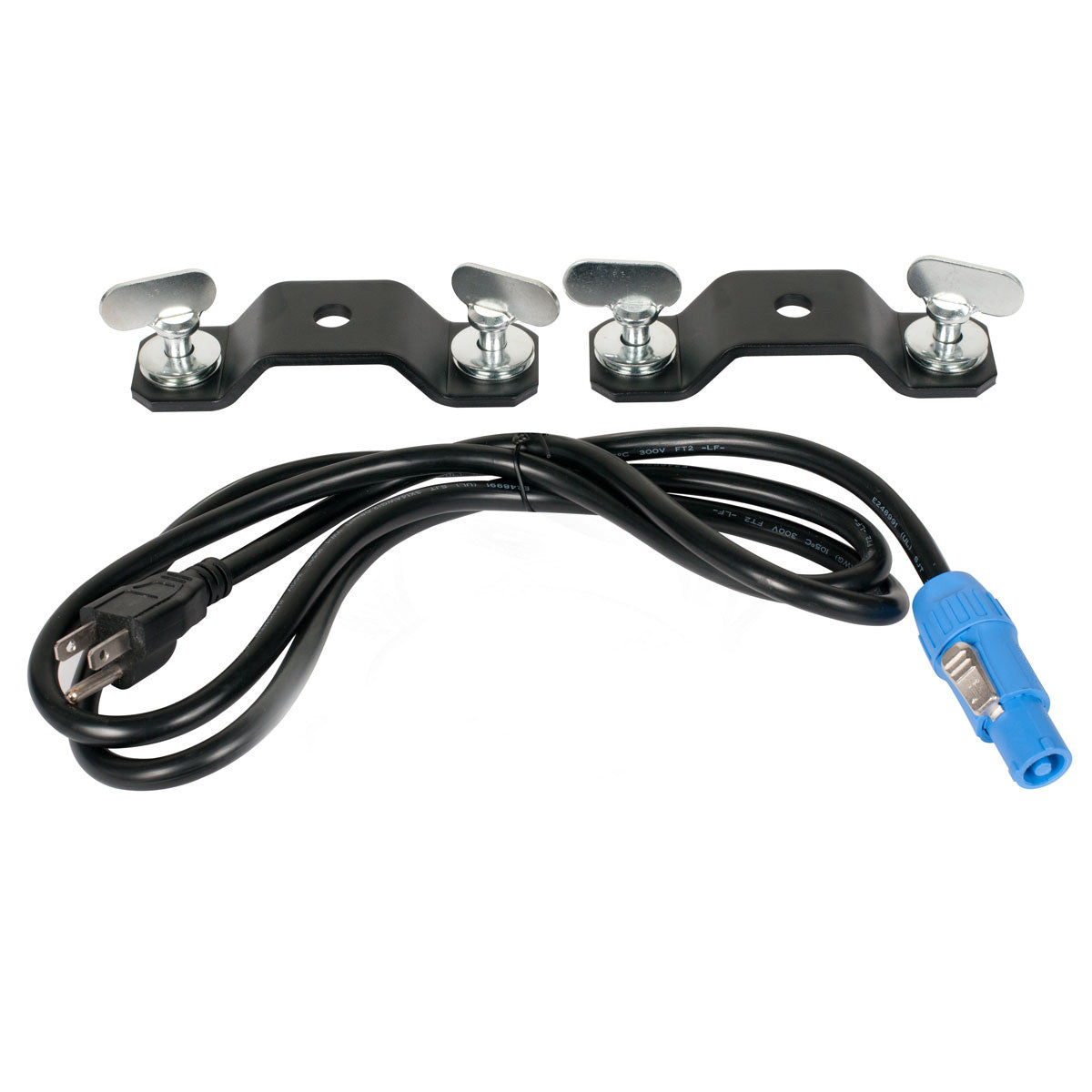

What’s In The Box:

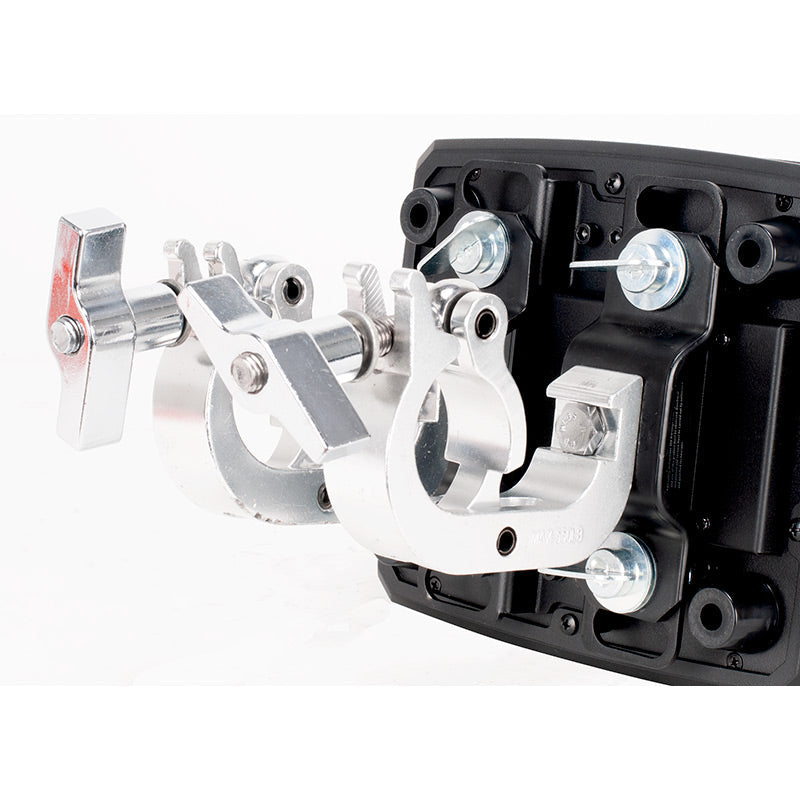

• Two Omega Brackets

• Twist lock power cable


Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Vizi Wash Z19 Cut Sheet Vizi Wash Z19 Cut Sheet Download
Vizi Wash Z19 User Manual User Manual Download
