Vizi Hybrid 16RX

A true Spot/Beam/Wash hybrid Moving Head fixture, the ADJ Vizi Hybrid 16RX features Prism Layering, GOBO Morphing, motorized zoom, motorized focus and 6 & 8-facet rotating prisms. A true Spot/Beam/Wash hybrid Moving Head fixture, the ADJ Vizi Hybrid 16RX features Prism Layering, GOBO Morphing, motorized zoom, motorized focus and 6 & 8-facet rotating prisms. A true Spot/Beam/Wash hybrid Moving Head fixture, the ADJ Vizi Hybrid 16RX features Prism Layering, GOBO Morphing, motorized zoom, motorized focus and 6 & 8-facet rotating prisms. A true Spot/Beam/Wash hybrid Moving Head fixture, the ADJ Vizi Hybrid 16RX features Prism Layering, GOBO Morphing, motorized zoom, motorized focus and 6 & 8-facet rotating prisms. A true Spot/Beam/Wash hybrid Moving Head fixture, the ADJ Vizi Hybrid 16RX features Prism Layering, GOBO Morphing, motorized zoom, motorized focus and 6 & 8-facet rotating prisms. A true Spot/Beam/Wash hybrid Moving Head fixture, the ADJ Vizi Hybrid 16RX features Prism Layering, GOBO Morphing, motorized zoom, motorized focus and 6 & 8-facet rotating prisms. A true Spot/Beam/Wash hybrid Moving Head fixture, the ADJ Vizi Hybrid 16RX features Prism Layering, GOBO Morphing, motorized zoom, motorized focus and 6 & 8-facet rotating prisms. A true Spot/Beam/Wash hybrid Moving Head fixture, the ADJ Vizi Hybrid 16RX features Prism Layering, GOBO Morphing, motorized zoom, motorized focus and 6 & 8-facet rotating prisms. A true Spot/Beam/Wash hybrid Moving Head fixture, the ADJ Vizi Hybrid 16RX features Prism Layering, GOBO Morphing, motorized zoom, motorized focus and 6 & 8-facet rotating prisms. A true Spot/Beam/Wash hybrid Moving Head fixture, the ADJ Vizi Hybrid 16RX features Prism Layering, GOBO Morphing, motorized zoom, motorized focus and 6 & 8-facet rotating prisms. A true Spot/Beam/Wash hybrid Moving Head fixture, the ADJ Vizi Hybrid 16RX features Prism Layering, GOBO Morphing, motorized zoom, motorized focus and 6 & 8-facet rotating prisms. A true Spot/Beam/Wash hybrid Moving Head fixture, the ADJ Vizi Hybrid 16RX features Prism Layering, GOBO Morphing, motorized zoom, motorized focus and 6 & 8-facet rotating prisms.
SKU: VIZ229 | UPC: 819730017857
A true Spot/Beam/Wash hybrid Moving Head fixture, the ADJ Vizi Hybrid 16RX features Prism Layering, GOBO Morphing, motorized zoom, motorized focus and 6 & 8-facet rotating prisms.
Advantage Points: 2300

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

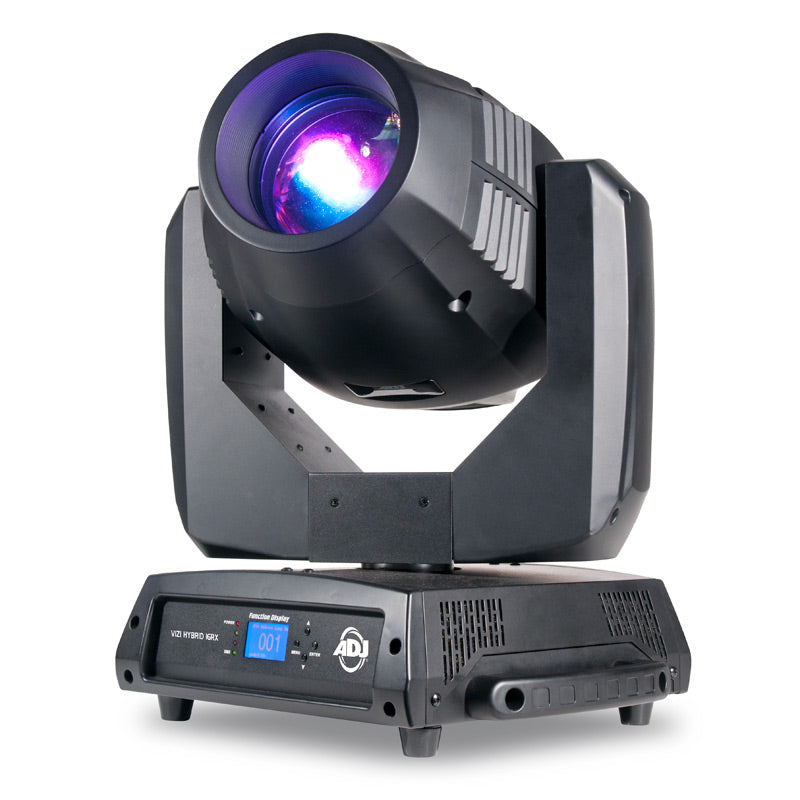

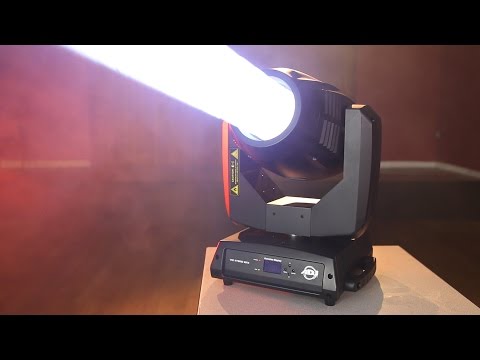

A true Spot/Beam/Wash hybrid Moving Head fixture, the ADJ Vizi Hybrid 16RX features dual Prism Layering, GOBO Morphing of dual gobo wheels, motorized zoom and motorized focus. Other professional features include: Frost filter to turn the hard edge beam to a wash, 6 & 8-facet rotating prisms, stepper motors for quick, precise movement.



The Vizi Hybrid 16RX  Moving Head fixture is powered by the revolutionary Philips® Platinum 16R discharge lamp technology (8000˚K, 1,500 hr). The powerful Platinum 16R has an output comparable to a 575W fixture, with double the output of a 250W fixture. It also offers a flat, even spot field and even more saturation of colors. The Vizi Hybrid 16RX is much faster than previous ADJ moving heads because it is much lighter in weight and more compact than other moving heads in its class.

Protect your Vizi Hybrid 16RX moving heads with the DRCVIZI road case.



Check out our product spotlight article on the Vizi Hybrid 16RX here: http://tinyurl.com/zx4dmh3



Specifications

Specifications

Optical
• Light Source: Philips Platinum 16R MSD
• Color Temperature: 8000 K
• Life Expectancy: 1,500 Hrs.
• Beam Angle: 3 ~ 32-degrees

Specifications
• Colors: 14 colors plus white
• Gobos: 2 separate wheels 1) 17 static plus spot 2) 12 replaceable
• Dimming: electronic 0%- 100%

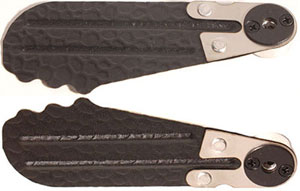

• Shutter: motorized
• Zoom: motorized
• Focus: motorized

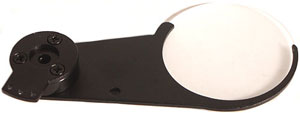

• Frost: frost filter + wash effect

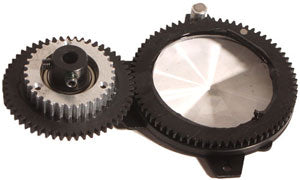

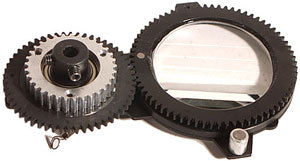

• Prism: 6-facet linear & 8-facet circular w/ macros, rotating & morphing
• Strobe: electronic
• Strobe Rate: 0.3-7HZ
• DB Rating @ 1Meter: Front: 54; Back: 54.7; Left: 53; Right: 53; Top: 55.2
• Weight 51 lbs. / 23 kg.
• Dimensions (LxWxH) 12.75" x 14.5" x 22.5" / 325x370x571mm
• ETL Approved

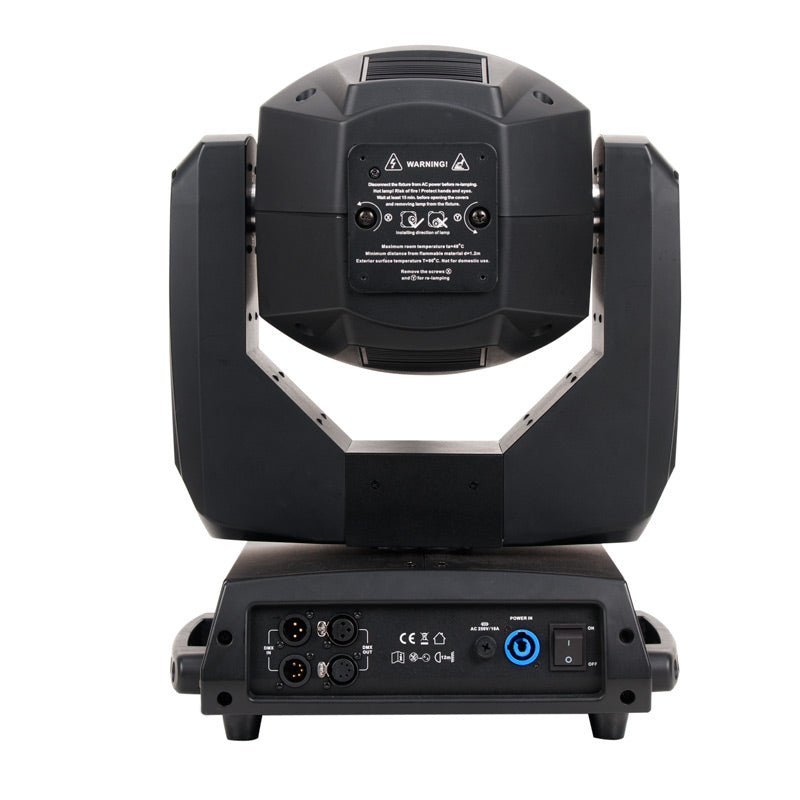

Connections
• Power Input: powerCON
• Data: 3 & 5-pin DMX

Control
• Control Protocol: DMX 512
• DMX Channels: 19 DMX CH.
• DMX Modes:  1 mode
• On Board: LED DMX 4-Button menu

Electrical
• Input Voltage: 537watts
• Power draw @120V: 5.2 amps
• Power draw @ 220V: 2.44 amps

Certifications
• Certifications: ETL Pending
• IP Rating:  IP20: Dry area, No liquids

Whats Included
• (2) omega clamps
• (1) powerCON to Edison
• Saftey Cable
• Manual




Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Vizi Hybrid 16RX Photometrics Download

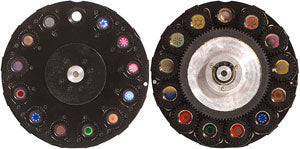

Vizi Hybrid 16RX Glass Gobo Wheel Download
Vizi Hybrid 16RX Color Wheel Download
Vizi Hybrid 16RX Gobos Download
Vizi Hybrid 16RX Cut Sheet Download
Vizi Hybrid 16RX User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

So how do I power up the product? Where does it plug in to? The description talks about PowerCon & IEC, so what do I need to power up the product?

Hello Andrew,

Thank you for reaching out to us. The power con is the power cable that comes with the unit. Here is link to the cable http://www.adj.com/av6-neutrik-powercon-main-power-cables So pretty much you plug in the blue end to the light and the other end to the wall outlet. Once doing that the unit should power up. Let me know if you have any further questions.

Thanks,
