Vizi Beam RXONE

UPC#: 819730018281
Advantage Points: 1180
Redemption Points: 23600
SKU
VIZ354
The Vizi Beam RXONE, is a compact and quick moving head with a potent 1R HTI long life lamp that produces a super sharp 3-degree beam of light that travels up to 100 meters.

Where to Buy

Enter your zip code below to find this product at a retailer near you!

LIGHT SOURCE:

• Lamp: Osram® Sirius HRI 100W 1R discharge, 9,000˚K – 6,000 hr. long life

• LUX: 76300 @ 10M, 33900 @ 15M


FEATURES:

• 3-degree beam angle

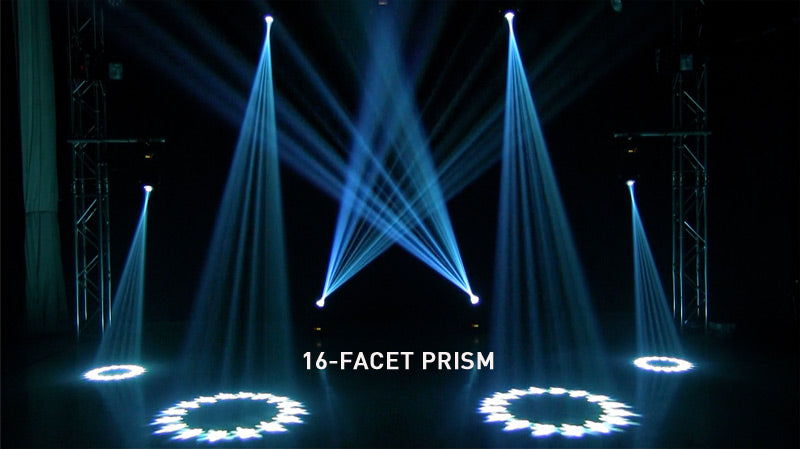

• 16-facet Prism with macros

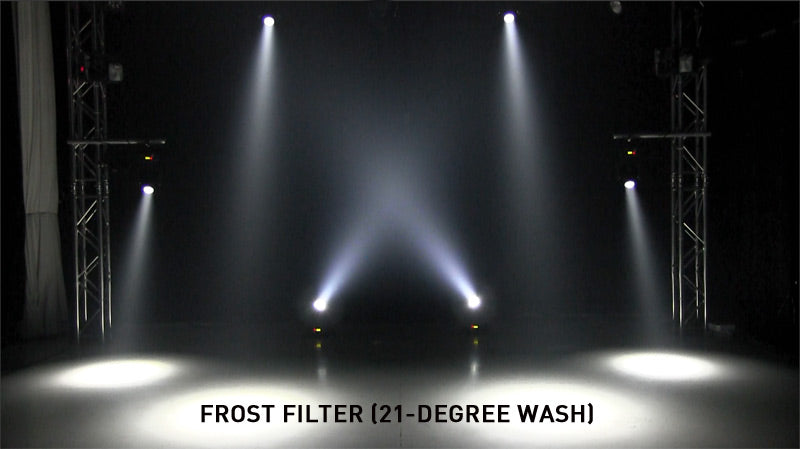

• Frost Filter (21-degree beam angle)

• Independent gobo and color wheels

• Stepper motors with micro stepping


CONTROL:

• 2 DMX Channel Modes: 15 or 17 DMX channels

• LED DMX 4-Button menu system

• Shutter: Pulse effect; random strobe slow to fast

• Strobe effect

• UC IR Compatible (Not Included) & Airstream IR APP Compatible

• Electronic Dimming: 0% - 100%

• Strobe Rate: 0.3-12HZ

• With Wired Digital Communication Network


COLORS:

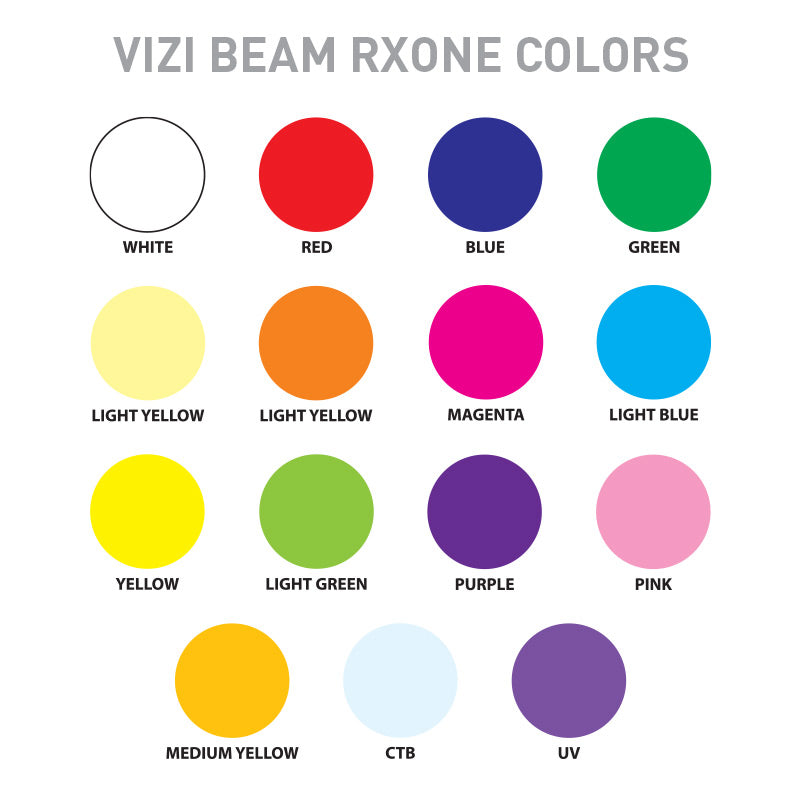

• 14 colors + white and Split Colors


GOBOS:

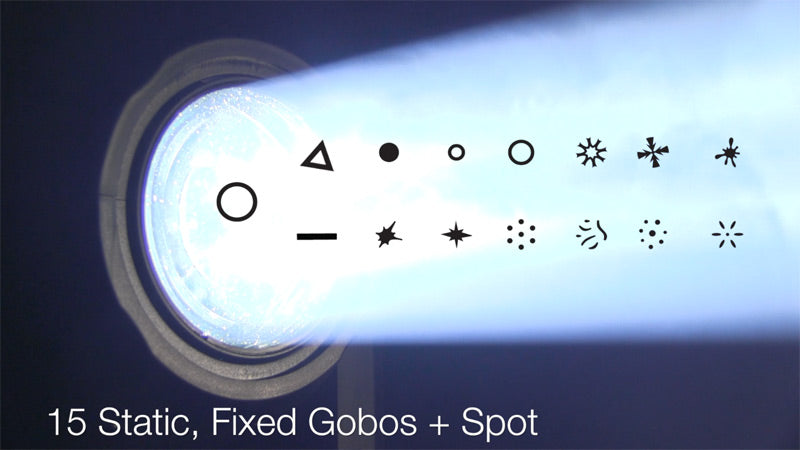

• 15 static, fixed GOBOs + spot

• GOBO Shake effect


PAN/TILT:

• Pan: 540-degree

• Tilt: 270-degree

• 16-Bit Pan/Tilt Positioning

• Auto X-Y repositioning

• Pan/Tilt Invert

• Built-In Pan/Tilt Macros

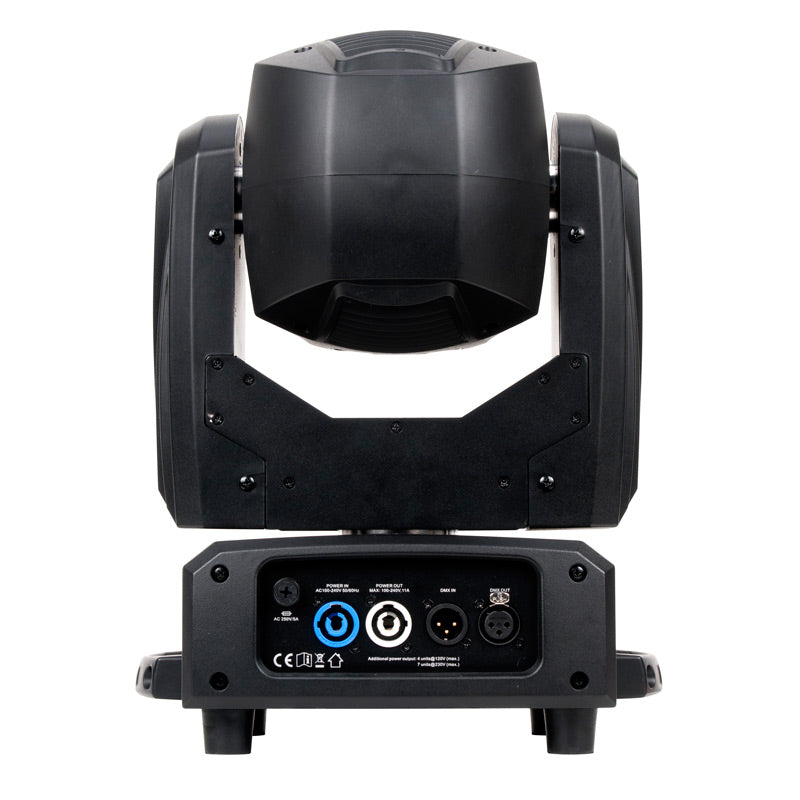

CONNECTIONS:

• Power: Locking connections In & Out to daisy chain power

• DMX Connections: 3-pin DMX In/Out


ELECTRICAL:

• Power Consumption: 199W

• Multi-voltage Operation: 100-240V, 50Hz/60Hz

• Daisy Chain up to 8 fixtures max (@ 120V); 16 fixtures max (@ 230V)


DIMENSIONS & WEIGHT:

• Dimensions (LxWxH): 279 x 225 x 387mm / 11” x 8.75” x 15.25”

• Weight: 9.2kg. / 20 lbs.


OPTIONAL ROAD CASES:

• DRC MH: 2 Vizi Beam RXONE fit in the DRC MH Road Case

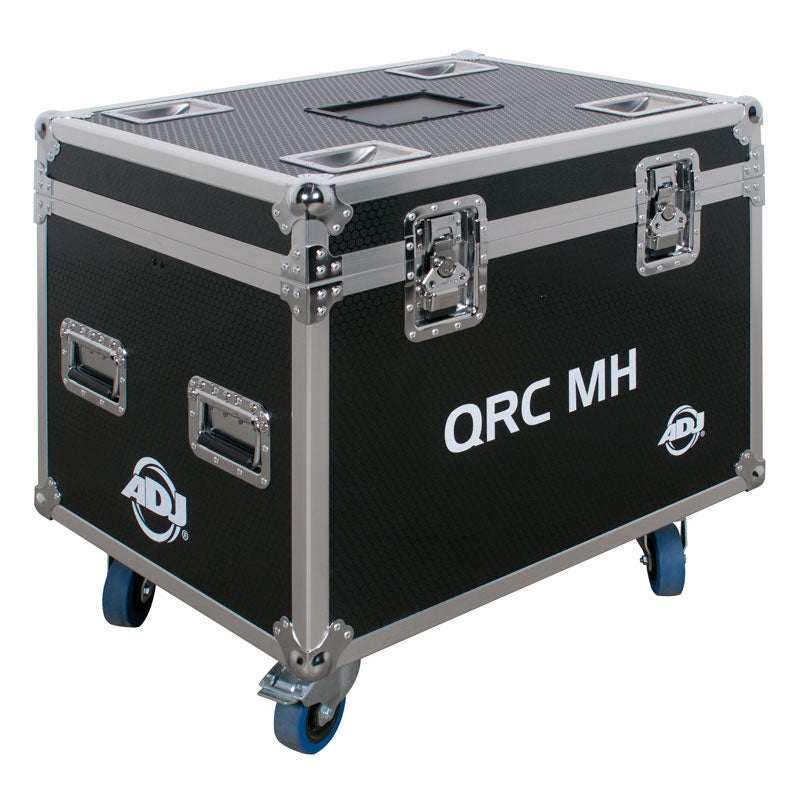

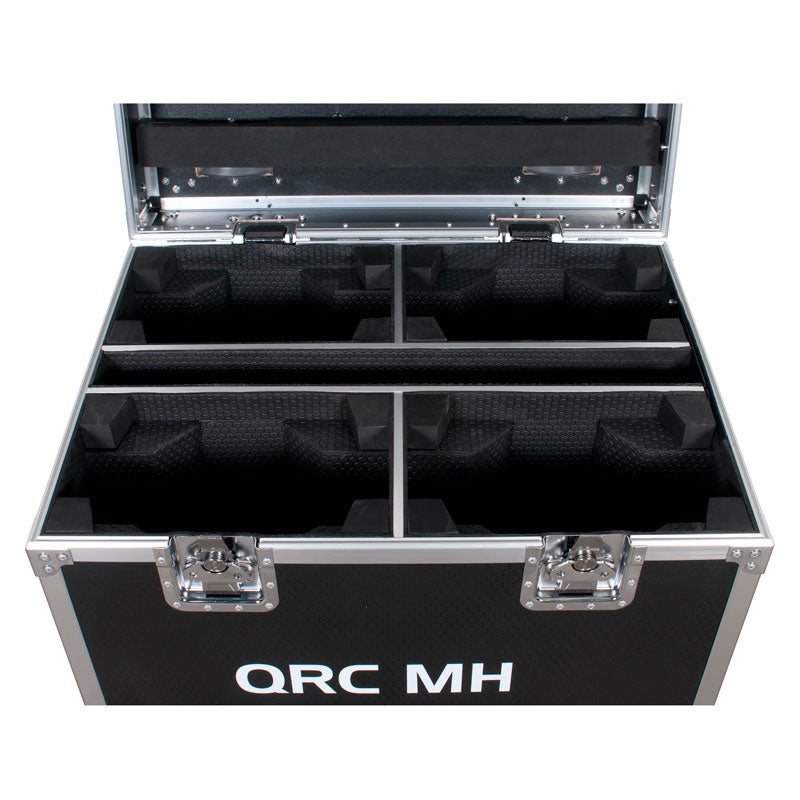

• QRC MH: 4 Vizi HBeam RXONE fit in the QRC MH Road Case


APPROVALS:

• cETLus Approved (Control #4000358)

• CE Certified




Videos

Downloads

The following downloads are available for this product:

Title Description
Vizi Beam RXONE Cut Sheet 5MB PDF File Download
Vizi Beam RXone - User Manual User Manual Download
Vizi Beam RXONE Photometrics Photometrics Test Reports Download
Vizi Beam RXONE DMX Traits DMX Traits Download
Vizi Beam RXONE CAD Drawing Cad Drawing Download
Vizi Beam RXONE Gobos Gobo Specification Download
Vizi Beam RXONE 2D Cad Drawing 2D Cad Drawing Download
Vizi Beam RXONE 3D Cad Drawing Cad Drawing Download

Available now from ADJ USA


Part of ADJ’s popular Vizi Series, the Vizi Beam RXONE, is a compact and quick moving head with a potent Osram® Sirius HRI 1R discharge long life lamp (6,000 hrs.) that produces a super sharp 3-degree beam of light that travels up to 100 meters. This 16-bit, nimble mover also includes a frost filter to give the beam a wash effect of 21-degrees making this fixture very useful for a variety of portable and permanent applications.

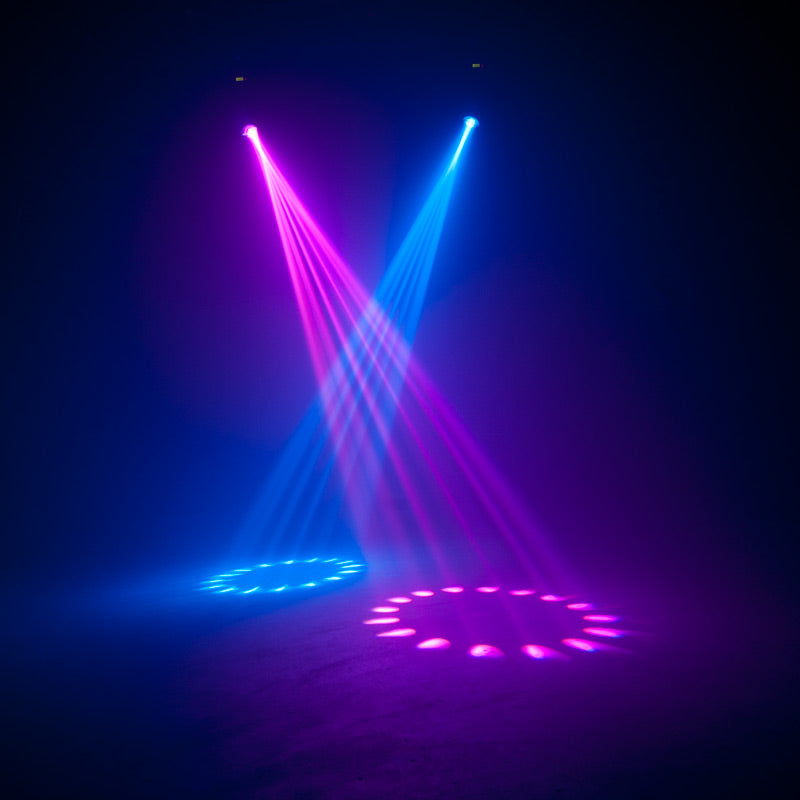

Under the hood the Vizi Beam RXONE boasts a 16-facet prism to break apart the solid beam into 16 mini beams, 14 color + white and 15 static, fixed GOBOs. The RXONE has 2 DMX modes (15 or 17 channel mode), 3-pin DMX In/Out, Locking power In/Out connections plus a low power consumption of only 199W at max power.


Two Vizi Beam RXONE fit in the ADJ DRC MH road case.

Click here to learn more about the Vizi Beam RXONE in this product spotlight article.


Click here to read the Vizi Beam RXONE press release.
