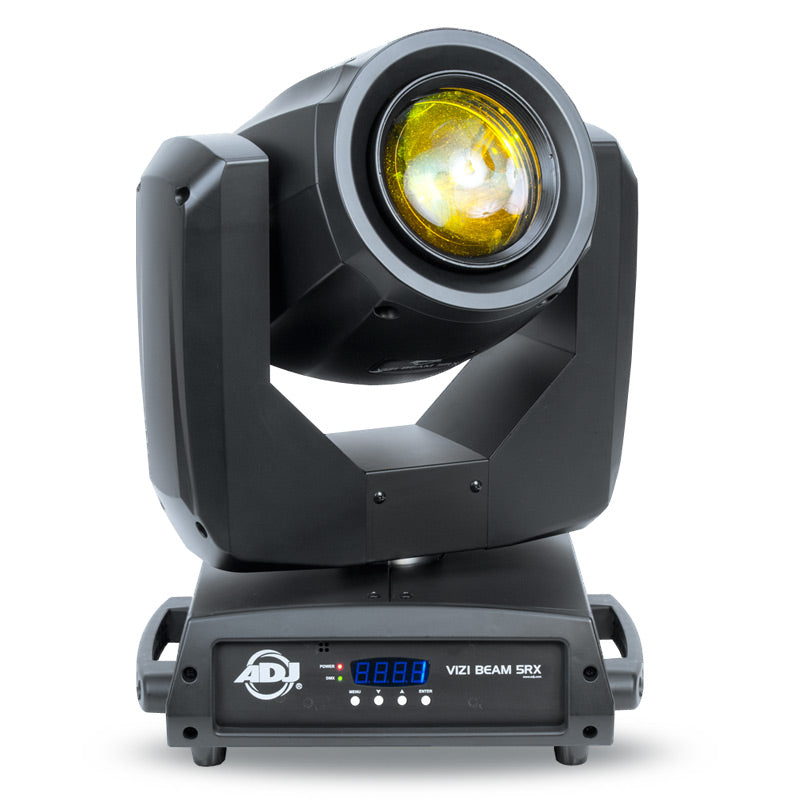

Vizi Beam 5RX

SKU: VIZ007 | UPC: 819730015563

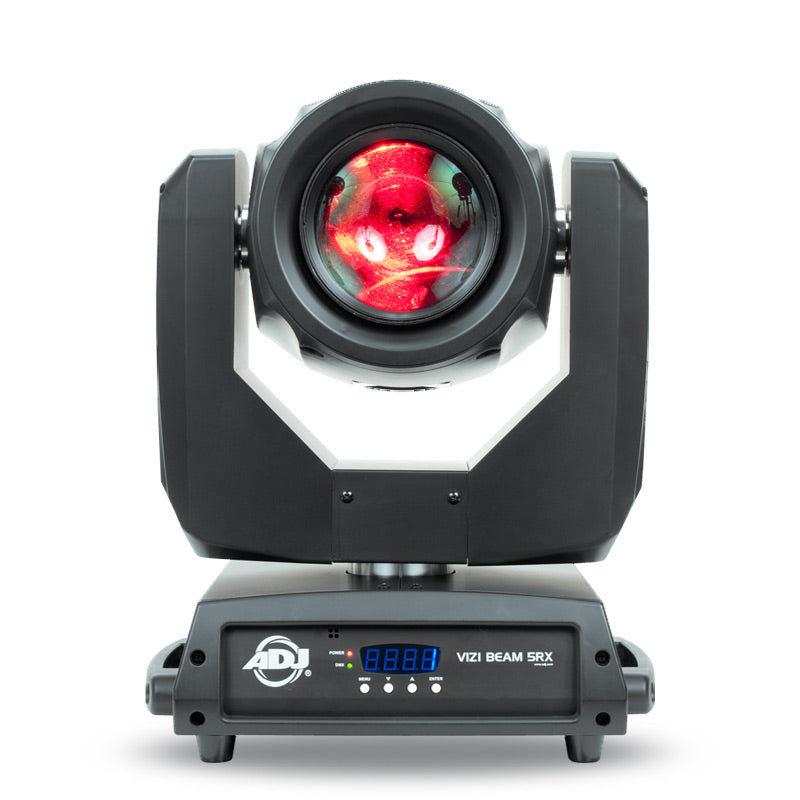

The Vizi Beam 5RX Moving Head fixture features the revolutionary Philips® Platinum 5R lamp, motorized focus, PowerCon In/Out, frost filter, 8-facet prism and stepper motors for speed and accuracy.
Advantage Points: 1200

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

The ADJ Vizi Beam 5RX features a motorized focus and PowerCon In/Out for daisy chaining the power (not available on the previous Vizi Beam 5R). Other professional features include: Frost filter to turn the hard edge beam to a wash, 8-facet prism, stepper motors for quick, precise movement.

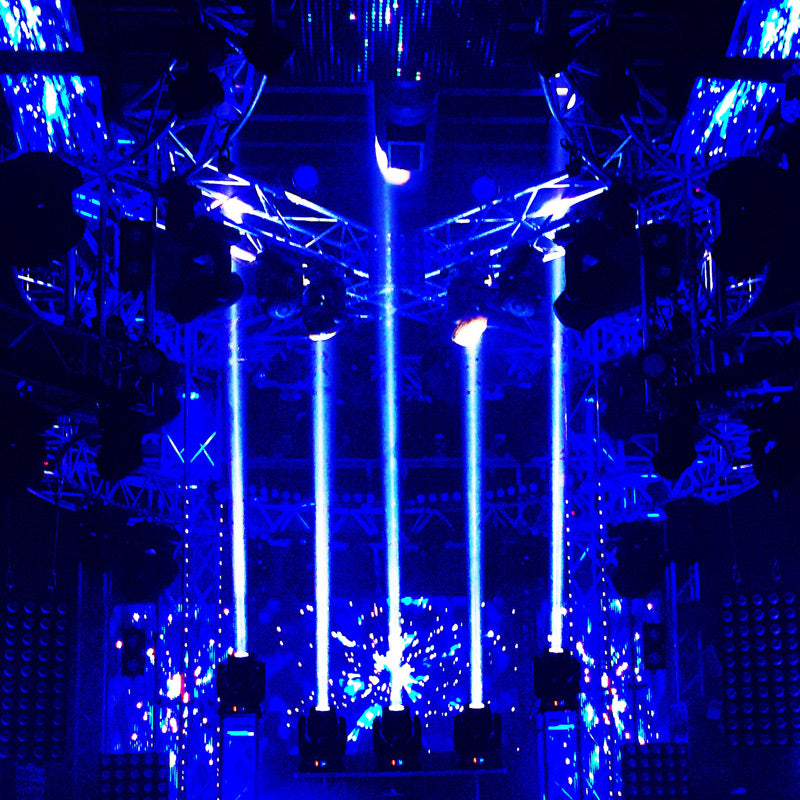

The Vizi Beam 5RX Moving Head fixture is powered by the revolutionary Philips® Platinum 5R 189W discharge lamp technology (8000˚K, 3,000 hr). The powerful Platinum 5R has an output comparable to a 575W fixture, with double the output of a 575W fixture. It also offers a flat, even spot field and even more saturation of colors. The Vizi Beam 5RX is much faster than previous ADJ moving heads because it is much lighter in weight and more compact than other moving heads in its class. It’s very tight, 5-degree beam with extreme light output makes it ideal for applications where a small beam is necessary.

Protect your Vizi Beam 5RX moving heads with the DRCVIZI road case.



Specifications

Specifications

• 2 DMX Channel Modes: 16 or 19 DMX channels

• Gobo scroll mode

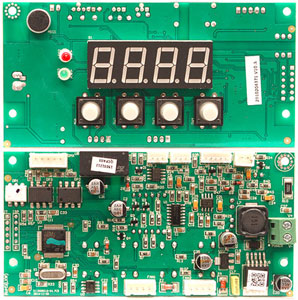

• LED DMX 4-Button menu system

• 5-degree beam angle

• Auto X-Y repositioning

• 14 colors + white and Split Colors

• 17 static, fixed gobos + spot

• 8-facet Prism with macros

• Gobo Shake effect

• Independent gobo and color wheels

• Pan: 540-degree

• Tilt: 270-degree

• Pan/Tilt Invert

• Built-In Pan/Tilt Macros

• 16-Bit Pan/Tilt Positioning

• Motorized focus

• Shutter: Pulse effect; random strobe slow to fast

• Mechanical Dimming: 0% - 100%

• Strobe effect

• Frost Filter

• Stepper motors with micro stepping

• Omega Quicklock Brackets included

• DMX: 3-pin XLR In/Out
• Strobe Rate: 0.75-24.5HZ
• DB Rating @ 1Meter: Front: 45; Back: 47; Left: 46; Right: 46; Top: 47

• Light output: 770000 LUX  @ 5M, 220000 LUX @ 10M (5-degree beam)

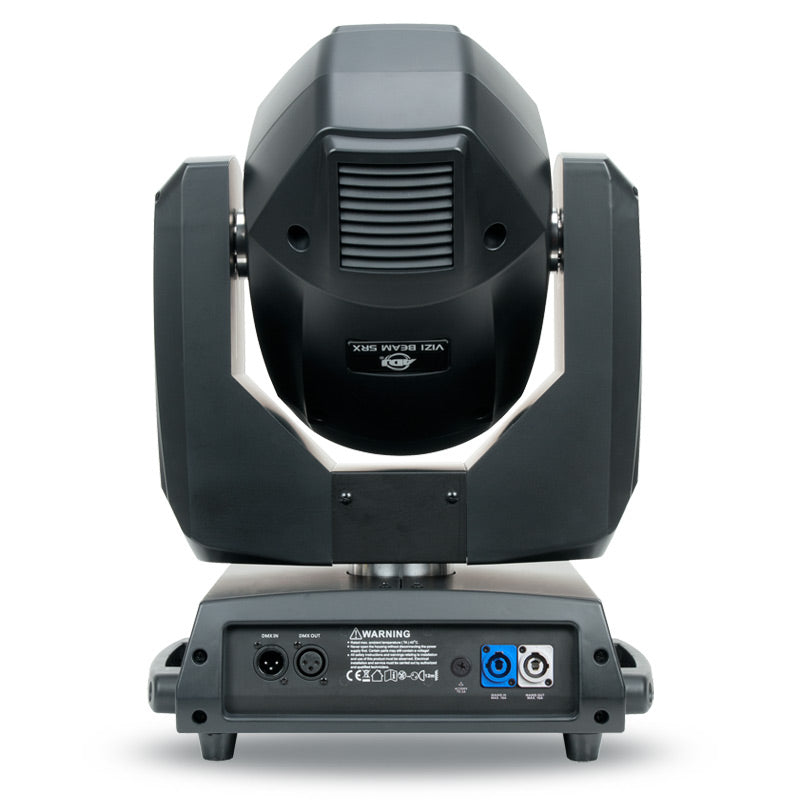

• Powercon In/Out to daisy chain power

• Multi-voltage Operation: 100-240V, 50Hz/60Hz
• Power Cable Length: 1.5M (IEC)

• Lamp: Philips® Platinum 5R 189W discharge, 8,000˚K – 3,000 hr. long life

• Dimensions (LxWxH): 394x325x522mm / 15.5” x 12.75” x  20.5”

• Weight:  19 kg. / 42 lbs
• ETL Approved

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Vizi Beam 5RX Cut Sheet Download
Vizi Beam 5RX Color Wheel Download
Vizi Beam 5RX Gobo Wheel Download
Vizi Beam 5RX Photometrics Download
Vizi Beam 5RX CAD Drawing Download
Vizi Beam 5RX User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

compre 4 vizi bem 5rx pero el profile el perfil no lo tiene mi sofwer mydmx2.0 me pueden mandar esa libreria

Contact support@americandj.com for any profile need. Please allow up to 48 hours per profile request.

To whom it may concern, When is the new ADJ Vizi Beam 5RX shipping? I'm holding off on purchasing my Beam Lights until this comes out but with shows coming up very soon, I'll have to make a purchase within the next couple weeks. Being that I own and am very happy with your FREQ16 strobes, ECO bar black lights, and just purchased your new up lights I'd really like to continue purchasing from your line of products. Please let me know and If there is any way to purchase them at whole sale prices directly from you so I'm able to purchase more than just two. That would be much appreciated and of course I can keep it confidential so you don't get an abundance of similar inquires. Thanks, Louis

We will be recieving these units at the end of June. As we are a factory, we can't sell to the public. Place your order with local dealers or On line dealers to get in lline fro the next delivery.

I can't control my vizi beam 5rx with mydmx2.0?is there going to be an update for it ?

Please contact 323-582-2650. Ask for service.

I can't control my vizi beam 5rx with mydmx2.0?is there going to be an update for it ?

Please e-mail support for a profile. support@americandj.com

tengo 4 vizi beam 5rx pero no las encuentro en el el programa de my dmx2.0 que puedo ser? me pueden ayudar por favor

Holla Edgar

Lo que puedes hacer es llamar al departamento de servicio para que tr den el profile del programa para esa luz. Aqui esta el numero de telephono. (323) 582-2650 Si tienes mas preguntas dejame saber.

Gracias,

tengo 4 vizi beam 5rx pero no las encuentro en el el programa de my dmx2.0 que puedo ser? me pueden ayudar por favor

Holla Edgar

Lo que puedes hacer es llamar al departamento de servicio para que tr den el profile del programa para esa luz. Aqui esta el numero de telephono. (323) 582-2650 Si tienes mas preguntas dejame saber.

Gracias,
