Vintage Bar

Name: Vintage Bar
Brand: ADJ
SKU: VIN150
Availability: InStock

Vintage Bar combines a retro amber blinder effect with vibrant RGBL background LEDs, offering rich multi-color eye candy effects and smooth dimming. With advanced strobe, pixel control, and versatile connectivity, it’s perfect for creative stage and event lighting setups.

UPC: 810087374068

SKU: VIN150

Vintage Bar

$0.00

Video

Vintage Bar

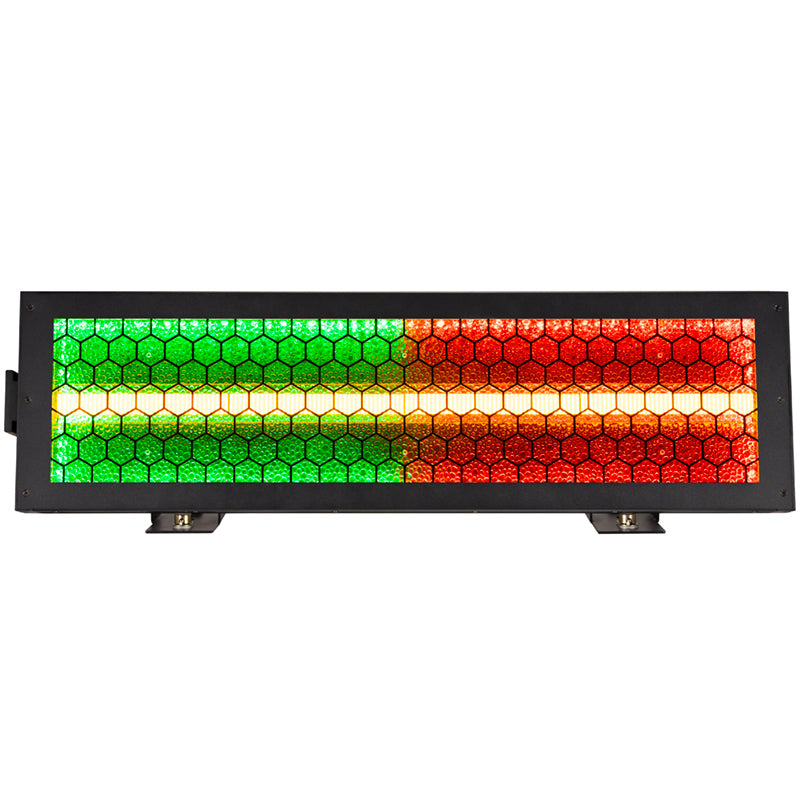

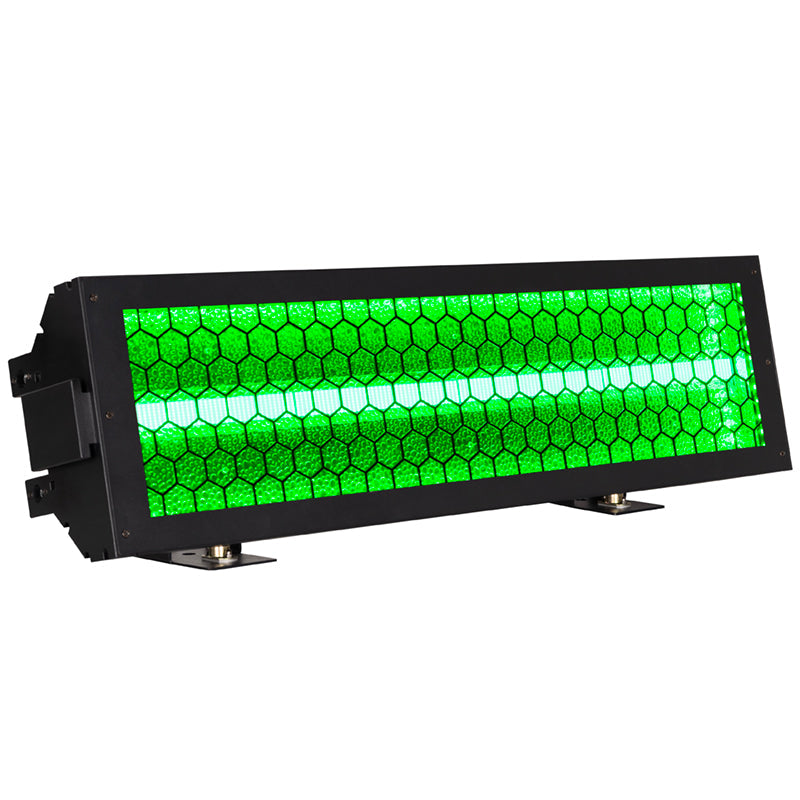

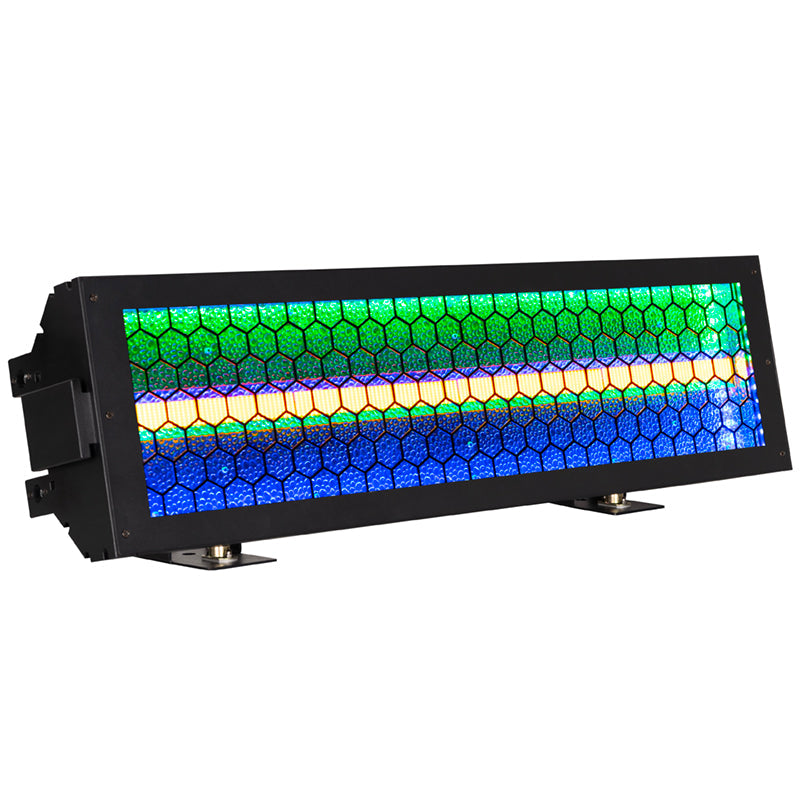

Vintage Bar is a versatile scenic lighting fixture designed to inspire creativity and captivate audiences with its dual-purpose design. It offers four 150W amber COB LEDs (2000K) for a retro blinder effect, combined with vibrant 120 SMD 5050 RGBL background LEDs configured into 20 pixel groups. This combination enables brilliant amber wash lighting, stunning multi-color eye candy effects and smooth dimming transitions.

Its wide field angle of 160° ensures exceptional light dispersion, making it ideal for stage productions, events, theatrical applications. The fixture features advanced strobing, retro background effects, and silent operation. Additional highlights include flicker-free performance, a user-friendly OLED display, and support for DMX, RDM, and Art-NET protocols. The Vintage Bar also features the Aria X2 wireless management system for over the air firmware/software updates for streamlined control.

Built for flexibility, the Vintage Bar offers multiple control modes, pixel mapping, and interlocking capability, making it perfect for immersive lighting setups. With robust engineering and creative potential, it combines vintage charm with modern functionality for modern lighting designs.

Specifications

Main Technical Parameters:

Primary Light Source: 4 pcs high-power 150W COB amber LED

CCT: 2000K
Lumens: > 27,000
Lux: 647 @ 5 meters
CRI: 70
Field Angle: 160°

Background Light Source: 120 pcs SMD 5050 RGBL LEDs (0.8W each)

Configured into 20 pixel groups (6 LEDs per group)

Dimmer: 0-100% linear dimming system

Special Effects:

Powerful strobe, 0.5 to 33Hz
Unique retro RGBL background effect
Silent operation with low noise

Additional Features:

Aria X2 Management System
Flicker-free

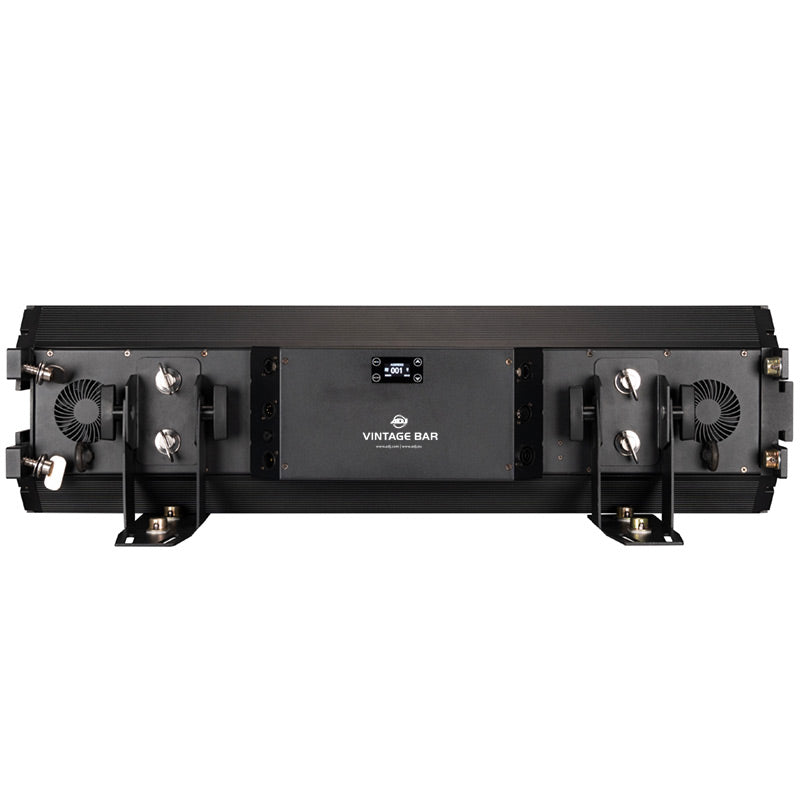

OLED display with a 4-button touch menu
Capable of interlocking multiple units together

Control Modes:

Primary/Secondary synchronization
Stand-alone mode
DMX512 control mode
10 DMX Channel Modes (5/6/8/14/17/18/84/88/90/97 channels)
DMX, RDM, sACN and Art-NET protocol support

Connections:

IP20 indoor 5-pin DMX Input and Thru
IP20 indoor RJ45 Ethernet
IP65 outdoor power locking Input and Thru

Dimensions & Weight:

Dimensions (LxWxH): 35.75x11.50x10.12” / 908x292x257mm
Weight: 41.89lbs. (19kg)

Power:

Input: AC100-230V/50Hz-60Hz
Power Consumption: 780W @120V, 750W @ 230V
Power Link: 1 piece @120V or 2 pieces @ 230V

Included Accessories:

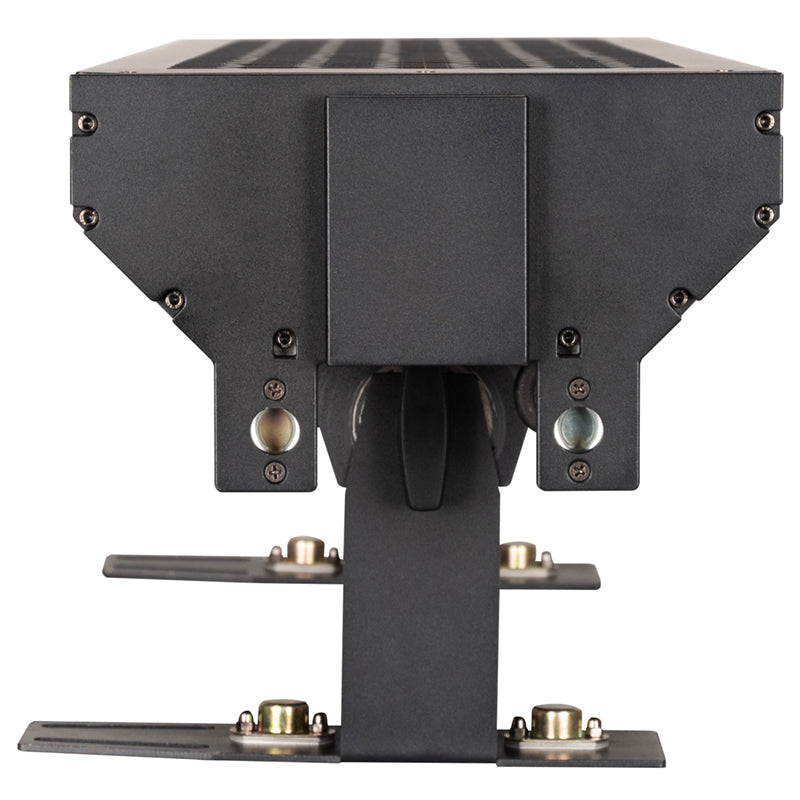

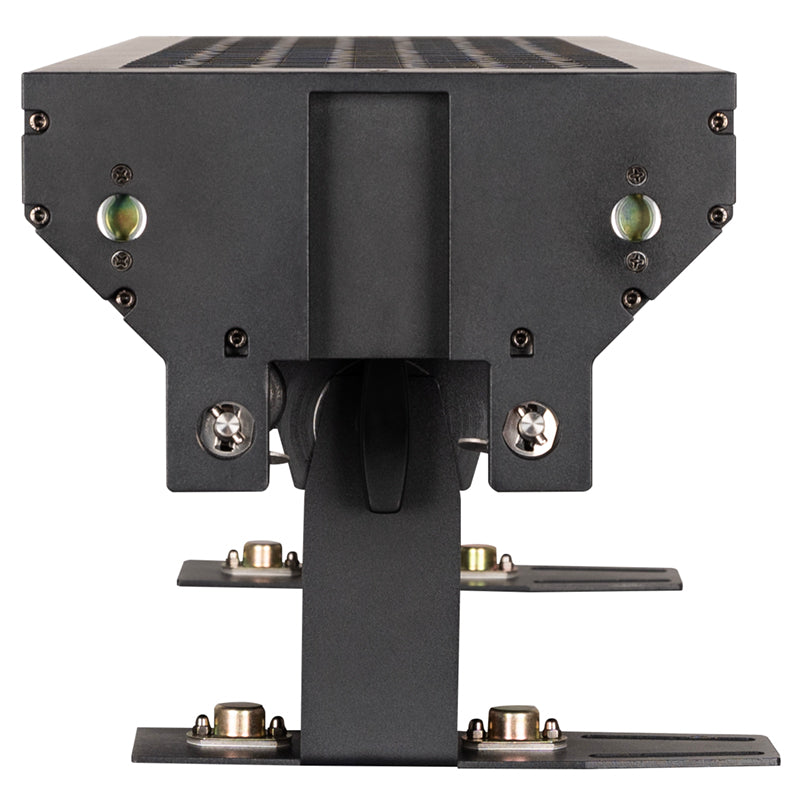

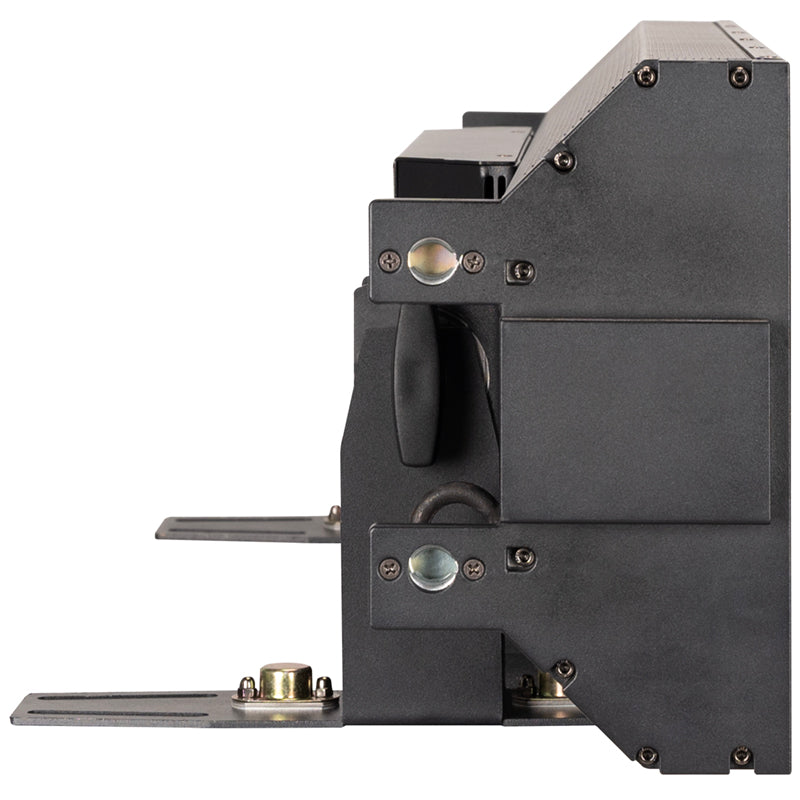

2x Adjustable feet with 108mm omega clamp receivers
2x 108mm Omega clamps
1x IP65 Locking power cable

Optional Accessories:

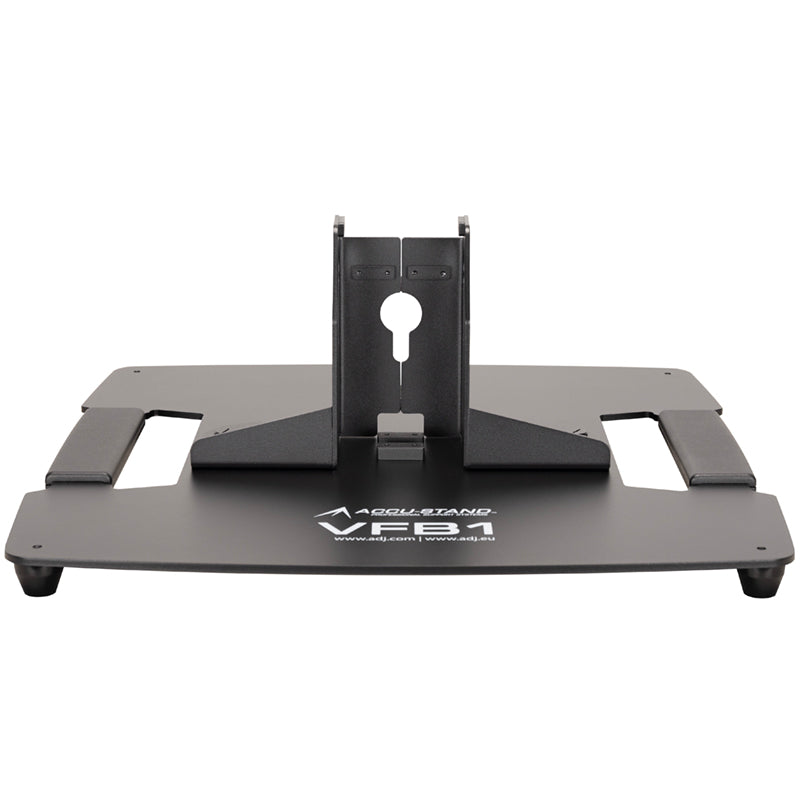

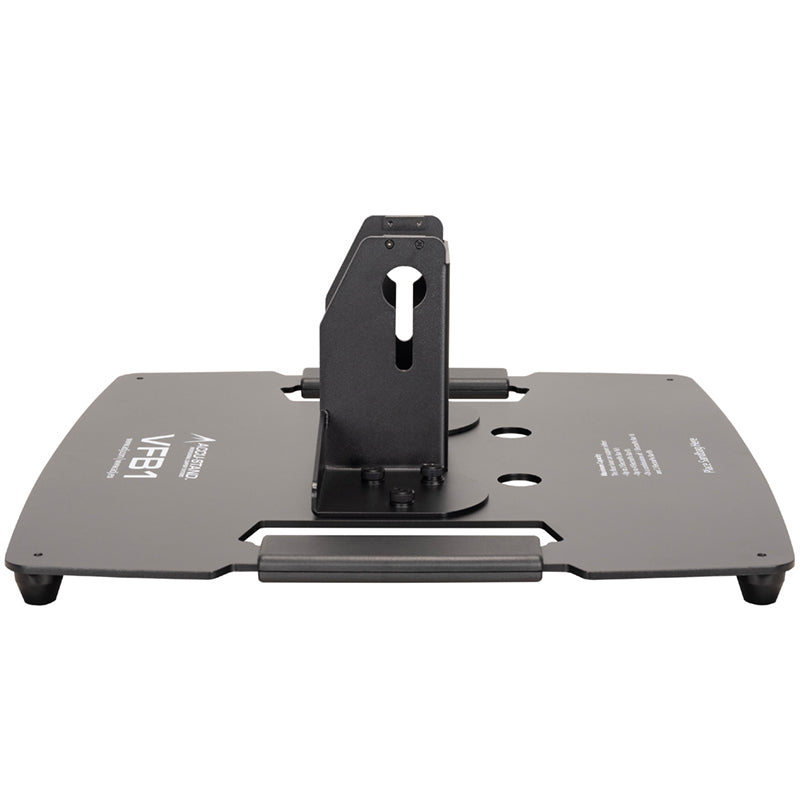

VFB1 (Floor Base for vertical stand)

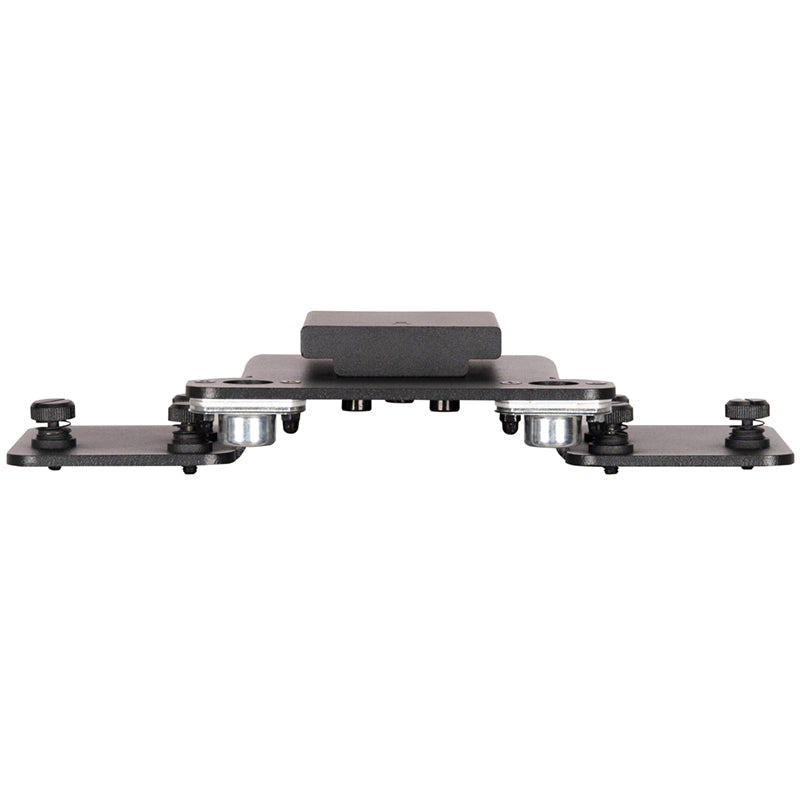

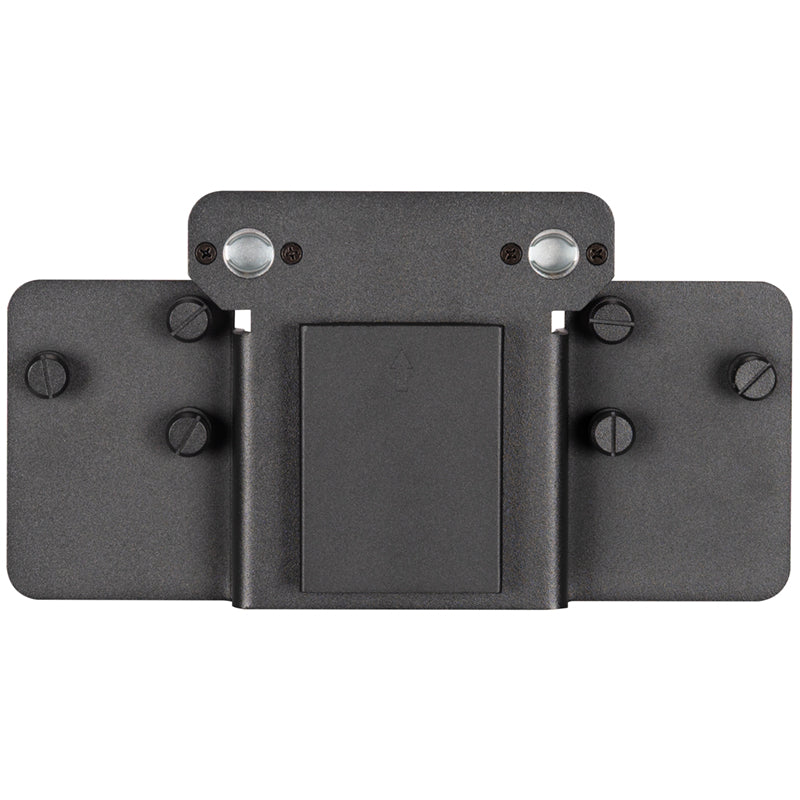

VFB1-VBA (Adapter to adapt Vintage Bar to VFB1 Floor Base. One adapter is required per floor base)
180mm Omega Bracket

Approvals / Protection Rating:
