VBar Pak

(Discontinued)
SKU: VBA222 | UPC: 819730013156

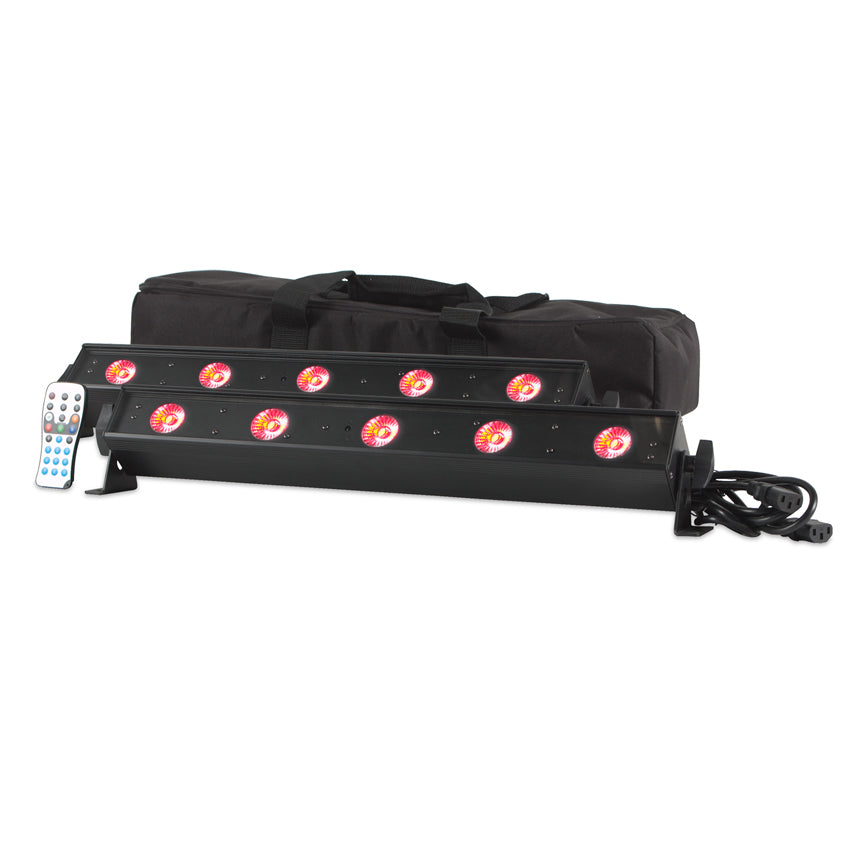

The ADJ VBar Pak is a compact, low profile LED Linear fixture kit with two VBAR LED Bars, a soft case gig bag and an IR wireless remote. The LED Bars feature five 4-Watt, 4-IN1 LED (red, green, blue and amber), adjustable hanging brackets, rubber feet for uplighting and a 4-button DMX display and it is designed for linear uplighting and stage lighting, and will bring color and excitement to any party.
Advantage Points: 250

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

The ADJ VBar Pak is a compact, low profile LED Linear fixture kit with two VBAR LED Bars, a soft case gig bag and an IR wireless remote. The LED Bars feature five 4-Watt, 4-IN1 LED (red, green, blue and amber), adjustable hanging brackets, rubber feet for uplighting and a 4-button DMX display. The VBar is designed for linear uplighting and stage lighting, and will bring color and excitement to any party.

 The VBars offer smooth RGB Color Mixing, have a 40-degree beam angle, 15 built-in color macros, 5 operational modes (including DMX, Sound Active and Master/Slave), and have 8 DMX Channel modes for a variety of programming options. Users can also use the included ADJ LED RC2 IR wireless remote to change colors and functions of the LED Bars.

 Pack Includes:
 2x VBAR LED Linear Fixtures
 1x Soft Case Gig Bag

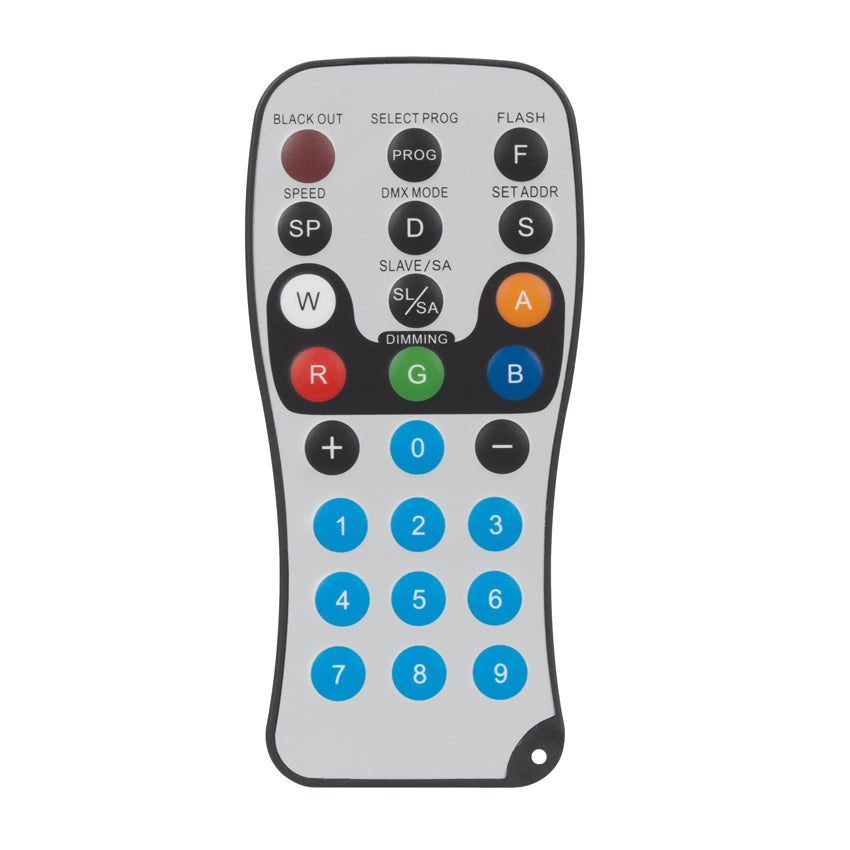

 1x ADJ LED RC2 IR Wireless Remote


Specifications

Specifications

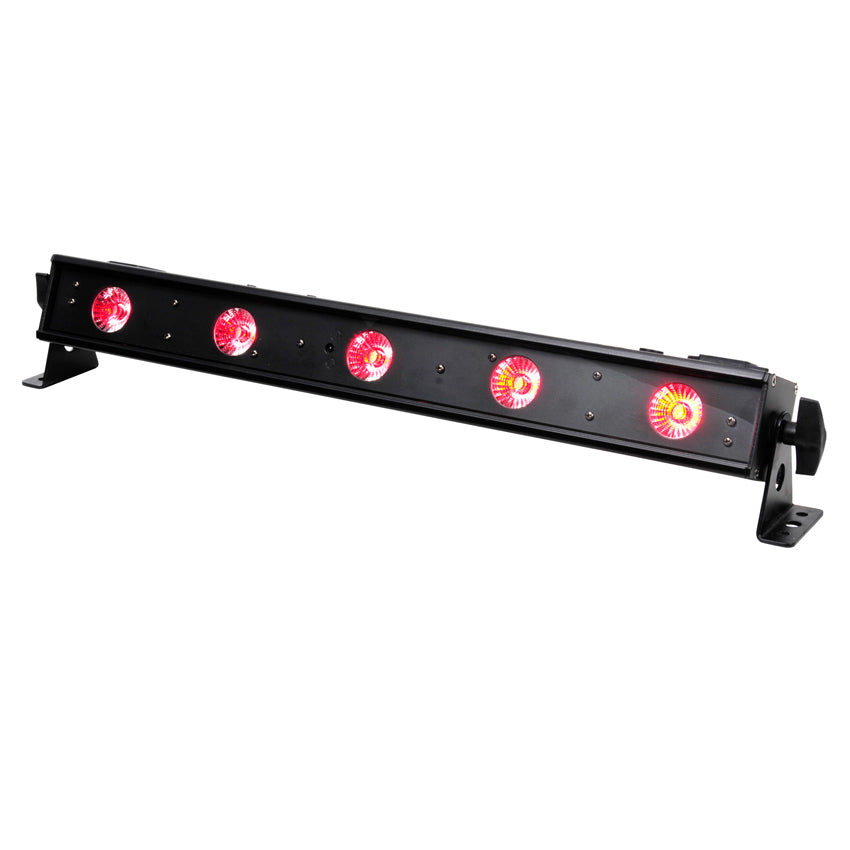

  • Ultra bright, compact black Linear fixture with 5x 4-Watt, 4-IN-1 QUAD LEDs (RGBA) – casts no RGB shadows
  • Smooth RGBA Color Mixing (fast or slow color change operation)

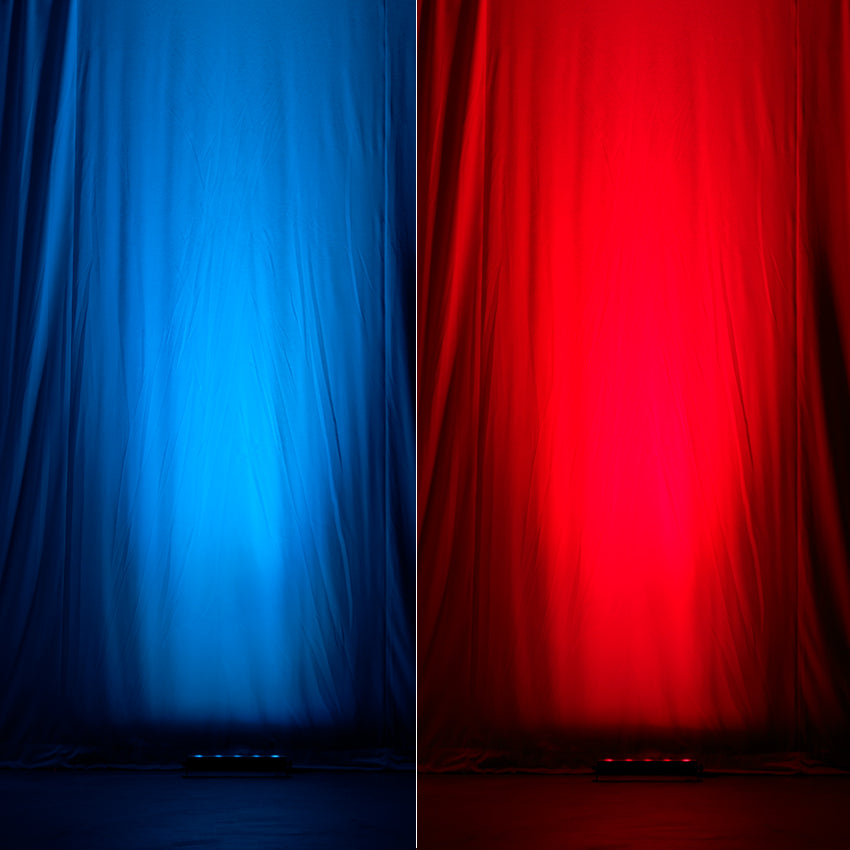

  • Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
  • 8 DMX Channel modes: 1, 2, 3, 4, 5, 6, 7 or 8 channels
  • 5 Operational modes: RGBA Dimmer mode, sound active mode, static color mode, auto run mode (3 auto run modes), and DMX Control
  • Digital DMX Display with 4-button menu for easy navigation
  • Stand Alone or Master/Slave Configuration
  • Beam Angle: 40 degrees
  • 15 built-in Color Macros
  • DMX-512 protocol
  • Color strobe effect
  • Linkable via 3-pin XLR cable
  • Electronic Dimming: 0-100%
  • Flicker Free
  • Refresh Rate: 504Hz
  • Adjustable mounting brackets; mount on a wall or set on the ground
  • Long Life LEDs (50,000 hrs.)
  • Power Draw: 21W Max
  • IEC AC input and out put on the side of the fixture to daisy chain the power cords
  • Compatible with ADJ LED RC2 wireless infrared remote control up to 30 ft./ 10M (included in the pak)
  • Multi-voltage operation: AC 100V-240V 50/60Hz
  • Dimensions (LxWxH): 22” x 2.5” x 3.5”/ 560 x 63 x 90mm
  • Weight: 4 lbs./ 1.7 kg.
  • VBAR Gig Bag inner dimensions (LxWxH): 22” x 6.5” x 3.5” / 560 x 165 x 90mm
  • System Weight: 9 lbs. / 4 kg.

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
VBar User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

Can You send me vbar ssl2 for mydmx 2.0

Please contact ernies@americandj.com

I have the VBar and I want to use sound mode except I only want blue and red to be a part of sound mode and not the other two colours . How do I do that ? Thank you

The unit would need a DMX controller in order to do this function and the controller has to have audio capability. Please contact Sales at 800-322-6337 for a reccomended Controller.

Does this light have zone control?

Hello Andrew,

Unfortunately, the Vpar/Mega tri par profiles plus are not zoned controlled. let me know you have any further questions.

Thanks,

Can you tell me how to make these work master and slave. with IR control. I have bought 4 and spent ages trying to do this

Hello Mark,

Thank you for reaching out to us. This system is not IR compatible. This system will work with the Adj led rc 2 wireless controller. First daisy chain your units via the XLR connector on the rear of the unit. Use standard XLR data cables to link your units together. Remember that the Male XLR connector is the input and the Female XLR con- nector is the ouput. The first unit in the chain (master) will use the female XLR connector only. The last unit in the chain will use the male XLR connector only. 2. Connect the first “Slave” unit to the “Master.” 3. Set the “Master” unit to your desired mode of operation. The “Slave” unit will now follow the “Master”. Let me know if you have any further questions.

Thanks,

I'd like to know the typical light output in lumnes.

Hello Burkhard,

Thank you for reaching out to us. Here is the link to manual file:///C:/Users/pnavarette/Downloads/vbar_pak%20(1).pdf In there you will find the lumens. Let me know if you have any further questions.

Thanks,

Hello, I have 6 vbars and 2 of them aren't functioning completely when on MY DMX 2.0. For example I've set up a scene to have all 6 bars to strobe but 2 of them dont respond to the scene. However they do respond to other scenes such as sound active mode and just color washing. I bought them second hand by an ADJ rep who used the bars as demo lights. What could be the issue?

Make sure that all fixture are on the same channel mode. Contact support if the problem continues, 800-322-6337 ext 592
