UV LED BAR20

(Discontinued)
SKU: UVL762 | UPC: 819730012647
The UV LED BAR 20 is a high output ultraviolet LED backlight that comes with a wireless remote for easy control of On/Off and strobe speed. It is a free solution for washing stages, nightclubs, Bowling Center, Roller Rinks and Fun Centers with ultraviolet light.
Advantage Points: 300

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

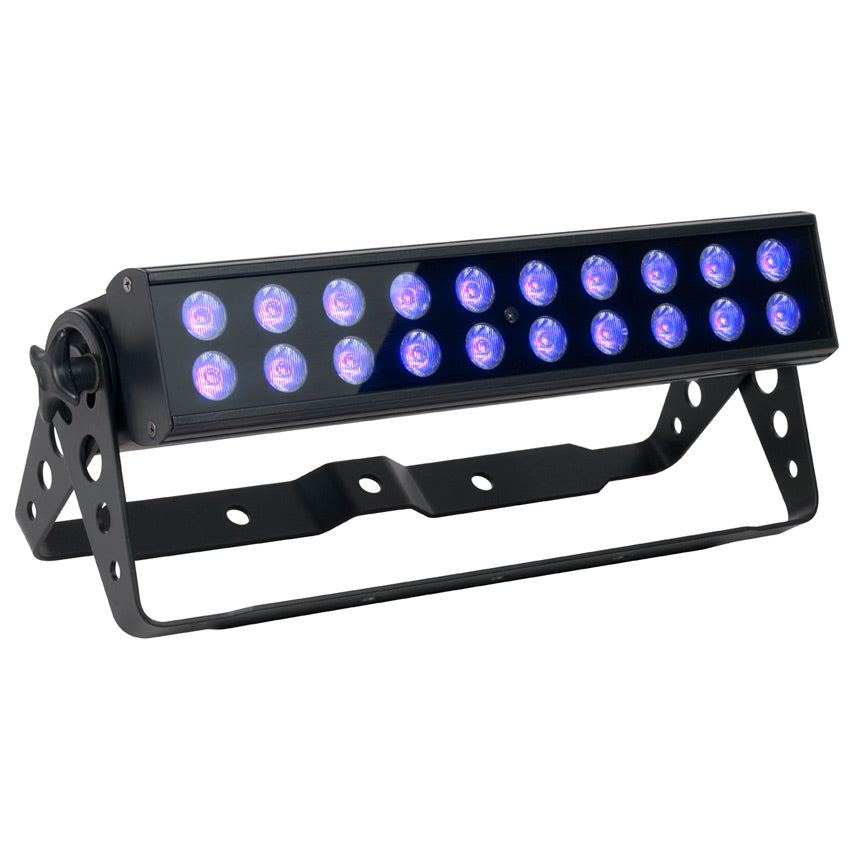

The UV LED BAR 20 is a high output ultraviolet LED backlight that comes with a wireless remote for easy control of On/Off and strobe speed. It’s powered by 20x 1-Watt UV LEDs with a maximum power draw of only 30W. The beam angle of 10-degrees x 40-degrees. With a LED life of approximately 50,000 hours, the UV LED 20 is a nearly maintenance free solution for washing stages, nightclubs, Bowling Center, Roller Rinks and Fun Centers with ultraviolet light.

Specifications

Specifications

  • Bright, high output Ultraviolet Bar with 20x 1-Watt UV LEDs

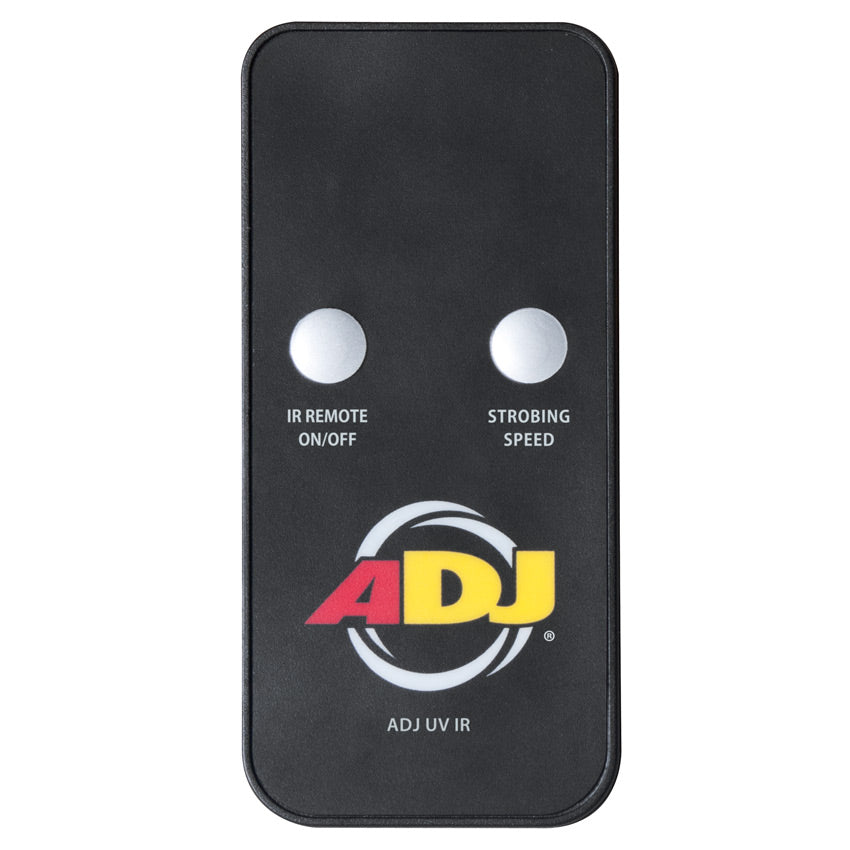

  • Includes wireless remote control (control On/Off and strobe speed)
  • Great for performance stages, theatrical productions and special effects installations - requires almost no maintenance - long life LED, low heat output, low power consumption & no moving parts
  • Long Life LEDs (50,000 hrs.)
  • Low power consumption, low heat
  • 4 Operational Modes: Sound Active, DMX-512, Master/Slave or Manual
  • 3 DMX Channel Modes: 1/2/3
  • UV strobe effect
  • Electronic Dimming: 0 - 100%
  • Flicker Free
  • Refresh Rate: 1KHz
  • Beam angle: 10 degrees vertical x 40 degrees horizontal linear beam angle - great for wall washing
  • Linkable via 3-pin XLR cable

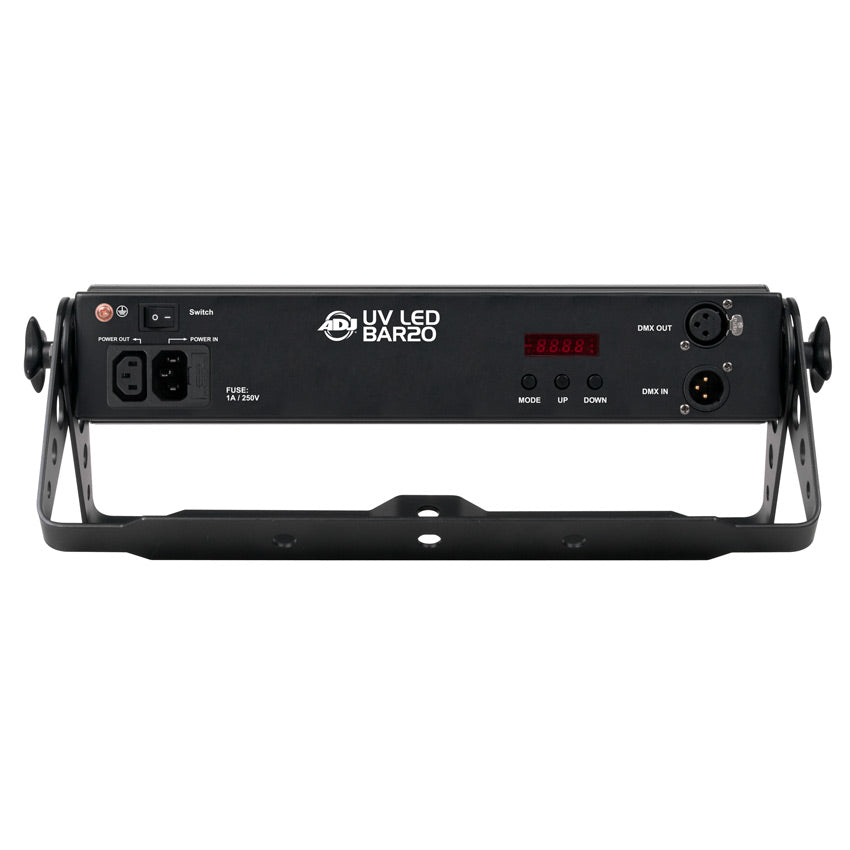

  • 3-button LED DMX display on rear panel
  • Dual bracket system allows fixture to be hung or set on the ground
  • Power Draw: 30W
  • On/Off switch on rear panel
  • Wavelength: 390-410 nanometers
  • Multi-voltage Operation: AC 100-240V, 47/63Hz
  • Dimensions (LxWxH): 13.25” x 2.5” x 7”/ 334x61x175mm
  • Weight: 6 lbs. /2.45 kgs.

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
UV LED Bar20 User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

Hi there, What would be the most suitable transport bag for the adj uv led bar 20? Thank You

I don't make a baqg that will work with the Bracket. Try ARRIBA CASES at 626-330-6100.
