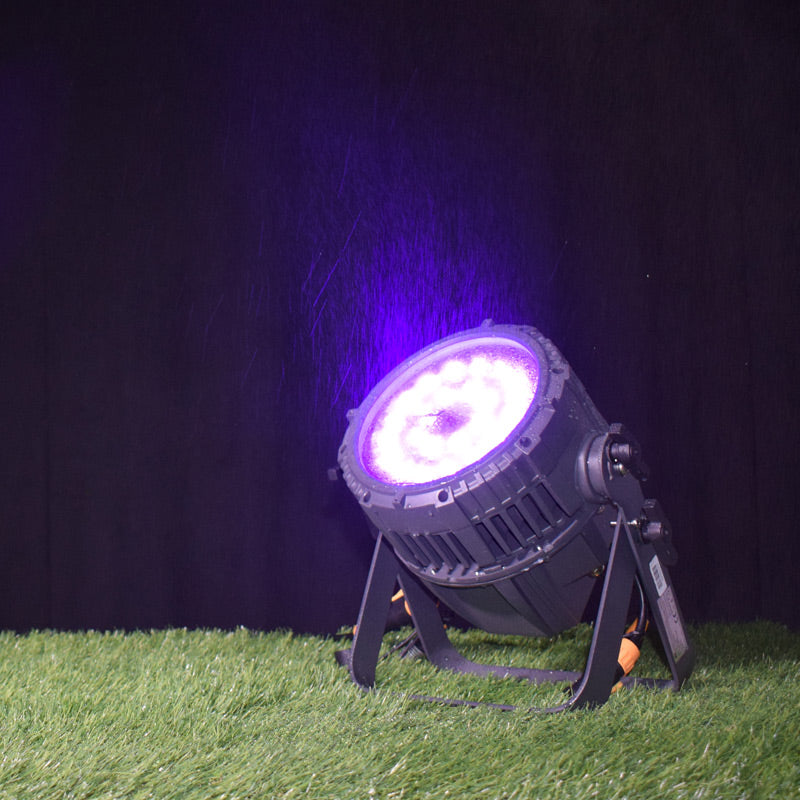

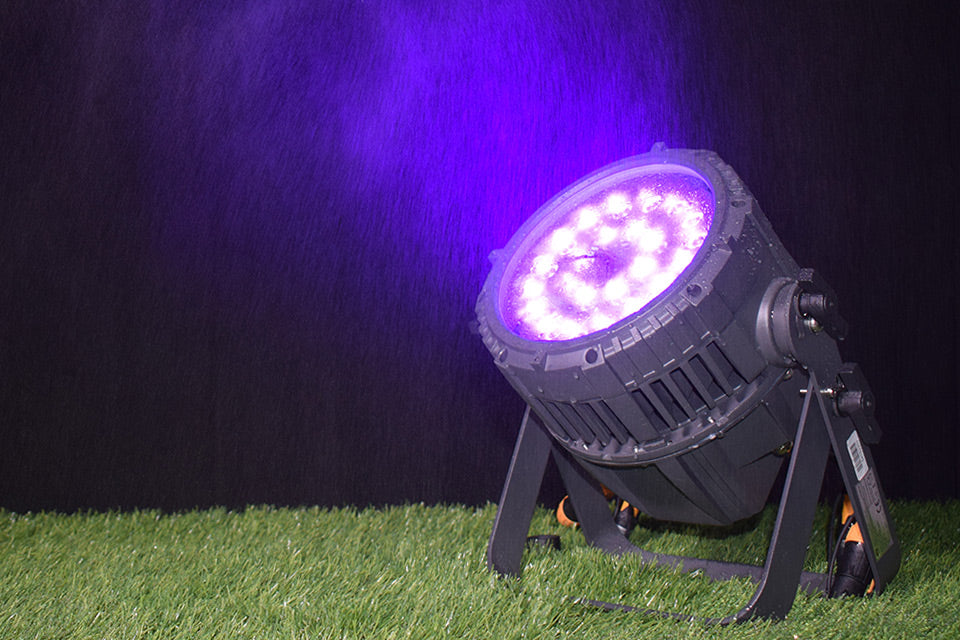

UV 72IP

The ADJ UV 72IP is an all metal, IP65 rated LED par that produces a high intensity ultraviolet light designed for outdoor performance stages, theatrical performances and special effects productions. The ADJ UV 72IP is an all metal, IP65 rated LED par that produces a high intensity ultraviolet light designed for outdoor performance stages, theatrical performances and special effects productions. The ADJ UV 72IP is an all metal, IP65 rated LED par that produces a high intensity ultraviolet light designed for outdoor performance stages, theatrical performances and special effects productions.
SKU: UVI720 | UPC: 818651020519
The ADJ UV 72IP is an all metal, IP65 rated LED par that
produces a high intensity ultraviolet light designed for outdoor performance stages, theatrical performances and special effects productions.
Advantage Points: 450

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Available now from ADJ USA • $399.99

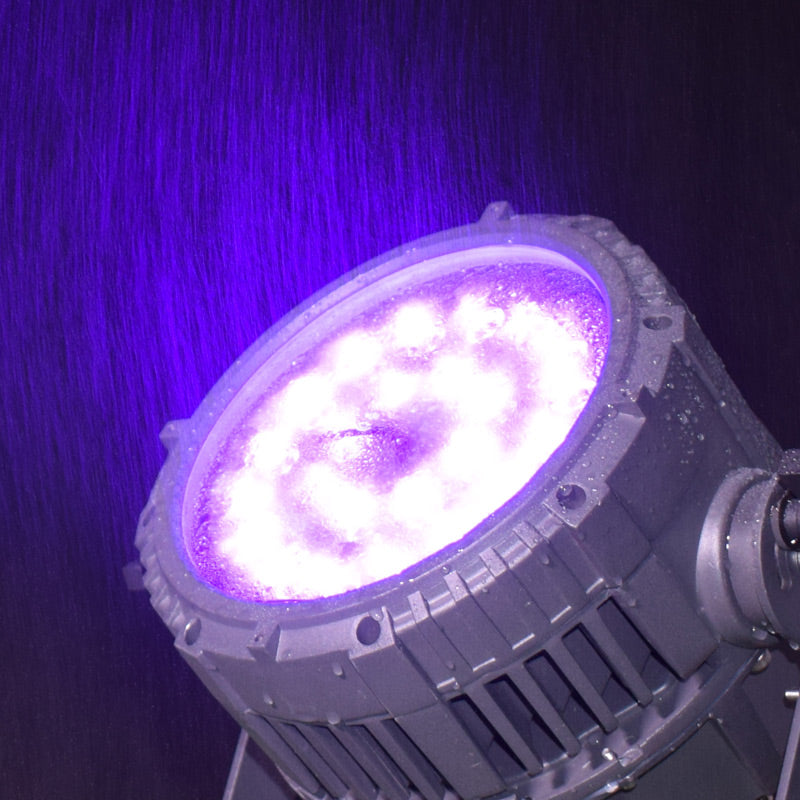

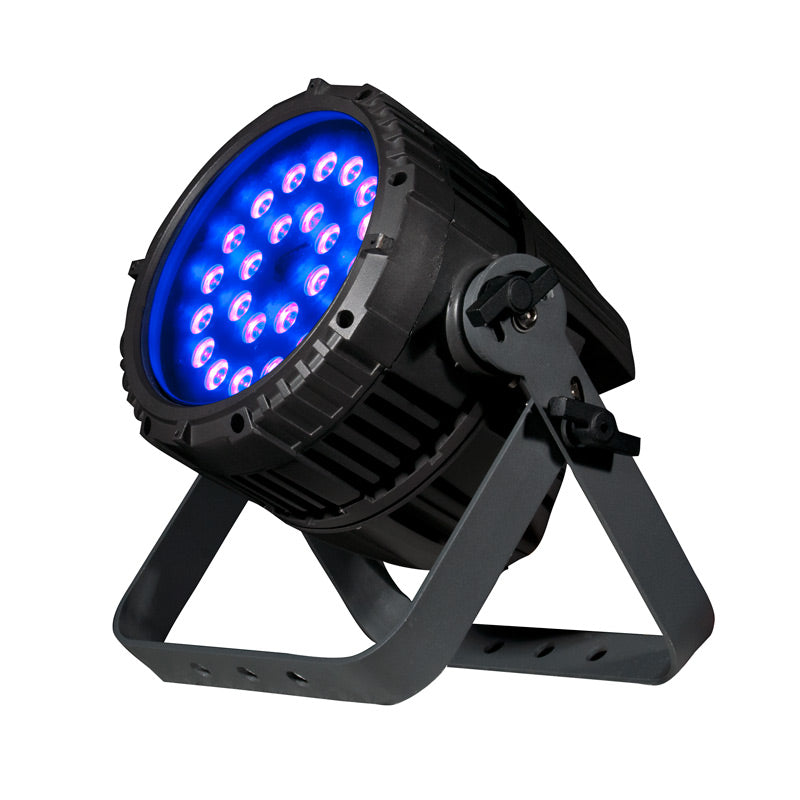

The UV 72IP produces a high intensity ultraviolet light designed for outdoor performance stages, theatrical performances and special effects productions. This all metal, IP65 outdoor rated professional fixture features ADJ’s WiFLY EXR wireless DMX and is powered by twenty-four 3W UV LEDs.

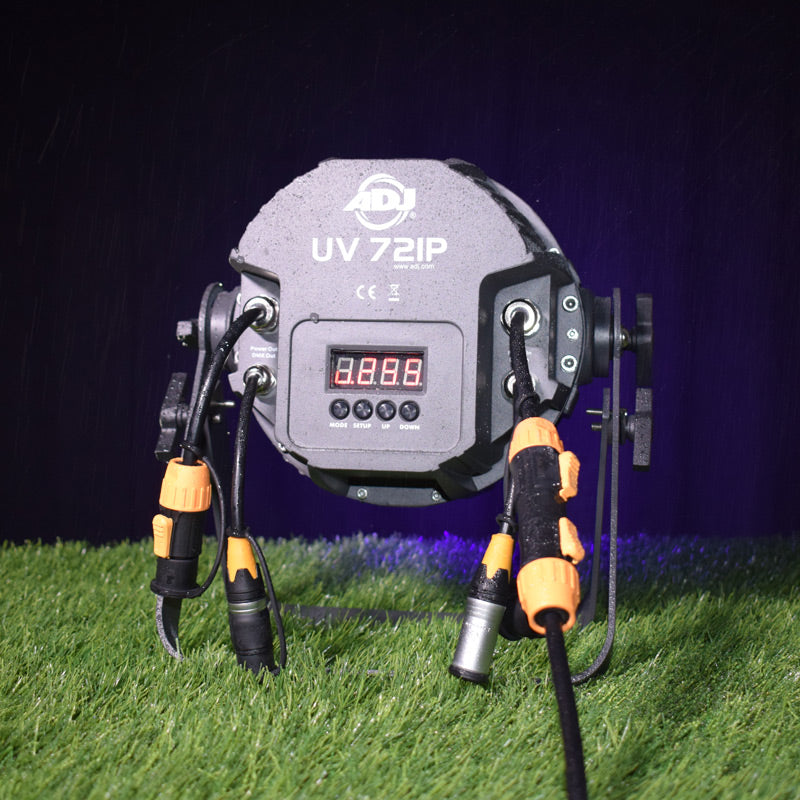

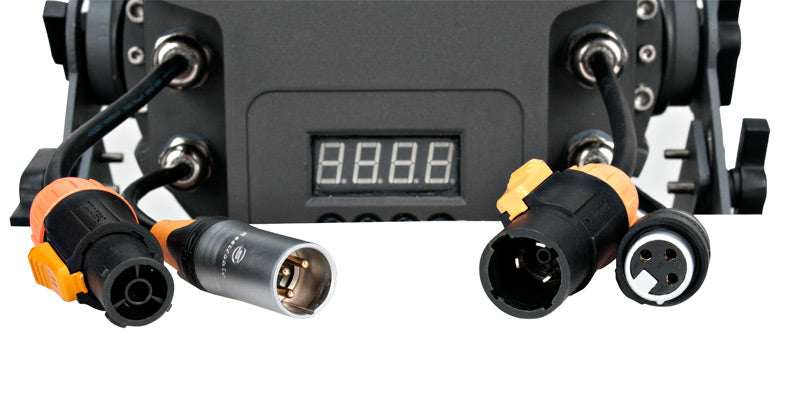

The UV 72 IP is equipped with a 4-button DMX digital display, Seatronic water proof Powerkon to daisy chain power and 3-pin DMX IP rated In/Out connections. Includes a scissor yoke allows fixture to be hung or set on the ground.

Specifications

Specifications

Optical:
• 24x 3W UV LEDs
• Life Expectancy: 50000 hours
• LUX: 235 @ 2M; 57.7 @4M

• Beam Angles: 33-degrees
• PWM frequency: 1000 Hz

Connections:

• 3-pin DMX IP rated In/Out connections
• With Wired Digital Communication Network
• Seatronic water proof Powerkon connectors to daisy chain power

Control:
• Control Protocol: DMX-512, WiFLY EXR Wireless DMX (up to 2,500 feet/760M - open line of sight)
• 3 DMX Channels:1/2/3 Channels
• Remote Control: WiFLY EXR DMX, UC-IR & Airstream IR Compatible
• 3 Operational modes: UV Dimmer Mode; Fade Mode; and DMX Controlled

Specifications:
• IP65 outdoor rated
• Scissor yoke allows fixture to be hung or set on the ground

• 0-100% Electronic Dimming
• Strobe- Flash Rate in Hz from low to Max: 0.2Hz-11Hz
• Dimmer Curves: 5 Dimmer Modes
• Flicker Free

Electrical:
• Multi-voltage operation: AC 100-240V, 50/60Hz
• Power Draw: 87W, 0.9Amps @ 120V/60Hz; 84W, 0.5Amps @220V/50Hz

Dimensions:
• Dimensions (LxWxH): 8.25” x 11.50” x 8.50” / 208.5 x 292 x 215mm
• Weight: 12 lbs. / 5.5 kg.

Certifications:
• ETL Approved
• CE
• IP65 outdoor use





Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
UV 72IP User Manual Download
UV 72IP Photometric Test Reports Photometric Test Reports Download
UV 72IP Photometric IES File Photometric IES File Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for UV 72IP
