Ultra Hex Bar 6

SKU: ULT652 | UPC: 819730013033
The ADJ Ultra HEX Bar 6 is a versatile LED Linear fixture with 6x 10-Watt , 6-IN-1 HEX LEDs. With a 40-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs
Advantage Points: 250

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

The ADJ Ultra HEX Bar 6 is a versatile LED Linear fixture with 6x 10-Watt , 6-IN-1 HEX LEDs. With a 40-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Bar great for lighting stages and dance floors, but with its patent pending, intelligently designed, power and DMX connectors, it’s great for uplighting a venue.

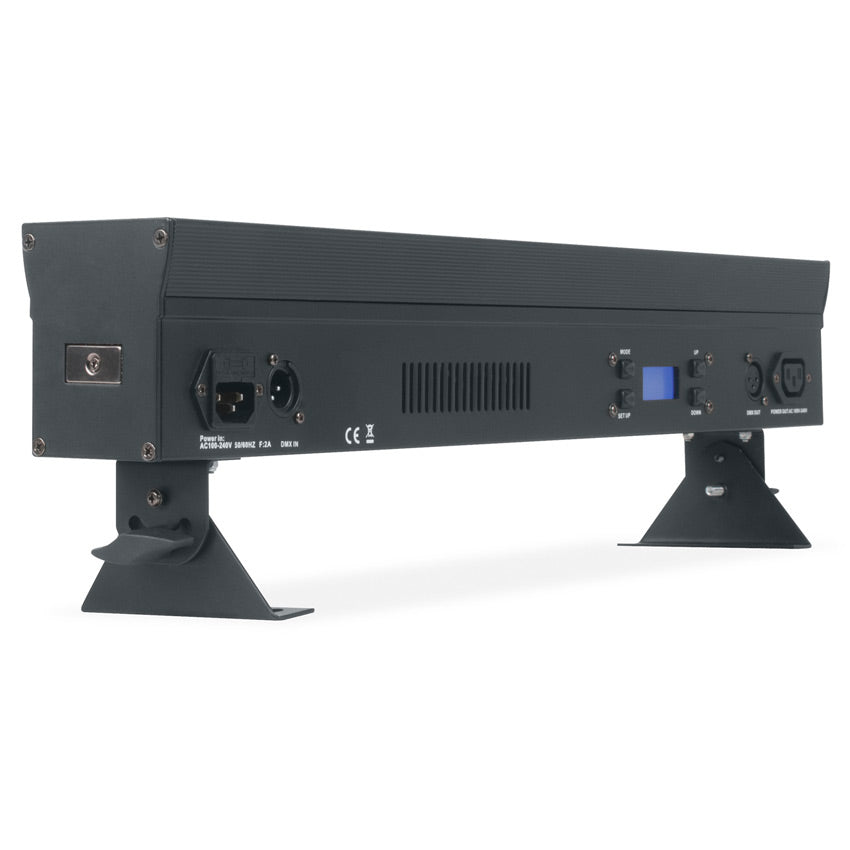

Ultra HEX Bar 6 professional features include: 5 DMX modes (6, 7, 8, 12 & 18 channel), 6 operational modes, 5 dimming curves, flicker free operation a 4-Button DMX menu with digital display, plus ADJ’s patent pending magnetic “Quick Align” end locking allows for a seamless output of light with no breaks of color. Daisy chain up to 12 units together via the fixtures built-in IEC In/Out power connectors.



The Ultra HEX Bar 6 is compatible with the ADJ RFC, easy-to-use, wireless remote. Alternatively the fixture may be operated via a DMX controller or the units built-in programs.

Specifications

Specifications

• Ultra bright, 23-inch (.5 meter) indoor Linear Bar with 6 x 10W Ultra bright HEX (RGBWA + UV: 6-IN-1) LEDs

• Smooth RGBAW + UV color mixing

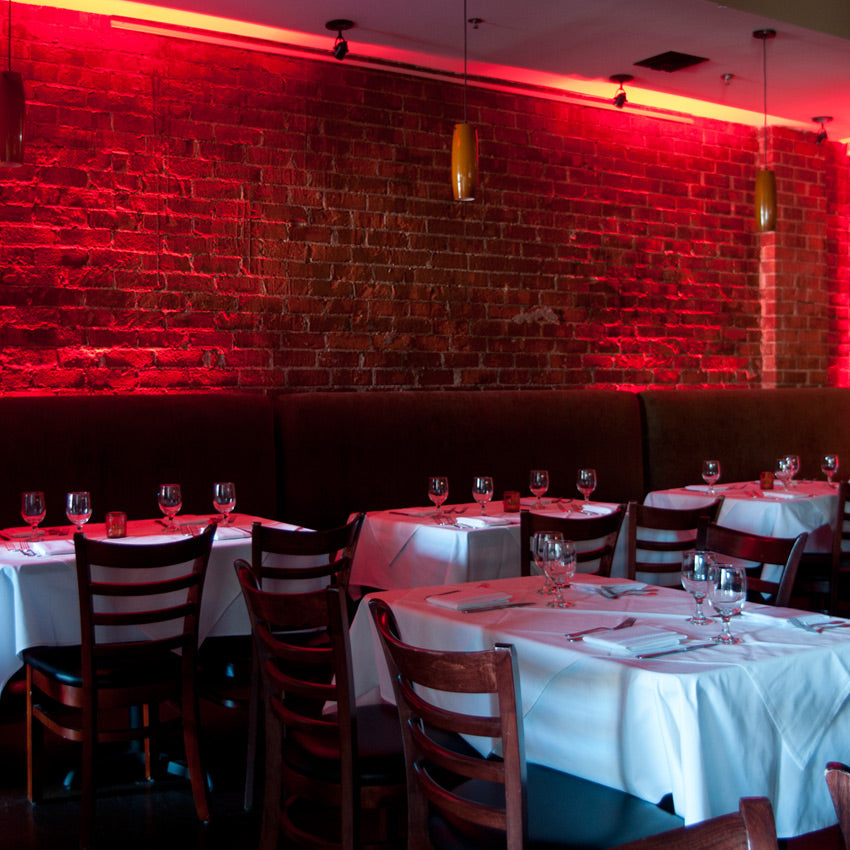

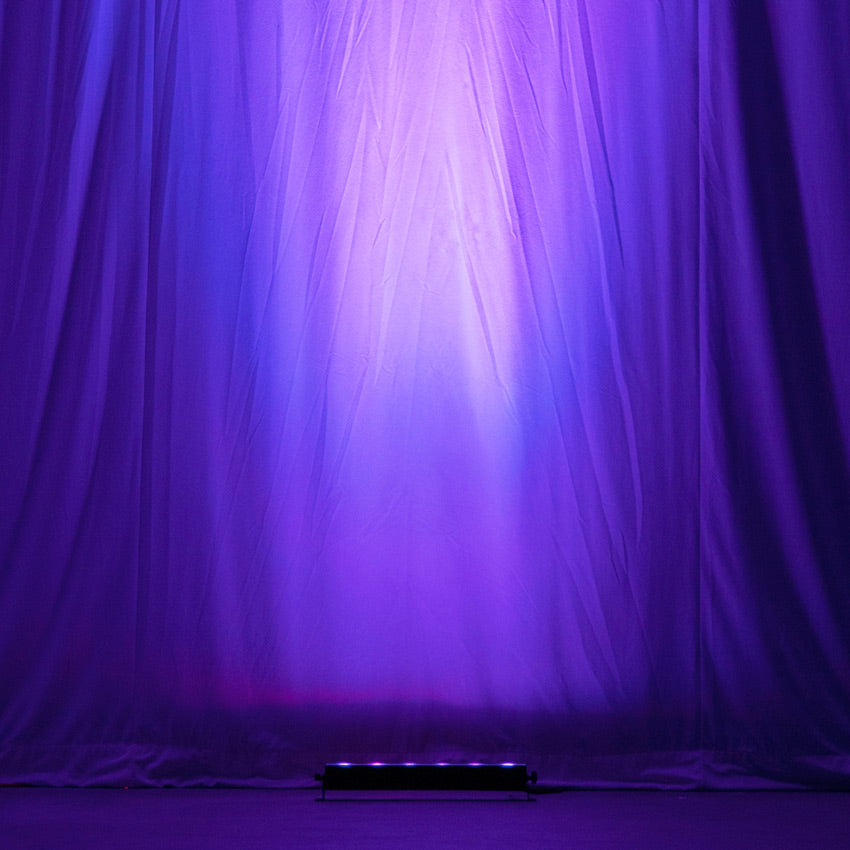

• Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers

• 5 DMX Channel Modes: 6, 7, 8 ,12 or 18 channels

• 6 operational modes: Auto Run, Program Mode, Sound Active, RGBWA + UV Dimmer, Static Color and DMX-512 Mode

• Patent Pending Quick Align (Magnetic)

• Beam Angle: 40 degrees

• Flicker Free operation (No flickering on camera)
• Refresh Rate:2.88KHz

• 63 built-in Color Macros

• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)

• LED pulse and strobe effect

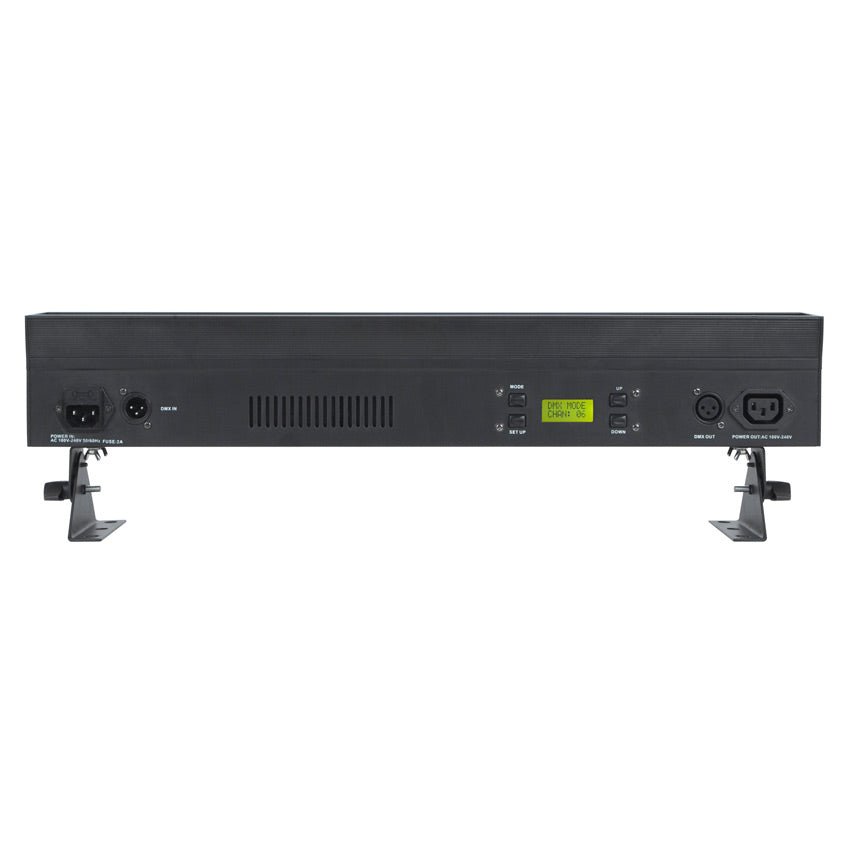

• 2x8 Character LCD Display

• Electronic Dimming: 0-100%

• Includes mounting brackets to mount on a wall or set on the ground

• Compatible with the ADJ RFC remote with RF control up to 30 ft./ 10M (sold separately)

• Long Life LEDs (Rated at approximately 50,000 hrs.)
• Light output: 1172 LUX @ 2M; 310 LUX @ 4M (40-degree beam)

• Power Draw: 55W

• Linkable: DMX via 3-pin XLR cable; Power via IEC daisy-chain power link (Up to 12 Ultra Hex Bar 6 fixtures)
• With Wired Digital Communication Network

• Multi-voltage operation: AC 100V-240V 50/60Hz
• Power cable length: 1.8 meter (IEC)

• Dimensions (LxWxH): 23” x 4.5” x 6.5”/ 585 x 110 x 165mm

• Weight: 6 lbs./ 2.82 kg

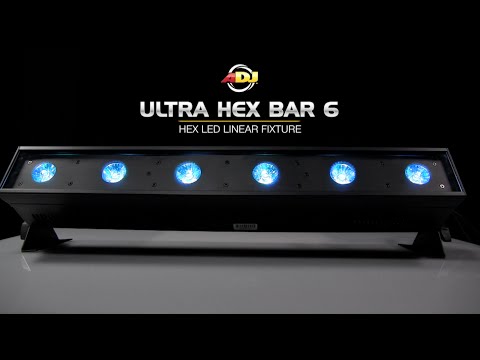

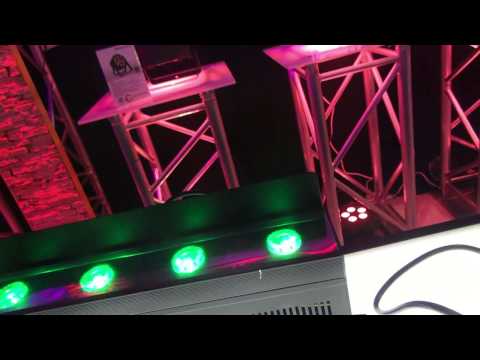

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Ultra Hex Bar 6 User Manual Download
Ultra Hex Bar 6 Photometric Test Reports Photometric Test Reports Download
Ultra Hex Bar 6 Photometric IES Files Photometric IES Files Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

Trying to find a diffuser to fit this light. Need four of them and possibly 4 diffusers for the tw-12s as well. 804.938.6872.

Hello Topper,

Thank you for reaching out to us. Unfortunately, we do not have any diffusers for our ultra bar 6. We do have a diffuser lence for our flat par tw12, the part numner is DF64. Let me know if you have any further questions.

Thanks,

Can the ultra hex bar 6 get power from each other or do they all have to be powered individually?

Hello Quincy,

Thank you for reachhing out to us. Yes, you can power jump from unit to unit. Let me know if you have any further questions.

Thanks,

I need the DMX profile to import to a Chauvet ShowXpress 512 control unit. Where can I obtain?

Hello Eric,

Thank you for reaching out to us. For profiles contact sergioc@americandj.com in our service dept.

Thanks,
