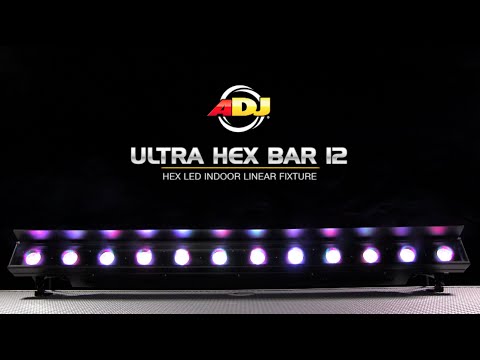

Ultra Hex Bar 12

SKU: ULT240 | UPC: 819730015266

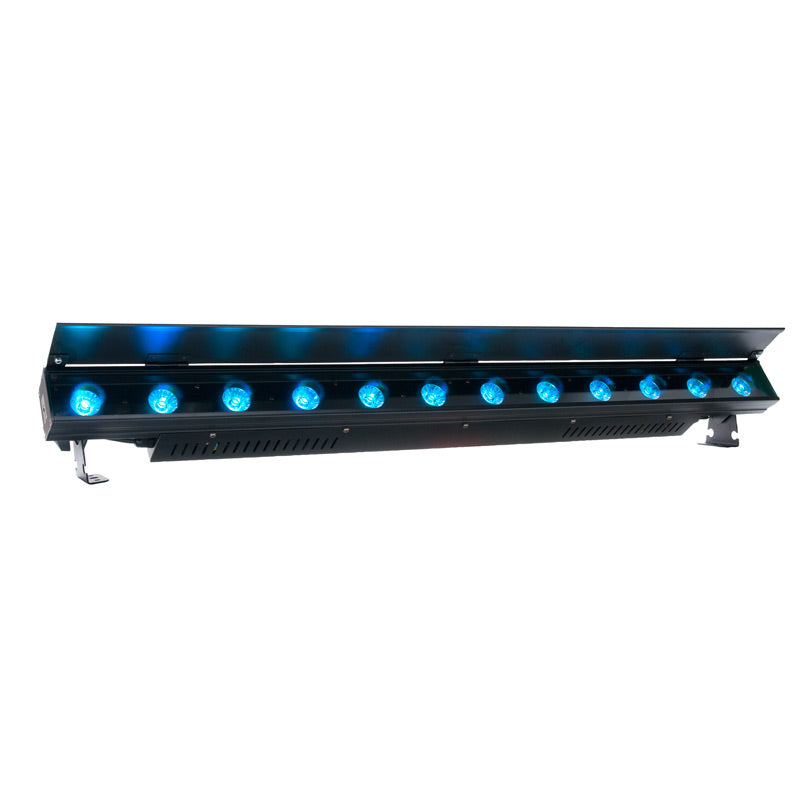

ADJ Ultra Hex Bar 12 is a 12x 10W HEX (RGBAW + UV: 6-IN-1) LED linear fixture. It features 6 operational modes, 5 DMX channels, 63 built-in color macros, 5 dim curves, and a 40 degree beam angle.
Advantage Points: 460

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

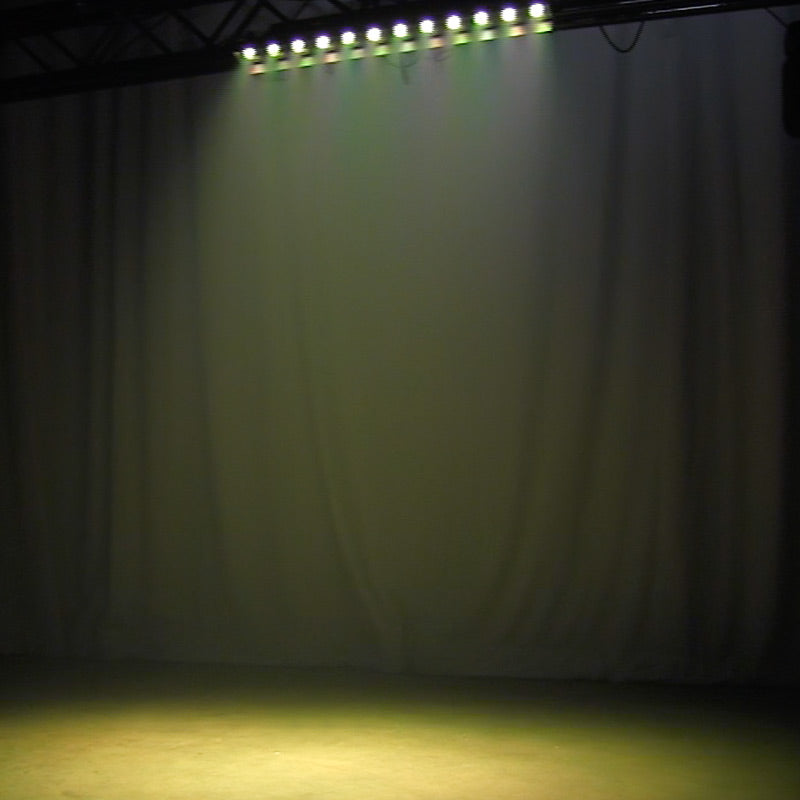

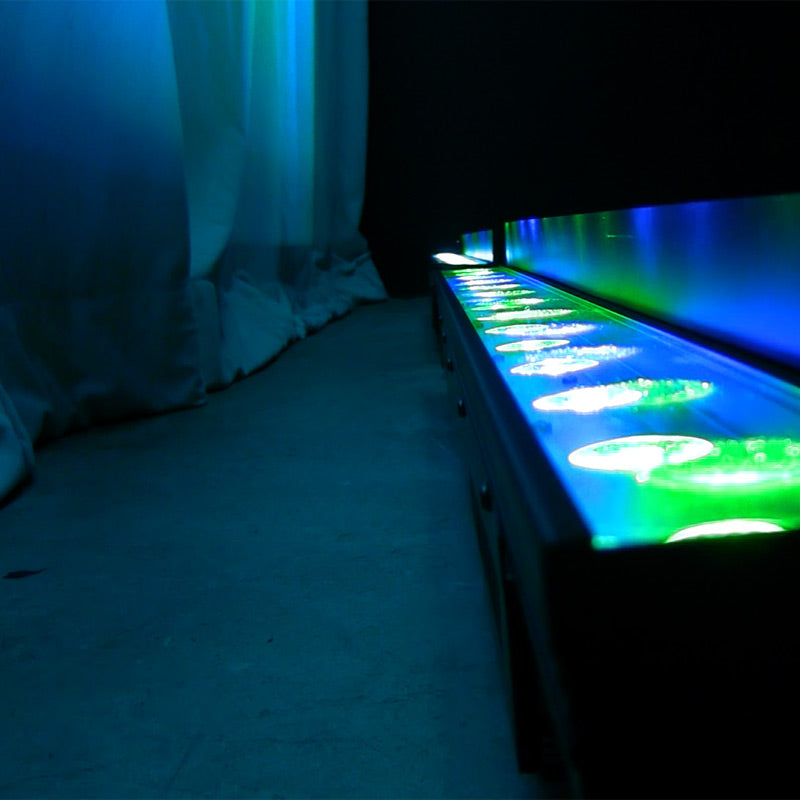

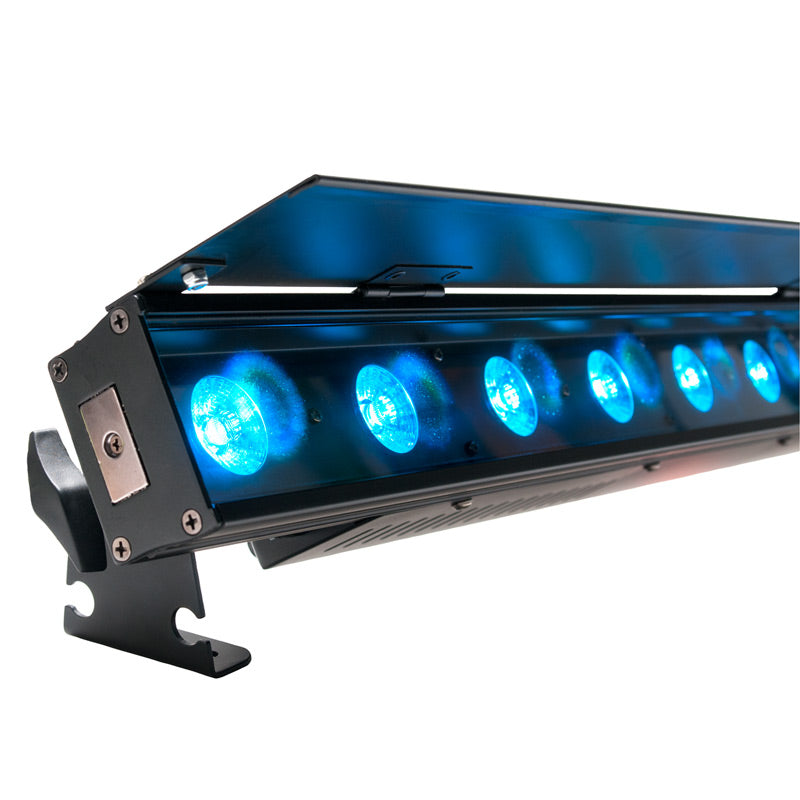

The ADJ Ultra HEX Bar 12 is a versatile LED Linear fixture with 12 x 10-Watt , 6-IN-1 HEX LEDs. With a 40-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Bar great for lighting stages and dance floors, but with its patent pending, intelligently designed, power and DMX connectors, it’s great for uplighting a venue.

Ultra HEX Bar 12 professional features include: 5 DMX modes (6, 7, 8, 12, & 36 channel), 6 operational modes, 5 dimming curves, flicker free operation a 4-Button DMX menu with digital display, plus ADJ’s patent pending magnetic “Quick Align” end locking allows for a seamless output of light with no breaks of color. Daisy chain up to 7 units together via the fixtures built-in IEC In/Out power connectors.

The Ultra HEX Bar 12 is compatible with the ADJ RFC, easy-to-use, wireless remote. Alternatively the fixture may be operated via a DMX controller or the units built-in programs.



• Ultra bright, 40-inch indoor Linear Bar with 12 x 10W Ultra bright HEX (RGBWA + UV: 6-IN-1) LEDs

• Smooth RGBAW + UV color mixing

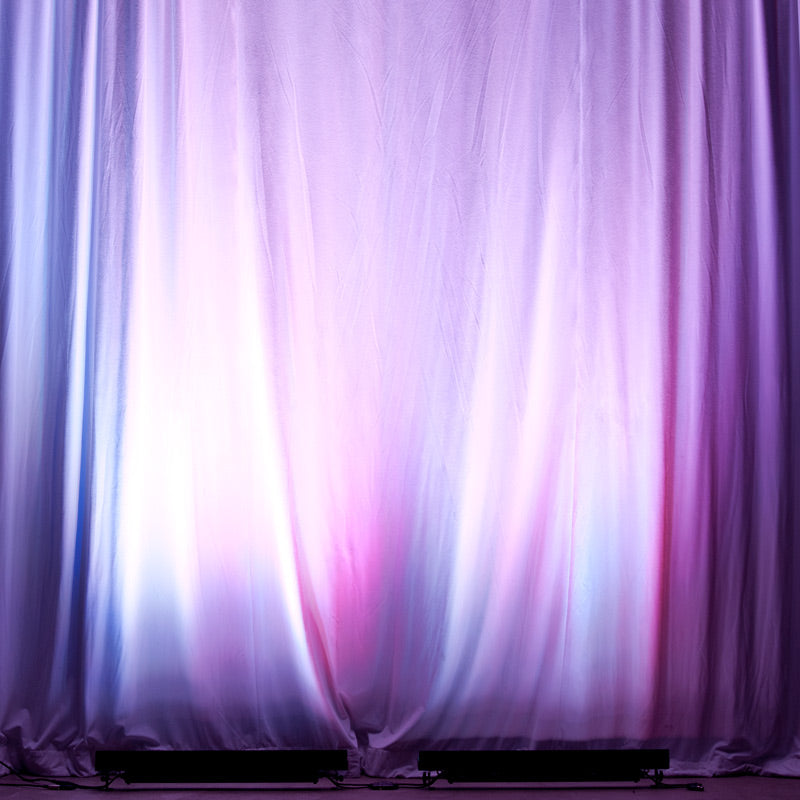

• Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers

• 5 DMX Channel Modes: 6/7/8/12/36 channels

• 6 operational modes: Auto Run, Program Mode, Sound Active, RGBWA + UV Dimmer, Static Color and DMX-512 Mode

• Patent Pending Quick Align (Magnetic)

• Beam Angle: 40 degrees

• Flicker Free operation (No flickering on camera)
• Refresh Rate: 2.88KHz

• 63 built-in Color Macros

• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)

• LED pulse and strobe effect

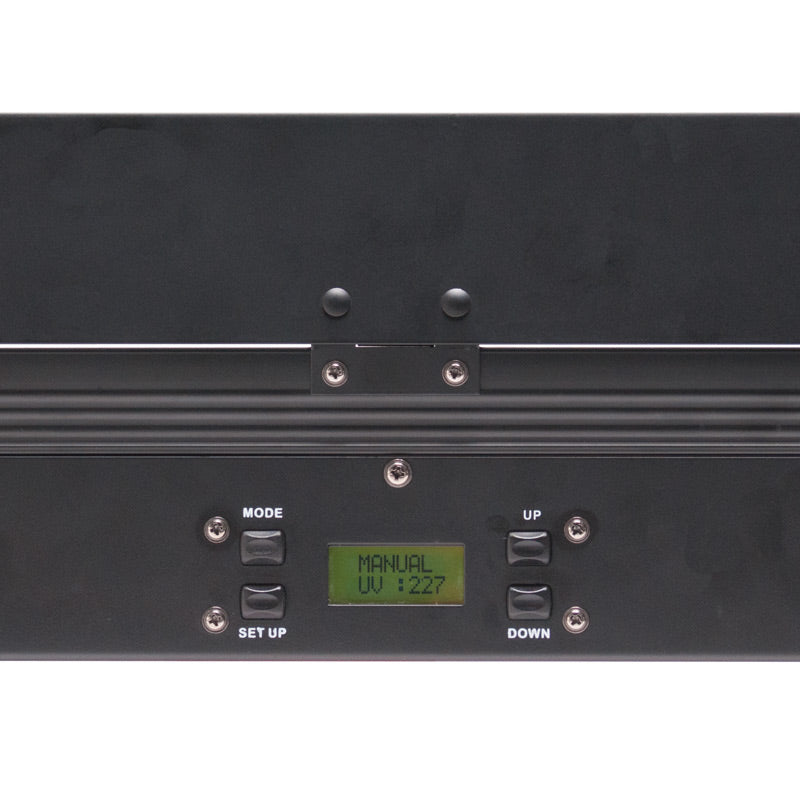

• 2x8 Character LCD Display

• Electronic Dimming: 0-100%

• Includes mounting brackets to mount on a wall or set on the ground

• Compatible with the ADJ RFC remote with RF control up to 30 ft./ 10M (sold separately)

• Long Life LEDs (Rated at approximately 50,000 hrs.)

• Light output: 1680 LUX @ 2M; 478 LUX @4 Meters (40-degree beam)
• Power Draw: 90W

• Linkable: DMX via 3-pin XLR cable; Power via IEC daisy-chain power link (Up to 7 Ultra Hex Bar 12 fixtures)

• Multi-voltage operation: AC 100V-240V 50/60Hz
• Power cable length: 1.8 meter (IEC)

• Dimensions (LxWxH): 40.25” x 2.75” x 4.75”/ 1020 x 70 x 122mm

• Weight: 11 lbs./ 4.74kg.





The following downloads are available for this product:

Title Description
Ultra Hex Bar 12 User Manual User Manual Download
Ultra Hex Bar 12 Photometric Test Reports Photometric Test Reports Download
Ultra Hex Bar 12 Photometric IES Files Photometric IES Files Download


Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

When is the Ultra Hex bar 12 going to be available?

aPPROXIMATLY 06/27/15.

Is the Ultra Hex Bar 12 100% silent in operation? For example, does it have a cooling fan? I'm hoping to use it to make my home studio more awesome, but I don't want the noise. Thank you!

This item uses convection cooling. No noise.

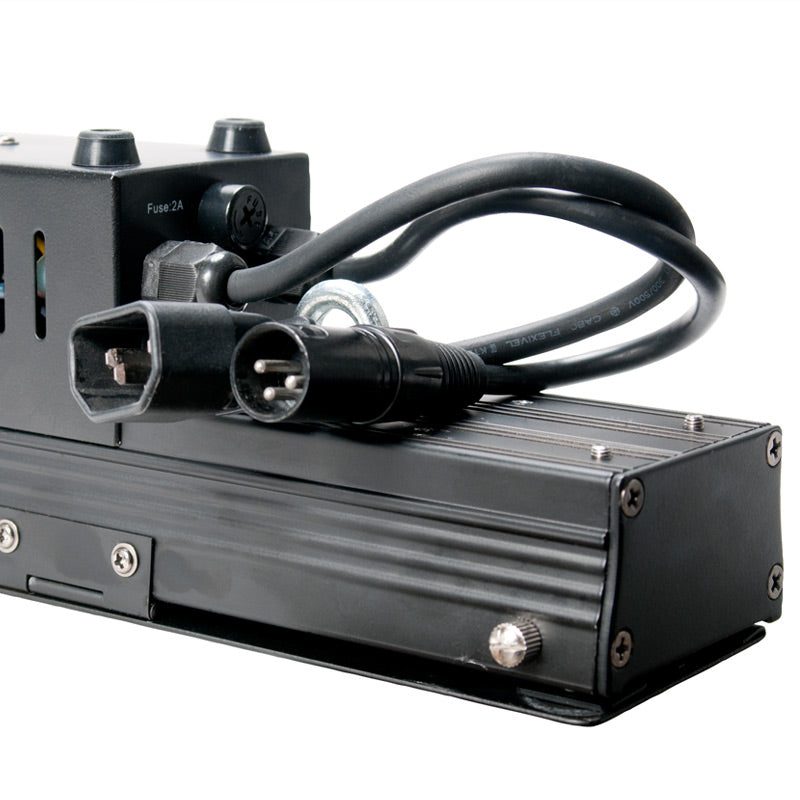

How long are the IEC and DMX pigtails coming from each end?

Hello Anthony,

The pig tails on both ends of the ultra hex bar 12 are about 9 inches in length for both power and dmx.

Is the Ultra Hex Bar 12 software upgradeable? It was a bit disappointing that it can't control individual pixels or have you taken the controller board from the Ultra Hex Bar 6 so it can't be done?

Hello Christian,

Unfortunately, It's not ungradeable, If you looking for a fixture that allows you to pixel map individual pixels. Look into our ultra kling bar 18 http://www.adj.com/ultra-kling-bar-18 Let me know if you have any further questions.


Will the American DJ ADJ RFC Wireless remote since it doesn't have an UV button? Only has RGBAW buttons? Thank u

Hello Louie,

In order to call out the uv on the ultra hex bar 12 with the rfc remote. You will need to keep tapping A/W button till you get to uv color and adjust the breightness using the plus and minus bottons. Let me know if you have any further questions.
