Ultra Bar 9

(Discontinued)
SKU: ULT421 | UPC: 819730010803
The Ultra Bar 9 offers a slew of features that allow you to change the effect, modes, and lighting intensities of the linear bar. This product is perfect for lighting designers and mobile entertainers and will add that perfect ambiance to your environment.
Advantage Points: 200

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

If you are having problems with getting that ambient lighting just right when it comes to your restaurant or dance floor, then look no further than the ADJ Ultra Bar 9. With the 1 meter long bar and 9 x 3W ultra bright TRI LEDs, you will really see the difference it will make to your space. If you wanted to get some serious stage or wall washing going then check out the variable RGB color mixing that provides a seemingly unlimited color palette.

There are 35 built-in color macros so you can set it up and go about your day while it runs all day thanks to the 50,000 hr long life LEDs. The ADJ Ultra Bar 9 can be controlled with the ADJ RFC remote with RF control up to 30 ft/10M (sold separately). It offers a linkable DMX via 3-pin XLR cable and has mounting brackets so that it can be put on a wall or secured to the ground. The quick align end locking (patent pending) mechanism will allow for a quick and easy setup and a seamless output of light.

Flexible programming is offered through the on-board 4-Button LED DMX-512 menu and will allow you to customize your setup the way you want it to be. The Ultra Bar 9 is the perfect Linear fixture that your setup is missing.

Specifications

Specifications

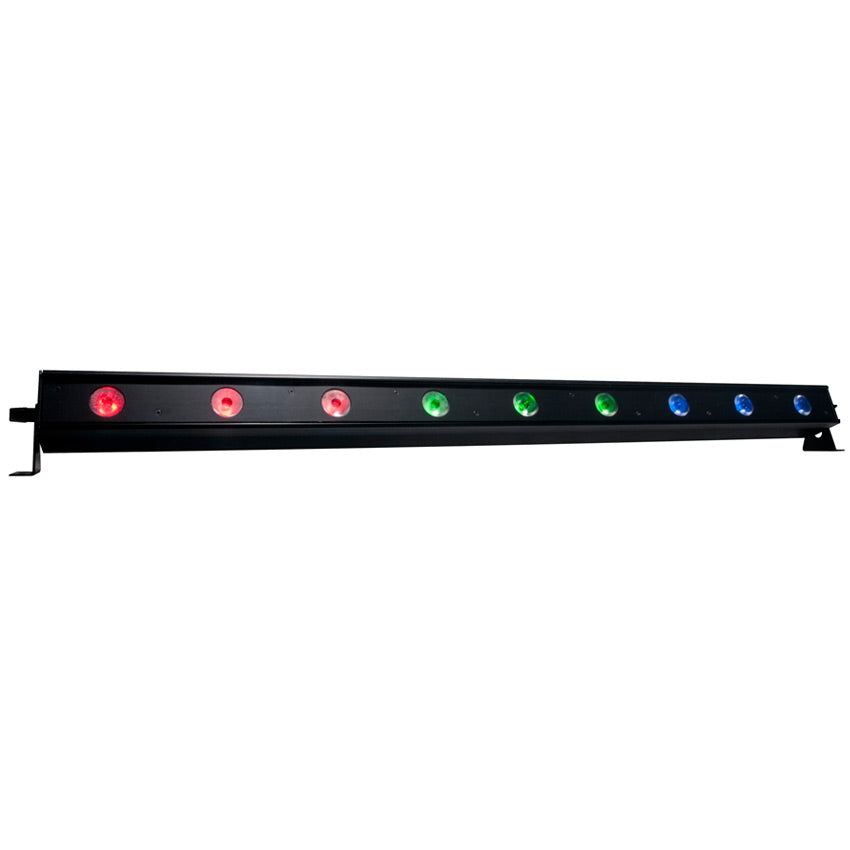

  •  41.75-inch (1 meter) indoor Linear Bar with 9 x 3W Ultra bright TRI (RGB: 3-IN-1) LEDs
  •  Variable RGB color mixing offers a seemingly unlimited color palette - Great for Stage or Wall Washing!
  •  7 DMX Channel Modes: 3, 5, 6, 7, 8, 9 or 11 channels
  •  6 operational modes: Auto Run, Program Mode, Sound Active, RGB Dimmer, Static Color and DMX-512 Mode
  •  3-Section Pixel control

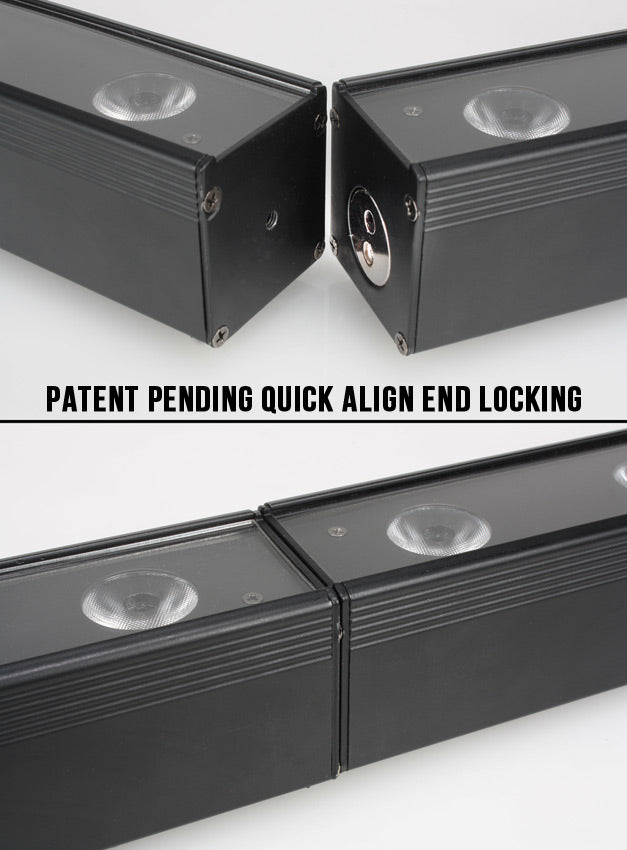

  •  Patent Pending Quick Align (Magnetic)
  •  Beam Angle: 40 degrees
  •  Flicker Free
  •  Refresh Rate: 1KHz
  •  4-Button DMX LED Display
  •  35 built-in Color Macros
  •  LED pulse & strobe effect
  •  Electronic Dimming: 0-100%
  •  Includes mounting brackets to mount on a wall or set on the ground
  •  Compatible with the ADJ RFC remote with RF control up to 30 ft./ 10M (sold separately)
  •  Long Life LEDs (Rated at approximately 50,000 hrs.)
  • Light output: 934 LUX @ 2M; 322 LUX @ 4M (40-degree beam)
  •  Power Draw: 35W
  •  Linkable: DMX via 3-pin XLR cable; Power via IEC daisy-chain power link (Up to 15 Ultra Bar 9 fixtures)
  •  Multi-voltage operation: AC 100V-240V 50/60Hz
  • Power cable length: 1.8 meter (IEC)
  •  Dimensions (LxWxH): 41.75” x 2.5” x 3.5”/ 1060 x 63 x 90mm
  •  Weight: 6 lbs./ 2.6 kg.
  • ETL Approved

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Ultra Bar 9 Cutsheet Download
Ultra Bar 9 User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

Hey, how can i attacha safety cable to the ADJ Ultrabar 9 ? I would like to mount it to a truss. thanks Ulrich

This product is not equipped with hardware to support a safety cable.
