Ultra Bar 6

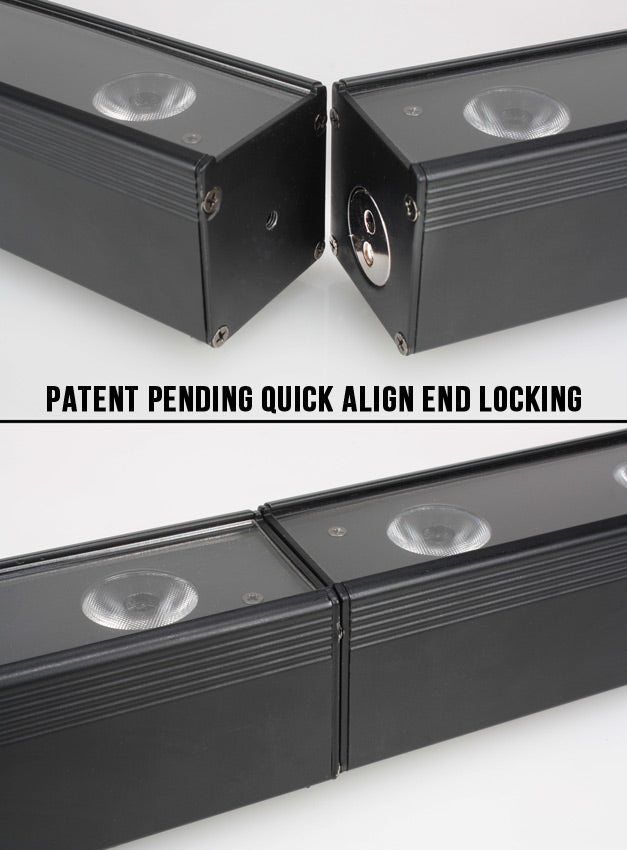

There are 35 built-in color macros so you can set it up and go about your day while it runs all day thanks to the 50,000 hr long life LEDs. The ADJ Ultra Bar 6 can be controlled with the ADJ RFC remote with RF control up to 30 ft/10M (sold separately). It offers a linkable DMX via 3-pin XLR cable and has mounting brackets so that it can be put on a wall or secured to the ground. The quick align end locking (patent pending) mechanism will allow for a quick and easy setup and a seamless output of light.
Flexible programming is offered through the on-board 4-Button LED DMX-512 menu and will allow you to customize your setup the way you want it to be.

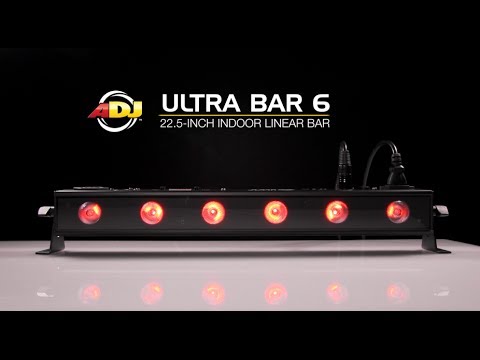

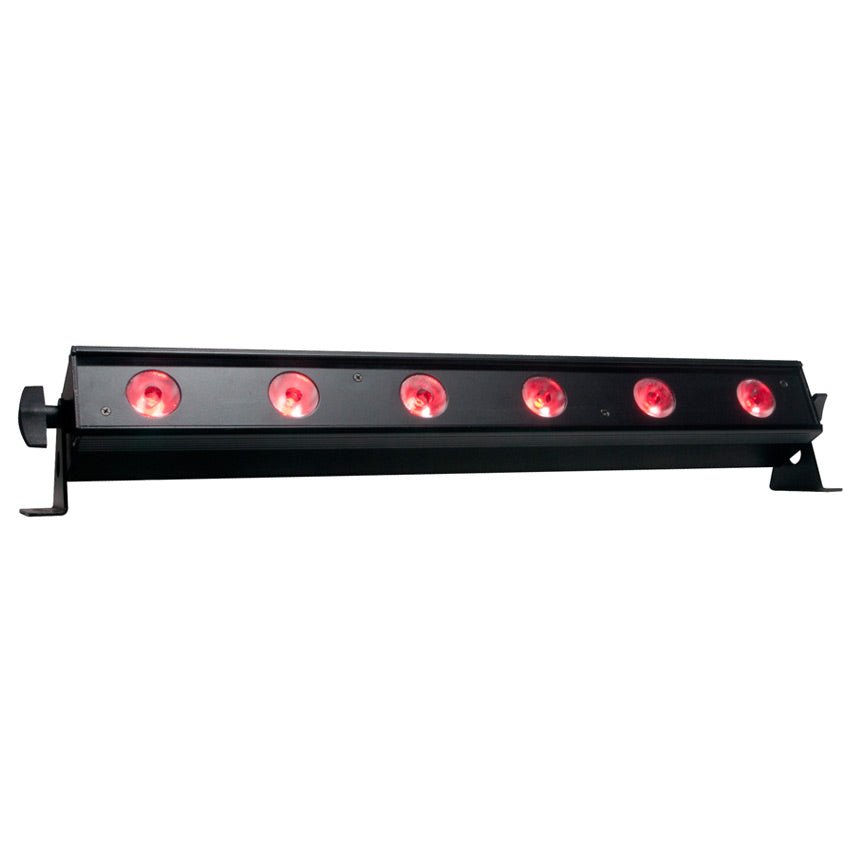

- 22.5-inch (.5 meter) indoor Linear Bar with 6 x 3W Ultra bright TRI (RGB: 3-IN-1) LEDs

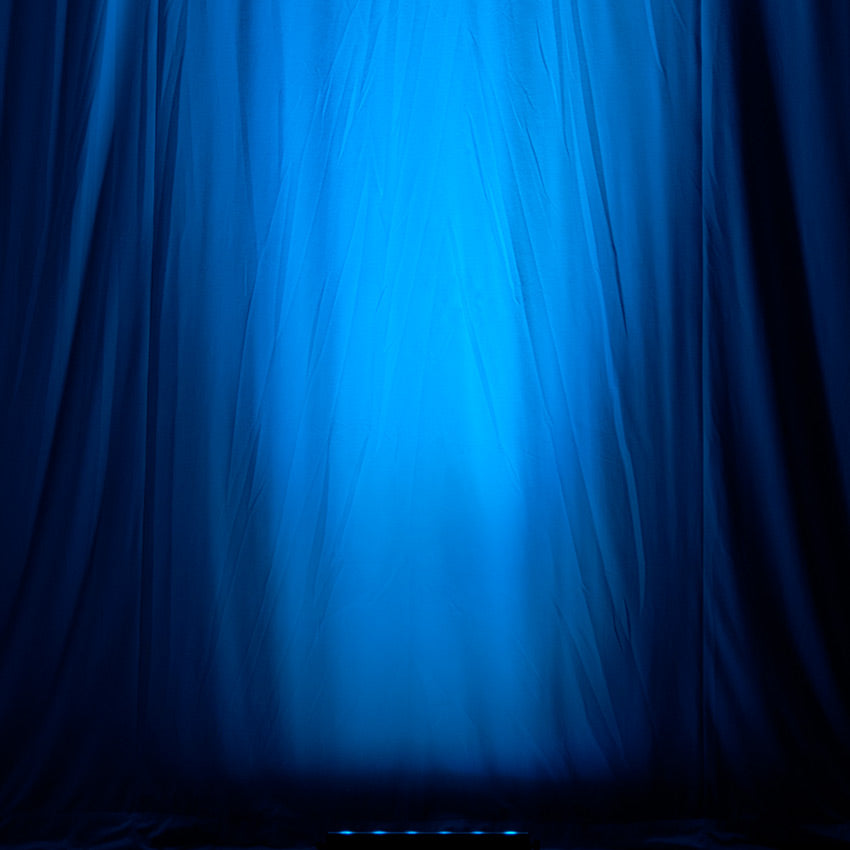

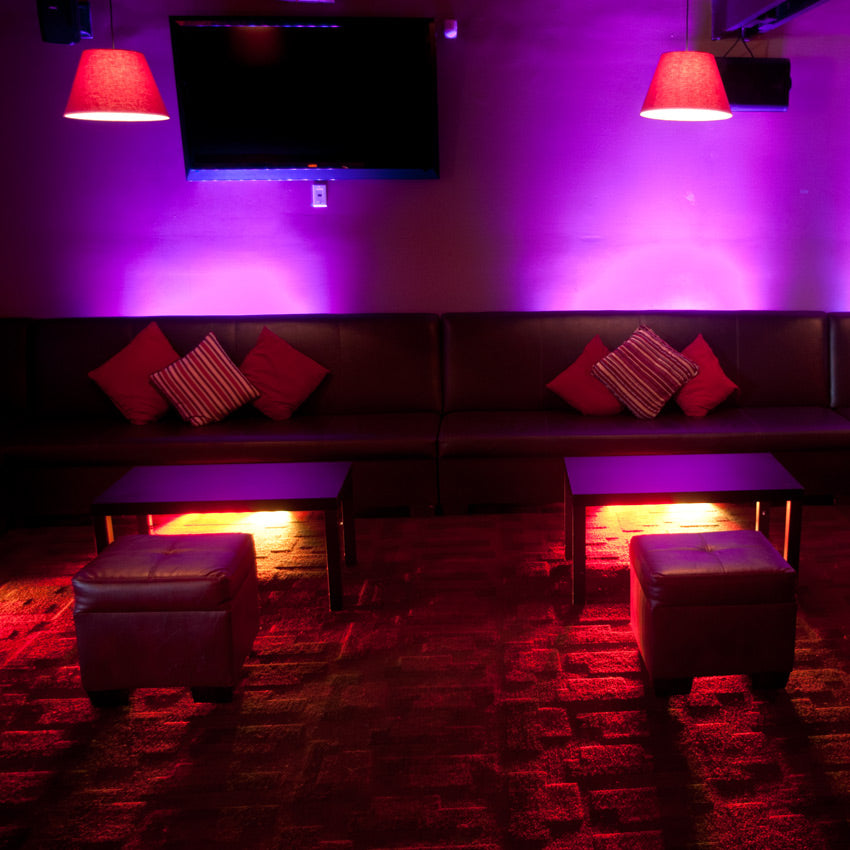

- Variable RGB color mixing offers a seemingly unlimited color palette - Great for Stage or Wall Washing!
- 7 DMX Channel Modes: 3, 5, 6, 7, 8, 9 or 11 channels
- 6 operational modes: Auto Run, Program Mode, Sound Active, RGB Dimmer, Static Color and DMX-512 Mode
- 3-Section Pixel control
- Patent Pending Quick Align (Magnetic)
- Beam Angle: 40 degrees
- Flicker Free
- Refresh Rate: 1KHz
- 4-Button DMX LED Display
- 35 built-in Color Macros
- LED pulse & strobe effect
- Electronic Dimming: 0-100%
- Includes mounting brackets to mount on a wall or set on the ground
- Compatible with the ADJ RFC remote with RF control up to 30 ft./ 10M (sold separately)
- Long Life LEDs (Rated at approximately 50,000 hrs.)
- Light output: 987 LUX @ 2M; 272 LUX @ 4M (40-degree beam)
- Power Draw: 22W

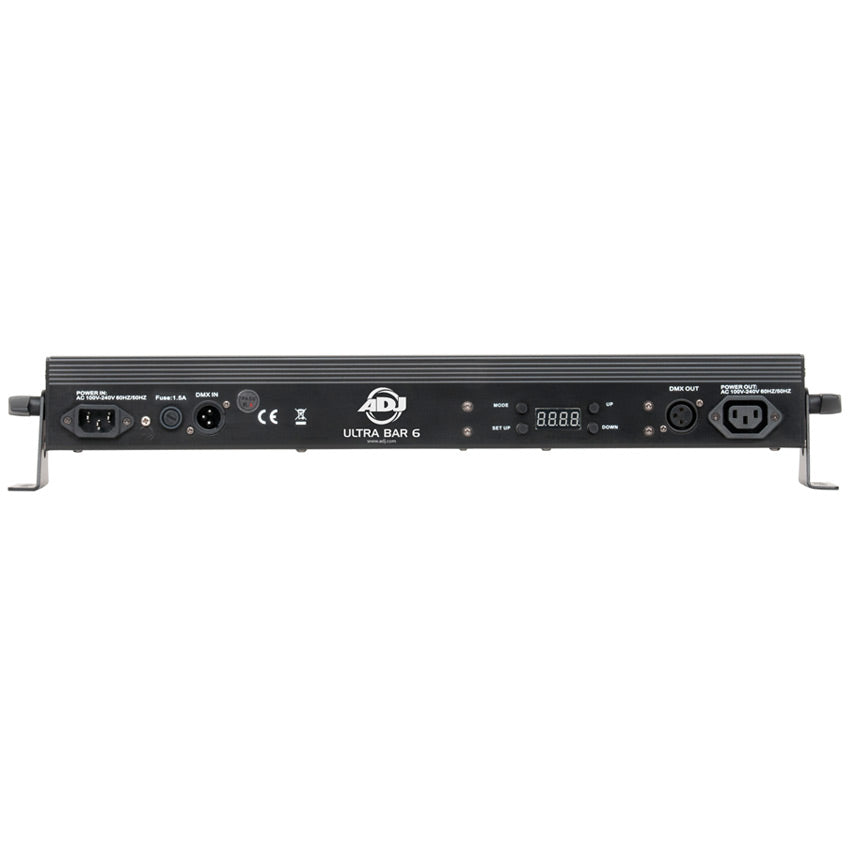

- Linkable: DMX via 3-pin XLR cable; Power via IEC daisy-chain power link (Up to 25 Ultra Bar 6 fixtures)
- Multi-voltage operation: AC 100V-240V 50/60Hz
- Power cable length: 1.8 meter (IEC)
- Dimensions (LxWxH): 22.5” x 2.5” x 3.75”/ 560 x 63 x 90mm
- Weight: 4 lbs./ 1.6 kg.
- ETL Approved
The following downloads are available for this product:
|Ultra Bar 6 Cut Sheet||Cut Sheet||Download|
|Ultra Bar 6 User Manual||User Manual||Download|
|Ultra Bar 6 Photometric Test Reports||Photometric Test Reports||Download|
|Ultra Bar 6 Photometric IES Files||Photometric IES Files||Download|
