RGBW4C IR

SKU: RGB406 | UPC: 819730016485
The RGBW4C IR is a 32-channel RGB, RGBW or RGBA LED controller. It was designed to control any standard 3 or 4 channel group of LED fixtures where channel 1 is Red, channel 2 is Green, channel 3 is Blue and channel 4 is White or Amber.
Advantage Points: 80

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

The RGBW4C IR is a 32-channel RGB, RGBW or RGBA LED controller. It was designed to control any standard 3 or 4 channel group of LED fixtures where channel 1 is Red, channel 2 is Green, channel 3 is Blue and channel 4 is White or Amber.

Up to 8 LED fixtures or fixture groups can independently be controlled via four fixture buttons. All LED fixtures or fixture groups must be set to run in DMX mode and be addressed four channels apart for independent control.

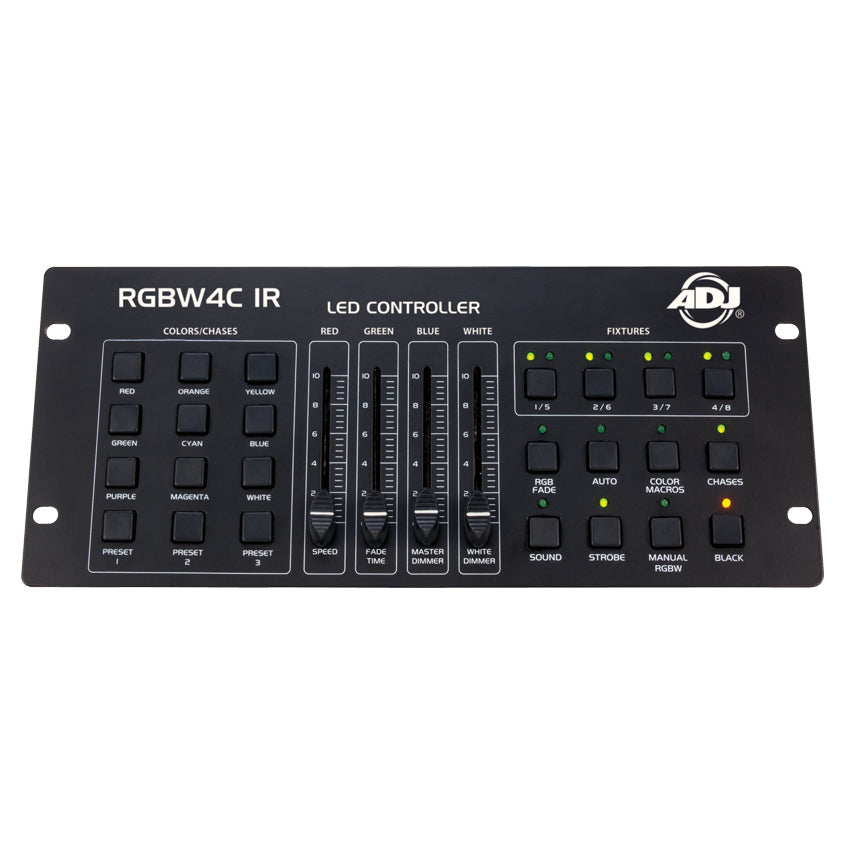

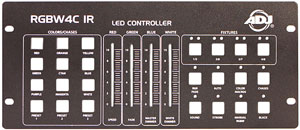

The units control panel includes 9 direct access “Static Color/Chase” buttons, which contain pre-programmed color presets and chase programs, 3 user programmable color preset buttons, 4 multi function faders that control RGBW intensities on the fly, as well as chase program “Speed”, chase program “Fade Time” and “Master Dimmer”.

There is also an array of 8 buttons used to select the operation mode, including RGB Fade, Auto Run, Color Macro, Chase, Sound Active, Strobe, Manual RGBW and Blackout modes.

The RGBW4C is one of the simplest and most versatile LED controllers available today. It’s ideal for D.J.’s, nightclubs, lounges, bars and anyone that wants easy control of LED Par’s, Bar’s, Flood’s or Panel’s.

Specifications

Specifications

  • Compact DMX512 controller for RGB, RGBW and RGBA LED fixtures
  • Control up to 8 individual fixtures or fixture groups
  • 3 user programmable color preset, direct access buttons
  • 9 Color preset/Chase program direct access buttons
  • Color Macro playback mode
  • Manual RGBW intensity control mode
  • RGB and Auto modes
  • On the fly Speed & Fade control of all chase programs
  • Sound active mode via internal microphone
  • Adjustable microphone sensitivity
  • Variable strobe
  • Blackout button

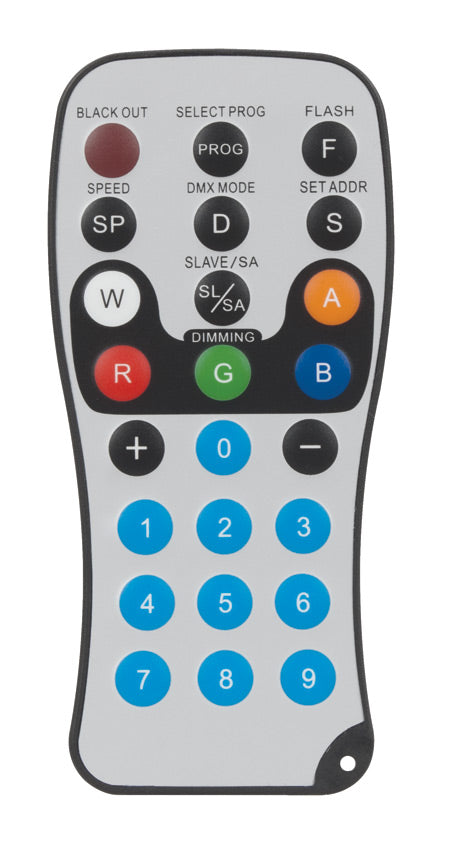

  • ADJ LED RC2 Compatible (Sold Separately)

 Tech Specs:

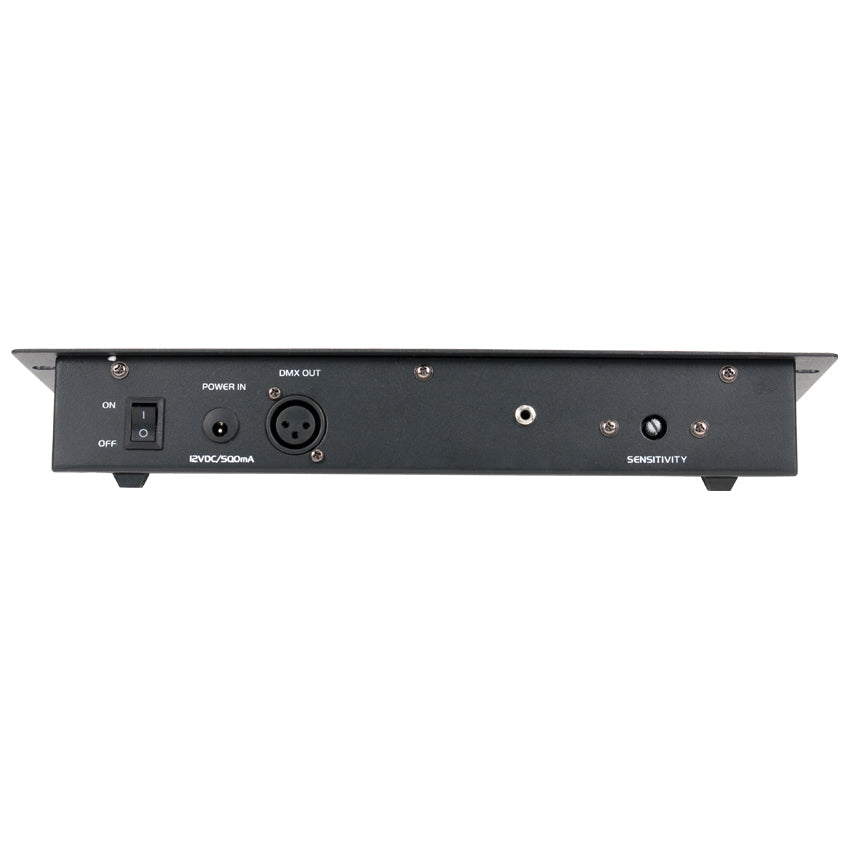

• DMX output connector: 3-pin XLR
• Power In: 12VDC 500mA UL approved power supply (Included)
• Power consumption: 3.6 Watts
• Size: 12.9” x 5.5” x 1.9” (327 x 140 x 48mm)
• Weight: 2.4lbs. (1.1kgs.)

Videos

Videos

There are currently no videos available for this product.

Downloads

Downloads

The following downloads are available for this product:

Title Description
RGBW4C IR User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

Would this controller work with Adj p36led's and 1 revo rave? together?

Hello Malcolm,

Thank you for reaching out to us. Unfortunately, this controller will not work with thos two lights. This controller is only meant to be use with rgb pars/bars that can be set in 3ch mode. I would recommed our dmx operator for those two lights. Let me know if you have any further questions.

Thanks,

What DMX controller should I buy to control my ADJ Mega Par Profile Plus Fixtures ?

Hello Randy,

This is a good controller to start out with. It's a pretty easy controller to use, it has 4ch of dmx which is pefect for the mega par prof plus. Also you have bulit it color presets along with some preset  programs. If you are not planning on getting really technical on prgramming light shows, then this is the controller to go with.  If you are planning on prgramming scene and light shows, then the dmx operator is the controller you will need. Let me know if you have any further questions.

Thanks,

I have a Chauvet Color Palette, which can run in 6, 9, 15, or 27 channel mode. Can this controller (RGBW4C IR) run in any of these modes? The RGBW4C (no IR) also has 32 channels and can run this light?

Hello Dan Chu,

No, this controller will not work with those lights. Those lights need to be able to be set at 4ch mode in order to work with this controller. Let me know if you have any further questions.

Thanks,

Will this work with the Inno Pocket series (Spot, Roll, Scan), Mega Bar 50, and/or the Quad Phase HP?

The RGBW4C is designed to control RGB, RGBW, RGBA or RGBUv products. It will not work with the products that you mentioned, with the exception of the Mega Bar 50 which is an RGB product.
