Quad Phase

SKU: QUA567 | UPC: 640282001649
ADJ's Quad Phase 10W "4-in-1" quad color LED moonflower uses TRI LED technology to bring you brilliant, razor sharp beams of light. Expect a great assortment of programmable modes and features. The Quad Phase from American DJ will certainly offer you the tools you need to create that engaging light show you are looking for.
Advantage Points: 200

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

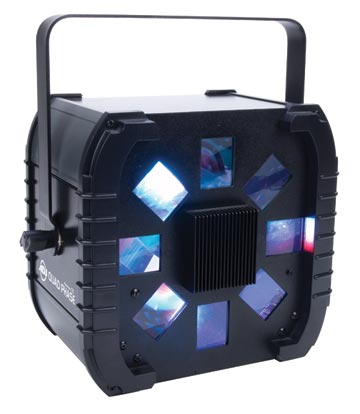

American DJ's Quad Phase is designed to fill a room and dazzle a crowd with it's 160 razor sharp beams of light. This device is perfect for clubs, wedding receptions, parties, or dance stages. This technologically advanced moonflower features a homogenized 10W 4-in-1 quad color LED source (RGBW). Offering twice as many majestic colors as a “TRI LED”, the Quad Phase produces up to thirteen colors in all.

Using a 1.8 Degree Long Life Stepper motor Technology it can produce quick accurate movement or smooth fluid move movements for mood music. Use one of the 4 DMX channels for a truly customized experience (Color, Rotation, Strobe, Shutter).

The Quad Phase also offers all the latest features sought after in special effects lights such as: DMX-512 for programming or linking capabilities, exciting built-in sound active programs, no duty cycle (run all night), a long life LED source (30,000 hours), 4-button DMX display on rear (for easier programmability), IEC power daisy-chaining, a 1.8 steeper motor for smooth movement and is compatible with ADJ's UC3 easy-to-use mini controller. Use the Quad Phase at your next gig and show off your superiority.



  •  High output Moonflower effect with revolutionary 10W Quad-Color LED 4-in-1 (Red, Green, Blue, White) technology produces color-changing beams of LED light
  •  Produces 13 Colors: Red, Blue, Green, Purple, Yellow, Cyan, White,
  •  Light Red, Light Blue, Light Green, Light Purple, Light Yellow, Light Cyan
  •  160 razor sharp beams fill a dance floor, ceiling or wall
  •  Using a 1.8 Degree Long Life Stepper motor Technology it can produce quick accurate movement or smooth fluid move movements for mood music
  •  4 DMX Channels (Color, Rotation, Strobe, Shutter)
  •  Operation modes: Sound Active, Master/Slave or DMX-512
  •  Exciting built-in programs (Sound Active & Master/Slave modes)
  •  Linkable via 3-pin XLR cable

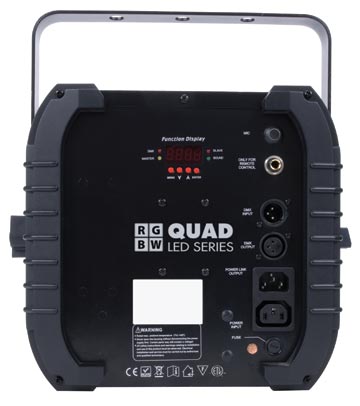

  •  4-button DMX display on rear panel
  •  Beam Angle: 65 degree
  •  Rich, saturated colors that will not fade
  •  Low heat output
  •  Runs extremely cool! - NO Duty Cycles! - Run all night!

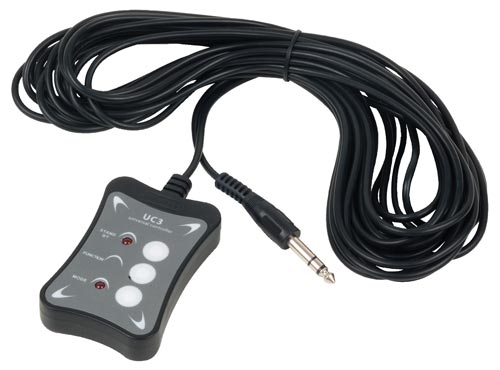

  •  Compatible with the UC3 easy-to-use controller (sold separately)
  •  IEC IN/OUT on rear to daisy chain power (up to 12 Quad Phase)
  •  Power Draw: 27W Max
  •  Multi voltage: 100V~240V, 50/60Hz
  •  Long life LEDs (30,000 hr. rating)
  •  Light Source: 10W RGBW LED 4-in-1
  •  Dimensions (LxWXH): 7.5”x12”x13.25” / 189x306x334mm
  •  Weight: 9 lbs. / 3.8kg.
  •  ETL approved (see user manual for more info)





The following downloads are available for this product:

Title Description
Quad Phase Cut Sheet Download
Quad Phase User Manual Download


Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

I am looking at the American Dj Supply Quad Phase Dynamic Led Effect Light Multi Beam Multi Colored for my roller skating rink. Can this light be permanently installed on our 12' ceiling and wired direct to a power source and if so how many lights would I need to install to cover my floor with is 165' x 70'

This device will cover a 25'x25' dance floor from about 15' up. So say 3 rows of lights from 6 to 7 units.

on the Quad phase LED DMX moonflower light do we have to use for or haze to get the effects of the beams that are shown on your video?

You can use either one as what you need is to get enough particulate in the air to show the beams but in these shots we used a fogger.

My Adj quad phase go won't project any lights after the initial display of light when booting up. How do I perform a factory reset?

Hello Ian,

The light does not have a factory reset. If the display does not come on when first powered on then the first thing to check is the fuse. The fuse is located in a small compartment above the power input, there should be a spare fuse in there. If this does not work then unfortunately there is an issue with the light. Contact service our service dept for an RA#.



I've lost the metal bar that attaches to each side and now I can't hook this to truss. Do you sell a replacement or know what I can do to get it replaced?

Hello Brett,

For better assistance contact our parts dept. Phone  (323) 582-2650  They will be able to give you a part# and help you place your order. Let me know if you have any further questions.
