Profile Panel RGBA

Compact indoor LED Color Panel with 288, 10mm LEDs (72 Red, 72 Green, 72 Blue, & 72 Amber LEDs). Includes the UC IR wireless remote, powerCON In/Out to daisy chain power and a lighting shaping filter slot. Compact indoor LED Color Panel with 288, 10mm LEDs (72 Red, 72 Green, 72 Blue, & 72 Amber LEDs). Includes the UC IR wireless remote, powerCON In/Out to daisy chain power and a lighting shaping filter slot. Compact indoor LED Color Panel with 288, 10mm LEDs (72 Red, 72 Green, 72 Blue, & 72 Amber LEDs). Includes the UC IR wireless remote, powerCON In/Out to daisy chain power and a lighting shaping filter slot. Compact indoor LED Color Panel with 288, 10mm LEDs (72 Red, 72 Green, 72 Blue, & 72 Amber LEDs). Includes the UC IR wireless remote, powerCON In/Out to daisy chain power and a lighting shaping filter slot. Compact indoor LED Color Panel with 288, 10mm LEDs (72 Red, 72 Green, 72 Blue, & 72 Amber LEDs). Includes the UC IR wireless remote, powerCON In/Out to daisy chain power and a lighting shaping filter slot. Compact indoor LED Color Panel with 288, 10mm LEDs (72 Red, 72 Green, 72 Blue, & 72 Amber LEDs). Includes the UC IR wireless remote, powerCON In/Out to daisy chain power and a lighting shaping filter slot. Compact indoor LED Color Panel with 288, 10mm LEDs (72 Red, 72 Green, 72 Blue, & 72 Amber LEDs). Includes the UC IR wireless remote, powerCON In/Out to daisy chain power and a lighting shaping filter slot. Compact indoor LED Color Panel with 288, 10mm LEDs (72 Red, 72 Green, 72 Blue, & 72 Amber LEDs). Includes the UC IR wireless remote, powerCON In/Out to daisy chain power and a lighting shaping filter slot. Compact indoor LED Color Panel with 288, 10mm LEDs (72 Red, 72 Green, 72 Blue, & 72 Amber LEDs). Includes the UC IR wireless remote, powerCON In/Out to daisy chain power and a lighting shaping filter slot. Compact indoor LED Color Panel with 288, 10mm LEDs (72 Red, 72 Green, 72 Blue, & 72 Amber LEDs). Includes the UC IR wireless remote, powerCON In/Out to daisy chain power and a lighting shaping filter slot. Wireless remote control for ADJ Lighting Wireless remote control for ADJ Lighting
SKU: PRO763 | UPC: 818651020434
Compact indoor LED Color Panel with 288, 10mm LEDs (72 Red, 72 Green, 72 Blue, & 72 Amber LEDs). Includes the UC IR wireless remote, powerCON In/Out to daisy chain power and a lighting shaping filter slot.
Advantage Points: 150

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Available now from ADJ USA • $149.99

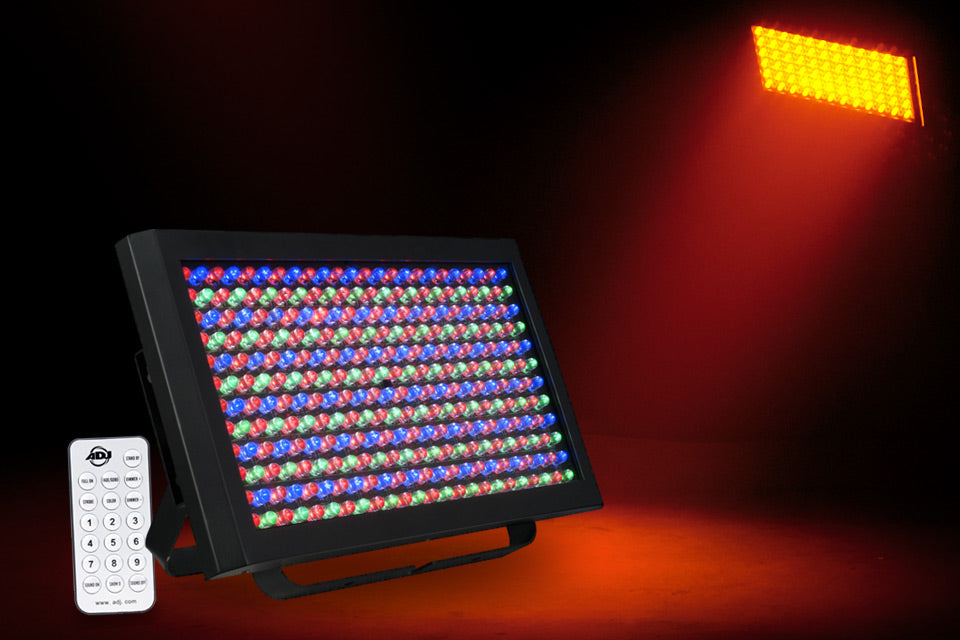

The ADJ Profile Panel RGBA is a compact indoor LED Color Panel powered by 288 10mm red, green, blue and amber LEDs. It may be used as a standard wash fixture, or run it in its built-in programs or sound active mode to create exciting multi-colored lightshows. With four DMX channel modes and six operational modes users get an unprecedented variety of control over the fixture The Profile Panel RGBA has built in programs, sound mode, master slave mode and a DMX mode.



The Profile Panel RGBA produces a 30-degree beam. A wider wash may be achieved by adding a light shaping filter into the slit on the side of the panel. It comes with a powerCON power cord, UC IR wireless remote and Airstream IR sensor inside the box. Being lightweight and compact in size, this fixture may be set it up anywhere indoors, the dual scissor yoke let you hang the fixture on truss or mount it on a wall. With extremely long life LEDs, low power consumption, and very low heat output, this fixture can all night with no duty cycle - plus little to no heat is emitted onto performers. Great for small performance stages, permanent installations or mobile entertainers.

What makes the Profile Panel RGBA better than the Profile Panel RGB?
Brighter: Uses 10mm LEDs vs. 5mm LEDs
More Colors: Uses RGBA (Red, Green, Blue & Amber) LEDs vs. RGB only
powerCON Power: Users can now daisy chain the power from one fixture to the next using the upgraded powerCON In/Out vs. just an IEC input
Remote Included: Includes the UC IR wireless remote control vs. optional wired remote

To learn more about the Profile Panel RGBA, check out this product spotlight article: CLICK HERE

Specifications

Specifications

Main Features:
• Compact indoor LED Color Panel with 288, 10mm LEDs (72 Red, 72 Green, 72 Blue, & 72 Amber LEDs - rated at 100,000 hrs.)
• Very smooth field with rich palettes of color created by mixing the Red, Green, Blue, & Amber LEDs
• Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
• Light Shaping Filter slot to widen beam angle (filter size: 210x375mm)

Optical:

• Beam angle: 30-degrees
• 288, 10mm LEDs (72 Red, 72 Green, 72 Blue, & 72 Amber LEDs)

Technical Features:

• Color strobe effect
• 4 DMX channel modes: 4, 7, 9 or 32
• 47 built-in Color Macros
• Electronic Dimming: 0 - 100%
• Includes dual scissor yoke to hang on truss and built-in mounting brackets to hang on a wall
• Very low heat output
• Run all night – no duty cycle

Connections:
• 3-pin DMX In/Out
• With Wired Digital Communication Network

• powerCON In/Out to Daisy Chain up to 20 fixtures Max @ 120V

Control:

• 4-button LED display on rear panel
• 6 Operational modes: Built-in programs, Sound mode, Static Color mode, Auto Run, RGBA Dimmer mode, & DMX mode

Electrical:
• Power Draw: 35W
• Multi-voltage operation: 100-240V, 50/60Hz

Physical:
• Dimensions (LxWxH): 16.73” x 3.2” x 10.75” / 425x82x275mm

• Weight: 7.8 lbs. / 3.5 kgs.
• Metal black housing

What’s Included:

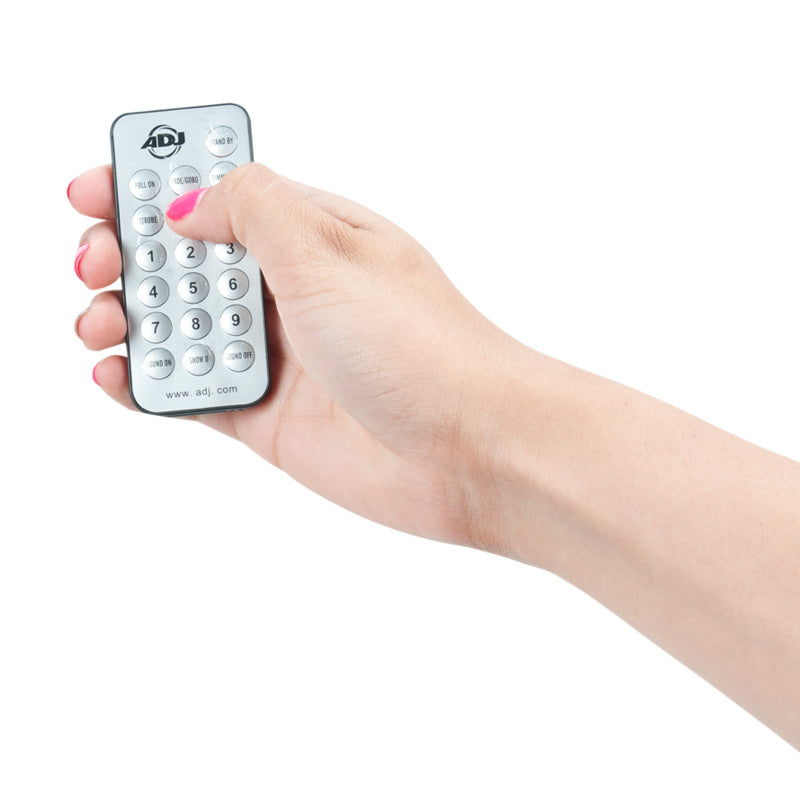

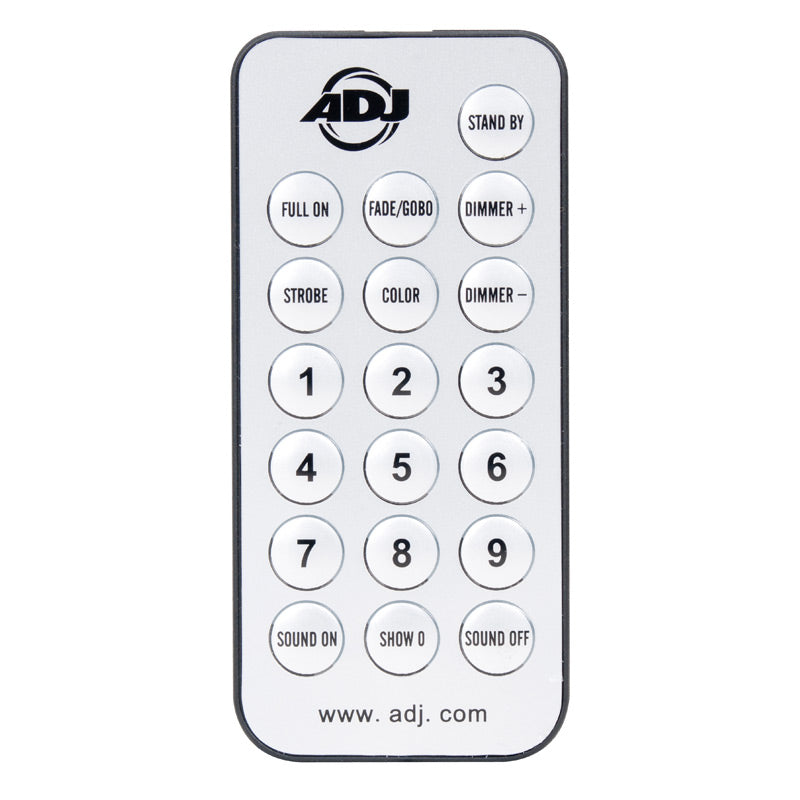

• Includes the UC IR wireless remote control
• Airstream IR App transmitter (Airstream IR iOS APP compatible)
• powerCON power cord



Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Profile Panel RGBA Dimensional Drawing Download
Profile Panel RGBA Photometric Test Reports Photometric Test Reports Download
Profile Panel RGBA Photometric IES Files Photometric IES Files Download
Profile Panel RGBA User Manual User Manual Download
