Available now from ADJ USA • $319.99

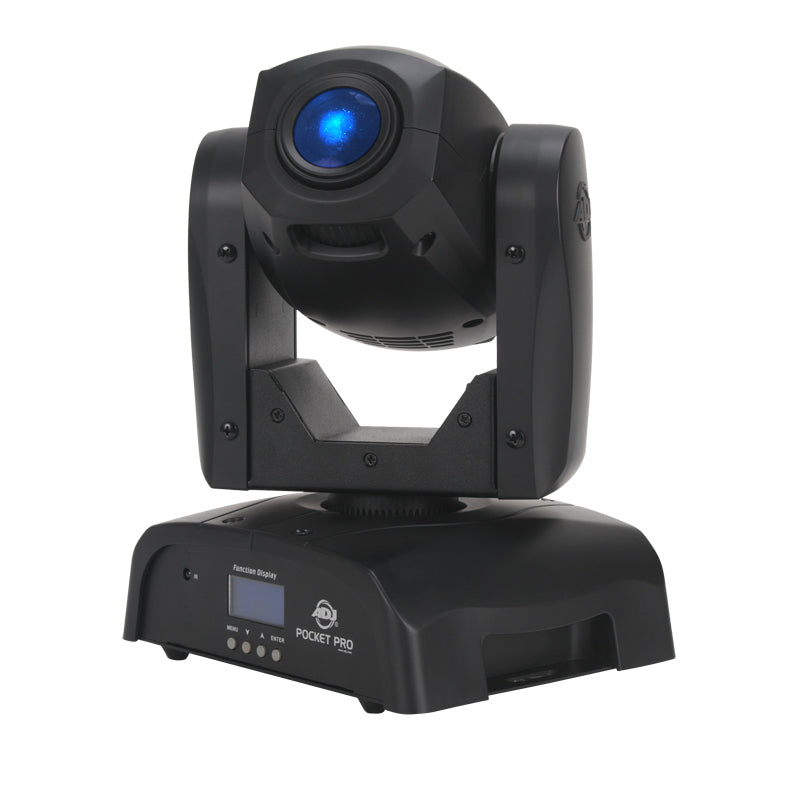

The new Pocket Pro is truly a transformed fixture from the base up. We listened to what customers wanted in a compact and affordable Spot moving head. On the top of the head is a manual focusing wheel that allows users easy and precise focusing of the GOBOs so they look crisp in a variety of applications.

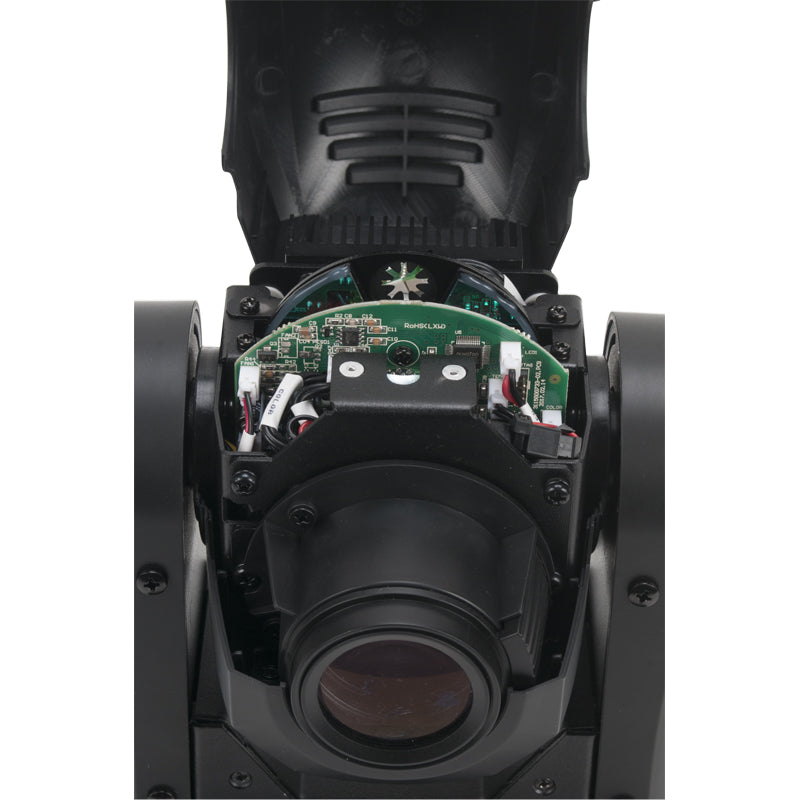

We set out to find the perfect solution to make the Pocket Pro brighter than its predecessor. We found a new LED source that would produce the output and punch needed in most smaller venues. We’ve powered the Pocket Pro with a mighty 25W LED engine with crisp optics. Like the Focus Spot Series, the Pocket Pro is designed with the EZ OPEN cover giving full access to the GOBO Wheel. Its compact size and light weight make it ideal for mobile entertainers, small club, and bars, roller rinks, bowling centers or perfect for events and custom GOBO projection in a lounge or retail environment.

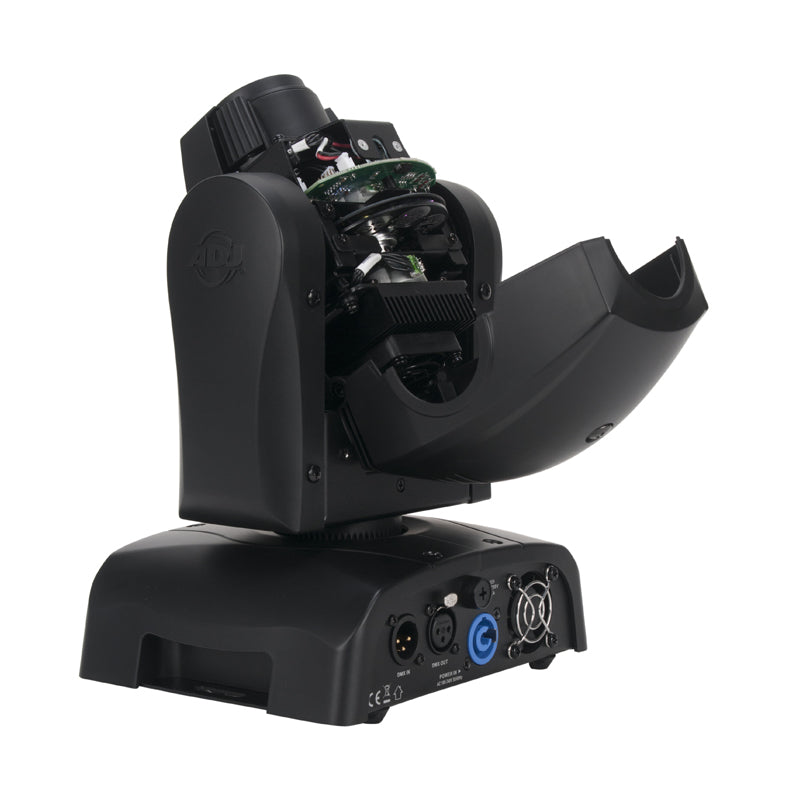

We included a locking powerCon for power, so you never need to worry about vibration or not having a secure AC connection. This fixture features seven colors plus white and 7 replaceable GOBOs (plus 4 additional GOBOs included in the box). The GOBOs and colors are on separate wheels. These features are not found in moving heads of this class.
Its compact size and lightweight makes it ideal for mobile entertainers, small club and bars, venues with low ceilings, roller rinks, bowling centers or any mobile production.
Control methods include: Sound active with 4 built-in shows, a DMX controller to create your own light shows, Airstream DMX Bridge, or myDMX control software.
To learn more about the Pocket Pro, check out the product spotlight article: CLICK HERE
The Pocket Pro is also available in the Pocket Pro Pak lighting package: CLICK HERE
Check out the Pocket Pro press release: CLICK HERE
• High output mini Moving Head with a bright white 25W LED source

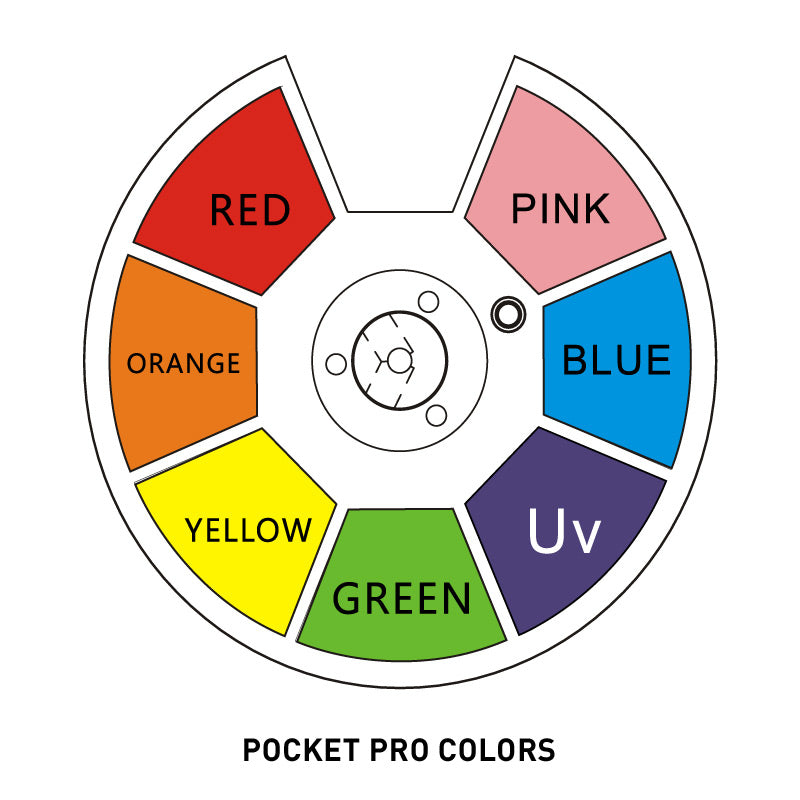

• 7 Colors + white

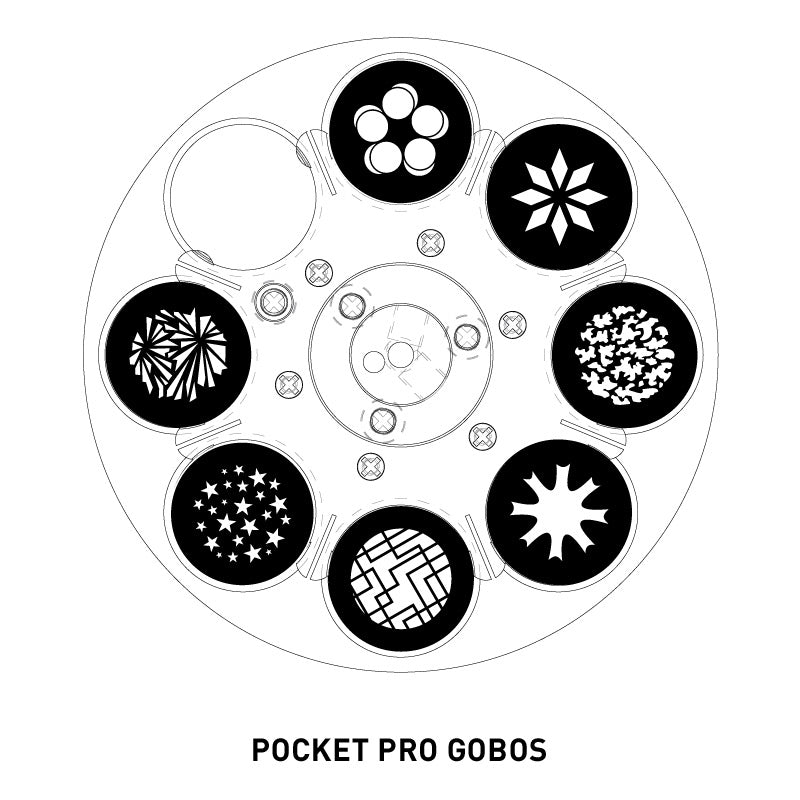

• 7 replaceable gobos + spot

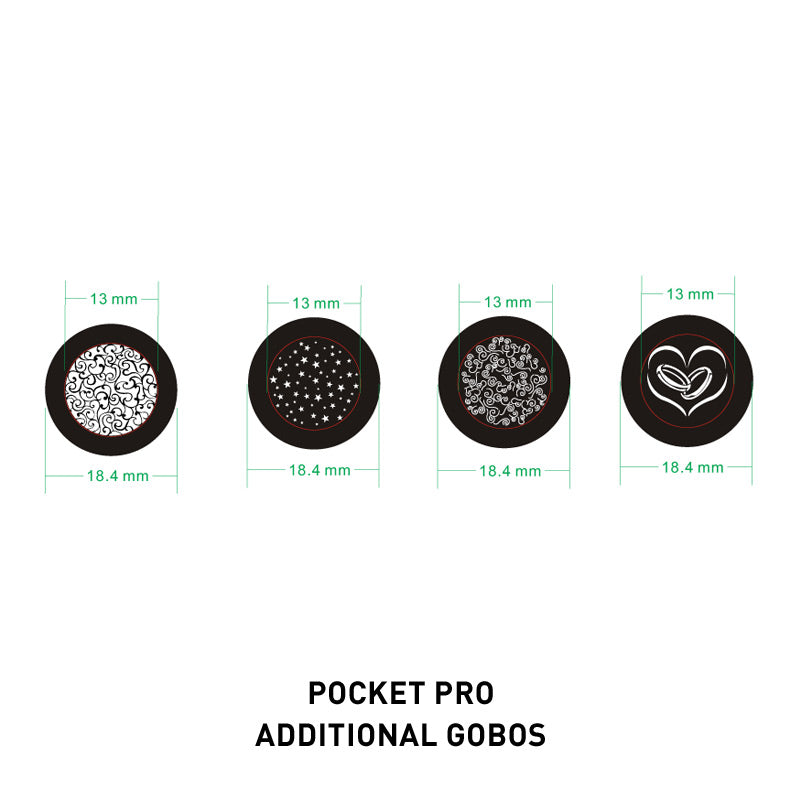

• Includes kit of 4 additional GOBOs
• Separate color & gobo wheels
• Manual focus
• 3 Operational modes: DMX, Sound Active & Internal Show control modes
• 2 DMX channel modes: 11 & 13 Channel modes
• 4 Built-in shows
• Gobo Shake effect
• Gobo scroll mode
• Beam Angle: 15-degrees
• 540° pan / 230° tilt (16-bit)
• Pan /Tilt Inversion mode
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
• Shutter: Pulse effect; random strobe slow to fast
• Dimming: 0% - 100%
• Fan Cooled
• Omega bracket included
• Linkable: DMX via 3-pin XLR cable
• With Wired Digital Communication Network
• GOBO size: 18.4 mm (13mm viewable)
• Optional ADJ UC IR Compatible (Not Included) and Airstream IR Compatible (transmitter Not included)
• Power consumption: 53W
• Multi-voltage Operation: AC 100 - 240V, 50/60Hz
• LED Source: 25W White LED source (Rated at approximately 50,000 hrs)
• Dimensions (LxWxH): 6.37” x 7.87” x 11.30” / 162 x 200 x 287mm
• Weight: 7.3 lbs. / 3.6 kgs.• ETL Approved
The following downloads are available for this product:
|Pocket Pro Dimensional Drawing||Dimensional Drawing||Download|
|ADJ Pocket Pro User Manual||User Manual||Download|
|POCKET PRO Photometrics Test Reports||Photometrics Test Reports||Download|
|POCKET PRO Photometrics IES Files||Photometrics IES Files||Download|
