Pinspot LED Quad DMX

SKU: PIN623 | UPC: 819730012678
The ADJ Pinspot LED Quad DMX is a 8-Watt Quad Color which produces sharp 15-degree beams on light, and is designed to spot tables, decor, architecture . It comes with a wireless ADJ UC IR remote to control color fades, built-in shows, dimming, strobe, black out and sound activation.
Advantage Points: 100

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

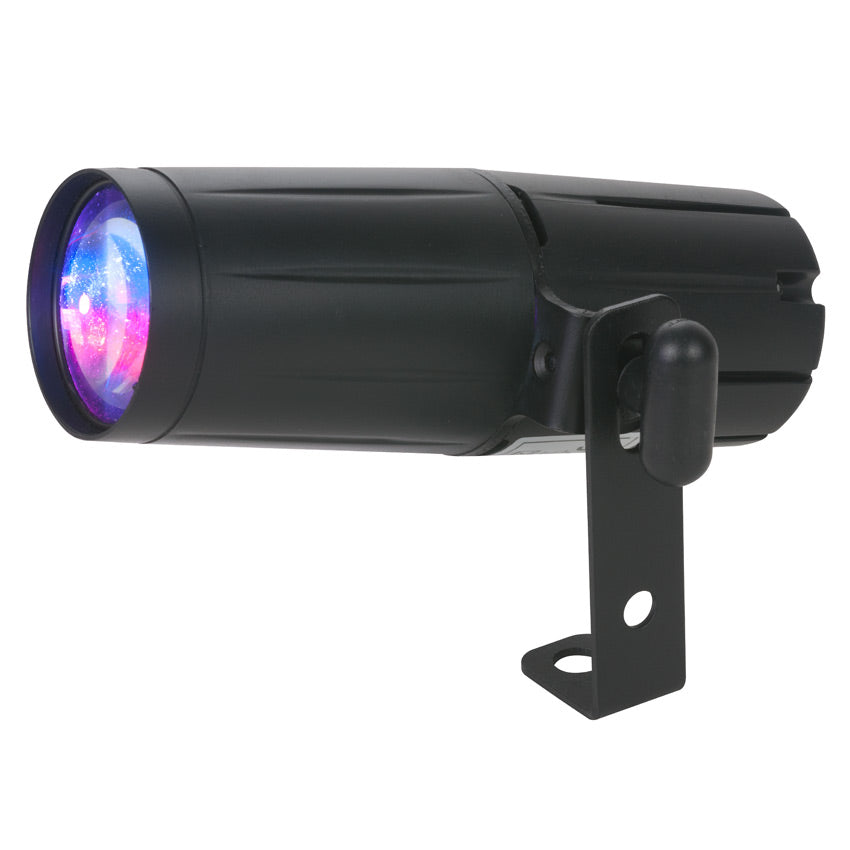

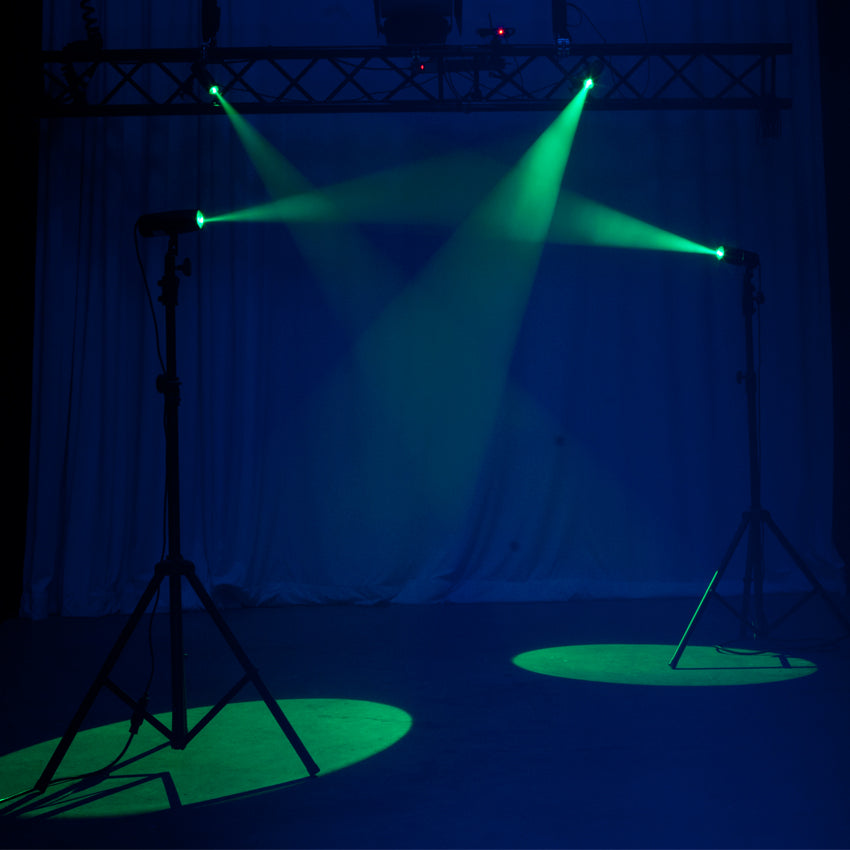

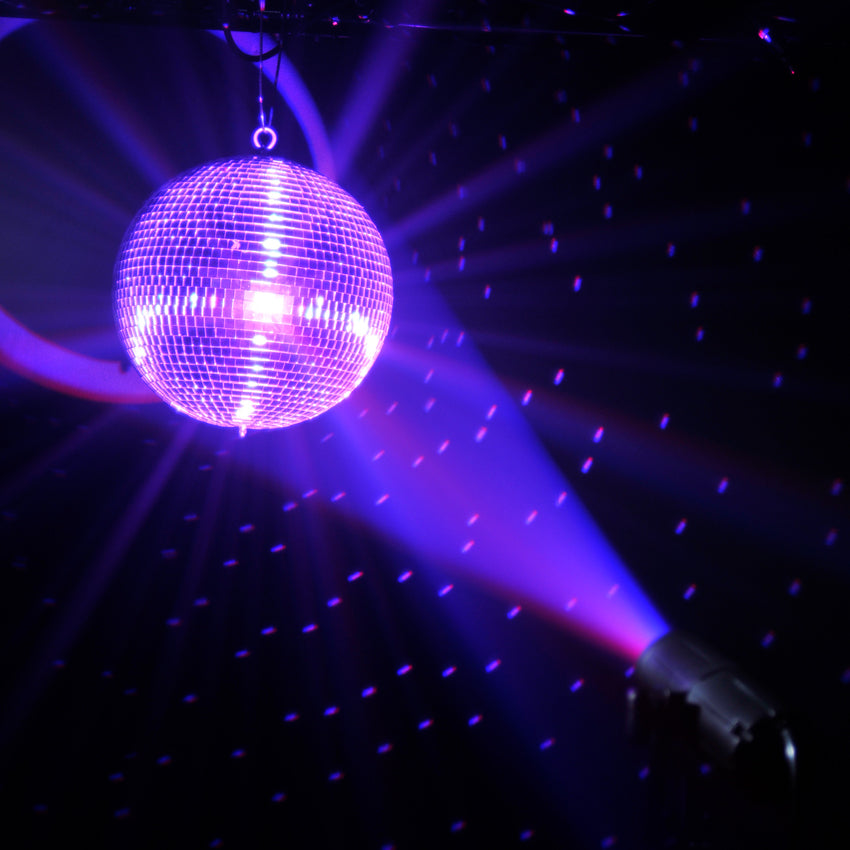

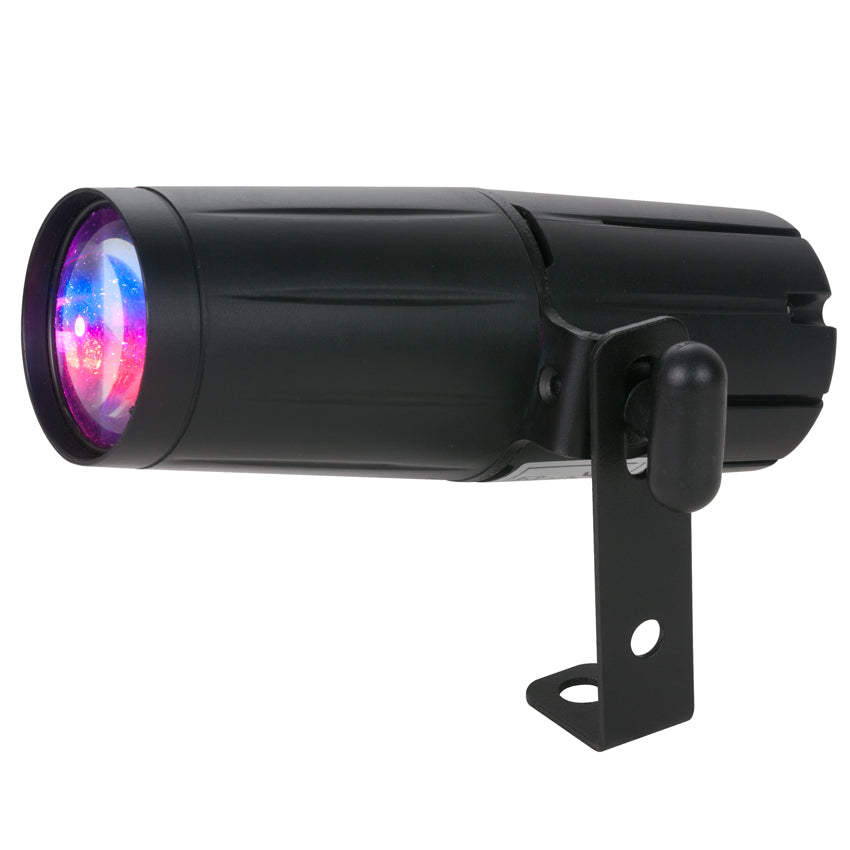

The ADJ Pinspot LED Quad DMX is a 8-Watt Quad Color (4-IN-1) Pinspot with red, green, blue and white diodes on one LED. It produces sharp 15-degree beams on light, and is designed to spot tables, decor, architecture or used for special effects.

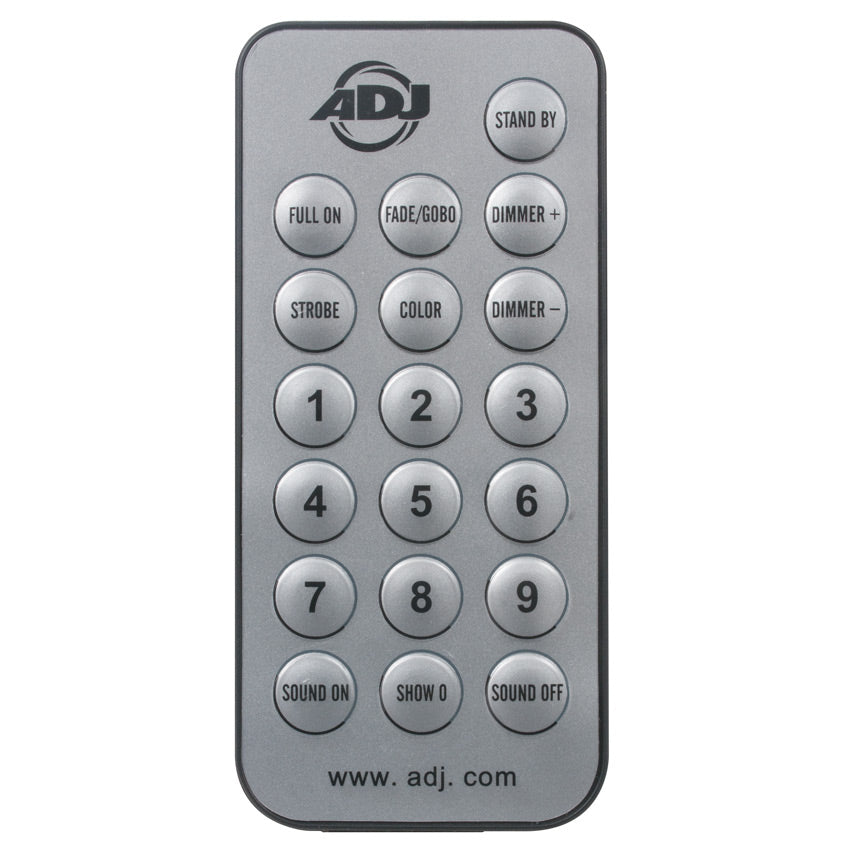

 The Pinspot LED Quad DMX comes with a wireless ADJ UC IR remote to control color fades, built-in shows, dimming, strobe, black out and sound activation. DMX connections allow users to connect and control multiple units at the same time from a DMX software or hardware controller.

Specifications

Specifications

  • 8W Quad (4-in-1) RGBW LED Pinspot (Rated at approximately 10,000 hours)
  • Operational Modes: DMX Controlled / Sound Active / IR Remote / Auto Run Programs
  • Beam Angle: 15-Degrees
  • Lumens: 740 @ 1M at 15°
  • DMX Channel: 6 Channel
  • DMX Connections: 3-Pin DMX In / Out
  • Dimming: Adjustable via IR remote
  • Shutter / Strobe: Adjustable via IR remote
  • Flicker free
  • ADJ UC IR wireless remote included
  • Power Consumption: 11W Max
  • Input Voltage: AC 100V-240V 50/60Hz
  • Dimensions: 8” x 4” x 2.75” / 205x98x61mm
  • Weight: 1 lbs / 0.4kgs

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Pinspot LED Quad DMX User Manual Download
Pinspot LED Quad DMX Photometric Test Reports Photometric Test Reports Download
Pinspot LED Quad DMX Photometric IES Files Photometric IES Files Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

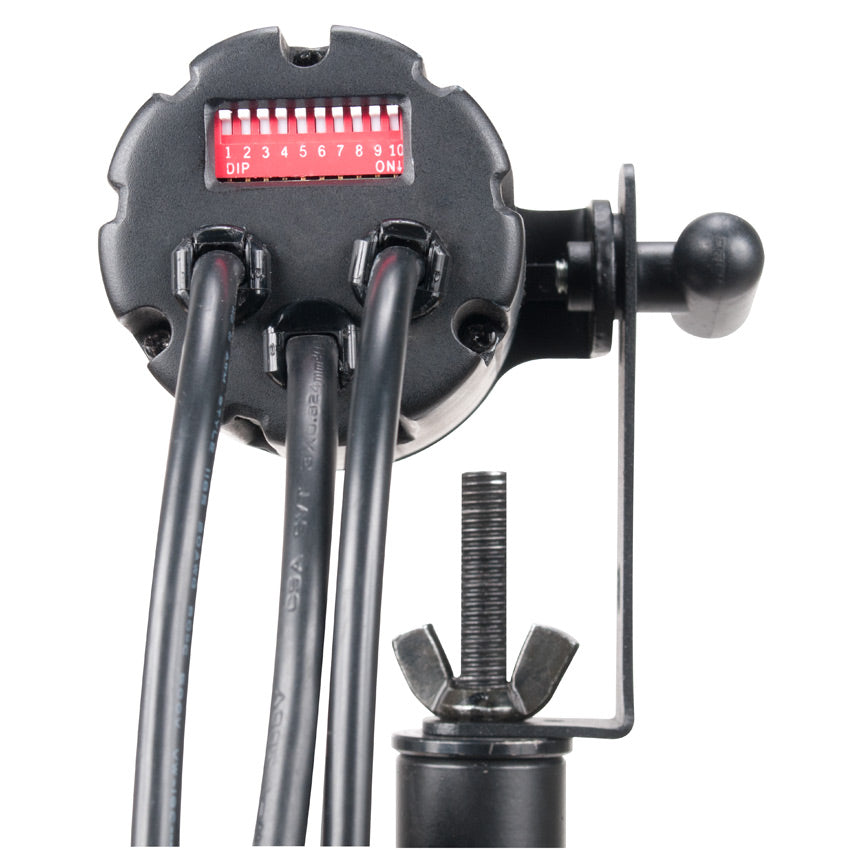

Hello, When I connect the pinspot to the dmx controller, should I select both pin 1 AND 10 for channel number 1? thank you. Pierre Belgium

Hello Pierre,

Yes, that is correct.

I just got this fixture and I want to put it into ADJ mydmx. I can't find it to add from the library. I found a file online to add it but it was ssl instead of ssl2 so it wouldn't recognize the file when I tried to add it. What do I do?

Hello Jeff,

Thank you for reaching out to us. For situation like these email Sergioc@americandj.com

Thanks,

can i connect the pinspot led quad dmx to a timer? i want the 5 that i am buying to go on and off at different intervals only with white and fade in and out.

This can only be achieved with a DMX controller. Please contact our products specialist for controller recommendations 800-322-6337.
