PinPoint Gobo Color

The ADJ PinPoint Gobo Color is a battery powered GOBO projector powered by a 10-Watt Quad (RGBA 4-in-1) LED. The ADJ PinPoint Gobo Color is a battery powered GOBO projector powered by a 10-Watt Quad (RGBA 4-in-1) LED. The ADJ PinPoint Gobo Color is a battery powered GOBO projector powered by a 10-Watt Quad (RGBA 4-in-1) LED. The ADJ PinPoint Gobo Color is a battery powered GOBO projector powered by a 10-Watt Quad (RGBA 4-in-1) LED. The ADJ PinPoint Gobo Color is a battery powered GOBO projector powered by a 10-Watt Quad (RGBA 4-in-1) LED. The ADJ PinPoint Gobo Color is a battery powered GOBO projector powered by a 10-Watt Quad (RGBA 4-in-1) LED. The ADJ PinPoint Gobo Color is a battery powered GOBO projector powered by a 10-Watt Quad (RGBA 4-in-1) LED.
SKU: PIN377 | UPC: 819730017994
The ADJ PinPoint Gobo Color is a battery powered GOBO projector powered by a 10-Watt Quad (RGBA 4-in-1) LED.
Advantage Points: 180

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Communicate your message in light! The ADJ PinPoint Gobo Color is a battery powered GOBO projector powered by a 10-Watt Quad (RGBA 4-in-1) LED. It includes 4 standard removable GOBOs and a frost filter to defuse the beam for wider washes of light. When the GOBO is remove it may be used as a pinspot to spot tables, decor, architecture or used for special effects.



The PinPoint Gobo Color has an easy replaceable GOBO holder so that user may interchange the supplied GOBOs or to insert custom GOBOs. It features a magnetic bracket so the fixture may be quick attached to metal, plus  a X-Clip mount is also included to attach to the metal in drop down ceilings.



The battery has a charge time of 6 hours to achieve a full charge. The battery life is rated at 5 hours (full on) or 18 hours when set in energy saving mode. On the side of the fixture are sliders to manually adjust the focus and beam angle.

Learn more about the Pinpoint Gobo and Pinpoint Gobo Color from this product spotlight: http://tinyurl.com/hvnlkxd




Specifications

Specifications

• Rechargeable battery powered, bright 10W RGBA 4-in-1 LED Pinspot / Gobo Projector
• 17-33-degree variable beam
• Manual focus
• Compact high-tech metal case design

• Long-life LED: 50,000 hour LED life
• Light Output: 431 LUX @2M; 110.8 LUX @4M (15-degree beam)
• Refresh Rate: 1KHz

• Power consumption: 11W

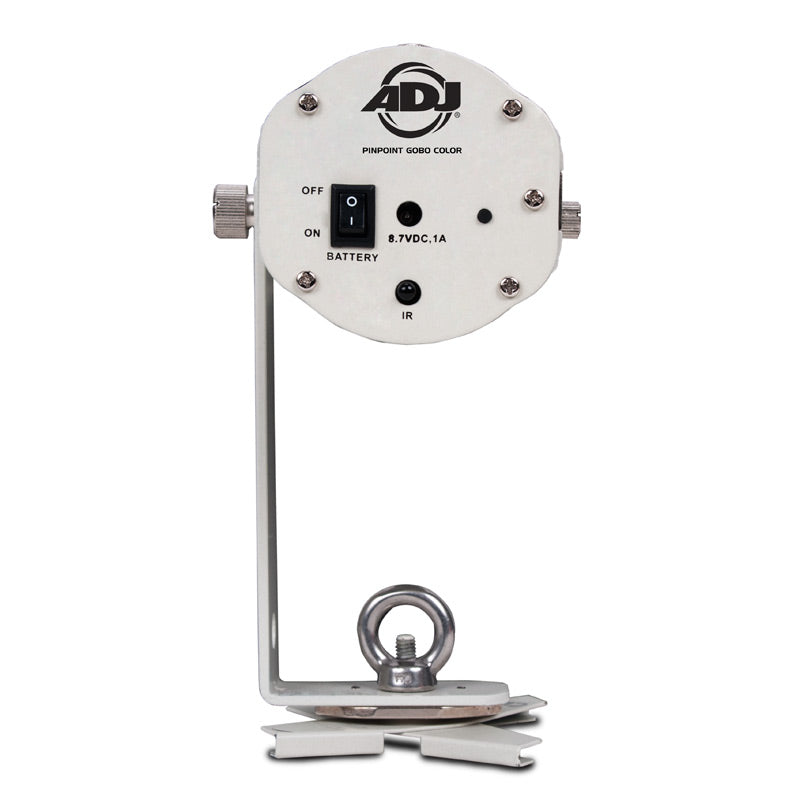

• Includes magnetic bracket for easy quick install on metal
• X-CLIP Bracket for drop ceiling frame mounting

• Includes Frost Filter to defuse beam

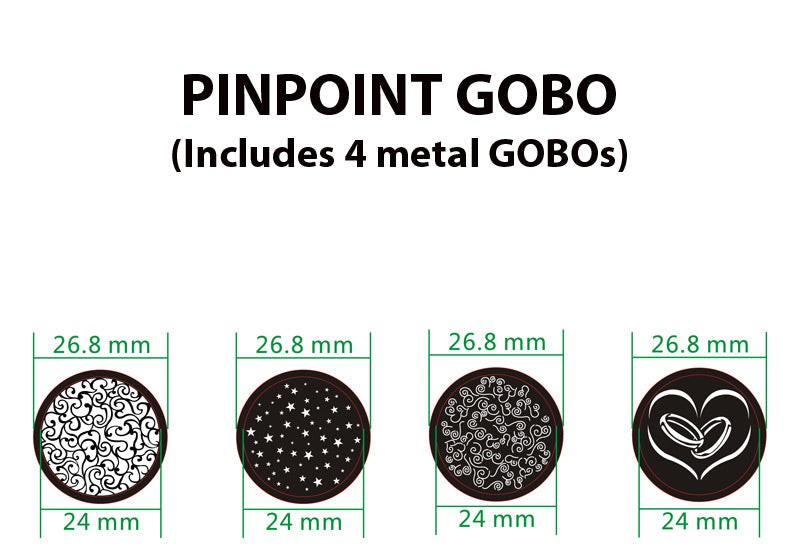

• Includes 4 metal GOBOs
• Replaceable Gobo size: 25.8mm; Viewable size: 19mm; Thickness: 1mm max.
• Drop in GOBO Slot (for metal gobos only)

• Includes Power Adapter (DC 8.7V 1A)

• ADJ UC IR Remote Control (Sold Separately) & Airstream IR Compatible

• Battery Charge Time: 6 Hours (With POWER switch off)
• Battery Life: 5 Hours (Full On) / 18 Hours (In Energy Saving Mode w/ Full Charge)
• Energy saving mode is activated from the UC IR remote (sold separately)

• Dimensions (LxWxH): 9.75” x 4” x 2.75” / 245 x 102 x 70mm

• Weight: 3 lbs. / 1.1 kgs.

Battery Specifications

  • Battery Charge Time: 6.5 Hours (Load Switch Off)
  • Battery Life: 5 Hours Full On in 10W Mode, 10 Hours in 3.3W Mode, 18 Hours in Energy Saving Mode (Full Charge)
  • Battery Lifetime: Average Lifetime is 500 Charges (This depends on charging frequency)
  • Battery Type: Fixed Lithium Battery
  • Battery Energy: 32.56WH (Watt Hours)
  • Battery Weight: 0.4lbs. / 0.19kg
  • Battery Voltage: 7.4V
  • Battery Capacity: 4.4AH
  • Total Lithium Ion Cells: 4pcs
  • Battery Wrap Material: PVC Sleeving + Highland Barley Paper



Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
PinPoint Gobo Color User Manual Download
Pinpoint Gobo Color Gobo Sizes Download
Pinpoint Gobo Color Photometric Chart Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

Can I make custom hobos at home. If so, what additional equipment will I need

Hello George,

Yes, you can make a custom gobo. Here is the contact info to our guy here that can walk you thru the process. Jose Heredia (323)582-2650 EXT 761 Let me know if you have any further questions.

Thanks,



Hi, does this come with compatible IR remote?

Hello Josh,

Thank you for reaching out to us. The Ir remote is sold separately. Let me know if you have any further questions.

Thanks,
