PinPoint Gobo

The ADJ PinPoint Gobo is a 10-Watt CW LED. It produces sharp 40-degree beams on light, and is designed to spot tables, decor, architecture or used for special effects. The ADJ PinPoint Gobo is a 10-Watt CW LED. It produces sharp 40-degree beams on light, and is designed to spot tables, decor, architecture or used for special effects.
The ADJ PinPoint Gobo is a 10-Watt CW LED. It produces sharp 40-degree beams on light, and is designed to spot tables, decor, architecture or used for special effects. The ADJ PinPoint Gobo is a 10-Watt CW LED. It produces sharp 40-degree beams on light, and is designed to spot tables, decor, architecture or used for special effects. The ADJ PinPoint Gobo is a 10-Watt CW LED. It produces sharp 40-degree beams on light, and is designed to spot tables, decor, architecture or used for special effects. The ADJ PinPoint Gobo is a 10-Watt CW LED. It produces sharp 40-degree beams on light, and is designed to spot tables, decor, architecture or used for special effects.
SKU: PIN266 | UPC: 819730017987

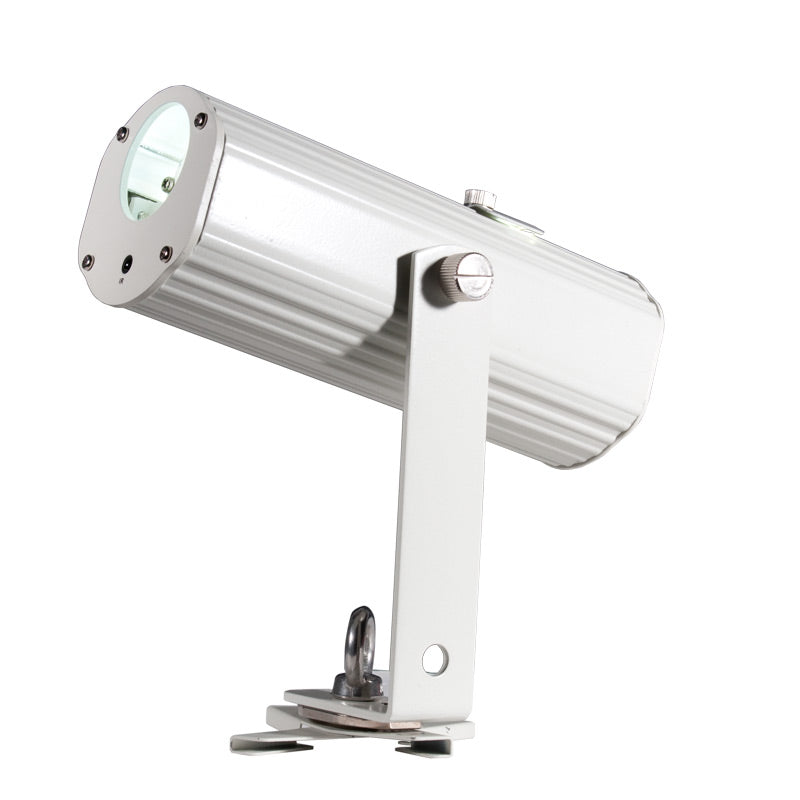

The ADJ PinPoint Gobo is a battery powered GOBO projector powered by a 10-Watt cool white LED. It includes 4 standard removable GOBOs, 5 color gels and a frost filter to defuse the beam for wider washes of light.
Advantage Points: 180

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

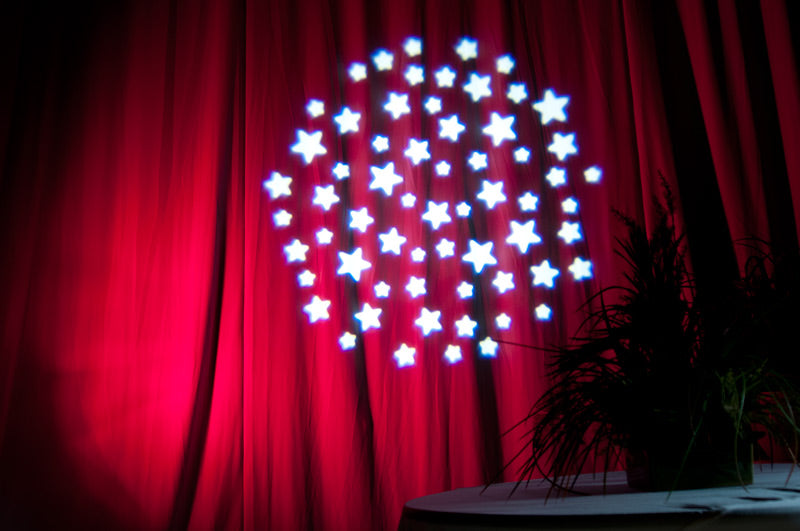

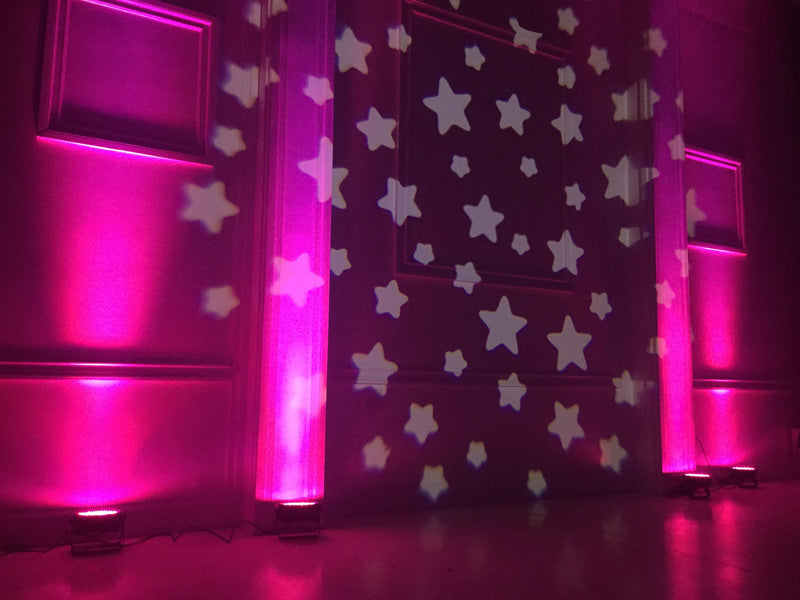

Communicate your message in light! The ADJ PinPoint Gobo is a battery powered GOBO projector powered by a 10-Watt cool white LED.  It includes 4 standard removable GOBOs, 5 color gels and a frost filter to defuse the beam for wider washes of light. When the GOBO is remove it may be used as a pinspot to spot tables, decor, architecture or used for special effects.



The PinPoint Gobo has an easy replaceable GOBO holder so that user may interchange the supplied GOBOs or to insert custom GOBOs. It features a magnetic bracket so the fixture may be quick attached to metal, plus  a X-Clip mount is also included to attach to the metal in drop down ceilings.

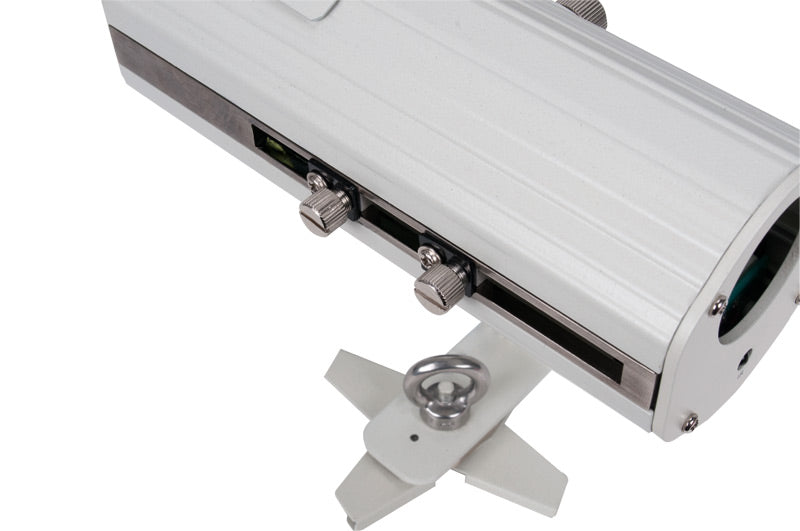

The battery has a charge time of 6.5 hours to achieve a full charge. The battery life is rated at 4.5 hours (full on) or 12.5 hours when set in energy saving mode. On the side of the fixture are sliders to manually adjust the focus and beam angle.

Learn more about the Pinpoint Gobo and Pinpoint Gobo Color from this product spotlight: http://tinyurl.com/hvnlkxd



Specifications

Specifications

  • Rechargeable battery powered, bright 10W CW 4-in-1 LED Pinspot / Gobo Projector
  • 12-25-degree variable beam
  • Manual focus
  • Compact high-tech metal case design
  • Drop in GOBO Slot (for metal gobos only)
  • Long-life LED: 50,000 hour LED life
  • Power consumption: 11W
  • Includes magnetic bracket for easy quick install on metal
  • X-CLIP Bracket for drop ceiling frame mounting

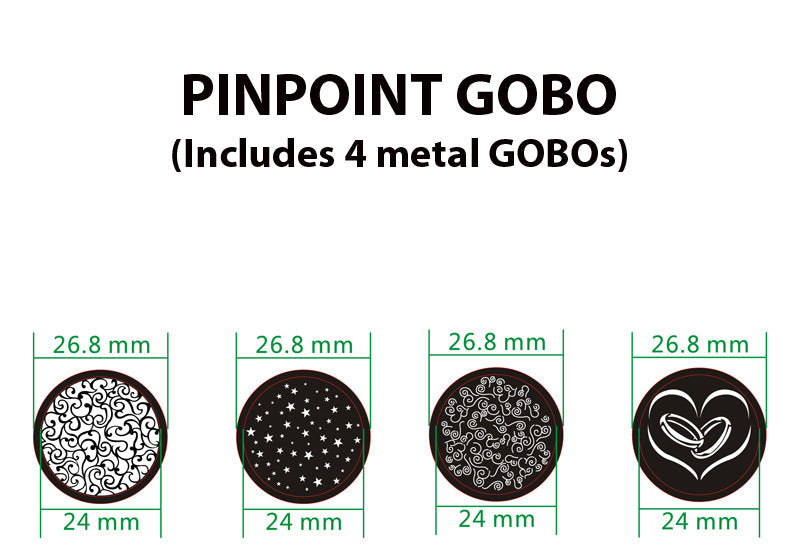

  • Includes 4 metal GOBOs and 5 color filters
  • Replaceable Gobo size: 25.8mm; Viewable size: 19mm
  • Gobo Thickness: 1mm max.
  • Includes Frost Filter & 4 Color Filters: Red, Green, Blue & Amber

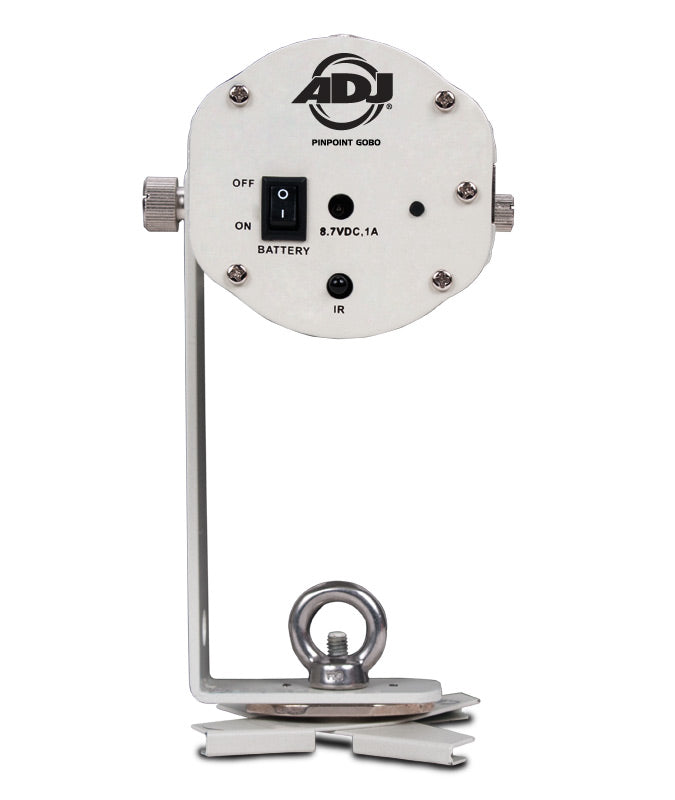

  • Includes Power Adapter (DC 8.7V 1A)
  • Light Output: 876 LUX @2M; 203 LUX @4M (17-degree beam)
  • Refresh Rate: 1KHz
  • ADJ UC IR Remote Control & ADJ LED RC3 Control (Sold Separately) & Airstream IR compatible
  • Battery Charge Time: 6.5 Hours (With POWER switch off)
  • Battery Life: 4.5 Hours (Full On) / 12.5 Hours (In Energy Saving Mode w/ Full Charge
  • Dimensions (LxWxH): 9.75” x 4” x 2.75” / 245 x 102 x 70mm
  • Weight: 3 lbs. / 1.1 kgs.

Battery Specifications

  • Battery Charge Time: 6.5 Hours (Load Switch Off)
  • Battery Life: 4.5 Hours Full On in 10W Mode, 10 Hours in 3.3W Mode, 12.5 Hours in Energy Saving Mode (Full Charge)
  • Battery Lifetime: Average Lifetime is 500 Charges (This depends on charging frequency)
  • Battery Type: Fixed Lithium Battery
  • Battery Energy: 32.56WH (Watt Hours)
  • Battery Weight: 0.4lbs. / 0.19kg
  • Battery Voltage: 7.4V
  • Battery Capacity: 4.4AH
  • Total Lithium Ion Cells: 4pcs
  • Battery Wrap Material: PVC Sleeving + Highland Barley Paper

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
PinPoint Gobo User Manual Download
Pinpoint Gobo Gobo Sizes Download
Pinpoint Gobo Photometric Chart Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

Can you print your gobos at home ? Or you have to order em ?

Hello Noee,

Yes, you can print gobos at home if you have the tools to do so. You can also  purchase custom gobos thru www.gobosource.com Let me know if you have any further questions.

Thanks,

What colors are the gels that come with this fixture?

Hello Mike,

Thank you for reaching out to us. The color filters are Red,Green,Blue,Amber and Clear. Let me know if you have any further questions.

Thanks,
