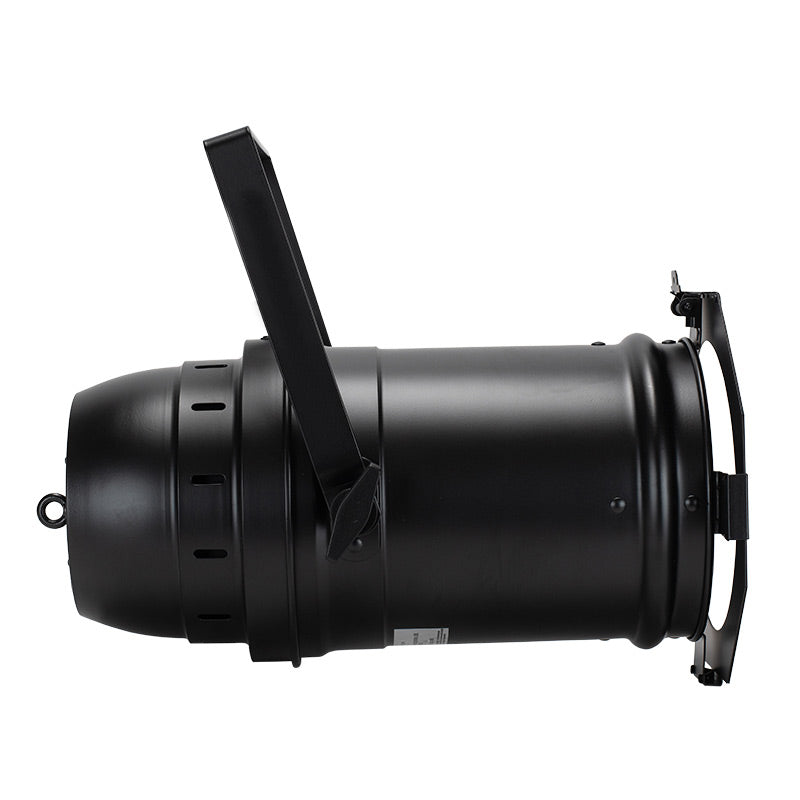

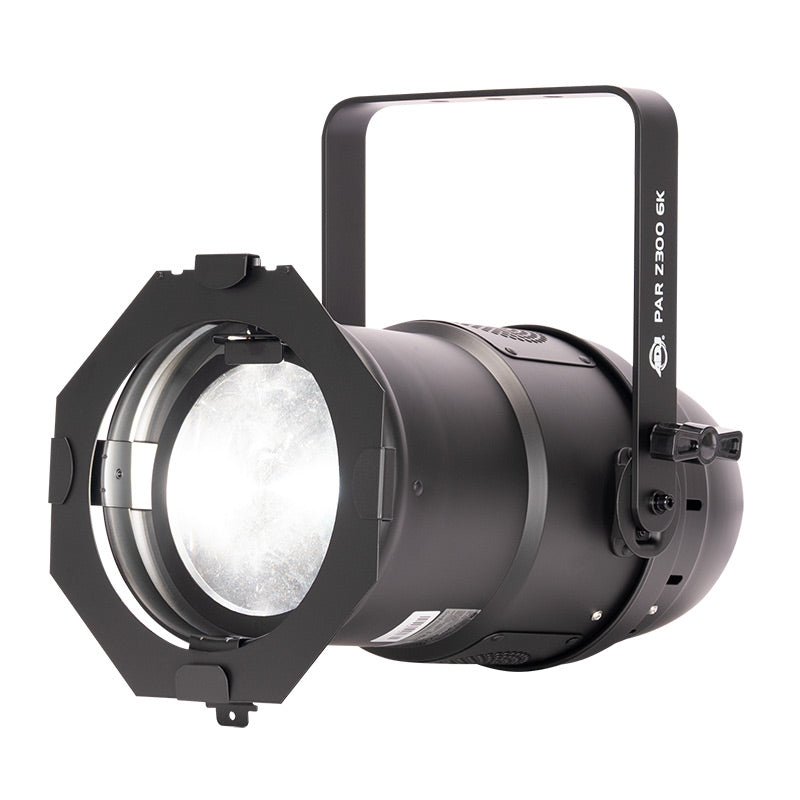

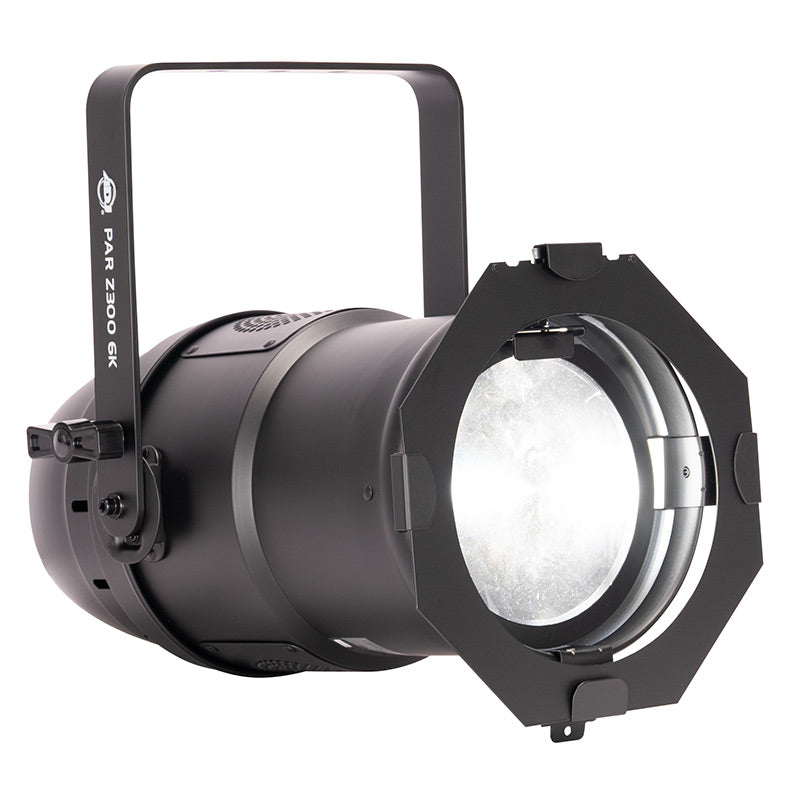

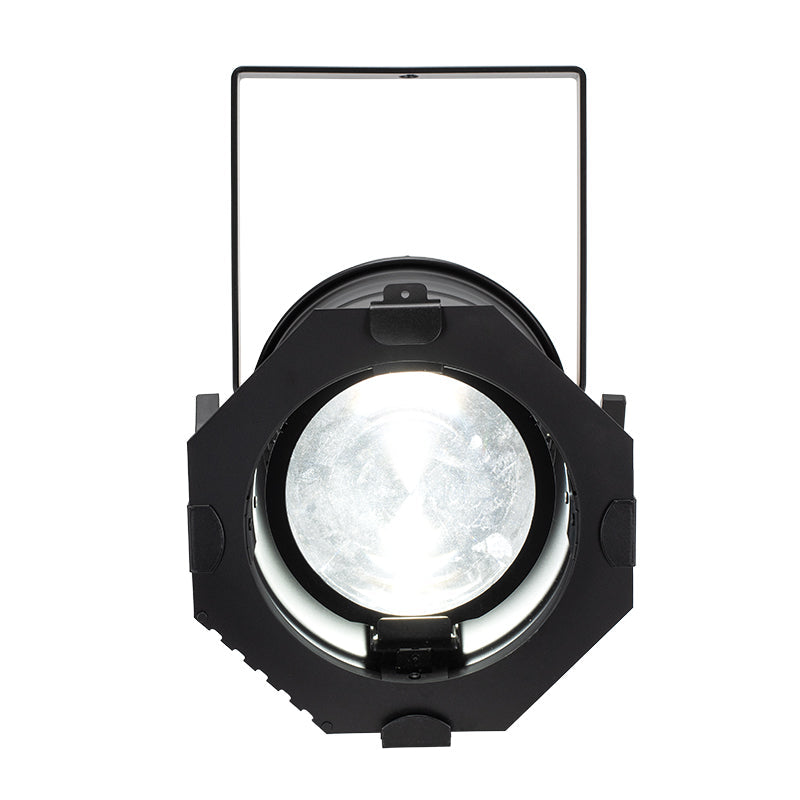

Par Z300 6K

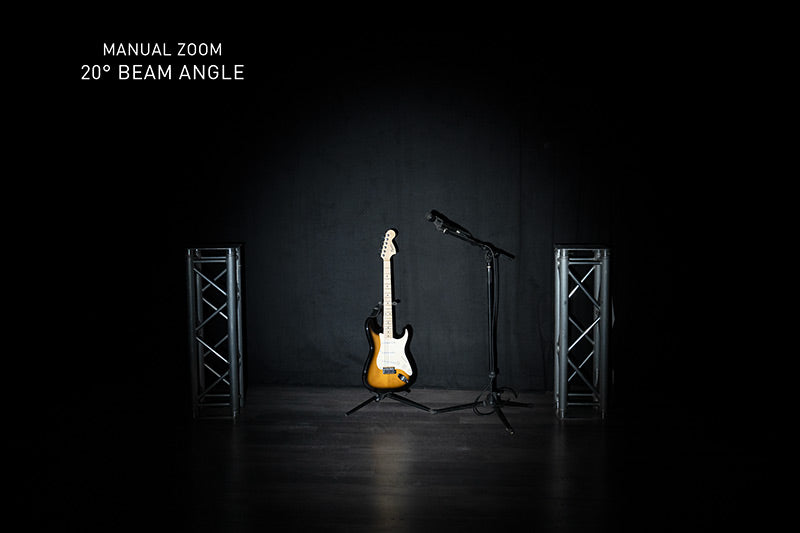

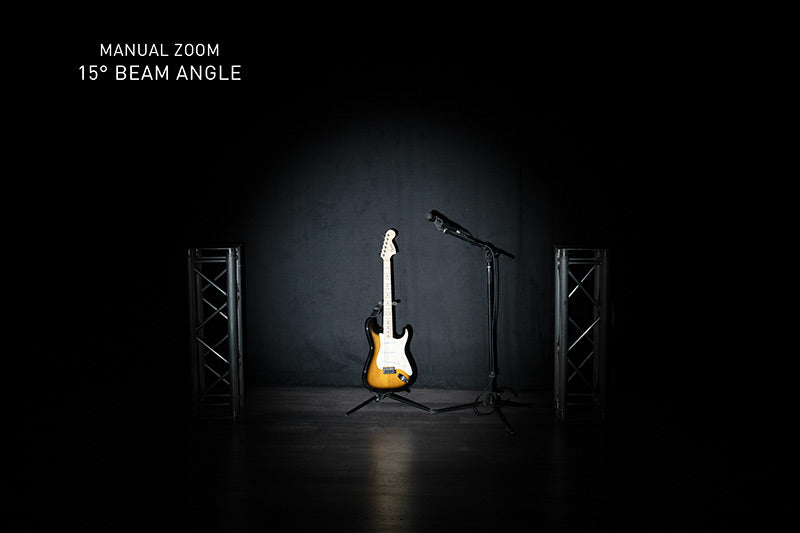

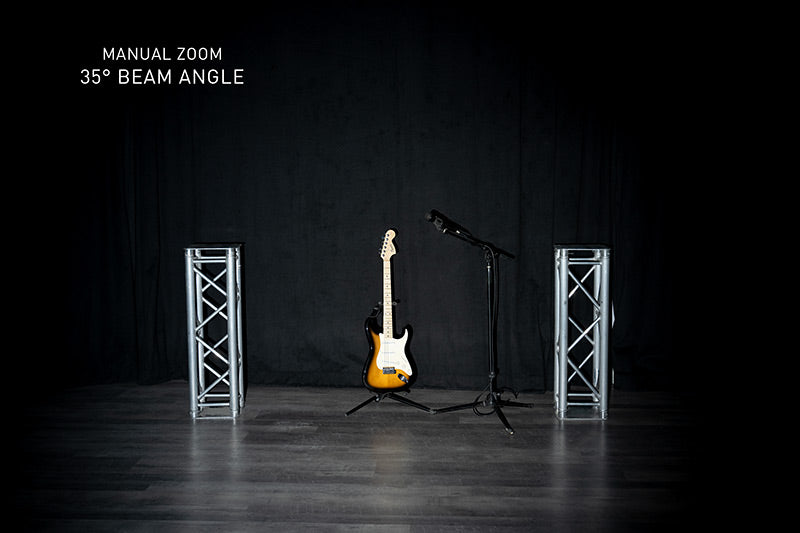

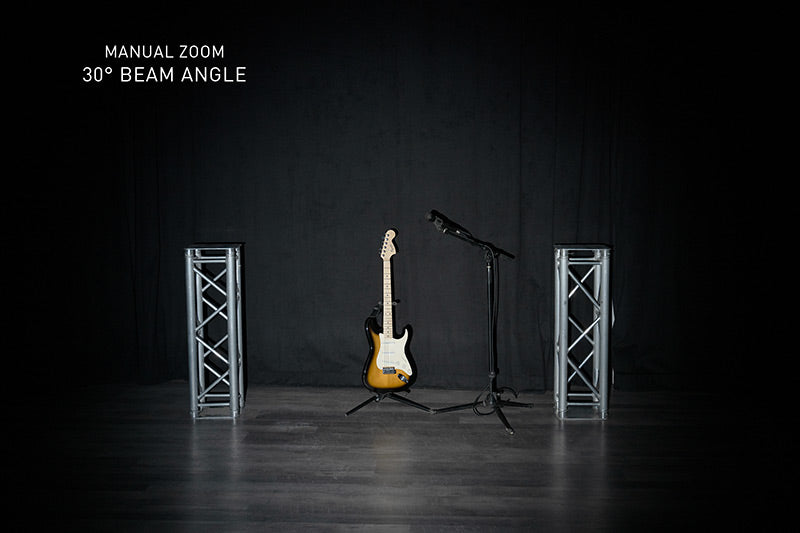

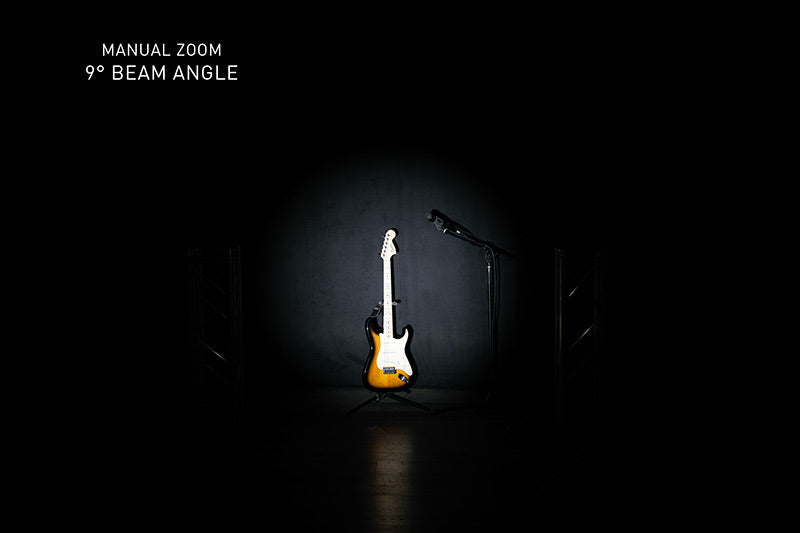

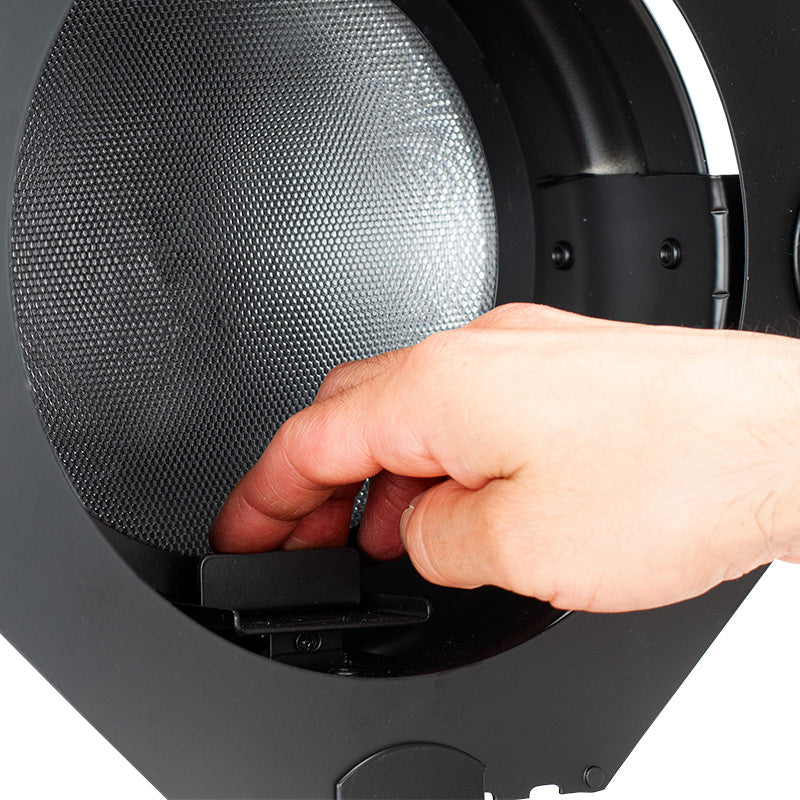

The Par Z300 6K is powered by a robust 300-Watt, 6000K cool white COB LED engine with a CRI over 90. The 6000K color temperature closely mimics ‘daylight white.” It offers seven manual zoom beam angles—9°, 15°, 20°, 25°, 30°, 35°, and 40°—and includes a traditional Par Can gel frame for adding diffusion filters to further control light output.

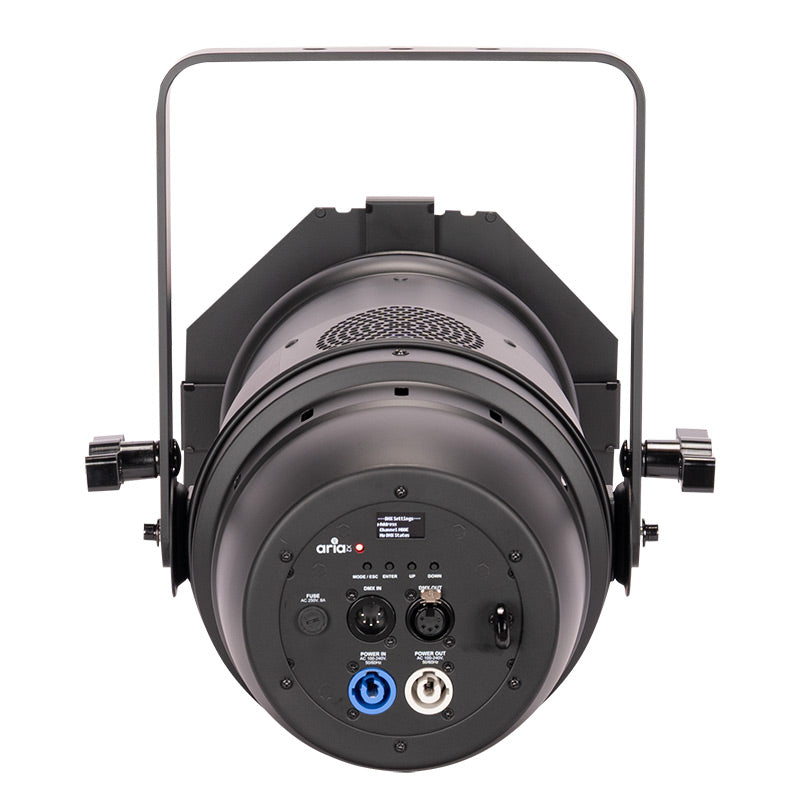

Advanced features include the Aria X2 wireless management system for over the air firmware/software updates for streamlined control, a 4-button DMX OLED display menu, adjustable strobe refresh rates, six dimming modes, and electronic dimming from 1-100%. The fixture is compatible with both RDM and RDM Net protocols. The rear panel has locking power In/Out sockets for daisy-chaining power, as well as 5-pin DMX In/Out connections for data.
Specifications
• 300-Watt, 6000K Cool White C.O.B. LED (Chip On Board)
• Life expectancy: rated at 50,000 hrs.

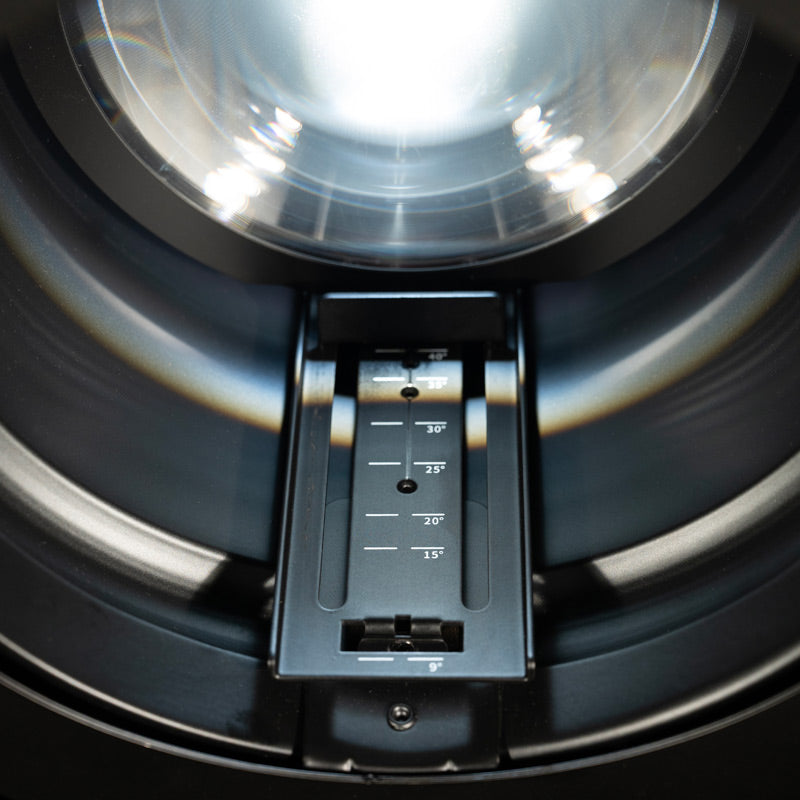

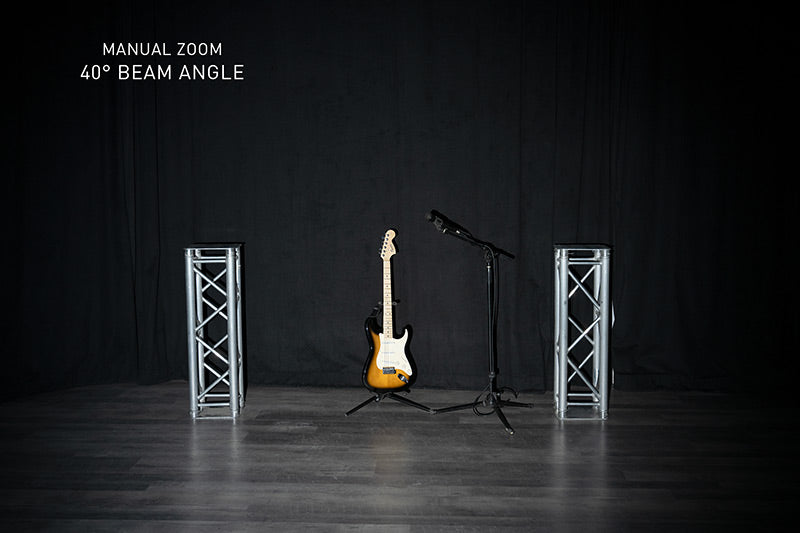

• Manual Zoom: 9°, 15°, 20°, 25°, 30°, 35° and 40°
• Zoom Ratio: 4.4:1
Photometrics:
• 13980 Lux (Zoomed In to 9° @ 5 meters)
• 1828 Lux (Zoomed Out to 25° @ 5 meters)
• CRI: 95
Connection:
• DMX: 5-pin DMX In/Out
• With Wired Digital Communication Network
• Locking IP20 Power In/Out connections
Control:
• Aria X2 Wireless Management System
• DMX-512
• 3 DMX control modes: (1, 3 4 Ch. modes)
• RDM and RDM Net Compatible
• Primary/Secondary, stand-alone mode
• On-board manual control mode
Electrical:
• Power Draw Total (@ Full On): 320W
• Power Consumption: 2.7A @ 120V/60Hz ; 1.5A @ 220V/50Hz
• Multi-voltage operation: AC 100-240V, 50/60Hz
• Daisy chain: 2 fixtures @ 120V; 4 fixtures @ 230V
• Fuse protected: 8A/250V
Ambient Temperature Range (For Use):
• -4° ~ 104°F (-20°C ~ 40°C)
Storage Temperature Range:
• -22° ~ 113°F (-30°C ~ 45°C)
Dimensions / Weight:
• Dimensions (LxWxH): 20.08” x 15.33” x 10.14” / 510 x 389.3 x 257.5mm
• Weight: 13.23 lbs. / 6kg.
IP Rating / Approvals:
• IP20
• CE FCC
• ETL Approved (Pending)

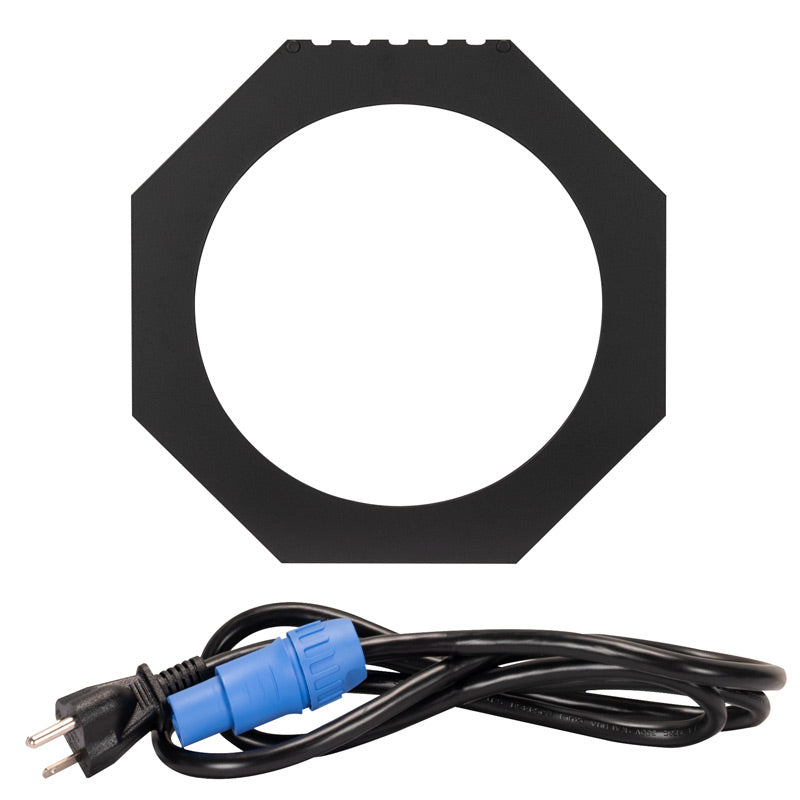

What’s Included:
• Gel Frame
• Power Cord
Specifications subject to change without notice.
