Par Z Move RGBW

New Product

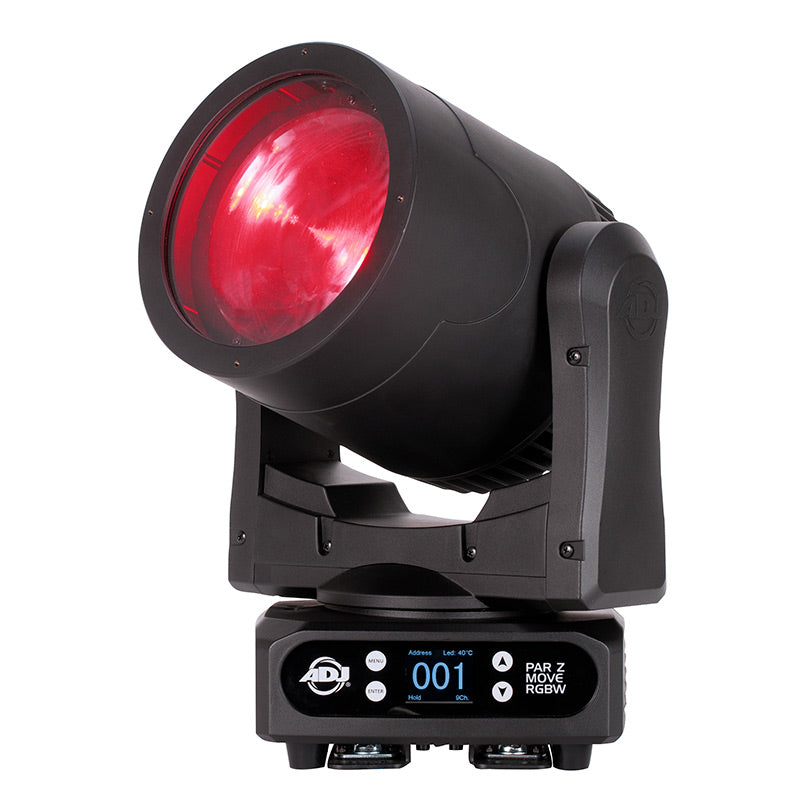

PAR Z MOVE RGBW main product photo PAR Z MOVE RGBW rear product photo PAR Z MOVE RGBW FX photo wide beam PAR Z MOVE RGBW narrow beam FX photo Par Z Move RGBW FX Photo Par Z Move RGBW accessories Photo
SKU: PAR525 | UPC: 818651026887
300W COB (Chip on Board) RGBW LED on a moving head base. Features: motorized zoom (9 ~ 37-degrees), Seetronic locking power In/Out & 3-pin & 5-pin In/Out DMX Connections.
Advantage Points: 1300

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Available now from ADJ USA • $1299.99

The Par Z Move RGBW is the next generation fixture in ADJ’s popular PAR Z100 Series of C.OB. LED Pars. It’s powered by a high output 300W C.O.B. (Chip on Board) RGBW LED on a moving head base. Featuring motorized zoom (9 ~ 37-degrees) and 0-100% dimming for key lighting or color washing stages, theaters, churches, nightclubs, concert venues and event productions.

There are a variety of professional features such as: DMX and RDM control, pan & fine pan, tilt & fine tilt and a color display with 4 buttons to easily access all the built-in functions. Seetronic locking power In/Out to daisy chain the power and 3-pin and 5-pin XLR, DMX In/Out give lighting designers the best, most reliable connections on the market. There is also a built-in USB port to easily update the software if needed.

Click here to read the Par Z Move RGBW press release.

Specifications

Specifications

Optical:

• 300W RGBW COB (Chip On Board) 4-IN-1 LED engine (Red, Green, Blue & White)

• 20,000 hour LED life

• Motorized Zoom: 9 ~ 37-degrees

• CRI: 80


Connections:

• Seetronic locking power In/Out to daisy chain power

• Daisy chain up to 4 fixtures @ 120V, 8 fixtures @ 230V

• 3-pin & 5-pin XLR, In/Out DMX Connections

• Built-in USB software upgrade port

• With Wired Digital Communication Network


Control:

• 3 DMX Channel Modes: 13, 15, & 16-channels

• Color display with touch button

• DMX-512 & RDM

• Pan: 540-degrees (plus 16-bit Fine Pan)

• Tilt: 200-degrees (plus 16-bit Fine Tilt)

• 0-100% Dimming


Electrical:

• Multi-voltage operation: 100-240V, 50/60Hz

• Power Consumption: 252W max


Dimensions / Weight:

• Dimensions (LxWxH): 12.05” x 8.6” x 17.63” / 306x218x448mm

• Weight: 25 lbs. / 11.3 kg.


What’s In The Box:

• Two Omega Brackets

• Seetronic locking power cable

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
PAR Z Move RGBW Cut Sheet PAR Z Move RGBW Cut Sheet link Download
Par Z Move RGBW User Manual User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for Par Z Move RGBW
