Novastar VX4s

Powerful Video Processor compatible with ADJ's video screen products Powerful Video Processor compatible with ADJ's video screen products Powerful Video Processor compatible with ADJ's video screen products
SKU: VX4001 | UPC: 837874019605
Powerful Video Processor compatible with ADJ's video screen products
Advantage Points: 3980

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

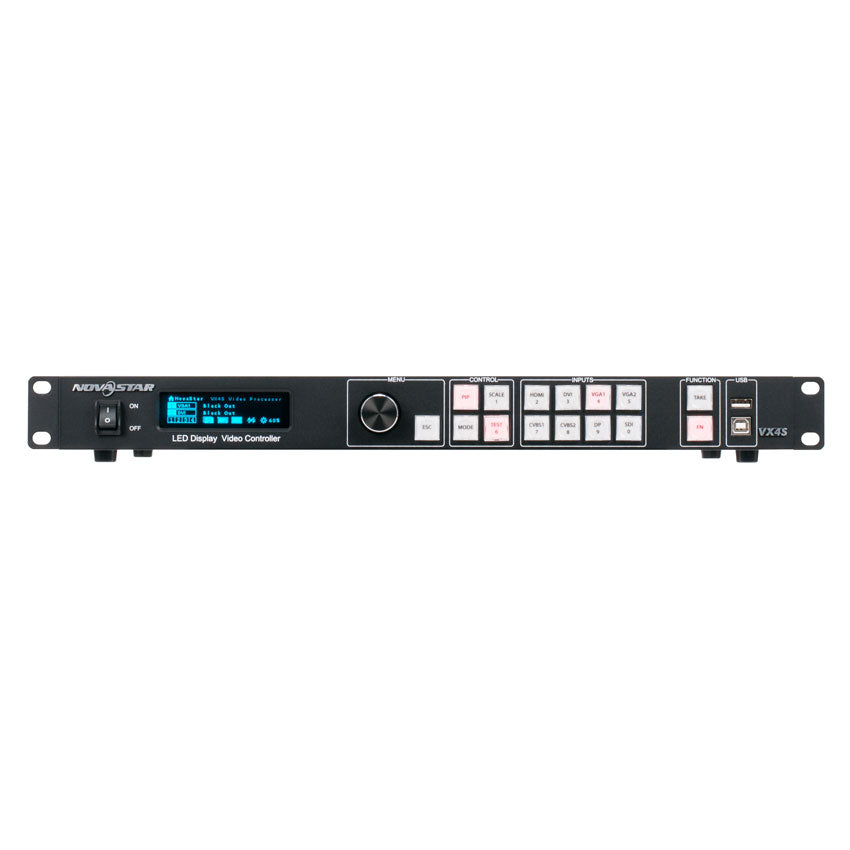

The new NOVASTAR VX4s™ is a professional and user friendly LED display controller and a powerful front end processor that supports multiple signal formats including DP / HDMI / VGA / DVI / CVBS / SDI, and up to 1920 x 1200p @60Hz input resolution, includes (4) RJ45 outputs for up to 2.6 million pixels of LED control, and supports Nova’s new generation point-by-point correction technology.



NOVASTAR VX4s™ is compatible with the ADJ AV6, AV6X, AV4IP and AV3 video panels.

Specifications

Specifications

FEATURES:

User Friendly LED Display Controller

Powerful Front End Processor

Up to 1920 x 1200 p @60Hz Input Resolution

Multiple Video Signal Format Support

New Generation Point-By-Point Correction Technology

Cascade Multiple Units Together Via USB

Rack Mountable Aluminum Enclosure (screws not included)

CONTROL / CONNECTIONS:

(1) RJ45 LAN for IP Based Control

(4) RJ45 Outputs for up to 2.6 million Pixels of LED Control

(2) USB Type A and (2) USB Type B Ports (1 set on each side)

(1) 1/8 inch (3.5mm) Audio Input

Video Input: (1) DP / (1) HDMI / (2) VGA / (1) DVI / (2) CVBS / (1) SDI

Video Output: (1) DVI Loop / (1) DVI / (1) VGA / (1) SDI Loop

Locking IEC Power Input

SIZE / WEIGHT:

Length: 19.0” (483mm)

Width: 10.8” (275mm)

Height: 1.8” (45mm)

Weight: 5.6 lbs. (2.55 kg)

ELECTRICAL:

AC 100-240V - 50/60Hz - 0.65A

Max Power Consumption: 16W

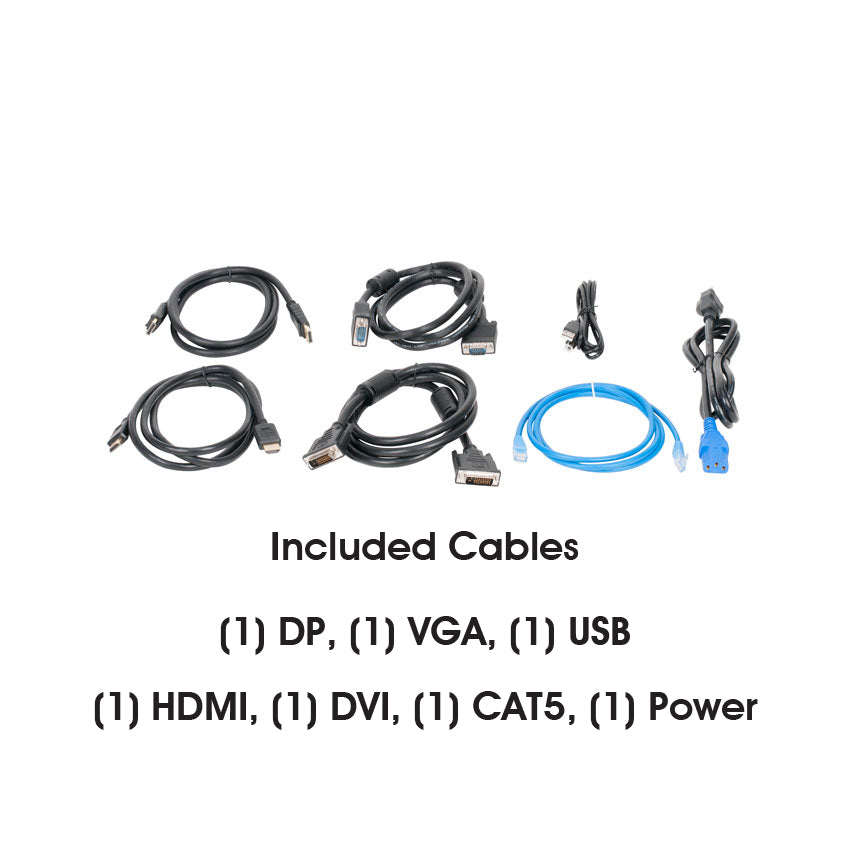

INCLUDED CABLES (1 each):

DP, VGA, USB, HDMI, DVI, CAT5, Power

Videos

Videos

There are currently no videos available for this product.

Downloads

Downloads

The following downloads are available for this product:

Title Description
Novastar VX4S Dimensional Drawing Download
Novastar VX4S Specification Sheet Download
VX4S Configuration Software,V4.6.3, for AV3, AV4IP and AV6 Video Panels (WINDOWS ONLY) VX4S Configuration Software,V4.6.3, for AV3, AV4IP and AV6 Video Panels (WINDOWS ONLY) Download
