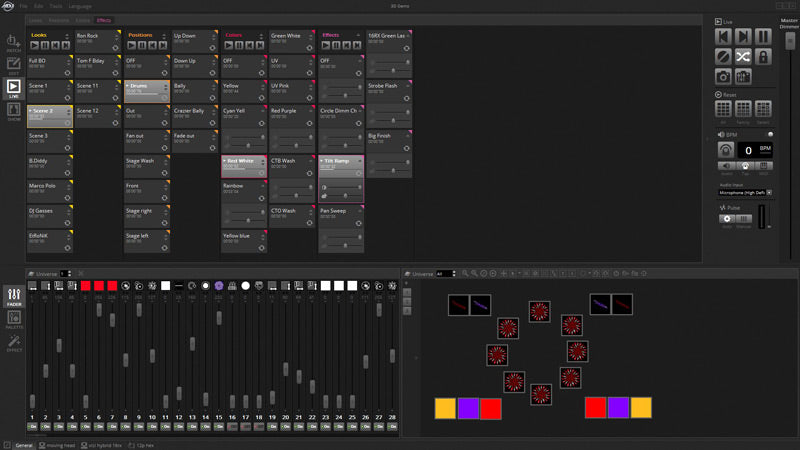

myDMX 3

Popular DMX control software designed to help make programming lightshows easier. myDMX 3.0 is ADJ latest software / hardware control software. Popular DMX control software designed to help make programming lightshows easier. myDMX 3.0 is ADJ latest software / hardware control software. Popular DMX control software designed to help make programming lightshows easier. myDMX 3.0 is ADJ latest software / hardware control software. Popular DMX control software designed to help make programming lightshows easier. myDMX 3.0 is ADJ latest software / hardware control software. Popular DMX control software designed to help make programming lightshows easier. myDMX 3.0 is ADJ latest software / hardware control software. Popular DMX control software designed to help make programming lightshows easier. myDMX 3.0 is ADJ latest software / hardware control software.
SKU: MYD330 | UPC: 819730019684
DMX control software designed to help make programming lightshows easier. myDMX 3.0 is ADJ's latest control software / hardware.
Advantage Points: 300

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

myDMX 3.0 - August 2, 2018 Edition Now Available


There is a new, free August 2, 2018 update to myDMX 3.0 now available in the “Downloads” section of this page. Update includes: Bug fixes, general “under the hood” updates and more fixtures added to the library.
_______________________________________

myDMX 3.0 - January 31, 2018 Edition Now Available


New Features:

• Bug correction with the DMX interface window (SUT)

• Bug correction with unstable 8/16 bit channels in stand alone

• Contains firmware 0.3 which works with 16 buttons for myDMX 3RM hardware

 Download this new software for MAC or PC from the “Downloads” section



_______________________________________

myDMX 3.0 - December 22, 2017 Edition Now Available

New Features:
• Filter selected fixtures when controlling mapped MIDI

• Added possibility to completely close the pallet/fixture/fader window, with an option to restore it from the edit window (next to auto hide pallets option)
• Ability to merge previous patched fixtures when using the Import facility. (basically when you import a show, it will not overwrite the patch, rather it’ll merge the patch of the imported show with the patch of the open show)
• Various bug fixes

Download this new software for MAC or PC from the “Downloads” section

_______________________________________

MyDMX 3.0 - May 3, 2017 Edition Now Available

Updates:

• Selected fixture tab saved when saving a show file

• Added shortcut to select BPM mode (including Show Mode shortcut)

• Enable different MIDI-mappings on all universes

• Add full range MIDI/DMX triggering on channels (you can now choose to control through current preset range or 0-255)

• Add option in MIDI mapping dialog to control the entire channel range when mapping a MIDI fader to a channel fader

• Color bar added under each channel on the General tab

• Updated version of the 3D Visualizer with support for multi-beam LED bars

• Various bug fixes



Download this new software for MAC or PC from the “Downloads” section

_______________________________________

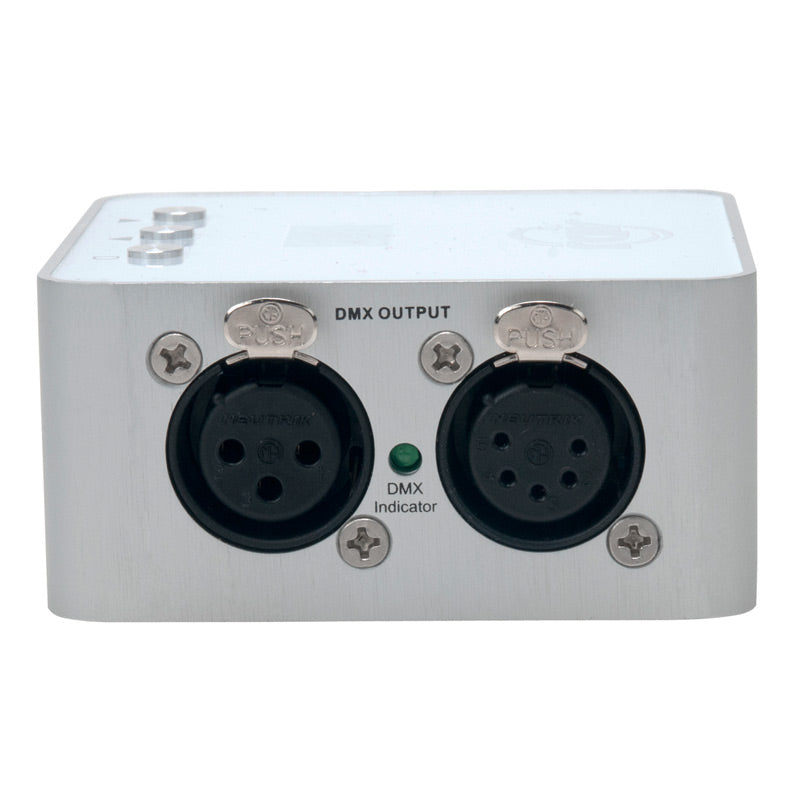

ADJ’s myDMX 3.0 is a multi-platform DMX control software/hardware system (Windows and OSX Mac compatible). myDMX 3.0 has a new, robust hardware dongle and exciting new features to take greater command of your lightshow. Out of the package, myDMX 3.0 software will run in Express Mode; 512 "Live" DMX channels & 60 "Stand Alone" DMX channels (No 3D visualizer, Easy Remote, 8 port contacts or Midi features). However, these features plus other upgrades, including additional Live & Stand Alone channels can be purchased at https://store.dmxsoft.com/. myDMX 2.1 and 3.0 interfaces will run in Full mode when running myDMX 2.1 software.

If you already own myDMX 2.1 hardware, you can download the myDMX 3.0 software for free from the Downloads tab. Note: it will run in Express Mode. See above for additional details.

Learn more about myDMX 3.0 in this product spotlight: http://tinyurl.com/zz7v6nk

Join the myDMX Facebook group: https://www.facebook.com/groups/MyDMX/

Link the myDMX Facebook page for updates: https://www.facebook.com/mydmx/

_______________________________________

myDMX 3.0 software does not work with myDMX 2.0 hardware

New Features:
• Play multiple scenes at a time

• Arrange scenes into groups
• Sound-light with BPM audio analysis and pulse analysis
• Live snapshots
• Live scene dimming and scene speed controls
• Stand Alone backup memory
• BPM tap
• Flash scenes
• Blind editing - edit scenes without outputting the DMX
• Fully compatible with myDMX 2.1 software

Classic Features:

• Easy-to-use DMX software
• 512 DMX channels
• Extensive fixture profile library
• SSL2 Profile editor & support
• Drag and drop effects generator
• Works with simple scenes/steps
• Windows and Mac installers that will download the latest ssl library with an internet connection upon install.
• “Maintenance” application that installs with the program to check for component updates or new versions of the software.
• “Cloud search for profiles” Search for the latest and greatest fixture profiles from within the program itself, no more hunting through dropbox
• Improved multi Pan and Tilt support
• Users can select multi select steps in a scene and modify a channel parameter without it interfering with the rest of the channels
• Vast optimizations and stability improvements for both Windows and Mac OS
• Not compatible with ARM based Windows tablets (only Intel)
• Additional feature and software upgrades available at https://store.dmxsoft.com/

----------------------

myDMX 3 Optional Upgrades Available (Additional Charge):

3D: Design your 3D environment and add 3D objects from the built in 3D object library and create your own virtual venue to program your light show without having to set up your entire rig.



MIDI: Use your favorite USB to MIDI device to assign physical buttons and faders to the virtual buttons and faders in the program to get that perfect hardware lighting console feel to your show and playback capabilities.

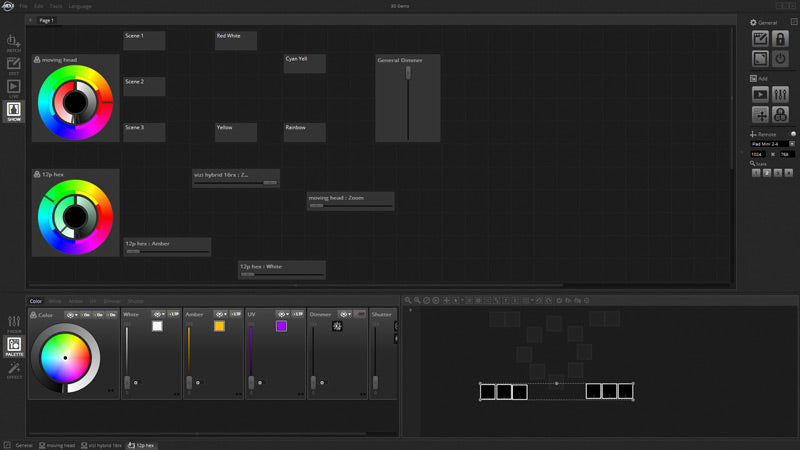

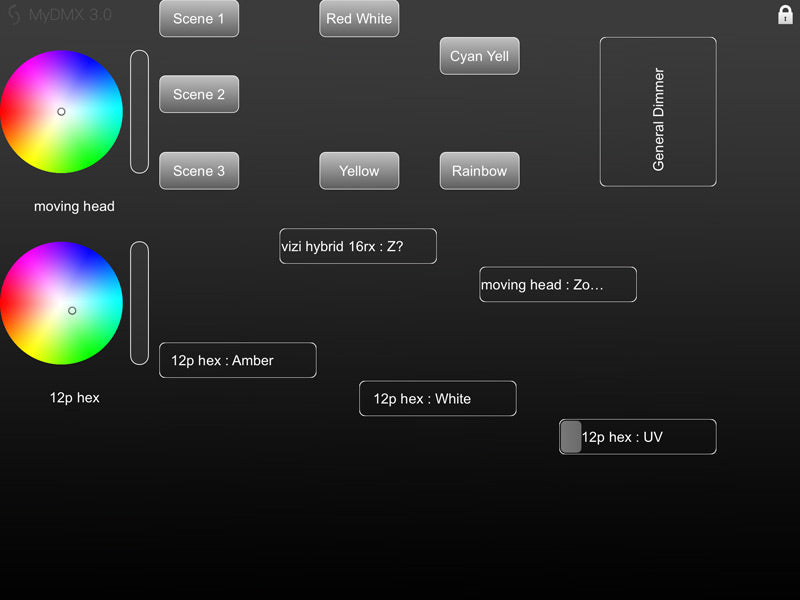

Easy Remote: Using the "Show" function in the program you can quickly and easily build your own Virtual Lighting desk using any DMX channel or preset or Scene in the MyDMX 3 software to get your very own custom Console set up, and it is automatically linked to your smartphone or tablet running the Easy Remote app, there are even presets for popular iOS and Android devices ready to be used and edited!

Multiple Universes: If you own a 2nd or 3rd or more MyDMX 3 interfaces, or purchase a MyDMX Buddy with at least the Express mode license for 3.0 software, you can "stack" interfaces to get multiple universes of DMX output on the 3.0 software.

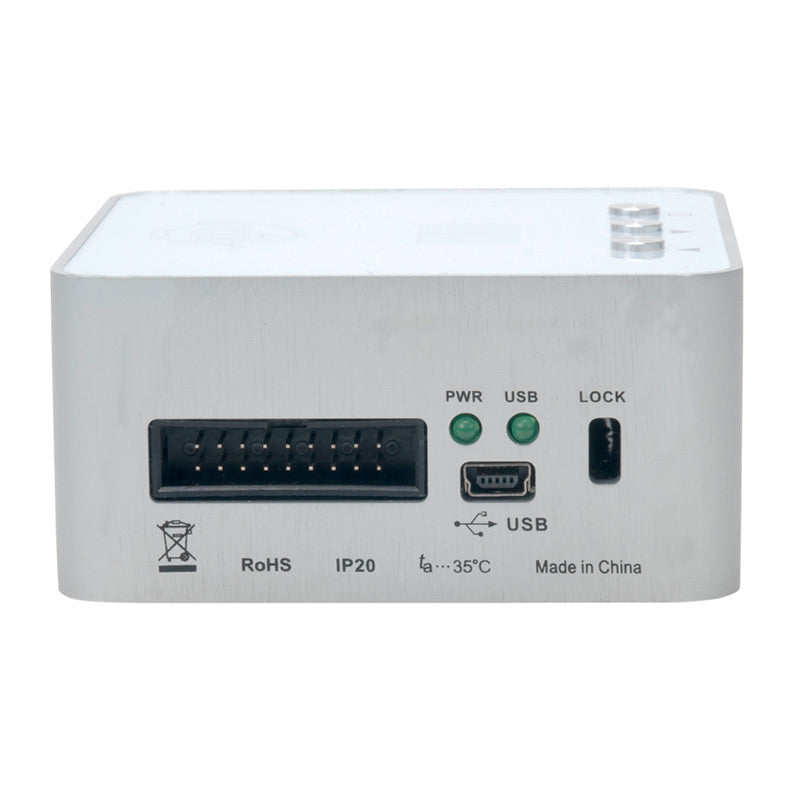

8-Port Contacts: Trigger scenes in both live and stand alone mode via the 8 dry contact ports. Bridge the ground pin with pins 1-8 of the HE10 connector to start scenes from a push button or relay. The 8 ports can be combined in binary for up to 255 triggers.

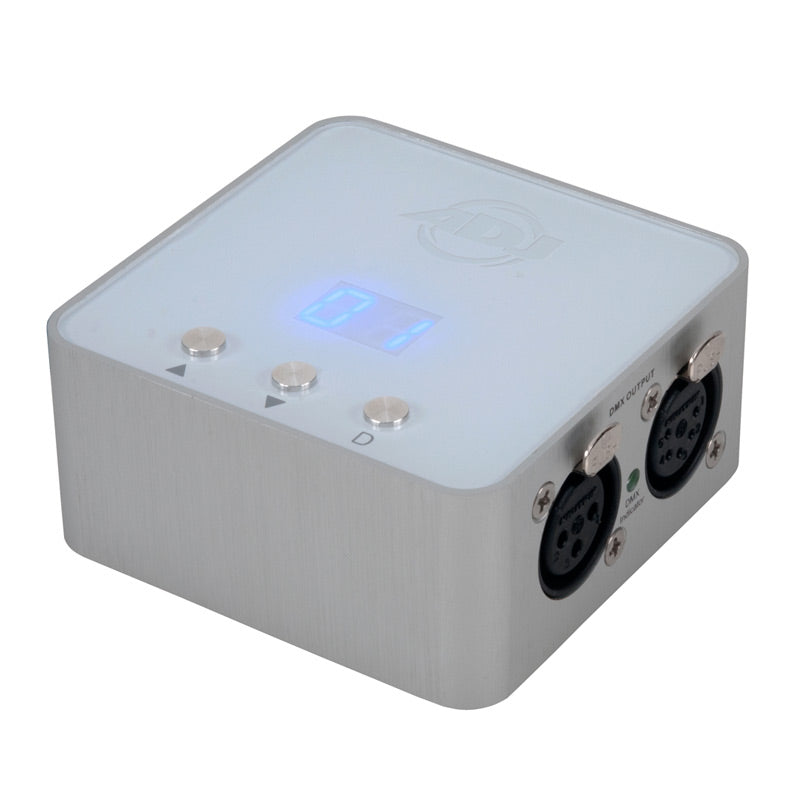

Stand Alone: Want to trigger a few of your scenes without lugging your computer around? Stand alone channels let's you do just that. With 60 Stand alone channels included with each MyDMX 3 interface you can store scenes that use up to 60 channels of DMX that you can use to playback lighting looks using the push buttons on the top of the MyDMX 3 interface. you can purchase up to 512 stand alone channels in packs of 50 additional Stand alone channels from the web store.

myDMX 3 upgrades available at: https://store.dmxsoft.com/




Specifications

Specifications

Minimum System Requirements:

• Computer working under Windows 7 or higher, or MAC OS X 10.10 or higher

• 1 GHz speed processor

• 2 GB Memory (RAM)

• 1280*768 pixel screen

• OpenGL 3.1 (for 3D)

Best Performance System Requirements:

• Computer working under Windows 7 or higher, or MAC OSx 10.10 or higher

• 2 GHz speed processor, dual core

• 4 GB Memory (RAM)

• Video card with 1GB video memory

• 1920*1080 pixel screen

• OpenGL 3.1 (for 3D)



myDMX 3 Optional Upgrades Available (Additional Charge):

3D: Design your 3D environment and add 3D objects from the built in 3D object library and create your own virtual venue to program your light show without having to set up your entire rig.

MIDI:
Use your favorite USB to MIDI device to assign physical buttons and faders to the virtual buttons and faders in the program to get that perfect hardware lighting console feel to your show and playback capabilities.

Easy Remote:
 Using the "Show" function in the program you can quickly and easily build your own Virtual Lighting desk using any DMX channel or preset or Scene in the MyDMX 3 software to get your very own custom Console set up, and it is automatically linked to your smartphone or tablet running the Easy Remote app, there are even presets for popular iOS and Android devices ready to be used and edited!

Multiple Universes: If you own a 2nd or 3rd or more MyDMX 3 interfaces, or purchase a MyDMX Buddy with at least the Express mode license for 3.0 software, you can "stack" interfaces to get multiple universes of DMX output on the 3.0 software.



8-Port Contacts: Trigger scenes in both live and stand alone mode via the 8 dry contact ports. Bridge the ground pin with pins 1-8 of the HE10 connector to start scenes from a push button or relay. The 8 ports can be combined in binary for up to 255 triggers.

Stand Alone: Want to trigger a few of your scenes without lugging your computer around? Stand alone channels let's you do just that. With 60 Stand alone channels included with each MyDMX 3 interface you can store scenes that use up to 60 channels of DMX that you can use to playback lighting looks using the push buttons on the top of the MyDMX 3 interface. you can purchase up to 512 stand alone channels in packs of 50 additional Stand alone channels from the web store.




myDMX 3 upgrades available at:
https://store.dmxsoft.com/

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
myDMX 3.0 Cut Sheet Download
myDMX 3.0 User Manual myDMX 3.0 User Manual Download
myDMX Buddy and myDMX 3.0 Upgrades Price List Upgrades price list. http://store.dmxsoft.com/ Download
myDMX 3.0 Software Dec. 22, 2017 MAC Software (352 MB) Download
myDMX 3.0 Software Dec. 22, 2017 PC Software (252 MB) Download
myDMX 3.0 Software Jan. 31, 2018 PC Software (259 MB) Download
myDMX 3.0 Software Jan. 31, 2018 MAC Software (353 MB) Download
myDMX 3.0 Software Aug. 2, 2018 PC Software (447 MB) Download
myDMX 3.0 Software Aug. 2, 2018 MAC Software (573 MB) Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

I have the new 2.1 interface and it looks the same like the 3.0. Is it the same and can I use the 3.0 software. Is there an extra cost?

Yes, the MyDMX 2.1 is compatible with MyDMX 3.0 at no additional cost. The software will run in Express mode. A list of optional ugrades can be downloaded from the following link.

Download



Hardware compatible with 2.0 ? Can I use the software 3.0 version on mydmx2.0 hardware?

No, the MyDMX 2.0 interface is not compatible with MyDMX 3.0 software.
