Mega Tri Bar

SKU: MTB399 | UPC: 640282001120
The ADJ Mega Tri Bar LED gives you an awesome set of features to compliment it's LED light Setup. From American DJ you get 18 3-watt Tri Color LED's each rated at 60,000 hours. Get great lights with the ADJ Mega Tri Bar LED
Advantage Points: 600

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description


The ADJ Mega Tri Bar LED features an amazing 18 3-watt, 3-in-1 TRI Color LED's rated at 60,000 hours. Get the top quality American DJ Mega Tri Bar and get many of the awesome features that come on other more expensive light bars. There are 7 DMX work modes, flicker-free operation for television and video, built-in programs and color macros, plus strobe function and electronic dimming.

The Mega TRI Bar can operate in DMX with a controller, Master/Slave, Sound Active and Stand Alone (use the built-in digital display to operate each unit without a controller). With the Mega Tri Bar From ADJ you also get all the advantages of the Mega Tri Bar LED: Including •3W TRI Color LEDs for even RGB color mixing (no RGB shadow), Colors won't fade in time, Long life (Rated at 60,000 hrs.),Low power consumption (102W max), Very low heat output, Run all night long.

The ADJ Mega Tri Bar is an essential part of any good lighting setup. Make sure your stage lighting is second to none with the quality and durability of the American DJ Mega Tri Bar LED. Make sure your party never runs out of light to go with it's great sound.



  • 1-meter indoor LED Bar with durable aluminum casing
  • 18 x 3W Ultra bright 3-in-1, TRI Color RGB LEDs (60,000 hour rated)
  • 3-in-1 TRI Color RGB LED provides optimal color mixing with no RGB shadows (offers a seemingly unlimited color palette)
  • 4 operation modes (DMX-512, Master/Slave, Stand Alone and Sound Active)
  • 7 DMX work modes (2, 3, 4, 6, 7, 12 & 54 channel modes)
  • Strobe Function can be added to any color combination
  • Flicker-free operation for film and television
  • Refresh Rate: 410Hz
  • Built-in static color scenes and chase programs. Also accessible in some DMX modes
  • Electronic Dimming: 0 - 100%
  • Built-in color macros and programs
  • LEDs can manually be controlled via on-board menu/buttons. No external controller required

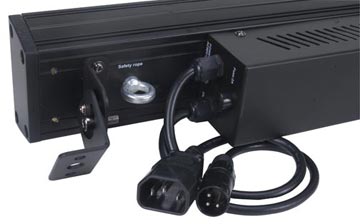

  • Linkable via 3-pin XLR input & output
  • On-board, 4-button LED DMX display/menu
  • IEC type, AC input and output for linking units
  • Includes mounting brackets that allow for truss and wall mount. Can also be set on the floor
  • Optional infrared remote to control: RGB dimming, built-in programs, auto run, flash, speed, slave mode, DMX mode and DMX addressing of fixtures
  • Beam angle: 40 degrees
  • Power Draw: 80W
  • Multi-voltage Operation: 90-240V AC, 50/60Hz
  •  Compatible with ADJ LED RC wireless infrared remote control up to 30 ft./ 10M (sold separately)
  • Dimensions without bracket (LxWxH): 43.25”x3.25”x4.5” / 1100x80x116mm
  • Weight: 14 lbs. / 6 kg.





The following downloads are available for this product:

Title Description
Mega Tri Bar Cut Sheet Download
Mega Tri Bar User Manual Download
Mega Tri Bar User Manual (With IR Control) Download


Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for Mega Tri Bar
