Mega Par Profile Plus

The ADJ Mega Par Profile Plus is a compact, low profile par designed for uplighting, stage lighting and will bring color and excitement to any event. This 2-IN-1 LED Par offers RGB color mixing plus UV black light making it a multi-use wash fixture The ADJ Mega Par Profile Plus is a compact, low profile par designed for uplighting, stage lighting and will bring color and excitement to any event. This 2-IN-1 LED Par offers RGB color mixing plus UV black light making it a multi-use wash fixture
SKU: MEG358 | UPC: 819730014146
The ADJ Mega Par Profile Plus is a compact, low profile par designed for uplighting, stage lighting and will bring color and excitement to any event. This 2-IN-1 LED Par offers RGB color mixing plus UV black light making it a multi-use wash fixture
Advantage Points: 80

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

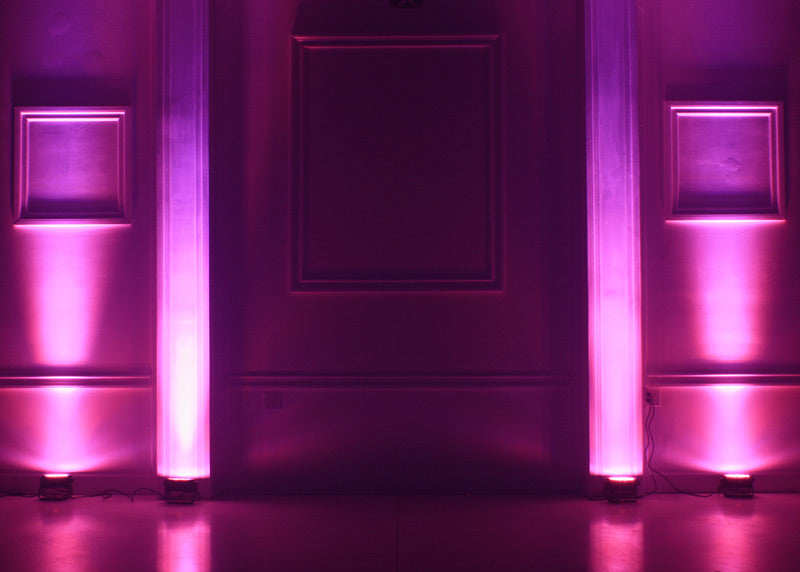

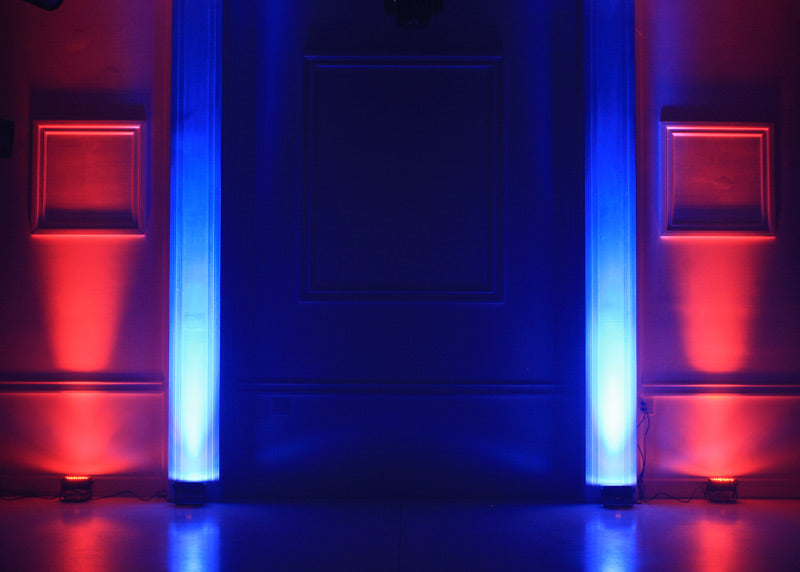

The ADJ Mega Par Profile Plus is a compact, low profile par designed for uplighting, stage lighting and will bring color and excitement to any event. This 2-IN-1 LED Par offers RGB color mixing plus UV black light making it a multi-use wash fixture. And, with 48 built-in light shows and 64 Color Macros, the Mega Par Profile Plus is a great solution for uplighting rooms and lighting up small stages.

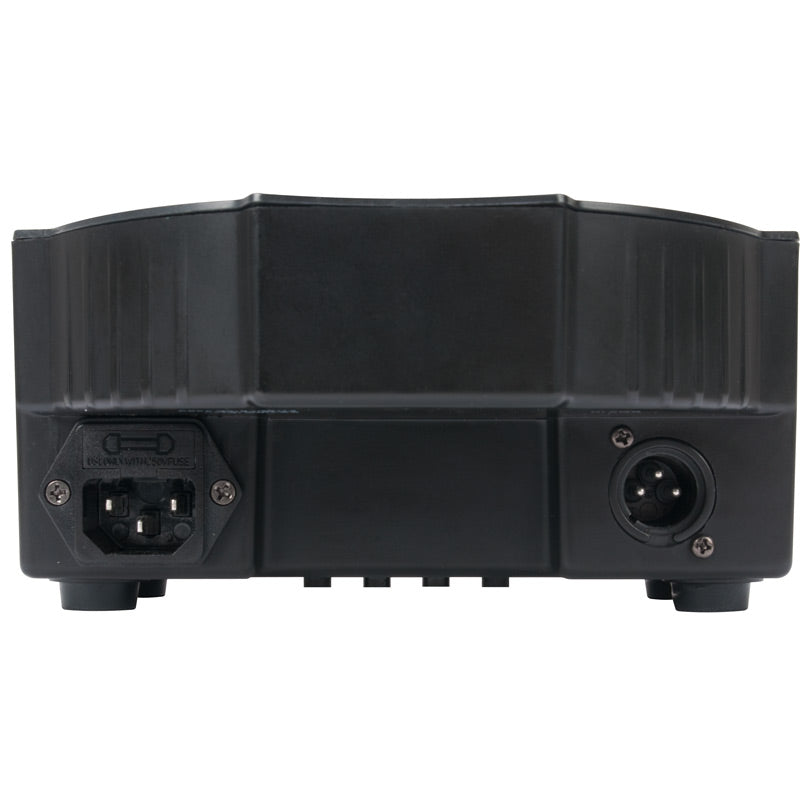

This Par is intelligently designed so that it may sit directly on the ground or inside truss without the hanging bracket because the power & DMX Ins and Outs sit on the side of the fixture, not on the rear.

The Mega Par Profile Plus has a 30-degree beam angle, 5 operational modes (including DMX Controlled, Sound Active and Auto Run), and has 5 DMX Channel modes for a variety of programming options. Users can also use the ADJ LED RC2 wireless remote, which is sold separately, to control the Mega Par Profile Plus.




Specifications

Specifications

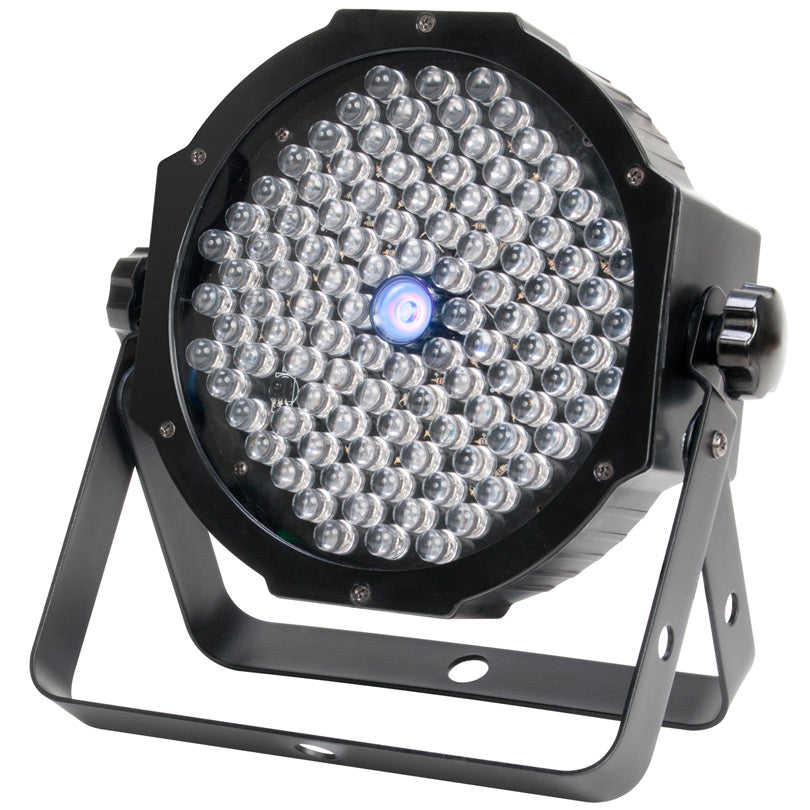

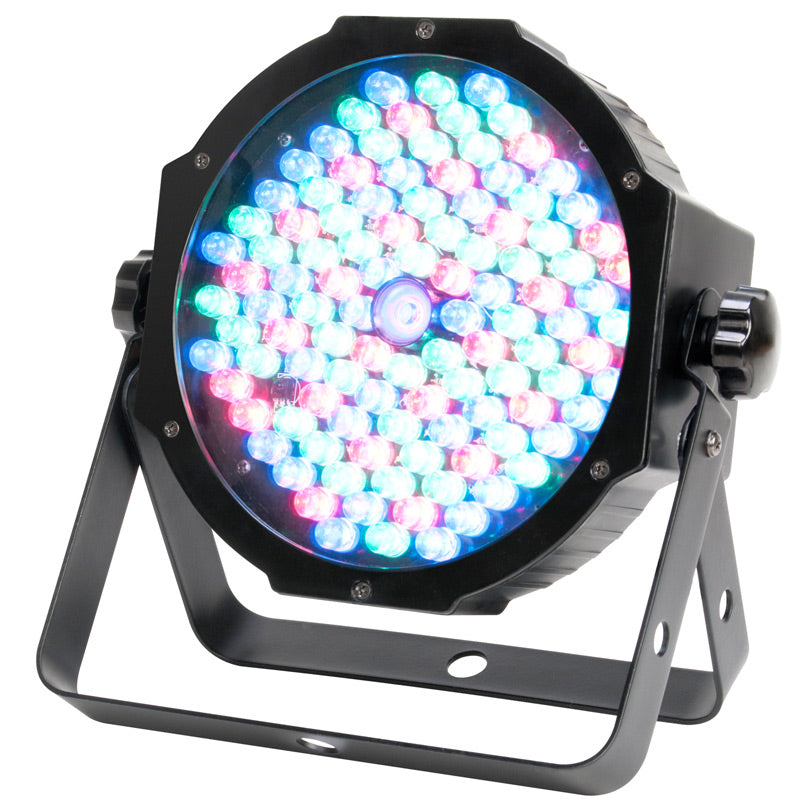

Slim flat black Par with 107x 10mm LEDs (26 Red, 45 Green, 36 Blue LEDs) + 1 3W UV LED)

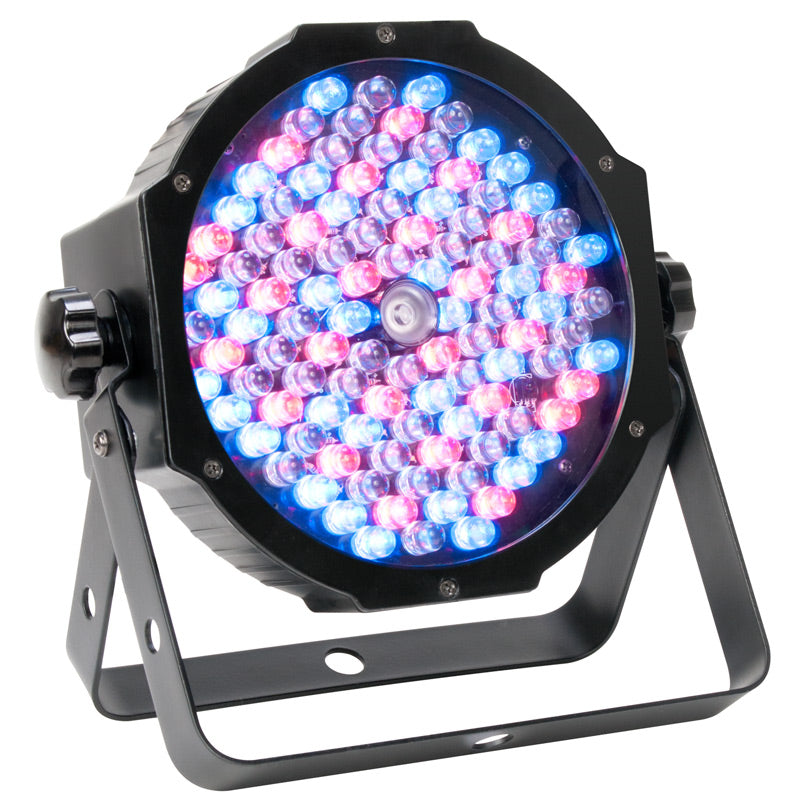

Smooth RGB+UV Color Mixing (fast or slow color change operation)

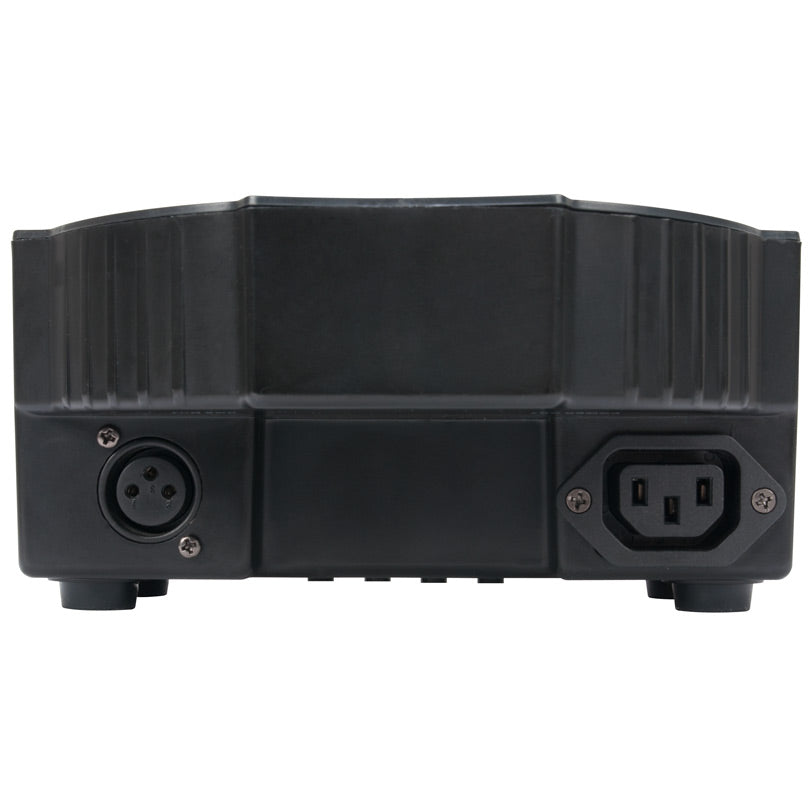

• Power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss

DMX-512 protocol

5 DMX Channel modes: 4/5/6/9/10 channels

5 Operational modes: RGB+UV Dimmer Mode, Sound Active Mode, Auto Run Mode, Static Color Mode, & DMX Controlled

Beam Angle: 30 degrees

16 Sound Active shows

32 Built-in shows (16 Color Changing Shows & 16 Color Fading Shows)

64 built-in Color Macros

Stand Alone or Master/Slave Configuration

5 Dimmer Curves (Standard, Stage, TV, Architectural, & Theatre)

Display Inversion Mode

Color strobe effect

Linkable via 3-pin XLR cable

Electronic Dimming: 0-100%

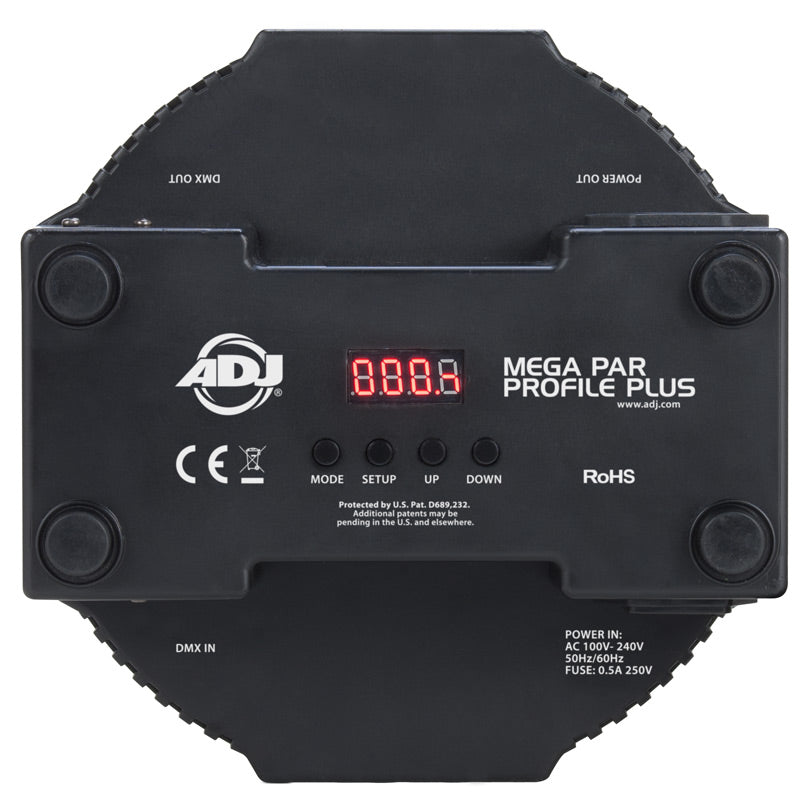

4-button function display

Includes scissor yoke to hang on truss, mount on a wall or set on the ground

Long Life LEDs (50,000 hrs.)

• Light output: 345 LUX @ 2M; 92 LUX @ 4M (30-degree beam)
Power Draw: 16W Max

IEC AC IN/OUT on rear to daisy chain power (up to 33 @ 120V and 60 @ 230V)

Compatible with ADJ LED RC2 wireless infrared remote control up to 30 ft./ 10M (sold separately)

Multi-voltage Operation: AC 100 - 240V, 50/60Hz
• Power cable length: 1.8 meter (IEC)

Dimensions (LxWxH): 9x 8.75x 3.5/ 225x220x85mm

Weight: 3 lbs./ 1.1 kg.

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Mega Par Profile Plus User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

How can i keep the spotlight to stop changing colors once i have it se to a specific color?

Set the unit to static mode. Call us at 800-322-6337 for a walk through.

Yesterday my colors were jumping all around on the platform. I wanted STEADY color....help!

Call us for a tutorial 800-322-6337.

How do I chain 4 so I can use them with the remote?

Hello Kat

You will need to get three 3 pin dmx cables to get started. Next you will go dmx out from the first light to dmx in on the seond light and then dmx out from the second light to dmx in the third light an so on. After that set the “Slave” unit(s) to the DMX address setting.The “Slave” unit(s) will now follow the “Master”. Let me know if you have any further questions. My emial is Petern@americandj.com direct# 323-213-4519

Thanks,

We have successfully hooked up 3 fixtures (Mega Par Profile Plus) to our ADJ controller (RGBW4C) and can control all fixtures from the controller. But one of the fixtures always fades when we turn down the lights via the controller. The other two fixtures go off immediately. How to we get the fading light to stop fading and cut out immediately like the others. Thanks.

Hi Kyle

Dimmer Curve: This is used to set the dimming curve used with DMX mode. See page 25 for the dimming curves chart. 1. Plug the fixture in and press the MODE button until “DMX MODE” is displayed. 2. Press the SET UP button until “dr-X” is displayed. “X” represents the displayed dimmer curve (0-4). • 0 - Standard • 1 - Stage • 2 - TV • 3 - Architectural • 4 - Theatre 3. Press the UP or DOWN buttons to scroll through and select your desired dimming curve. Also make sure your light are in the 4CH mode. Let me know if this helps you out.

Thanks,

Can the Mega Par Profile Plus be used with the NE-1 controller that will be controlled/patched through the EXR WiFly Battery DMX transciever? If so, I've had problems connecting my current set up. I also would like a light show profile sent to me.

Yes, these products are compatible with one another. Please contact support @800-322-6337 ext 592 for proper troubleshooting and to request a profile.

Can I set these up to function with a RGB 3 controller?

This product is not compatible with the RGB3C. Please check out the RGBW4C.
