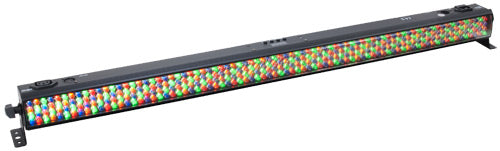

Mega Bar RGBA

SKU: MEG040 | UPC: 819730010087
The ADJ Mega Bar RGBA is a high quality, durable 42 Inch RGBA Linear Fixture designed for high quality color mixing for stage or wall washing. From ADJ get dependability with the ADJ Mega Bar RGBA with the LEDs rated at 50,000 hours of use.
Advantage Points: 250

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

The ADJ Mega Bar RGBA 42 Inch straight fixture offers high quality, durable LED lighting for your venue.

With RGBA (Red, Green, Blue, Amber) color mixing for stage or wall washing you can create awesome effects with this light bar.

The LED's in the ADJ Mega BAR RGBA are rated for 50,000 hours of performance with a max draw power of 32W.

If you want you can even “daisy-chain” the power from one unit to the next with the built-in IEC power Ins/Outs.

The Mega Bar RGBA may also be utilized by purchasing an optional ADJ RFC wireless remote. This helps you to control what normally a DMX controller or adjustments made by hand on the rear panel woudl do. Use the wireless remote to control features like: Black Out, built-in programs, flash, DMX addressing and RGB color change.

User may also control this fixture with a DMX Controller or in Sound Active mode.

The Mega Bar RGBA 42 Inch Straight LED Bar light provides a high quality and durable solution to your lighting needs.

Specifications

Specifications

  •  1-Meter (42-inch) indoor Linear Fixture with 320, 10mm RGBA LEDs (64 Red, 96 Green, 96 Blue & 64 Amber)
  •  7 DMX Channel modes: 4, 6, 7, 9, 10, 18 or 34 channel modes
  •  6 Operational modes: Manual Color Mode; Static Color Change Mode; Auto (Program Run) Mode; Sound Active Mode; RGBA Manual Control Mode and DMX-512 Mode
  •  Variable RGBA color mixing offers a seemingly unlimited color palette - Great for Stage or Wall Washing!
  •  48 built-in Color Macros
  •  LED pulse & strobe effect
  •  DMX-512 Protocol
  •  Flicker Free
  •  Refresh Rate: 410Hz
  •  Electronic Dimming: 0 - 100%
  •  Beam angle: 30-degree
  •  Linkable via 3-pin XLR cable

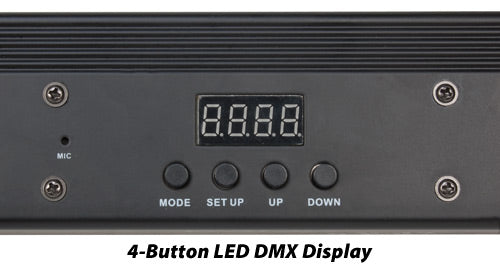

  •  4-button LED display on rear panel
  •  IEC AC outlet on rear to daisy chain power (up to 20 units)
  •  Compatible with ADJ RFC wireless remote control (sold separately)
  •  Includes mounting brackets to mount on a wall or set on the ground

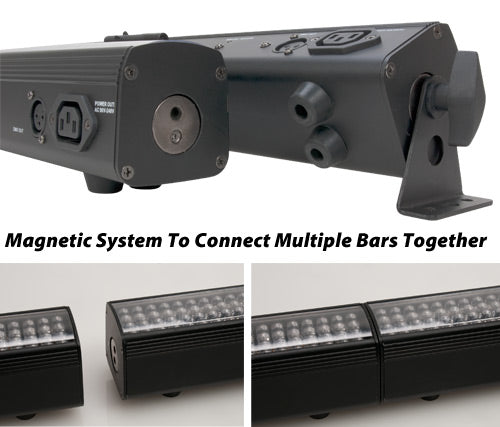

  •  Magnet system on end-caps to connect multiple bars together
  •  Long life LED (Rated at 50,000 hrs.)
  •  Light output: 650 LUX @ 2M; 275 LUX @ 4M (30-degree beam)
  •  Low power consumption
  •  Very low heat output
  •  Run all night – No duty cycle
  •  Multi-voltage: 100-240V, 50/60Hz
  • Power cable length: 1.8 meter (IEC)
  •  Power Draw: 32W max
  •  Dimensions (LxWxH): 41.75” x 3” x 5.75” / 1060 x 73 x 145mm
  •  Weight: 6 lbs. / 2.7 kg.

OPTIONAL ACCESSORIES:

Mounting Clamps Click here
Controllers Click here

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Mega Bar RGBA User Manual Download
Mega Bar RGBA User Manual Download
Mega Bar RGBA Cut Sheet Download
Mega Bar RGBA Photometrics Download
Mega Bar RGBA Dimensional Drawing Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

What are the lumens for this piece of equipment at 2 m? or do you have a value at some distance? Thanks,

650LUX at 2 Meters.

hello. i have 6 of these units in total and two of them seem to have lost the mounting brackets. where can i purchase replacement brackets? thanks in advance.

Please contact service@americandj.com. They will be happy to assist you.

can the mega bar rgba be mounted in an enclosure, either at the floor level or in a soffit

Hello Bill,

Thank you for reaching out to us. Since the bar doesn’t have a fan and is basically conventional cooling it’s not recommended. The Mega Bar RGBA shouldn’t be enclosed. let me know if you have any further questions.

Thanks,
