SKU: MEG551 | UPC: 819730016935

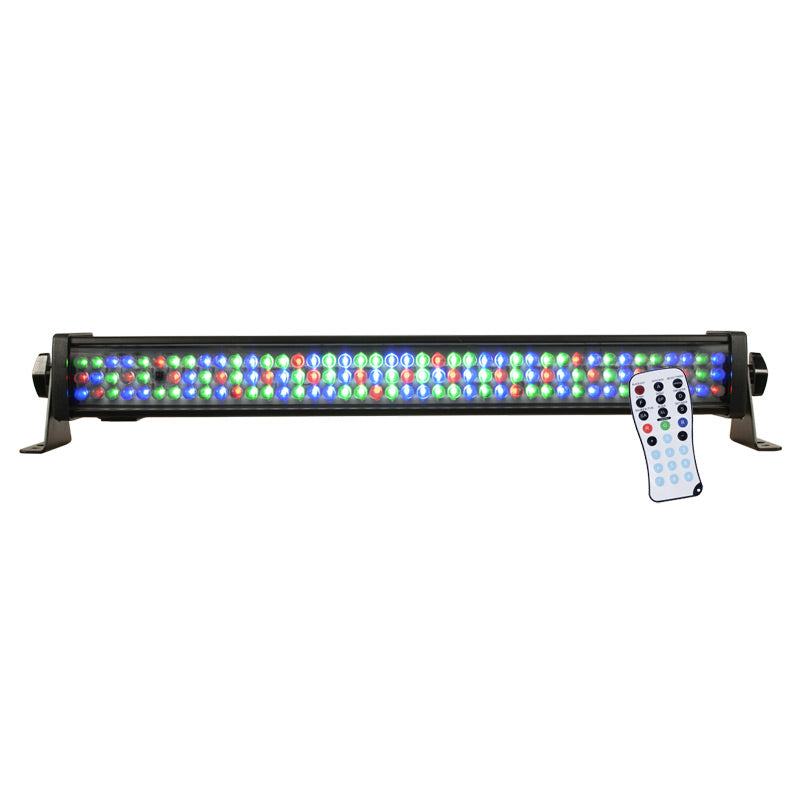

The Mega Bar 50RGB RC is a high quality high feature Professional Lighting bar from American DJ. With RGB color mixing this 22 inch Light bar gives any venue great lighting. "Daisy Chain" units and control them remotely with the Mega Bar 50RGB RC by American DJ.
Advantage Points: 150

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description


The Mega Bar 50RGB RC brought to you by American DJ has many great features.

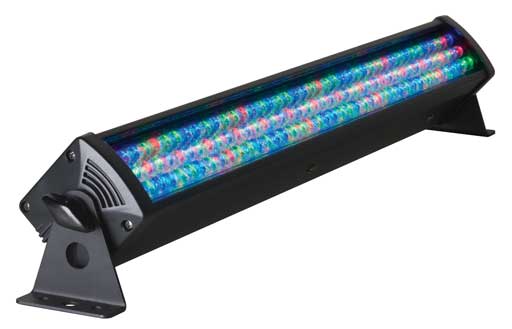

This compact 22 inch LED Light Bar is perfect for any indoor venue that wants RGB color mixing for their stage or wall washing.

With the included wireless remote the Mega Bar 50 RGB from ADJ allows you a high level of control over this Lighting unit. Use the wireless remote to control features such as: Black Out, other built in programs, flash, DMX addressing and RGB color changes.

The LEDs in this American DJ Mega Bar 50RGB Unit are rated for 100,000 hours with a max power draw of 18w.

Along with the ability to "Daisy chain" power from one unit to the next with the built in IEC power Ins/Outs you get 7 operational modes including: Manual Color Mode; Color Change Mode; Color Fade Mode; Auto (Program Run) Mode; Sound Active Mode; RGB Manual Control Mode and DMX-512 Mode.

Never worry again about your lighting bar setup with the American DJ Mega Bar 50RGB 22 Inch Led Light bar.



  •   1.5 foot/.5 meter ultra bright, indoor LED Color Bar with 125, 10mm LEDs (24 Red, 54 Green, & 47 Blue LEDs)

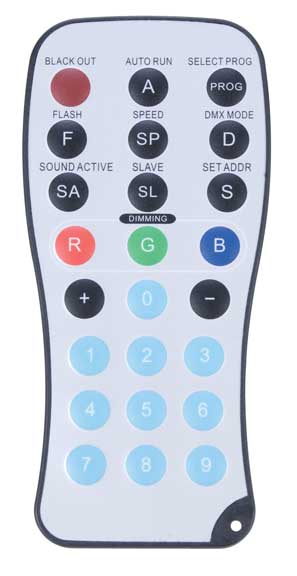

  •  Includes wireless infrared remote control up to 30 ft./10M (Model: ADJ LED RC)
  •  7 DMX Channel modes: 1, 2, 3, 4, 5, 6 & 7 channel modes
  •  7 Operational modes: Manual Color Mode; Color Change Mode; Color Fade Mode; Auto (Program Run) Mode; Sound Active Mode; RGB Manual Control Mode and DMX-512 Mode

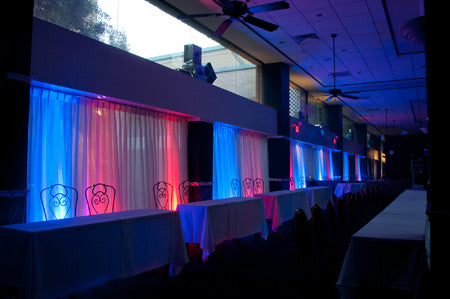

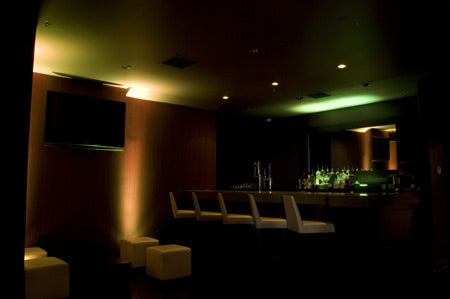

  •  Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
  •  Smooth RGB color mixing (fast or slow color change operation)
  •  32 built-in Color Macros
  •  Color strobe effect
  •  DMX-512 Protocol
  •  Electronic Dimming: 0 - 100%
  •  Beam angle: 40-degree
  •  Linkable via 3-pin XLR cable
  •  With Wired Digital Communication Network
  •  4-button LED display on rear panel
  •  IEC AC in & out on rear to daisy chain power. IEC power link cables sold separately.
  •  Includes mounting brackets
  •  Long life LED (Rated at 50,000 hrs.)
  •  Light output: 357 LUX @ 2M; 90 LUX @ 4M (40-degree beam)
  •  Low power consumption
  •  Very low heat output
  •  Run all night – No duty cycle
  •  Refresh Rate: 410Hz
  •  Multi-voltage: 90-240V, 50/60Hz
  • Power cable length: 1.8 meter (IEC)
  • Power Draw: 18W max
  •  Dimensions (LxWxH): 22” x 2.5” x 4” / 560x63x102mm
  •  Weight: 3 lbs. / 1.5 kg.
  •  ETL approved (see user manual for more info)


Mounting Clamps Click here
Controllers Click here





The following downloads are available for this product:

Title Description
Mega Bar 50RGB RC User Manual User Manual Download
MEGA Bar 50 RGB RC Cut Sheet Cut Sheet Download
Mega Bar 50RGB RC User Manual (Rev. 6/11) User Manual Download


Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

i have just bought mydmx buddy and I'm trying to dmx the adj mega bar 50rgb rc. im having no luck doing this, can i pay to get multiple scenes created?

e-mail supprt with the profiles needed and allow 24 hours for them to provide them. Somtimes they have them on the fly.

how do you switch off the IR on slave unit please


This function is used to activate and deactivate the ADJ LED RC (Remote Control).

Plug the fixture in and press the Mode button till "IR.XX" is displayed. "XX" represents either on or off.

Press the UP or DOWN Buttons to either activate the remote function(ON) or deactivate(OFF)

This is in the owners manual, on Page 10.

Ddoes the Mega bar 50rgb RC remember the channel and mode it is set to if disconnected from power. In other words does it have to be set every time the lights are used/powered.

Yes, it will remember the last setting.And should not have to be reset.

What is the strobe rate?

The strobe rate ia not listed as this is primarily a Color bar and strobing is just one of the aditional features. It is not primarily a strobe.

What is Lux output at 100%?

Lux output is based on distance throw. For instance at about 6 feet it will give you 357 Lux of output at 100%.

I am using an ADJ Duo Station. I use the led out to control my 2 mega "par" profiles. Can I add this Mega Bar 50 with this set up. I want to control all 3 rgb units and have the same colts on all. Using a daisy chain. Thx

Hello George,

Thank you for reaching ou to us. Yes, you can use your mega par profiles and mega bar 50 with the duo station. Just make sure to set all your fixtures in the same dmx addressl and also make sure that they are in the three channel mode. Let me know if you hane any further questions.
