MCTRL660PRO

UPC#: 818651028126
Advantage Points: 1250
Redemption Points: 25000
SKU
MCT771
The MCTRL660 PRO is a professional controller developed by NovaStar. A single MCTRL660 PRO has a loading capacity of up to 1920×1200@60Hz. It supports custom resolutions with the width up to 3840 pixels and height up to 2560 pixels, which meets configuration requirement of ultra-large screens.

Where to Buy

Enter your zip code below to find this product at a retailer near you!

  • Input of ultra-high color depths: 10-bit/12-bit RGB 4:4:4/YCbCr 4:4:4, with input resolutions up to 1920×1080@60Hz
  • Low latency: Less than 1 ms (when the start position of image is 0.) Auto LED screen configuration
  • Web control
  • Image mirroring
  • Dual working modes: working as sending card and fiber converter Pixel level brightness and chroma calibration
  • Supports individual Gamma adjustment for RGB when the color depth of input source is 10-bit or 12-bit.
  • Monitoring of inputs
  • One-click backup and recovery
  • Multiple MCTRL660 PRO units can be cascaded.

Videos

There are currently no videos available for this product.

Downloads

The following downloads are available for this product:

Title Description
MCTRL-660 PRO V1.3 USER MANUAL MCTRL-660 PRO V1.3 USER MANUAL Download
MCTRL660 PRO QUICK START GUIDE MCTRL660 PRO QUICK START GUIDE Download

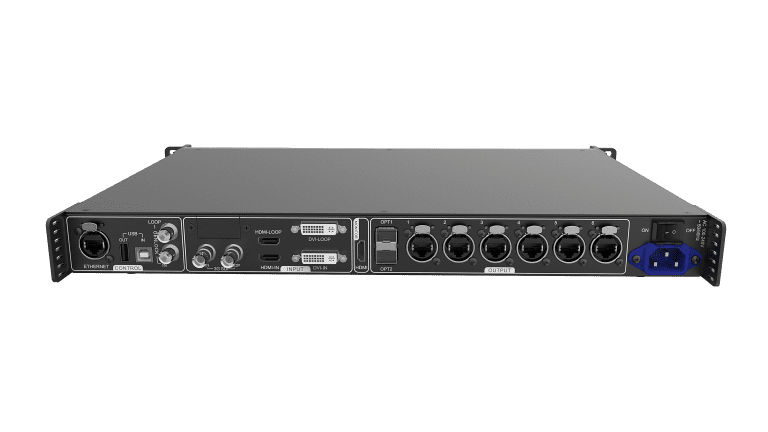

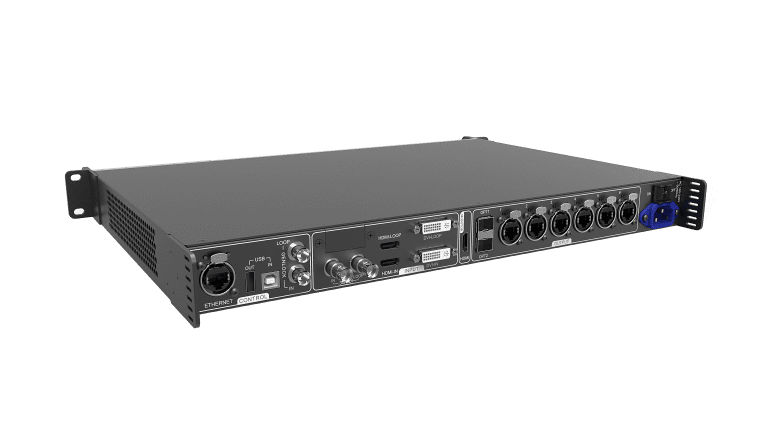

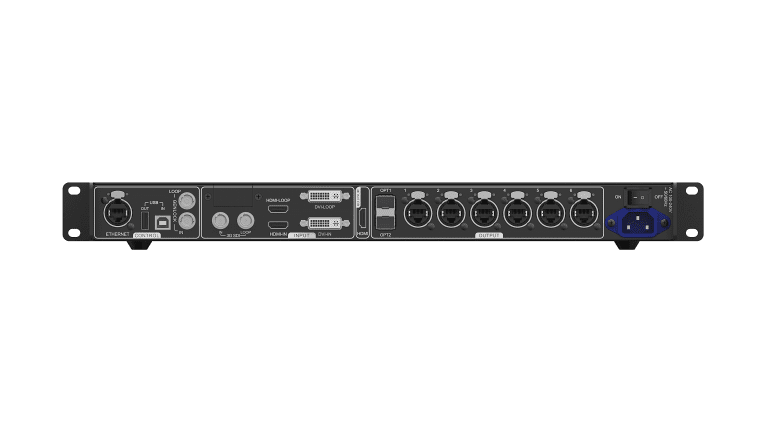

The MCTRL660 PRO has a variety of video connectors:
  • Input connectors: 1 × 3G-SDI, 1 × HDMI 1.4a, 1 × single-link DVI
  • Output connectors: 6 × Gigabit Ethernet port, 2 × 10G optical port
  • Loop output connectors: 1 × 3G-SDI LOOP, 1 × HDMI 1.4a LOOP, 1 × DVI LOOP
The MCTRL660 PRO has many industry-leading advanced technologies:
  • Input of ultra-high color depths: 10-bit/12-bit RGB 4:4:4/YCbCr 4:4:4, with input resolutions up to 1920×1080@60Hz, increasing color expression capabilities by 4096 times compared to 8-bit inputs, and presenting images with rich and delicate colors, smoother transitions, as well as clearer details
  • Supports individual Gamma adjustment for RGB when the color depth of input source is 10-bit or 12-bit, which effectively controls image non-uniformity under low grayscale and white balance offset to improve image quality.
  • Low latency: Less than 1 ms (when the start position of image is 0.)
  • Dual working modes: working as sending card and fiber converter
  • One-click backup and recovery, quickly recovering previous screen configurations to deal with sudden on-site failure
  • Image mirroring, allowing for more cool and dazzling stage effects
  • Auto LED screen configuration
  • Web control
  • Pixel level brightness and chroma calibration
  • Monitoring of inputs
  • Multiple MCTRL660 PRO units can be cascaded.
The MCTRL660 PRO is mainly used for the rental and fixed fields, such as concerts, live events, security monitoring centers, Olympic Games and various sports centers.
