Specifications
CONTROL / CONNECTIONS:
(6) General Purpose Buttons
(1) Master and (8) Control 100mm Faders
(16) Page Playback Buttons Above Faders
(8) Rotary Dials with Push-In Selection Above Faders
(1) Blackout Button
(32) Instant Effect or Scene Calling Buttons
(8) Bump / Momentary Effect Buttons
(4) Rotary Encoder Wheels with Push-In Selection
USB 2.0 Type “B” Port
(4) 5-pin DMX output ports
ADDITIONAL FEATURES:
WiFi and DMX512

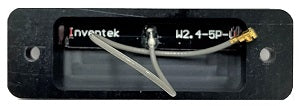

2.4 and 5Ghz GHz DSSS Wifi Network
4, Hardwired, DMX Universes

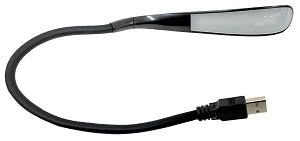

USB Input for Gooseneck Work Light
Removable Outer Case for 6U Rack Mounting
Kensington™ Security Device Slot
SIZE / WEIGHT:
Length: 20.3” (514mm)
Width: 13.2” (336mm)
Vertical Height: 3.5” (88mm)
Weight: 13.0 LBS. (5.9 kg)
INCLUDED ITEMS:
USB Cable
Mult-voltage DC9V Power Supply (100-240V, 50/60Hz)
4 Power Adapters: Type A (US), Type C (Europe), Type G (UK), Type I (Australia, China)
Rack Mount Kit
COMPATIBILITY:
iPad only
Requires iPadOS 14.5 or later
APPROVALS:
FCC | CE | UKCA | cETLus (#5014475)
Specifications and documentation subject to change without notice.
