Jolt Bar FX
UPC#: 810087370220
Advantage Points: 770
Redemption Points: 15400
SKU
JOL250

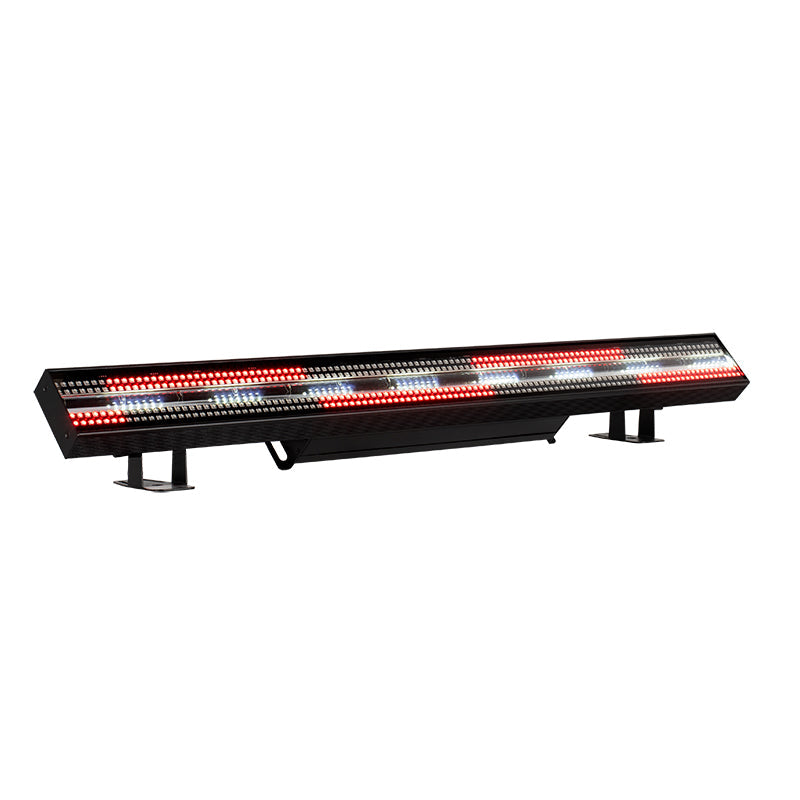

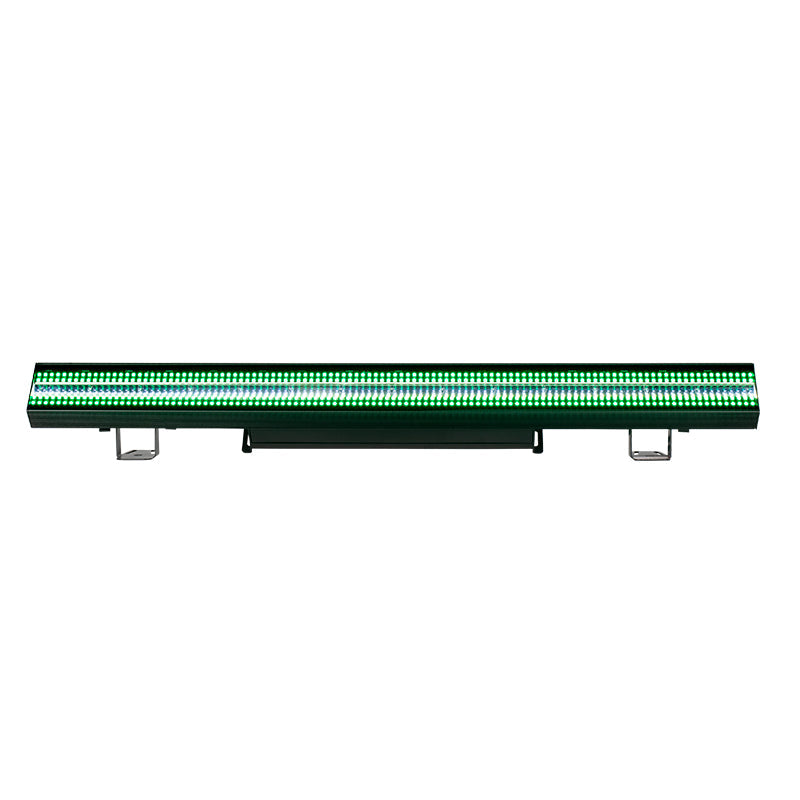

The ADJ Jolt Bar FX is a professional linear LED fixture that delivers lighting designers huge output as well as the creative potential of brilliant bright white strobe/blinder LEDs combined with multi-colored chase effects in one versatile unit. Ideal for concert productions, festival stages and rental houses, as well as for permanent installation in large nightclubs, the Jolt Bar FX is a flexible fixture that can be used to create a wide variety of effects.
Light Source:
• 448 x 0.3W RGB SMD LEDs + 112 x 5W Cool White SMD LEDs
• 116 Degree Beam Angle
• Color Temperature: Red: 620-630nm. Green: 515-525nm. Blue: 460-470nm. / Cool White: 5000-6500K
• 50,000 Hour Average LED Life
Features:
• 32 x RGB LED zones
• 16 x Cool White LED zones
• 25 built-in RGB LED Program Macros
• 9 built-in Cool White LED Program Macros
Control:
• Control Protocol: DMX
• 13 DMX Modes: 6, 9, 13, 16, 18, 32, 32A 38, 43, 64,78, 112 and 126 channels
• Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• Dim Curves: 4 Presets (Linear, Square Law, Inv Square Law and S Curve)
• 0-100% Smooth Dimming
• Strobe, shutter & pulse control
• Max Strobe Rate 25Hz. Min Strobe Rate: 0.35Hz.
• With Wired Digital Communication Network
• Display: OLED display with 4-button touch menu
Connections:
• Data: 5-pin DMX In/Out
• 180 degree mounting bracket system
• Power locking power in/out

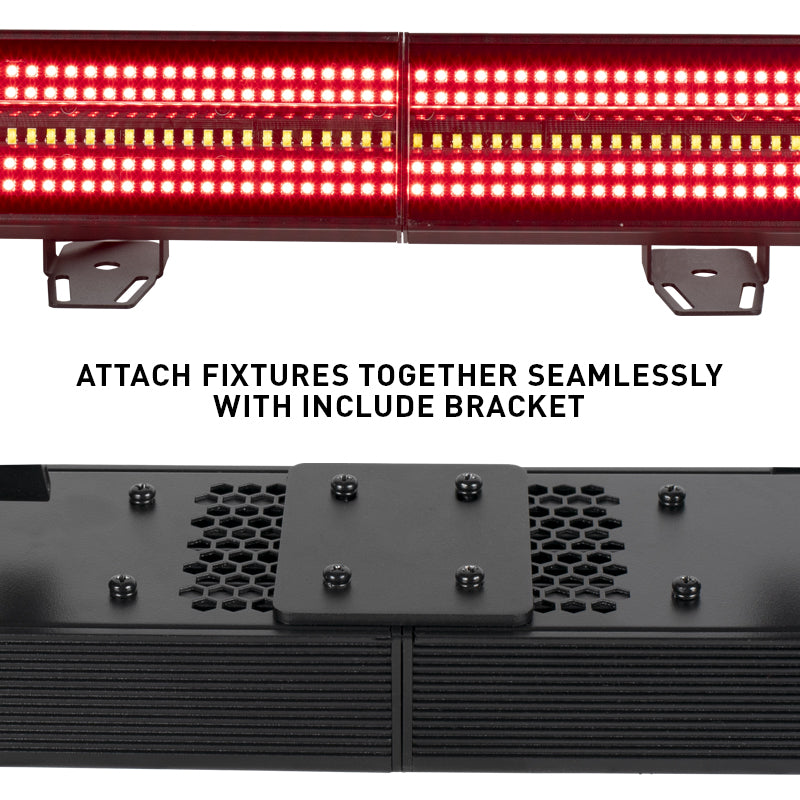

• Connect fixtures seamlessly using included metal bracket attachment
Electrical:
• 100-240V 50Hz/60Hz (Auto Sensing)
• Max Power Consumption: 430W
Dimensions / Weight:
• Length: 39.4” (1000mm)
• Width: 4.2” (107mm)
• Height: 4.8” (123mm)
• Weight: 16.5 lbs. (7.5kg)
What’s Included:
• 1x power locking to Edison power cable (U.S.)
Approvals:
• cETLus approved (Control # 4000358)
Videos
Downloads
The following downloads are available for this product:
| Title | Description | |
|---|---|---|
| Jolt FX Bar Cut Sheet | 2.6MB PDF File (Revised February 2022) | Download |
| Jolt Bar FX - 2D Cad | Jolt Bar FX - 2D Cad | Download |
| Jolt Bar FX - User Manual | User Manual | Download |
| Jolt Bar FX - DMX Traits | DMX Traits | Download |
| Jolt Bar FX - Photometric Report | Jolt Bar FX - Photometric Report (Zip File) | Download |
| Jolt Bar FX - Dimensional Drawing | Jolt Bar FX - Dimensional Drawing | Download |
| Jolt Bar FX - 3D Cad | Jolt Bar FX - 3D Cad | Download |
| Jolt Bar FX - Vectorworks Symbol Ver.2023 | Jolt Bar FX Vectorworks Symbol | Download |
AVAILABLE NOW FROM ADJ USA

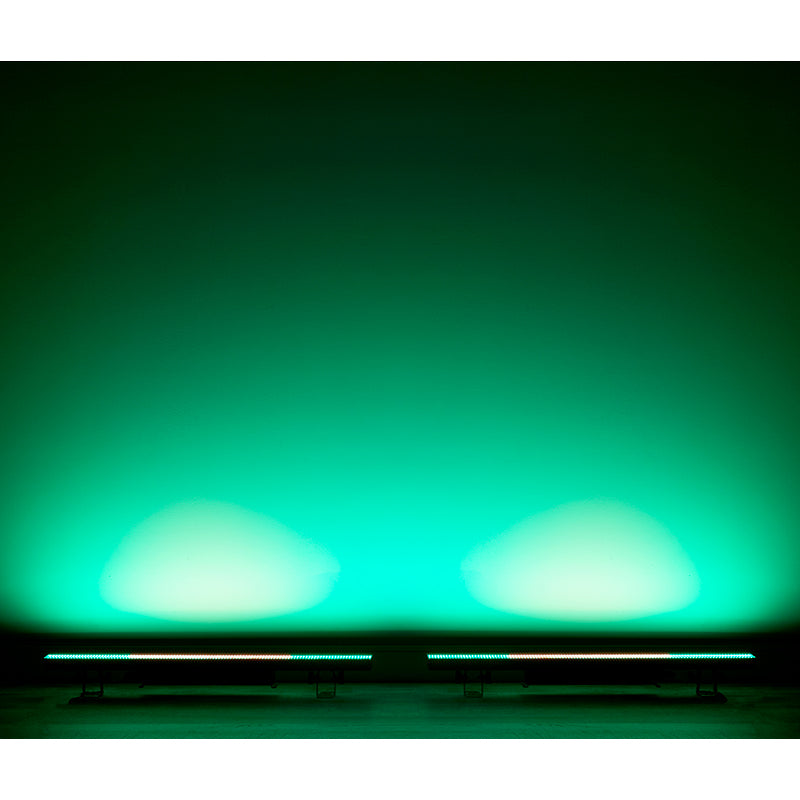

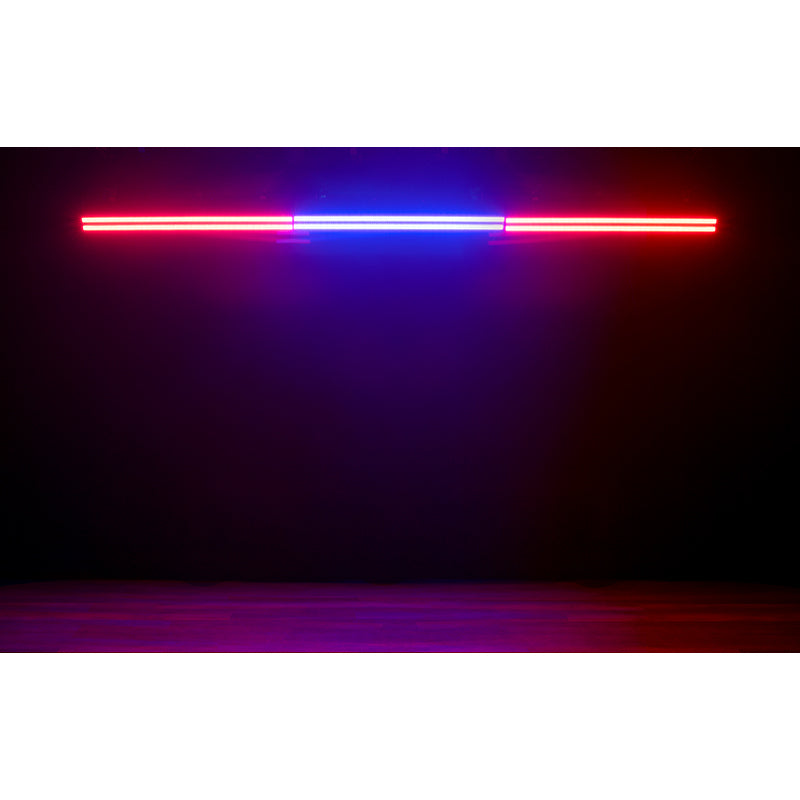

With a wide 116-degree beam angle and immense light output, the Jolt Bar FX is ideally suited to large concert and festival stages, as well as dance events and big nightclub installations. It is supplied with a pair of versatile 180-degree hanging brackets, which can also be used as floor stands, and is designed such that multiple units can be positioned side by side to create continuous zone chase effects. For strobe effects, the unit offers variable speed between 0.35Hz and 25Hz and its LED refresh rate can also be adjusted between 900 and 25kHz.

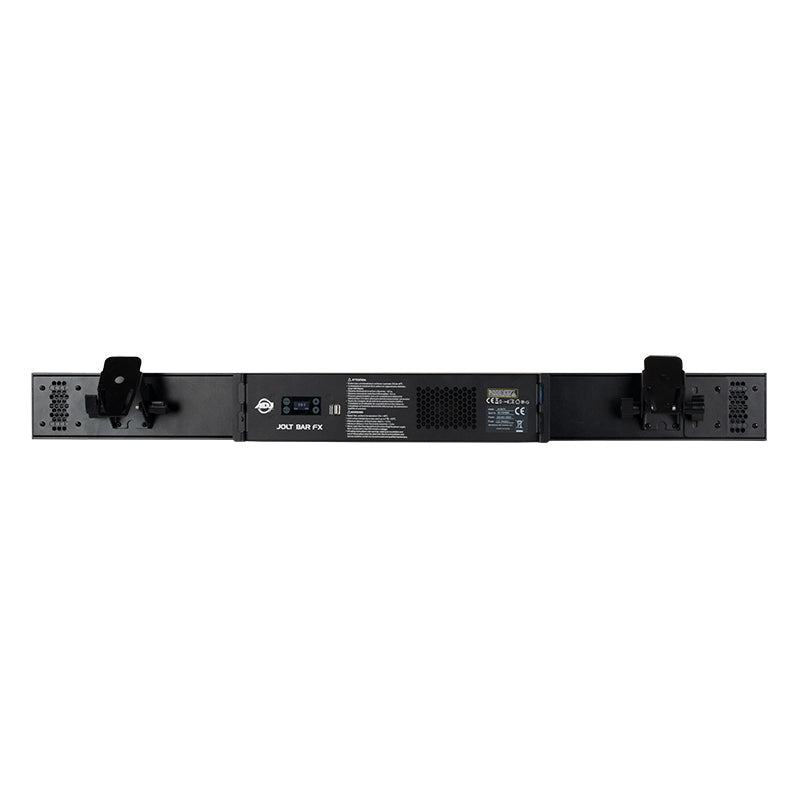

The fixture offers a choice of 11 different DMX modes (6, 9, 13, 16, 18, 32, 38, 42, 64, 112 and 126 channels), allowing flexibility depending on the level of control required and the number of channels available. To aid with quick and eye-catching programming, the unit is also supplied with 25 built-in RGB LED program macros and 9 built-in white LED program macros. An intuitive 4 touch button LCD menu display on the rear of the unit facilitates easy DMX addressing as well as configuration of the various operating modes.

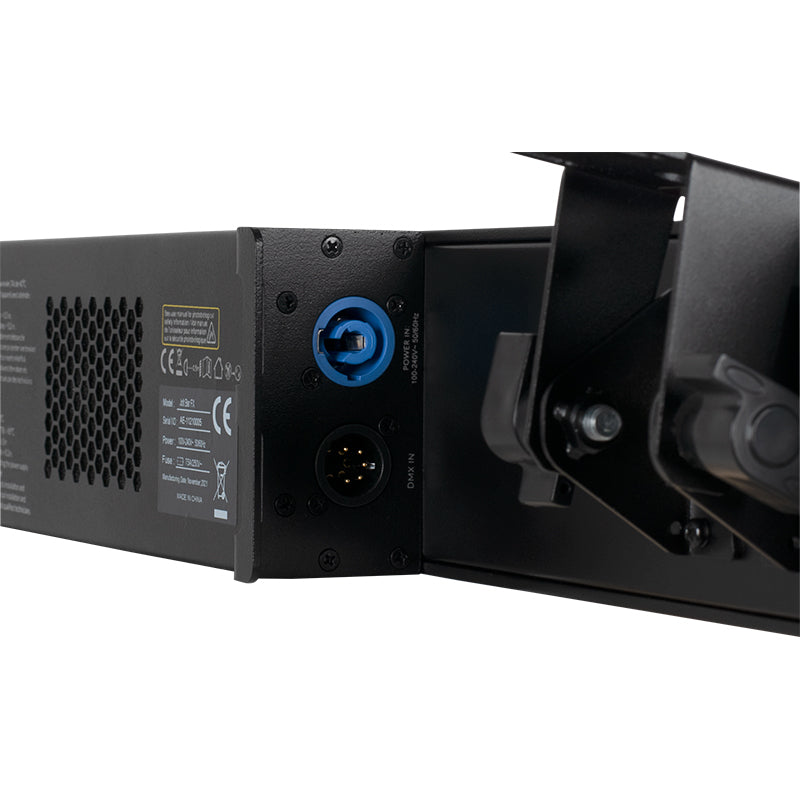

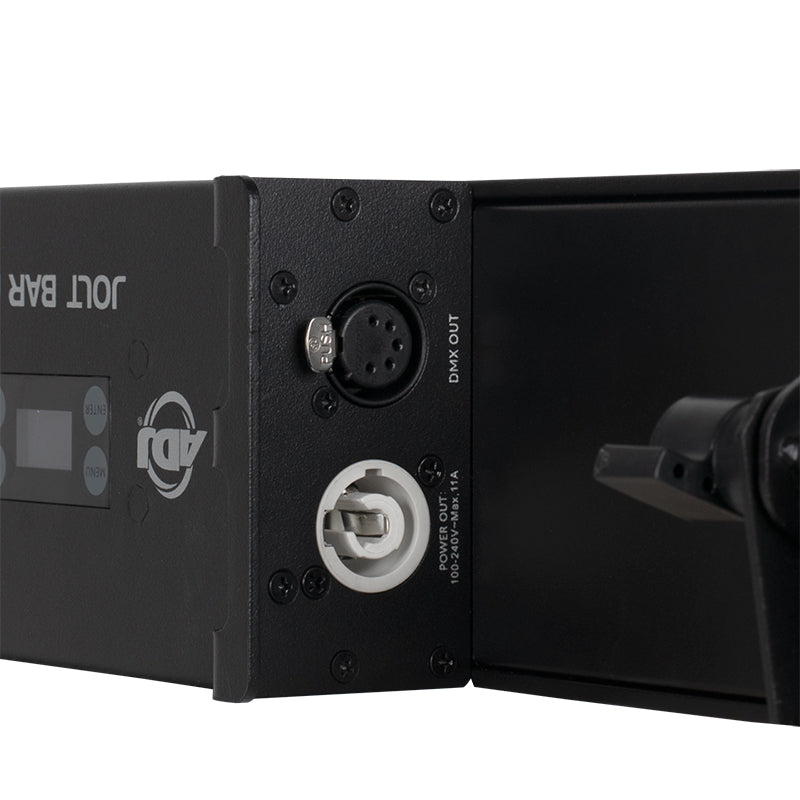

Measuring 1m in length (39.4”), the fixture is compact in its other dimensions (4.2”/107mm and 4.8”/123mm). It has a robust metal construction yet has been carefully engineered to keep its weight to a minimum (16.5lbs. / 7.5kg.), making it ideal for concert touring and event production applications. It is fitted with locking power input and output sockets, allowing multiple fixtures to be connected from a single power outlet, which are positioned on either side of the fixture – together with the 5-pin DMX input and output sockets – to allow convenient setup and neat cable runs.
