Inno Pocket Scan

SKU: INN762 | UPC: 819730013743
With it’s compact size and light weight, the ADJ Inno Pocket Scan is an ideal lighting effect for any mobile entertainer, that features a bright 12-Watt LED engine and 12 exciting built-in light shows in a very compact, mobile case. This pocket sized, flat mirrored Scanner has a 14-degrees beam angle that projects 8 fixed GOBO/Color patterns (plus spot/white) from a single wheel. Compatible with the ADJ Airstream IR App.
Advantage Points: 200

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

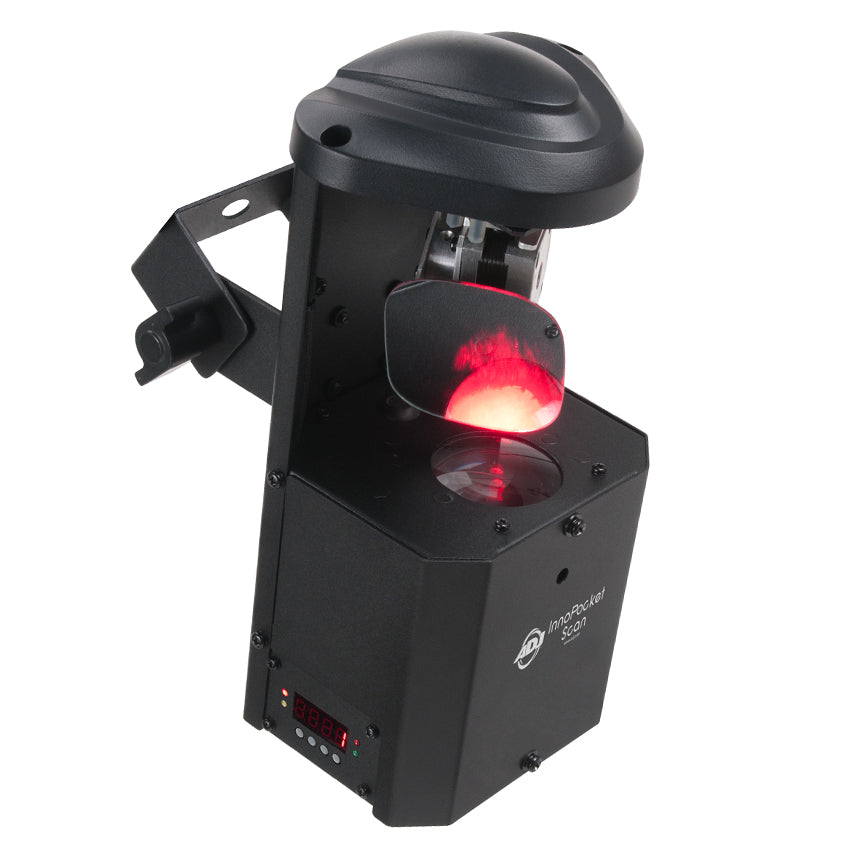

It’s time for a Scanner revolution! With it’s compact size and light weight, the ADJ Inno Pocket Scan is an ideal lighting effect for any mobile entertainer, small nightclub, bar or lounge and for Bowling and entertainment centers. This fixture features a bright 12-Watt LED engine and 12 exciting built-in light shows in a very compact, mobile case.

 This pocket sized, flat mirrored Scanner has a 14-degrees beam angle that projects 8 fixed GOBO/Color patterns (plus spot/white) from a single wheel. The Inno Pocket Spot is built with high quality, precision stepper motors for speed and accuracy.

 The fast mirror speed means that the Inno Pocket Scan is great for high energy music, and provides a great compliment to Moving Head effects for pure lighting excitement.

Specifications

Specifications

  • 12-Watt LED DMX Flat Mirrored Scanner
  • Single GOBO/Color wheel: 8 fixed GOBO/Colors + spot/white
  • 3 Operational modes: DMX, Sound Active & Internal Show control modes
  • 6 DMX channels
  • 12 Built-in shows
  • Gobo Shake effect
  • Gobo scroll mode
  • Beam Angle: 14-degrees
  • X/Y mirror movement
  • Stepper motors with micro stepping
  • 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
  • Shutter: Pulse effect; random strobe slow to fast
  • Dimming: 0% - 100%
  • Display Inversion Mode

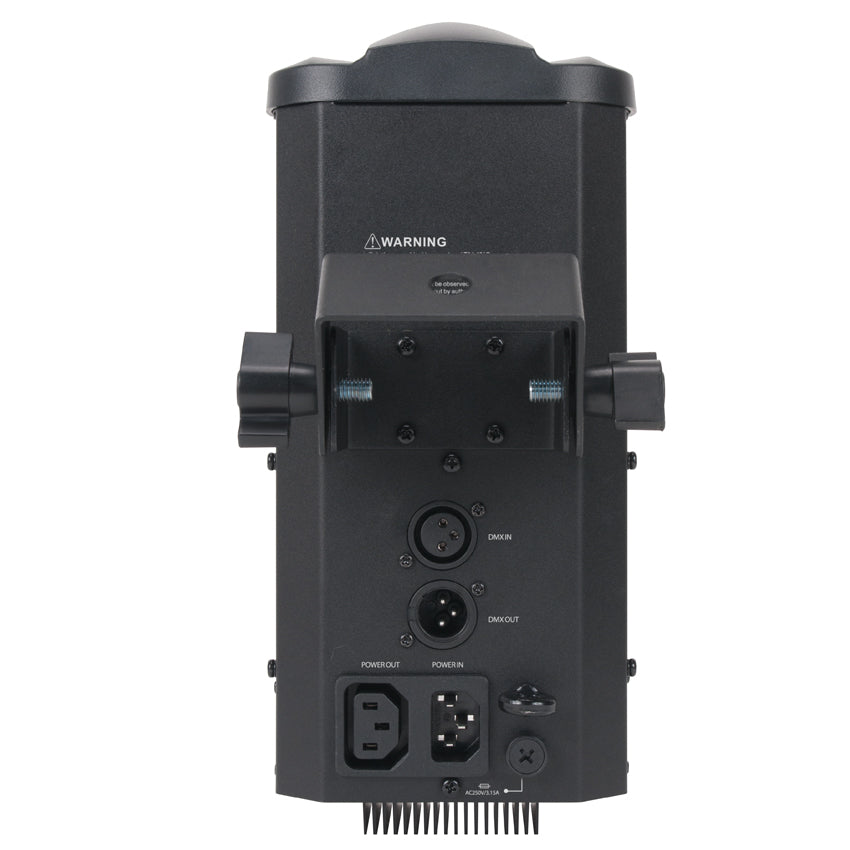

  • IEC AC IN/OUT on rear to daisy chain power (up to 21 Inno Pocket Scan’s @ 120V and 37 Inno Pocket Scan’s @ 230V )
  • Hanging Yoke + safety hook included
  • Optional IR wireless remote control: Full On, Stand by, Strobe, Color Change, Dimming, Sound Active On/Off (ADJ UC IR Not Included)
  • Compatible with the ADJ Airstream IR App
  • Power consumption: 33W (Full-On)
  • Light output: 3,110 LUX @ 2M; 860 LUX @ 4M (13-degree beam)
  • Multi-voltage Operation: AC 100 - 240V, 50/60Hz
  • Power cable length: 1.5 meter (IEC)
  • LED Source: 12W White LED source (Rated at approximately 50,000 hrs)
  • Dimensions (LxWxH): 11.5” x 5.25” x 6.5” / 294 x 132 x 160mm
  • Weight: 6 lbs. / 2.4 kgs.

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Inno Pocket Scan User Manual Download
Inno Pocket Scan Photometrics Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

Can a user replace/change the GOBOs on one of these units? If so, how, and what size GOBOs does this fixture use?

The Gobo's in this fixture are not replaceable.

Do you have replacement mirrors that I could buy, just in case, & what price are they each?

This is a direct link for the parts we offer for the Inno Pocket Scan including the replacement miirror.  http://parts.adj.com/ProductsList.aspx?ProductLine=0015&ProductDesc=INN762
