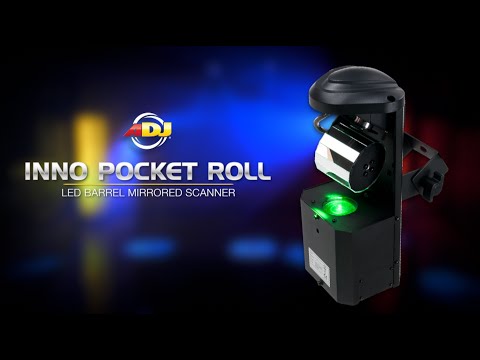

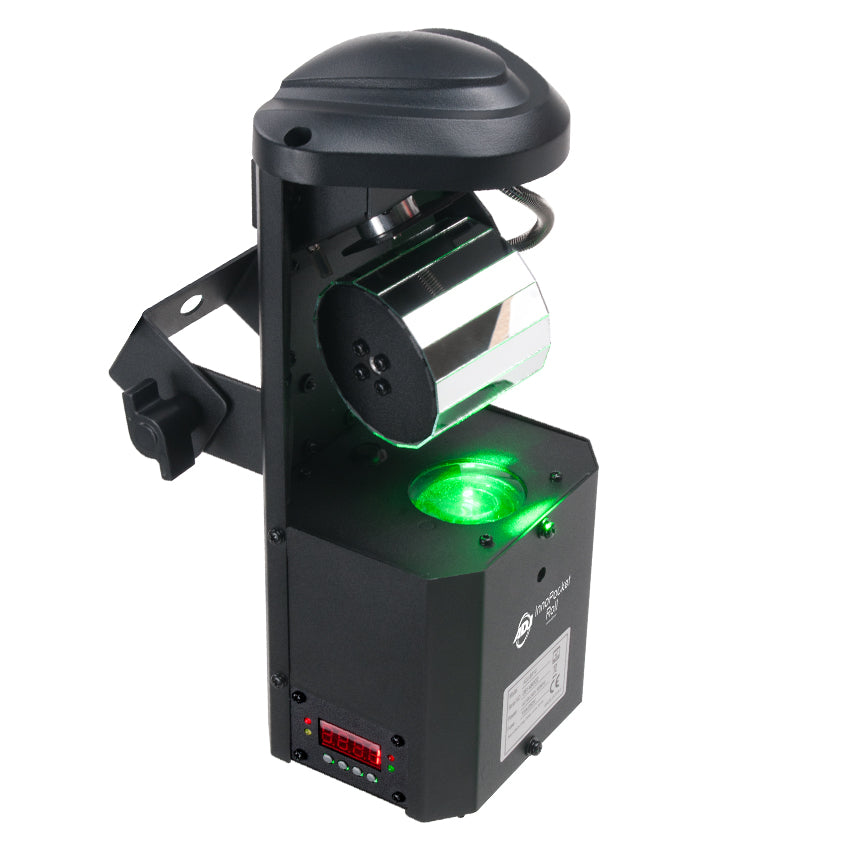

Inno Pocket Roll

SKU: INN637 | UPC: 819730013750
The ADJ Inno Pocket Roll is an ideal lighting effect for any mobile entertainer, small nightclub, bar or lounge and for Bowling and entertainment centers. The Inno Pocket Roll is built with high quality, precision stepper motors for speed and accuracy, which means that the Inno Pocket Roll is great for high energy music, plus the Barrel Mirror produces multiple beams that shoot around a room for a unique effect. Compatible with the Airstream IR App.
Advantage Points: 200

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

It’s time for a Scanner Revolution! With it’s compact size and light weight, the ADJ Inno Pocket Roll is an ideal lighting effect for any mobile entertainer, small nightclub, bar or lounge and for Bowling and entertainment centers. This fixture features a bright 12-Watt LED engine and 12 exciting built-in light shows, in a very compact, mobile case.

 This pocket sized, Barrel Mirrored Scanner has a 14-degrees beam angle that projects 8 fixed GOBO/Color patterns (plus spot/white) from a single wheel. The Inno Pocket Roll is built with high quality, precision stepper motors for speed and accuracy.

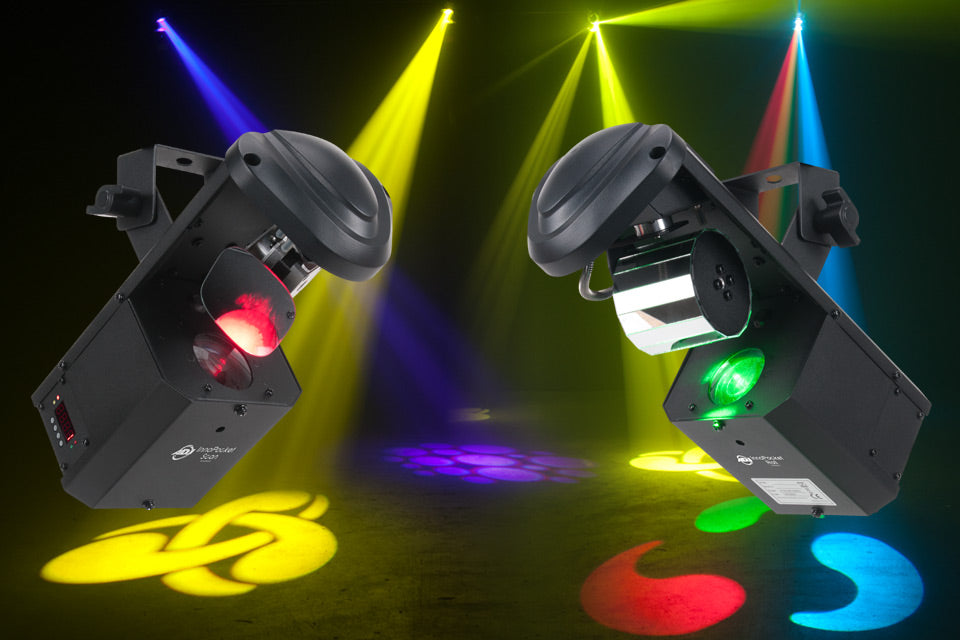

 The fast mirror speed means that the Inno Pocket Roll is great for high energy music, plus the Barrel Mirror produces multiple beams that shoot around a room for a unique effect. This fixtures provides a great compliment to Moving Head effects for pure lighting excitement.


Specifications

Specifications

  • 12-Watt LED DMX Barrel Mirrored Scanner

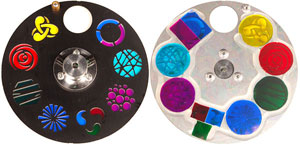

  • Single GOBO/Color wheel: 8 fixed GOBO/Colors + spot/white
  • 3 Operational modes: DMX, Sound Active & Internal Show control modes
  • 6 DMX channels
  • 12 Built-in shows
  • Gobo Shake effect
  • Gobo scroll mode
  • Beam Angle: 14-degrees
  • X/Y mirror movement
  • Stepper motors with micro stepping
  • 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
  • Shutter: Pulse effect; random strobe slow to fast
  • Dimming: 0% - 100%
  • Display Inversion Mode

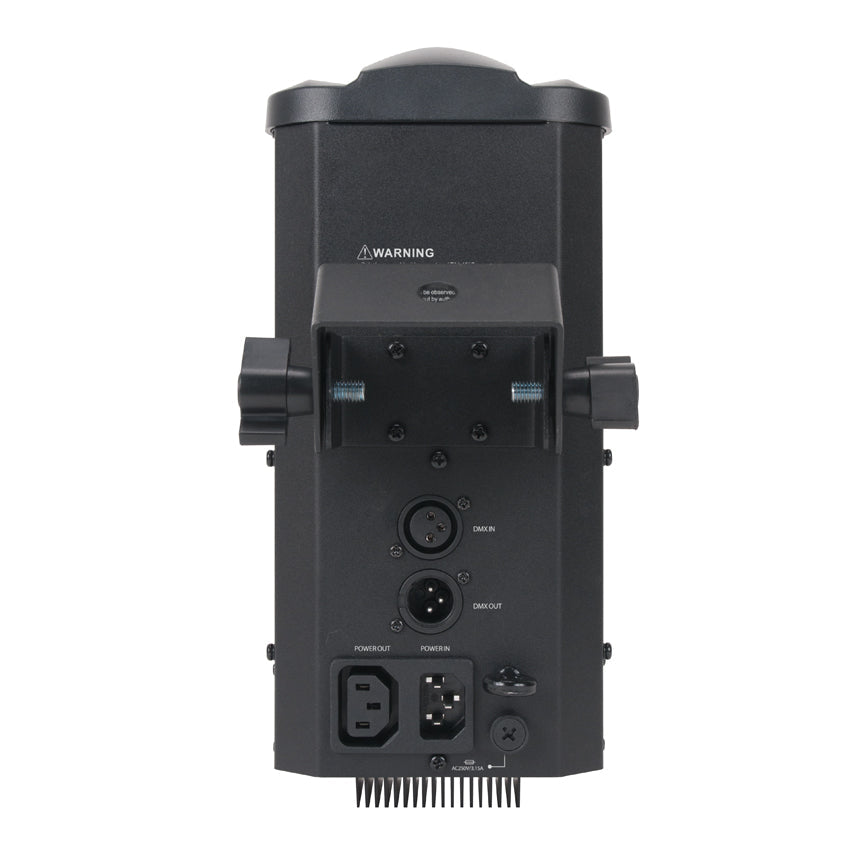

  • IEC AC IN/OUT on rear to daisy chain power (up to 19 Inno Pocket Roll’s @ 120V and 35 Inno Pocket Roll’s @ 230V )
  • Hanging Yoke + safety hook included

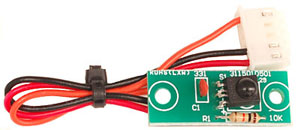

  • Optional IR wireless remote control: Full On, Stand by, Strobe, Color Change, Dimming, Sound Active On/Off (ADJ UC IR Not Included)
  • Compatible with the ADJ Airstream IR App
  • Power consumption: 36W (Full-On)
  • Multi-voltage Operation: AC 100 - 240V, 50/60Hz
  • LED Source: 12W White LED source (Rated at approximately 50,000 hrs)
  • LED Output: 1200 LUX @2M; 310 LUX @4M (14-degree beam)
  • Dimensions (LxWxH): 13” x 5.25” x 6.5” / 329 x 132 x 165mm
  • Weight: 6 lbs. / 2.6 kgs.

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Inno Pocket Roll User Manual Download
Inno Pocket Roll Photometrics Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

Does the Inno Pocket Roll have 5v DC supply available on the DMX in port?

No it dosn't.

I have two Inno Pocket Rolls and would like to get a UC IR Controller for them, but am unable to find them on Amazon or even on your site here. Is the UC IR universal or specific to each light type? Also I'm guessing that there is no sound activation via dmx on these as on other Inno products. Thanks for your help.

Dennis,

The UC IR is the correct remote for this item and it is a universal IR remote.Yes there is no soundactive mode in the DMX software.

How to keep settings and is the master light and sound suppose to be lite when activate

Hello Vernon,

Thank you for reaching out to us. Make sure you always hold the enter button for 3 seconds to lock that setting in. Yes, that let's you know that light is the master and it's in sound active mode. Let me know if you have any further questions.

Thanks,

Can the Inno Pocket Roll be operated stood on its own base, or must it be mounted to a rig?

Hello Malcolm,

Thank you for reaching out to us. Yes, could rest the unit on it back with the bracket and have it do it's thing. But it's much better if you have t-bar stand to mounted the light and position the light to your licking. Here is the link to our t-bar stand http://www.adj.com/lts-6 Let me know if you have any further questions.

Thanks,
