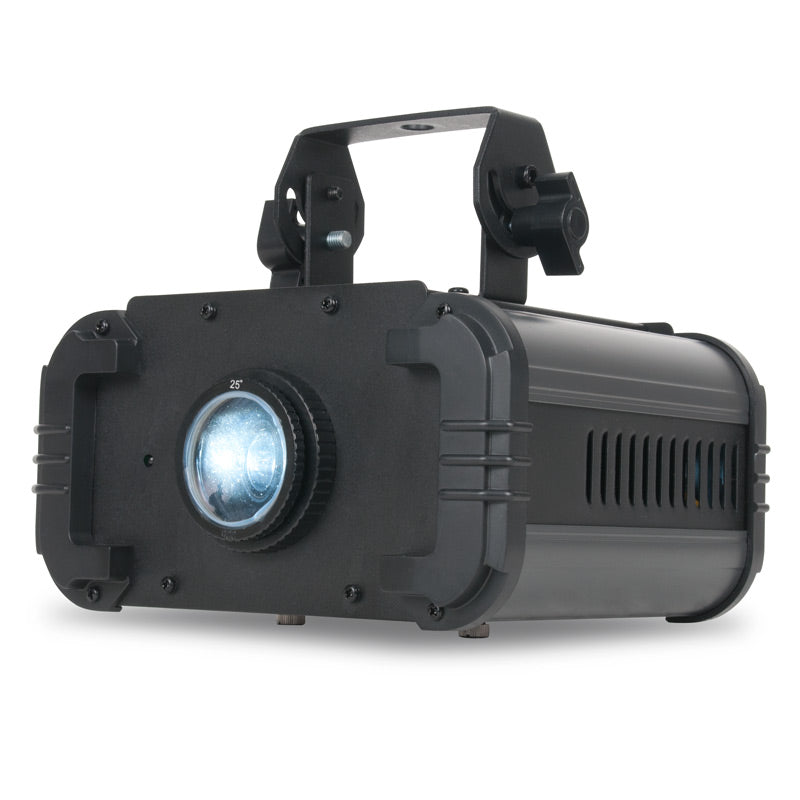

Ikon IR

The Ikon IR is a high output single Gobo Projector powered by a bright 60W (7500K) white LED. Includes UC IR wireless remote, 3 lens to change the beam angle, and 4 GOBO patterns. The Ikon IR is a high output single Gobo Projector powered by a bright 60W (7500K) white LED. Includes UC IR wireless remote, 3 lens to change the beam angle, and 4 GOBO patterns. The Ikon IR is a high output single Gobo Projector powered by a bright 60W (7500K) white LED. Includes UC IR wireless remote, 3 lens to change the beam angle, and 4 GOBO patterns. The Ikon IR is a high output single Gobo Projector powered by a bright 60W (7500K) white LED. Includes UC IR wireless remote, 3 lens to change the beam angle, and 4 GOBO patterns. The Ikon IR is a high output single Gobo Projector powered by a bright 60W (7500K) white LED. Includes UC IR wireless remote, 3 lens to change the beam angle, and 4 GOBO patterns. The Ikon IR is a high output single Gobo Projector powered by a bright 60W (7500K) white LED. Includes UC IR wireless remote, 3 lens to change the beam angle, and 4 GOBO patterns.
SKU: IKO100 | UPC: 819730017161
The Ikon IR is a high output single Gobo Projector powered by a bright 80W (7500K) white LED. Includes UC IR wireless remote, 3 lens to change the beam angle, and 4 GOBO patterns. Compatible with the ADJ Airstream IR App.
Advantage Points: 515

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

The Ikon IR is a high output single Gobo Projector powered by a bright 80W (7500K) white LED. This fixture used high quality optics for crisp, clear projection. User can adjust the LED brightness and Gobo rotation on the rear of fixture or by the included wireless UC IR remote control.

The Ikon IR includes 4 metal Gobos. Users may also insert custom Gobos in the fixture. This projector also comes with three interchangeable lenses that produce different beam angles (25, 32 or 43 degrees) making it versatile for a wide variety of applications.




Specifications

Specifications

• Bright white 80W LED indoor Gobo Projector

• High quality optics - Clear powerful output

• Adjustable dimmer and rotate knob on rear panel

• Includes 4 replaceable metal Gobo patterns

• Gobo size: 54mm; Viewable size: 39.75mm; Thickness: 0.2mm
• Stainless Steel Gobos

• Run all night – No Duty Cycle

• Easy Gobo replacement access

• Manual focus

• Ideal for Mobile DJs, Clubs, Bars, Retail Stores and Promotional Events

• Very low heat output

• Beam Angle: 25, 32 or 43 degrees (Includes 3 different lenses)

• Long life LED (Rated at approximately 50,000 hrs.)

• IEC AC outlet on side to daisy chain power (up to 9 Ikon IR’s @ 120V and 17 Ikon IR’s @ 230V)

• Color Temperature: 7500K

• Includes yoke to mount on a wall or hang from trussing

• Includes UC IR Remote Control
• Compatible with the Airstream IR App

• Multi-voltage: 100-240V, 50/60Hz
• Power consumption: 74W max

• Dimensions (LxWxH): 9.5” x 9.5” x 8.5”/ 236 x 236 x 215mm

• Weight: 6.6 lbs. / 3 kg.

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Ikon IR User Manual User Manual Download
Ikon IR Photometric Test Report Photometric Test Report Download
Ikon IR Photometric IES File Photometric IES File Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

I have the IKON LED IR projector and love how bright it is, as well as the remote. Is there a way to get a lens that is about 13-degrees? Even the 25 degree lens provided is too wide for my intended use.

We only offer what coes with the product.

Do you recommend a specific program to create your own GOBOS? In addition, Does it matter what type of printer you use on the transparency for a custom GOBO (e.g. Ink-Jet, Laser)?

The only program I highly recommend is Photoshop which is an industry standard. While there is a learning curve and some cost involved, you must have a PROFESSIONAL tool in order to provide a PROFESSIONAL service to your customers.



While learning how to use Photoshop from top to bottom can take some time, learning the skill to create simple gobo design takes hardly anytime at all. One can create a nice gobo within 15 minutes or less. There are two good video tutorials that can get anybody started.



https://www.youtube.com/watch?v=4peahr7yge8



https://youtu.be/yK-LMNedb_0



As far as the cost, Photoshop is not that expensive considering it’s an invaluable investment in almost any business. The lowest price you can find on Photoshop is $9 a month. A cheap alternative is Photoshop Elements which runs for $69.



I typically charge $300 per gobo which more than pays for my Photoshop investment many times over. Plus, I can charge off the expense on my taxes.

Where can I find / buy additional gobo rings? I like the metal rig for holding custom gobos, however I lost one. I also need 3 of the squeeze rings?

Replacement parts can be ordered from the ADJ parts website.

Here's a direct link to the Ikon IR parts list.

http://parts.adj.com/ProductsList.aspx?ProductLine=0015&ProductDesc=IKO100
