H2O DMX IR

SKU: H2O181 | UPC: 819730016560

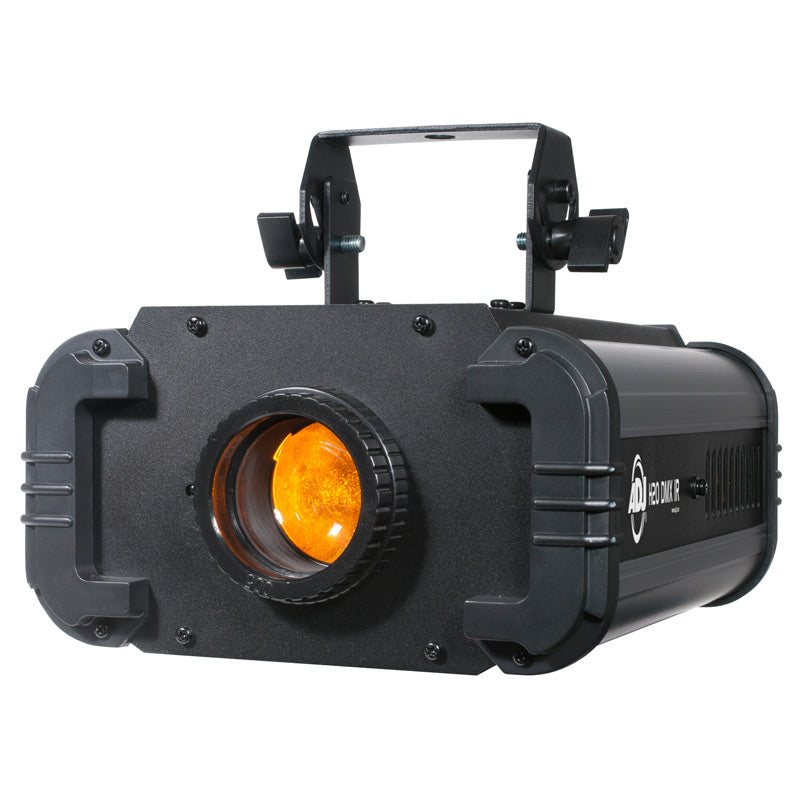

Powered by a bright 80W LED source, the ADJ H2O DMX IR is a simulated water flowing effect that creates an exciting atmosphere that may be projected on walls, ceilings, floors and backdrops.
Advantage Points: 400

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Powered by a bright 80W LED source, the ADJ H2O DMX IR is simulated water flowing effect that creates an exciting atmosphere that may be projected on walls, ceilings, floors and backdrops. This projector may be controlled by DMX or the optional UC IR wireless controller (sold separately).

Specifications

Specifications

• Bright 80W LED source simulated water flowing effect

• Designed to project on walls, ceilings or floors with or without fog –

  great for mood or background lighting

• 3 DMX Channels (Dimming, Glass Wheel, Colors)

• 3 operation modes: Show Mode, Manual Mode, & DMX Control

• Stand Alone Set Up or Master-Slave Set Up

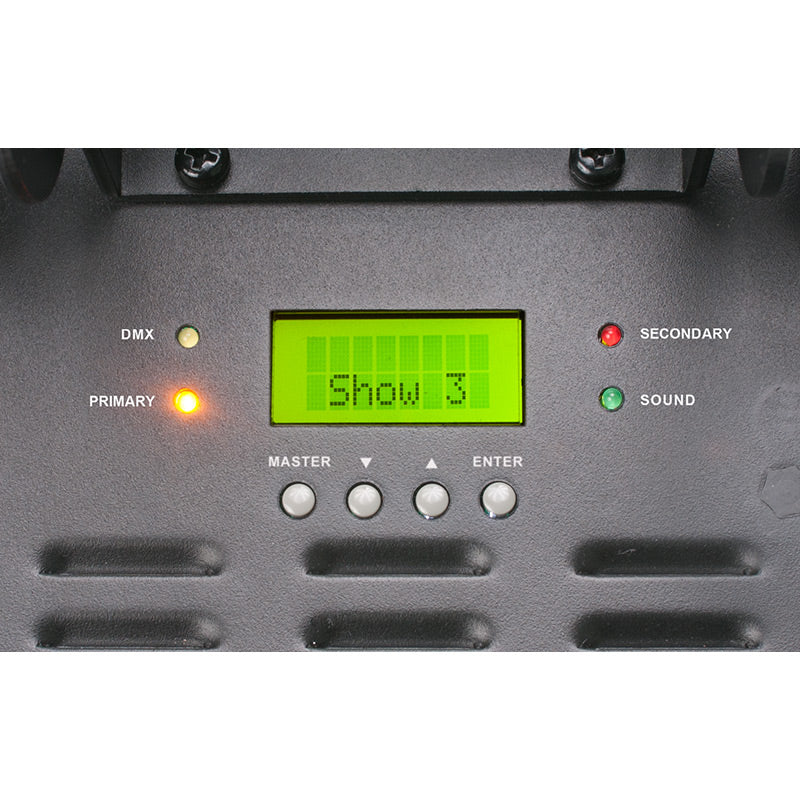

• Digital DMX Display with 4-button menu for easy navigation

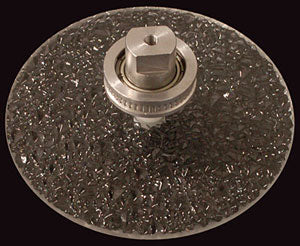

• Equipped with 2 glass effect wheels and 1 independent dichroic color wheel

• 5 colors + White & Split Colors

• High-tech plastic molded ends protect unit during transport and day-to-day use

• 0-100% Dimming (via DMX)

• Manual focusing lens

• Beam angle: 37 degrees or 27 degrees (optional)

• Includes hanging bracket

• Run all night – units stays cool – no duty cycle

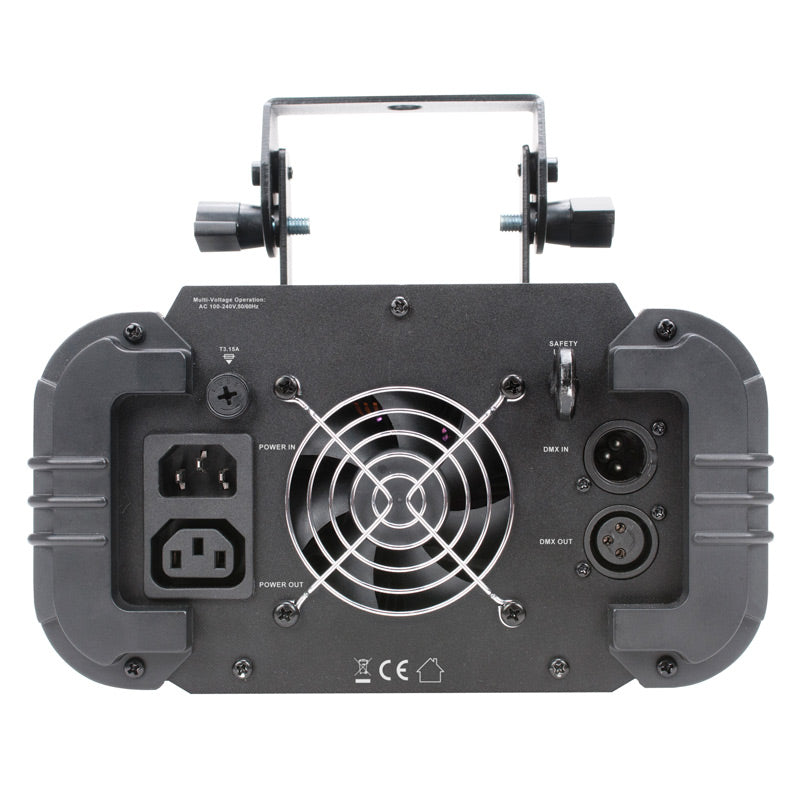

IEC In & Out to Daisy chain Power (Connect up to 10 Fixtures @ 120V & 17 Fixtures @ 230V)

ADJ UC IR Compatible (sold separately)

• Fan cooled

• Safety hook on rear panel

• Power consumption: 70W

• Long life 80W LED Source (30,000 hr. rating)

• Multi-voltage operation: AC 120-240V 50/60Hz (IEC Plug)

• Dimensions (LxWxH): 11.75”x 9”x 8” / 301 x 232 x 207mm

• Weight: 9 lbs. / 4 kg.
• ETL Approved


Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
H2O DMX IR User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

The instructions refer to the menu button. Where is the menu button located. I can't find it!

Hi Brian,

Thank you for reaching out to us. The menu button on this light will be the master botton. The master button should allow you navigate thru the setting with in the unit. Let me know if you have any further questions.

Thanks,

What's the spread to throw distance for the 27 degree vs the 37 degree lens?

Please see page 13 of the product manual. A comparison between both lenses if found on that page.

Here's a link to the manual
