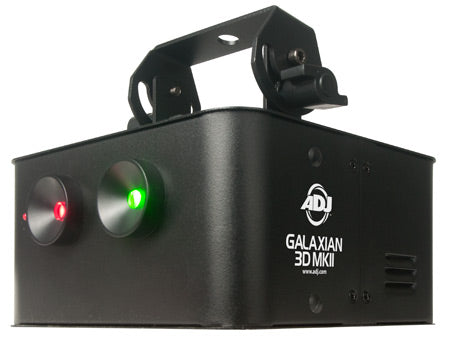

Galaxian 3D MKII

SKU: GAL176 | UPC: 819730010476
The Galaxian 3d MkII is an FDA approved, portable, low power green & red laser effect. Can be linked with up to 14 units, and effects can be projected on walls, ceilings, or over the crowd for a multitude of effects
Advantage Points: 350

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Do you want jaws to drop when the bass drops? If so, add the Galaxian 3d MkII laser display to your light set-up! With both green and red lasers, the Galaxian 3d MkII creates amazing aerial projections on a ceiling, wall, or even over the crowd. Linkable with up to 14 units, this display is amazingly simple to use. All you need to do is turn it on and let it run in sound active mode for an incredible display synced up with the music that will leave your audience demanding more.

This compact unit is both affordable and light-weight, making it perfect for small clubs or for entertainers on the go. This laser is FDA approved and only uses a maximum of 22.5W of power! If you're looking for laser effects that won't break the bank, the Galaxian 3d MkII from ADJ is the right choice for you.

Specifications

Specifications

  •  DMX green and red lasers rotate back and forth creating a new dimension of excitement
  •  Laser patterns can be projected over a dance floor, ceiling or wall
  •  2 operational modes: DMX or Sound Active
  •  5 DMX Channels = Red Laser, Green Laser, Red Rotation, Green Rotation, Macros
  •  Uses 1.8 degree stepper motors for smooth movement
  •  Very low power consumption
  •  Includes hanging bracket
  •  Sound active from built-in programs

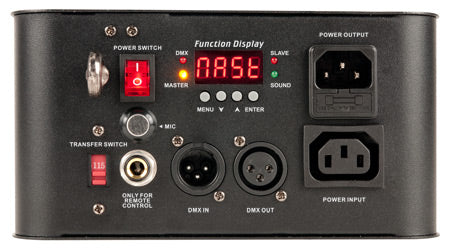

  •  Digital DMX Display with 4-button menu for easy navigation
  •  Linkable via 3-pin XLR connectors
  •  On/Off button on rear panel
  •  Safety hook on rear panel
  •  Durable metal housing
  •  Beam angle: 90 degrees
  •  IEC In & Out to Daisy-chain Power (Connect up to 14 Galaxian 3D MKII’s)
  •  1/4” input for optional UC3 remote control (sold separately)
  •  Multi-voltage: AC 120V 60Hz or 230V 50Hz
  •  Power Consumption: 22.5W
  •  Laser Diodes: 1x Green + 1x Red
  •  Dimensions (LxWxH): 8.75” x 7.75” x 3.25” / 221 x 194 x 78mm
  •  Weight:  7 lbs. / 3 kg.

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Galaxian 3D MKII Cut Sheet Download
Galaxian 3D MKII User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

We recently purchased Galaxian 3D MKII and learning how to operate. Downloaded User Instruction but not sure how to change the light patterns on the menu buttons. Does it need a controller and plug into the unit to change the patterns? As I don't find the list of lighting channel (address #?) in the User Instruction for choosing our preferred pattern. Please advise, Masaki

Hello Masaki. A DMX controller is required to go through and create patterns.

HOW FAR CAN THE LASER THROW?

Hella Matt,

The galaxian 3d mk II will throw more than 35 feet away from it's set up point. Let me know if you have any further questions. Petern@americandj.com

Thanks,
