FS3000LED

UPC#: 818651028256

Advantage Points: 1450

Redemption Points: 29000

SKU

FS3000

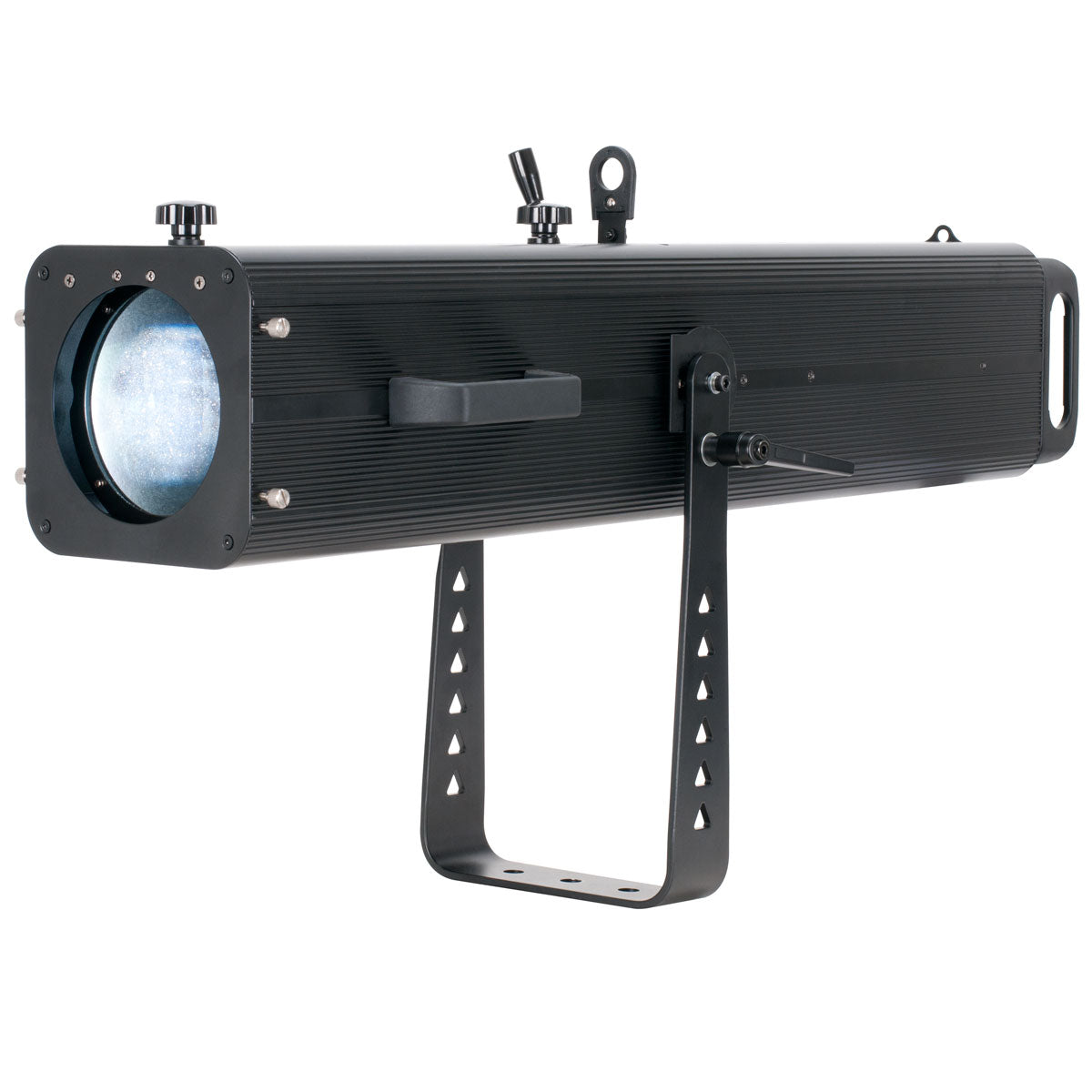

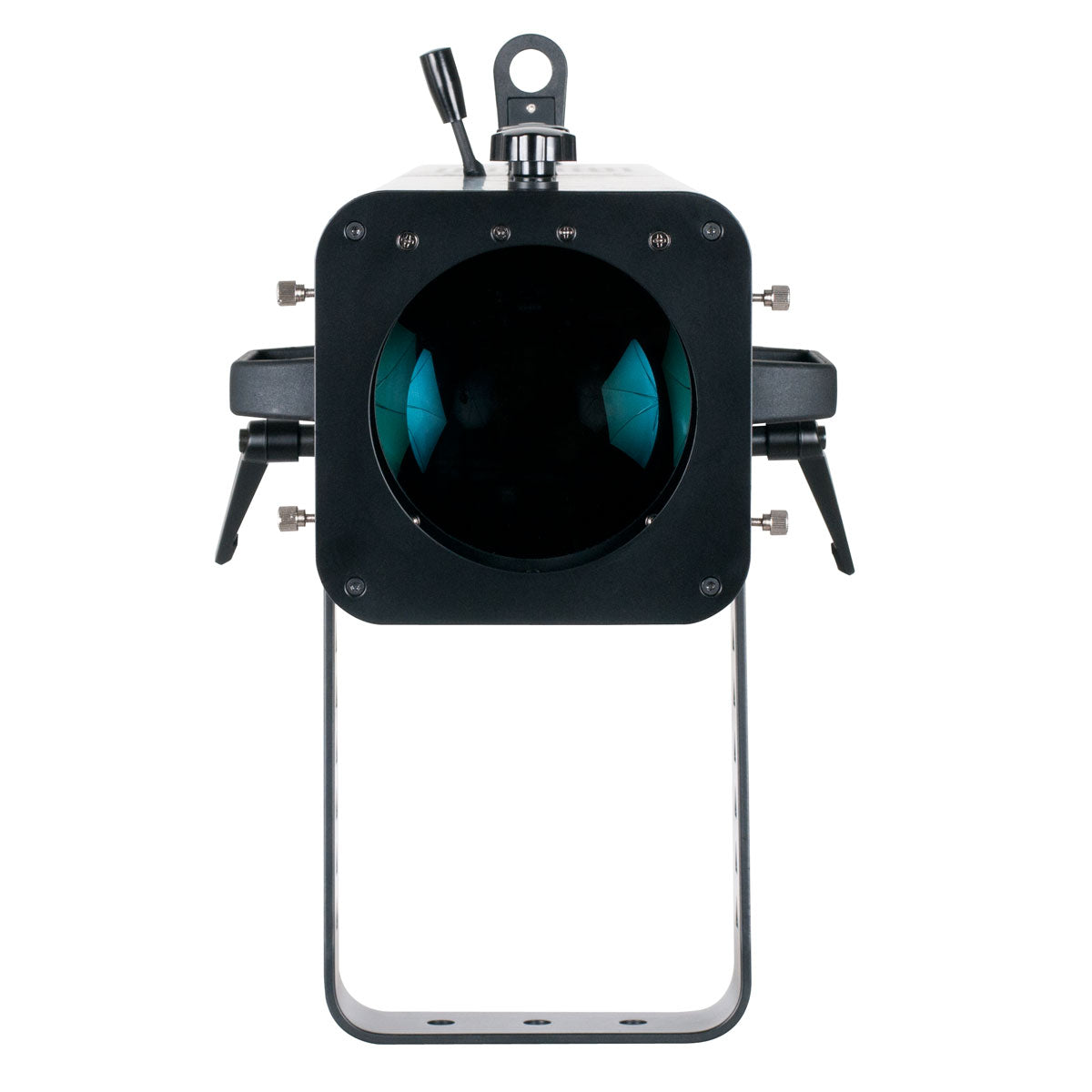

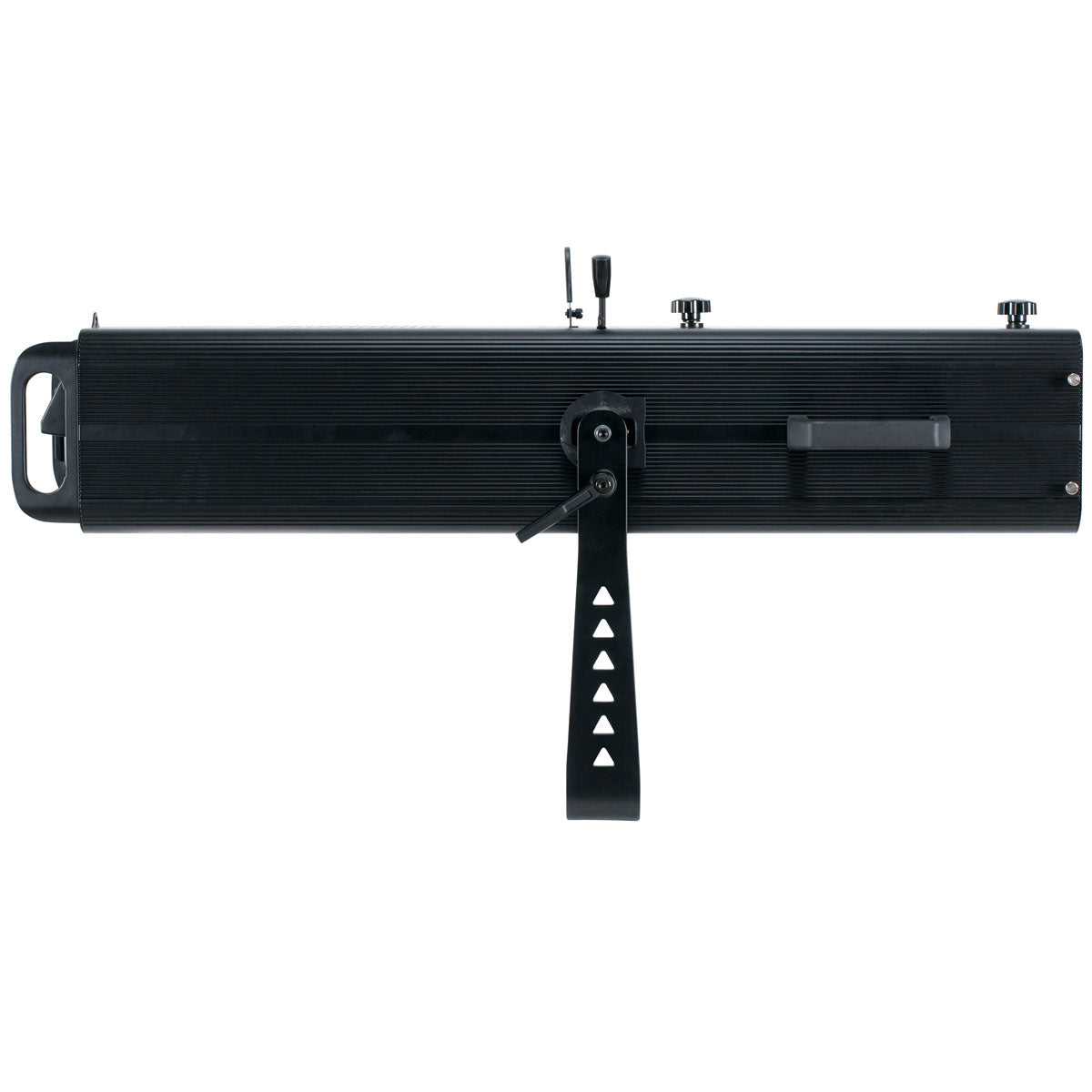

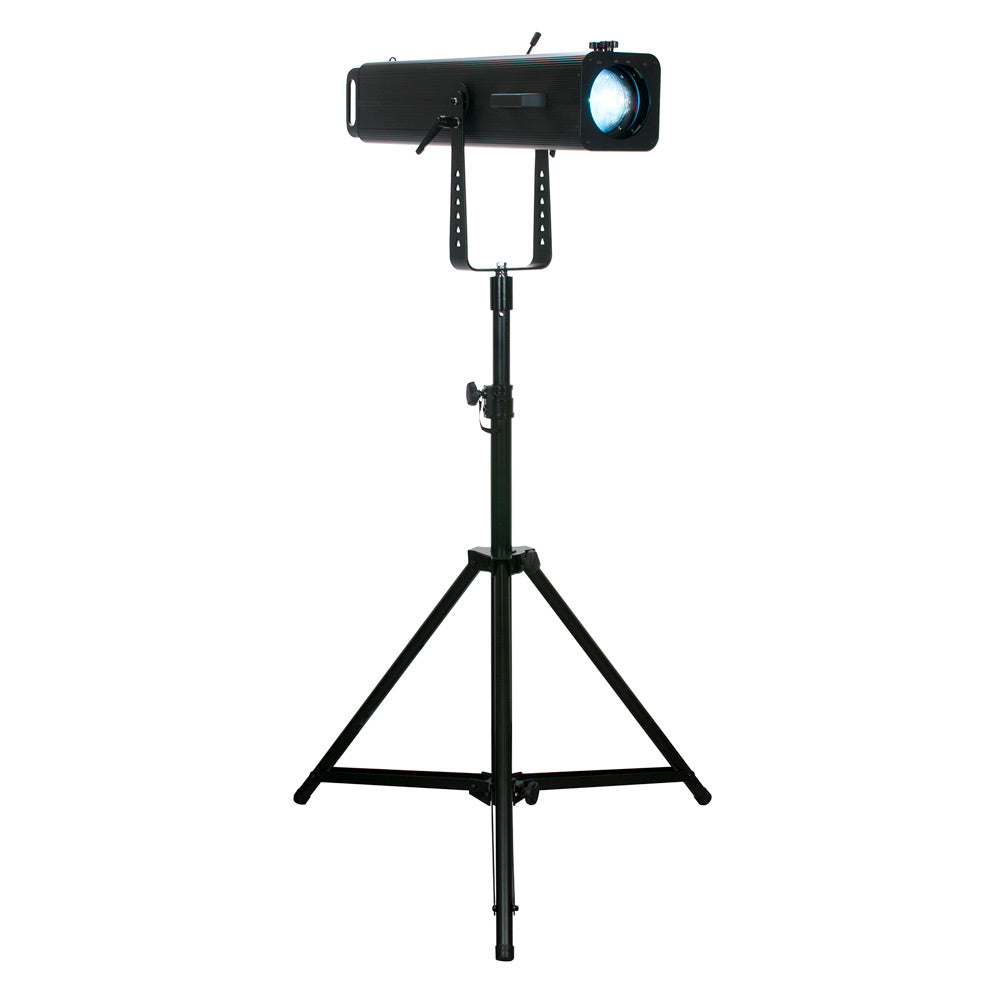

The FS3000LED is a powerful and feature-packed follow spot powered by a 300W white C.O.B. (Chip On Board) LED with a color temperature of 6000K.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specifications

Light Source:

• 300W white C.O.B. (Chip On Board) LED

• Color temperature: 6000K

• CRI: 95

• Light Output (12-degree): 6558 LUX @ 5M; 1639 LUX @ 10M; 410 LUX @ 20M

• Total Lumen Output: 8500 lm

Features:

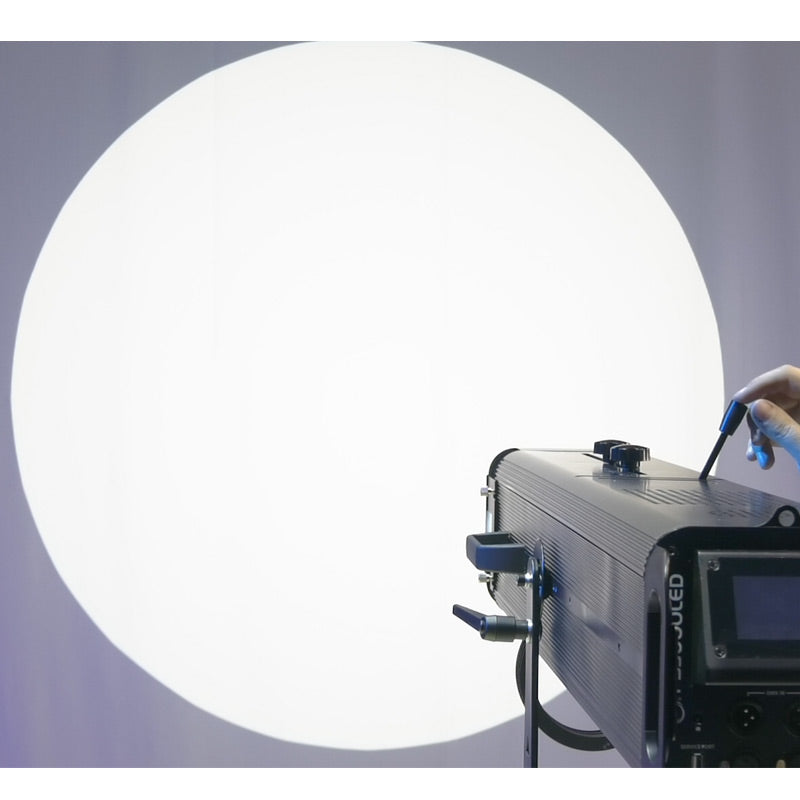

• Beam angle: 12~32-degree manually adjustable

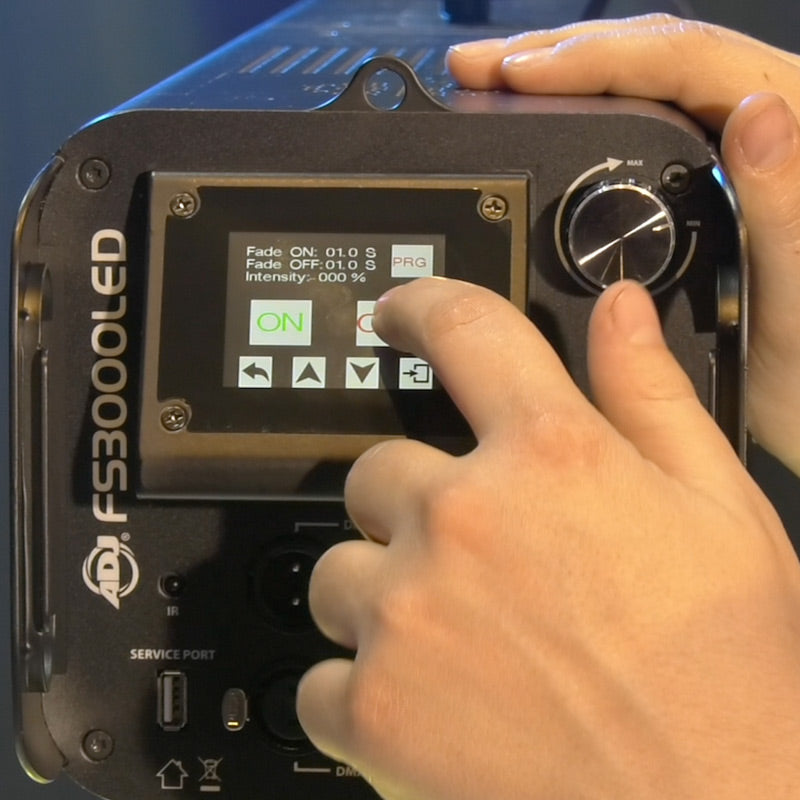

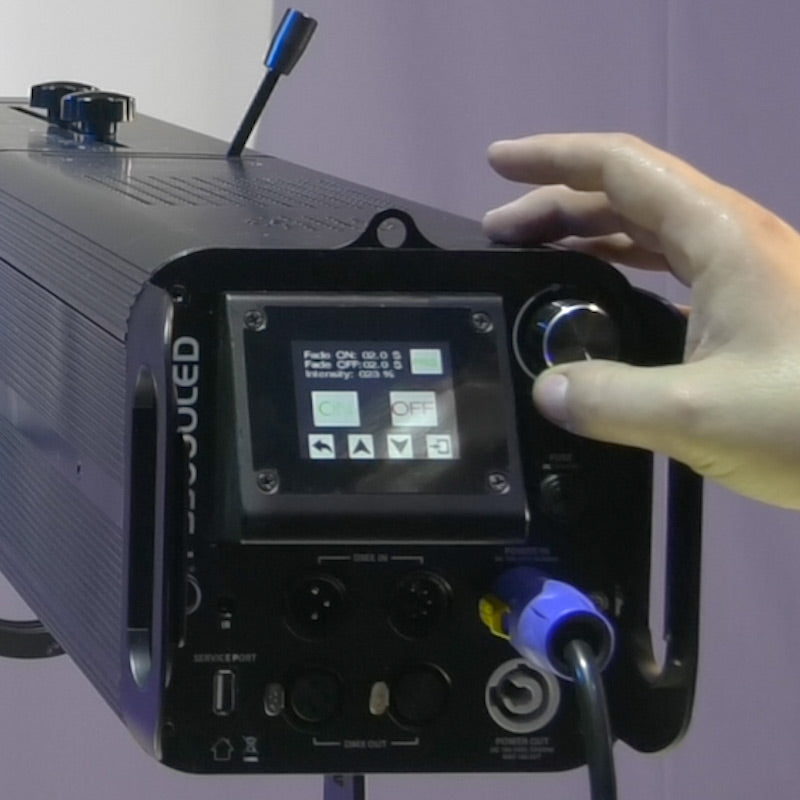

• Color touch screen display with selectable settings

• Manual Dimming Potentiometer

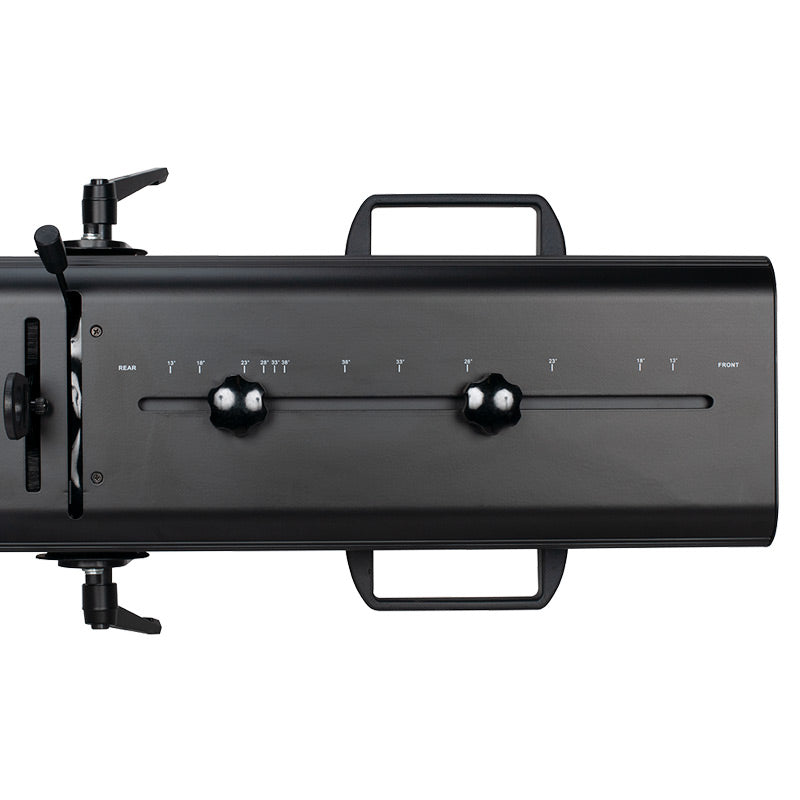

• Manual Zoom

• Manual Focus

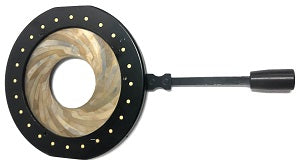

• Manual Iris

• Fan cooling

• Hanging Bracket

• Compatible with ADJ UC IR wireless remote

GOBO:

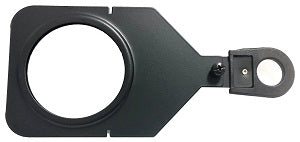

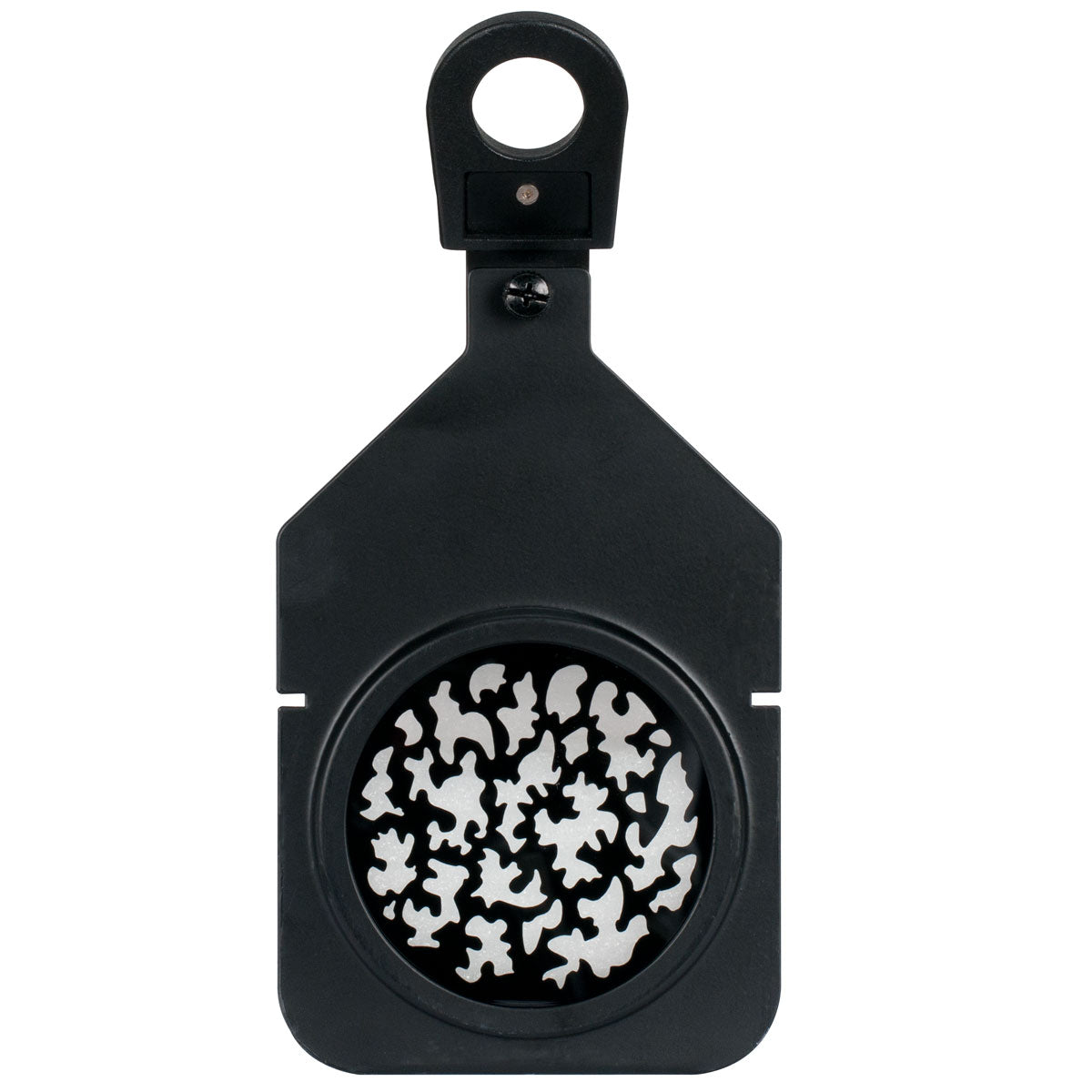

• GOBO holder with metal break apart pattern GOBO

• Gobo Dimensions: Outer 74.5mm; Inner: 65mm; Thickness: 2mm

Electrical:

• Voltage:AC100V-240V/50Hz-60Hz

• Maximum Power: 340W

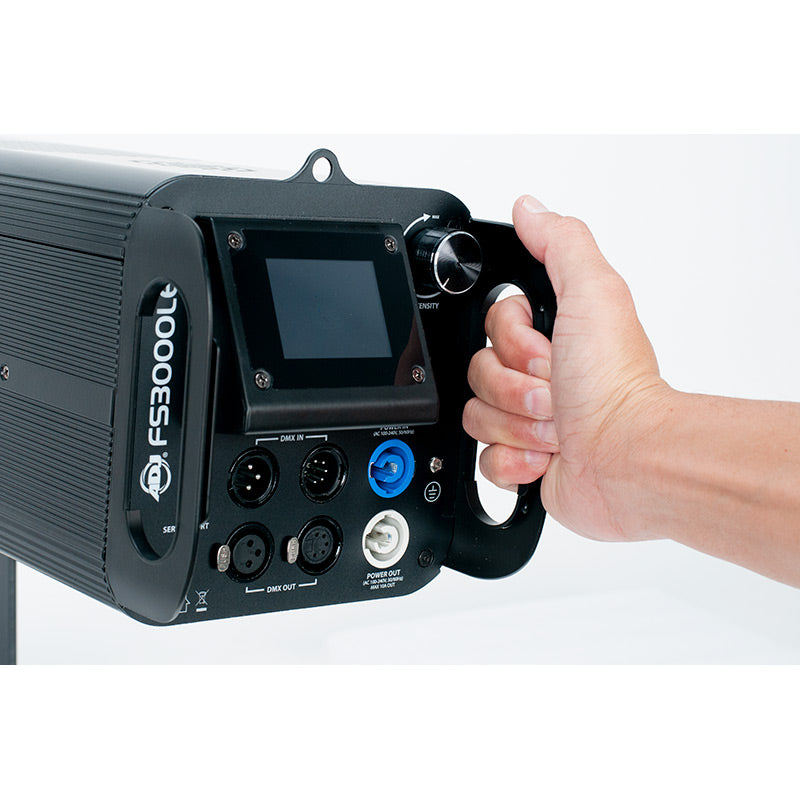

Connections:

• 3-pin and 5-pin DMX data linking

• PowerLock In/Out to daisy chain power (3 fixtures max at 110V, 5 fixtures max at 240V)

• USB Input for firmware update

Dimensions & Weight:

• Dimensions (LxWxH): 33.5” x 12.25” x 7” / 850x310x180mm

• Weight: 26.5” / 12kg.

What's Included:

• Locking power cord

• GOBO holder with metal break apart GOBO

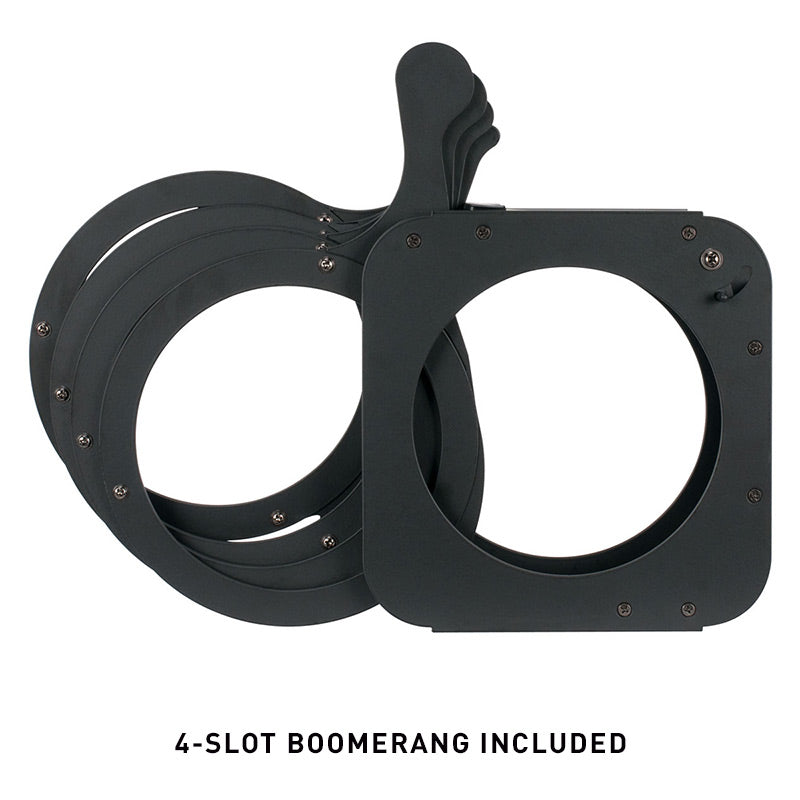

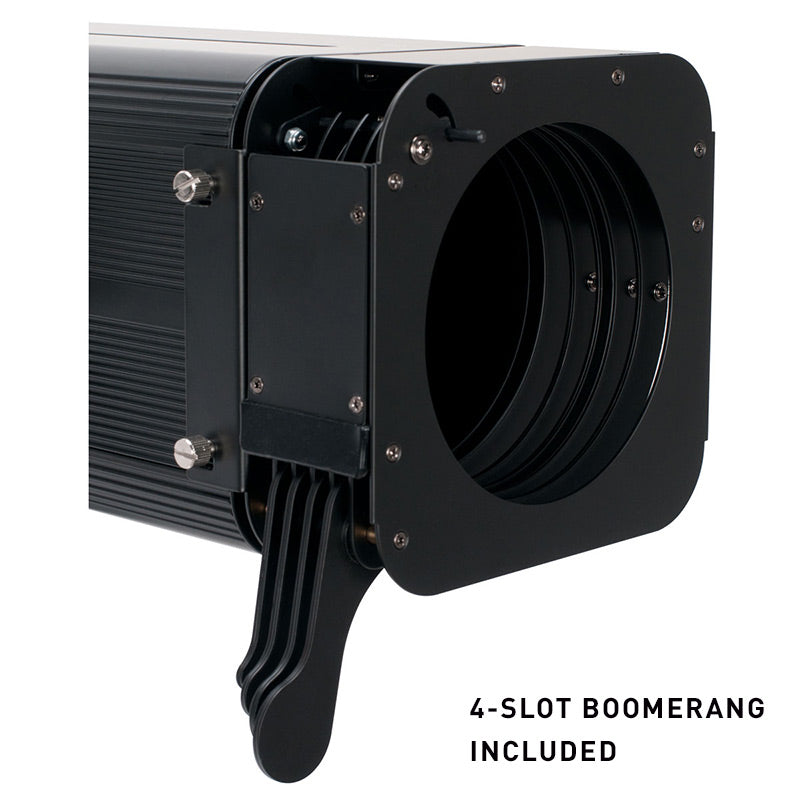

• Includes 4-slot Boomerang (Replacement Part # Z-400142) - color gels and frost filters are sold separately

Videos

Downloads

The following downloads are available for this product:

Title	Description

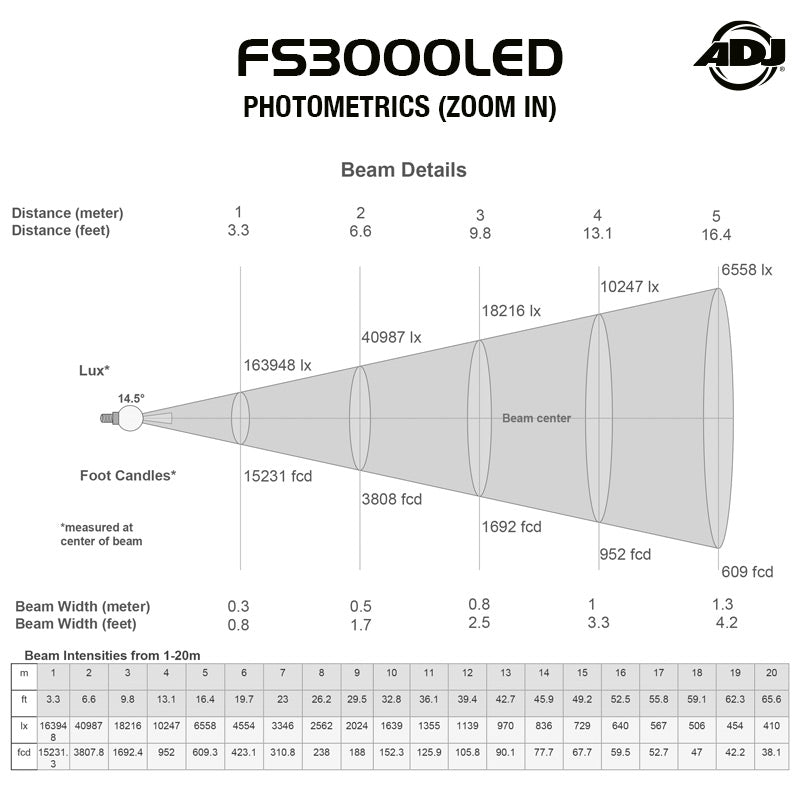

FS3000LED Photometics (Zoom In)	FS3000LED Photometics (Zoom In)	Download

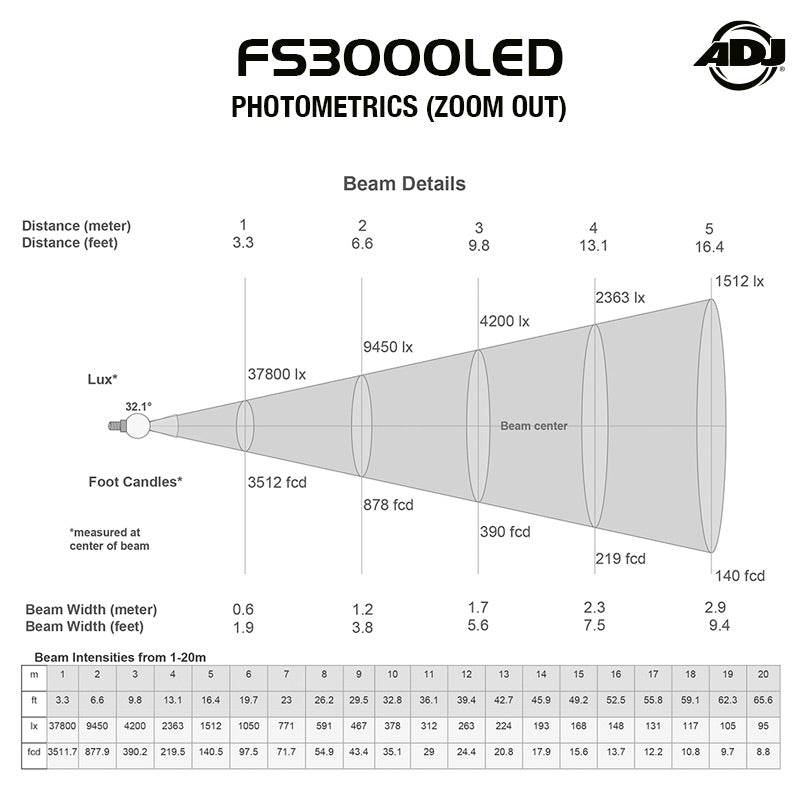

FS3000LED Photometics (Zoom Out)	FS3000LED Photometics (Zoom Out)	Download
FS3000LED 3D Cad Drawing	CAD Drawing	Download
FS3000LED User Manual	User Manual	Download
FS3000LED DMX Traits	DMX Traits	Download
FS3000LED Dimensional Drawing	Dimensional Drawing	Download
FS3000LED 2D CAD Drawing	CAD Drawing	Download
FS3000LED Vectorworks Symbol	Vectorworks Symbol	Download
FS3000LED User Manual SPANISH	User Manual	Download
FS3000LED DMX Traits SPANISH	DMX Traits	Download

Details

Available Now From ADJ USA

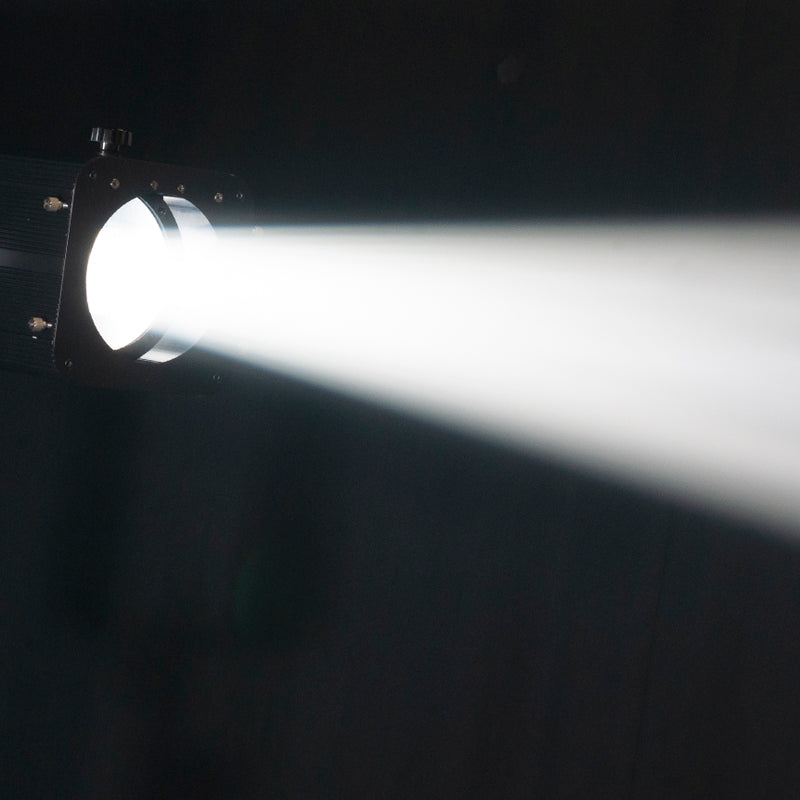

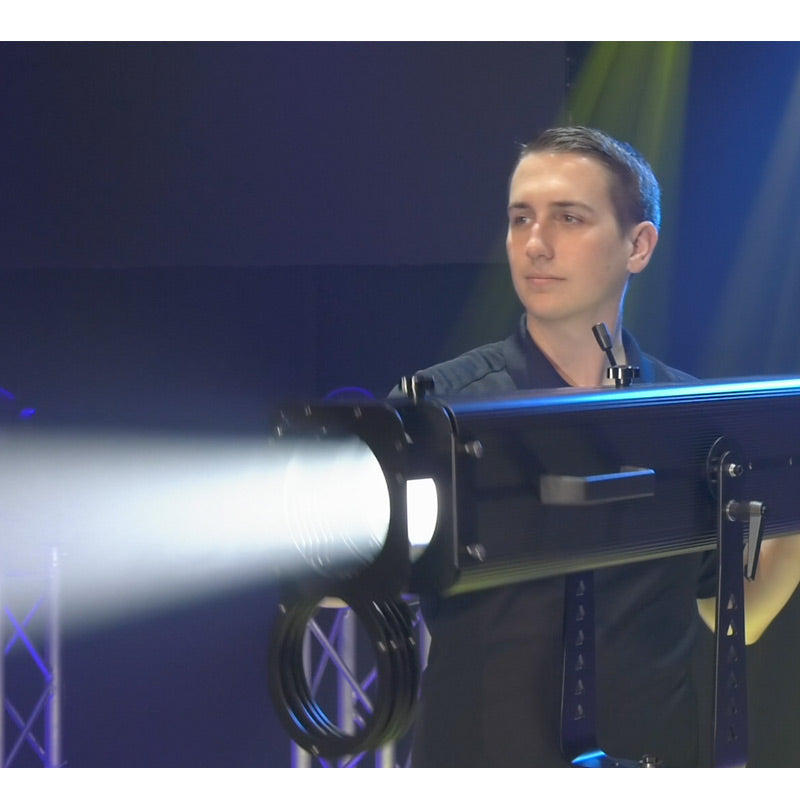

The FS3000LED is a powerful and feature-packed follow spot that is joining ADJ’s range of theatrical stage lighting fixtures. Powered by a potent 300W white COB LED engine (6000K) with a CRI of 95, the unit generates a powerful spotlight ideal for tracking performers at live productions, theatre stages and churches. It features digital dimming, an adjustable beam angle of 12 ~ 32-degrees, framing shutters and a GOBO slot. A removable 4-slot boomerang is included where color gels or frost filters may be added. The fixture supports both DMX and IR remote control, with an intuitive touchscreen interface on the rear panel facilitating DMX addressing and mode selection. In addition, a convenient rotary brightness control on the back panel makes for easy manual control, while two large rear handles allow for comfortable manual positioning. The FS3000LED has both 5-pin and 3-pin DMX In/Out sockets as well as locking power In/Out to daisy chain power from one fixture to another.

Click here to read the FS3000LED press release.
