Focus Spot 6Z

Name: Focus Spot 6Z
Brand: ADJ
SKU: FOC635
Availability: InStock

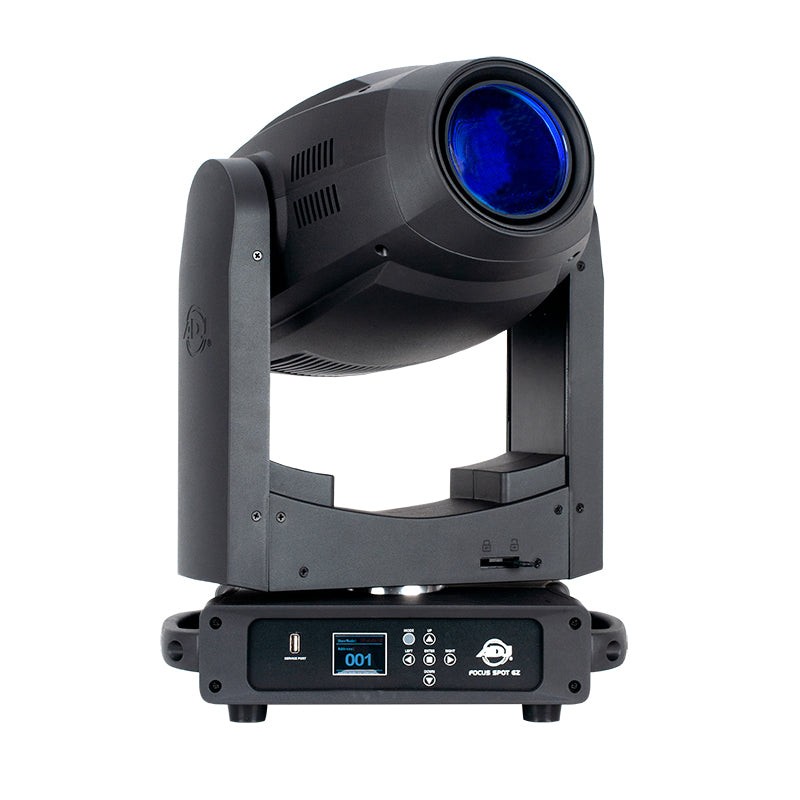

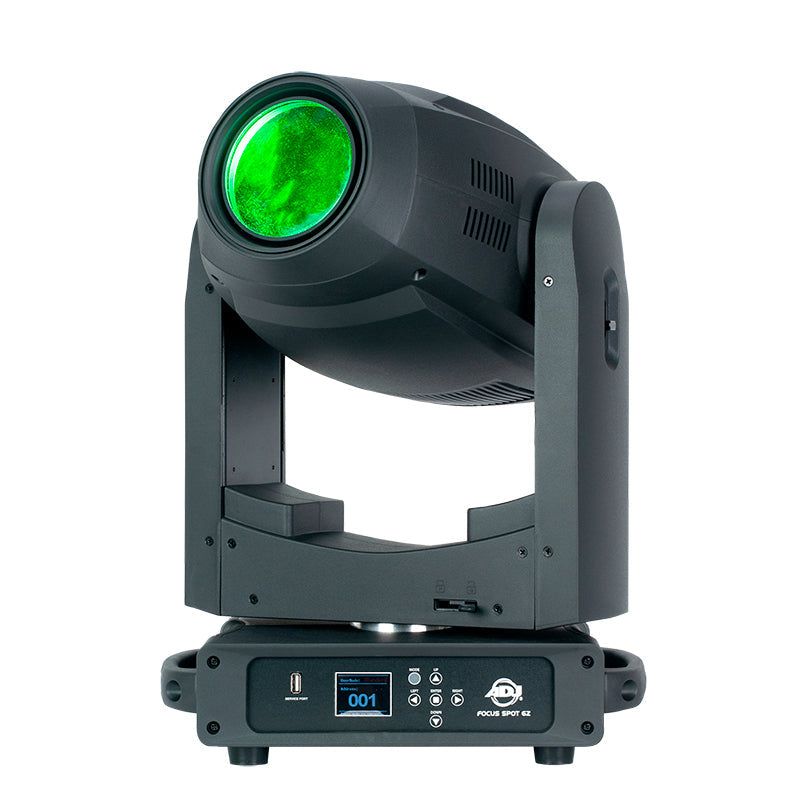

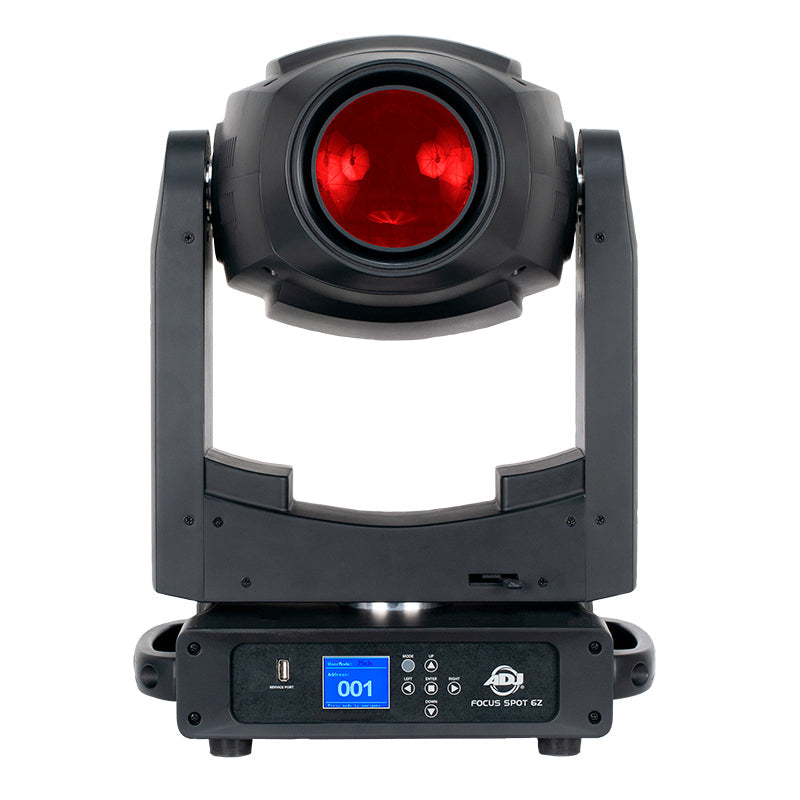

The ADJ Focus Spot 6Z is a feature-packed, compact moving head spot fixture powered by a 300W cool white LED engine. It is equipped with motorized focus, motorized zoom, motorized Iris, two prisms and two frost filters. It has two GOBO wheels and two color wheels. The rear panel has PowerLock In/Out to daisy chain power, 3-pin and 5-pin DMX In/Out and RJ45 connections.

UPC: 818651028133

SKU: FOC635

Focus Spot 6Z

$0.00

Key features

Feature	Value
Feature	Motorized Iris
Frost	2 Frost Filters
LED Source	300W Cool White LED
Motorized Zoom	9° ~ 28°
Prism	2 Prism Wheels

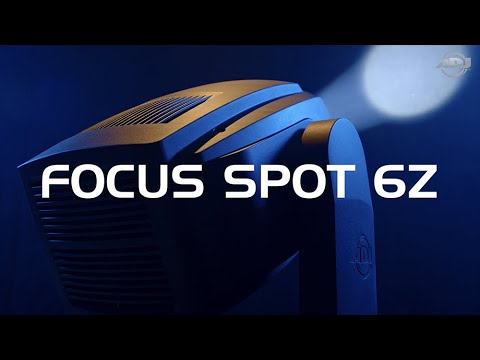

Video

Focus Spot 6Z

Available now from ADJ USA

The Focus Spot 6Z is powered by a brilliant 300W cool white LED engine that produces vibrant, saturated colors and is equipped with motorized focus, zoom (9~28-degree zoom), Iris and two prisms. It is designed for temporary live events and fixed installations in nightclubs, stages or churches. It is professionally fit with two GOBO wheels (7 GOBOs per wheel), two COLOR wheels, each with 7 vibrant colors plus white, and 2 rotating/indexable prisms, (one 6-facet linear and one 6-facet circular). It also has two frost effects (heavy frost and light frost).

The Focus Spot 6Z has locking power In and out connectors to daisy chain the power, as well as 3-pin and 5-pin DMX In/Out to transmit a DMX signal from one fixture to the next. It also has RJ45 In/Out connections to control with Art-Net and sACN. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fine pan and tilt, multiple DMX control modes, and 6 different dimming options. The Focus Spot 6Z offers a robust light output in a light weight, compact foot print (18-inch high and one 23 pounds).

Click here to read the Focus Spot 6Z press release.

Specifications

Light Source:

• 300W Cool White LED Engine (50,000 hr.)

• 11,000 Lumens

Features:

• Motorized Focus

• 2 Frost Filter to create wash effects

• Motorized Zoom: 9~28-degrees

• 2 Prism FX: Rotating 6-facet Linear rotating 6-facet Circular

• Motorized Iris

• GOBO Morphing

• 0-100% smooth dimming

• Various strobe speeds

• USB firmware update port

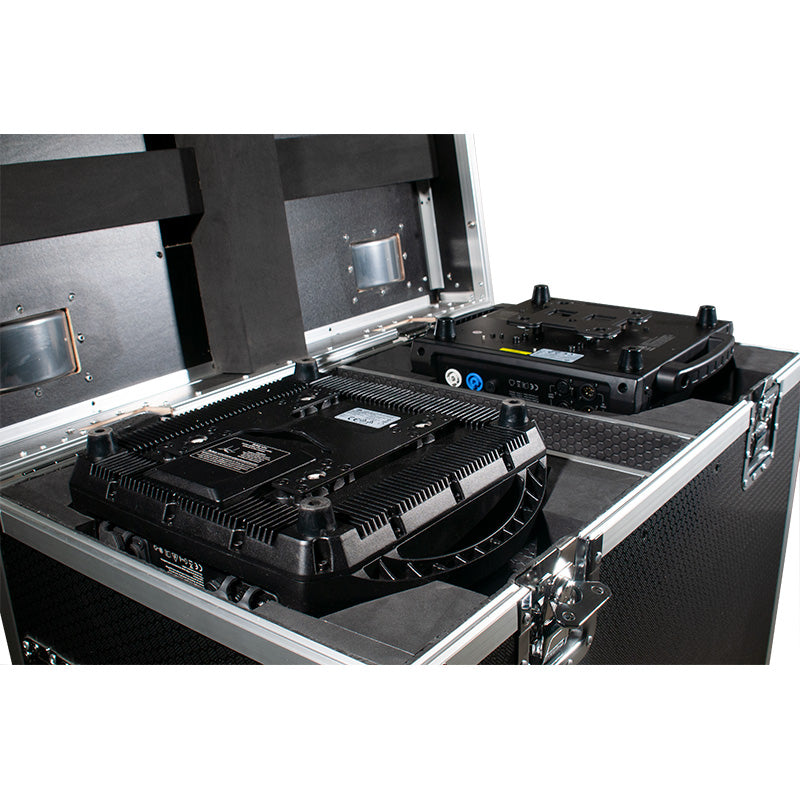

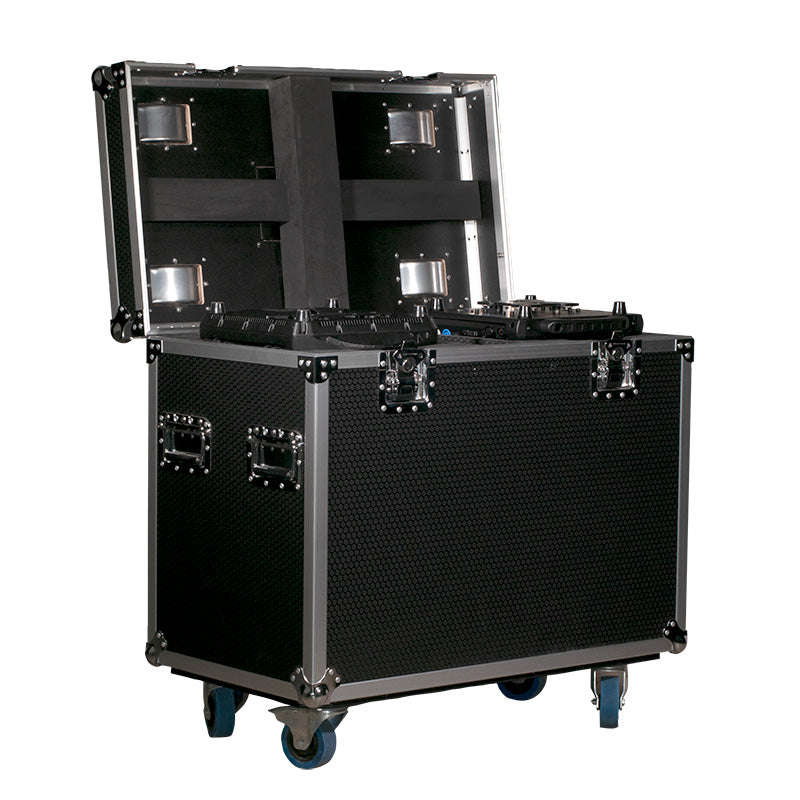

• (2) Two Focus Spot 6Z fit inside the DRC MHX road case

Color Wheels:

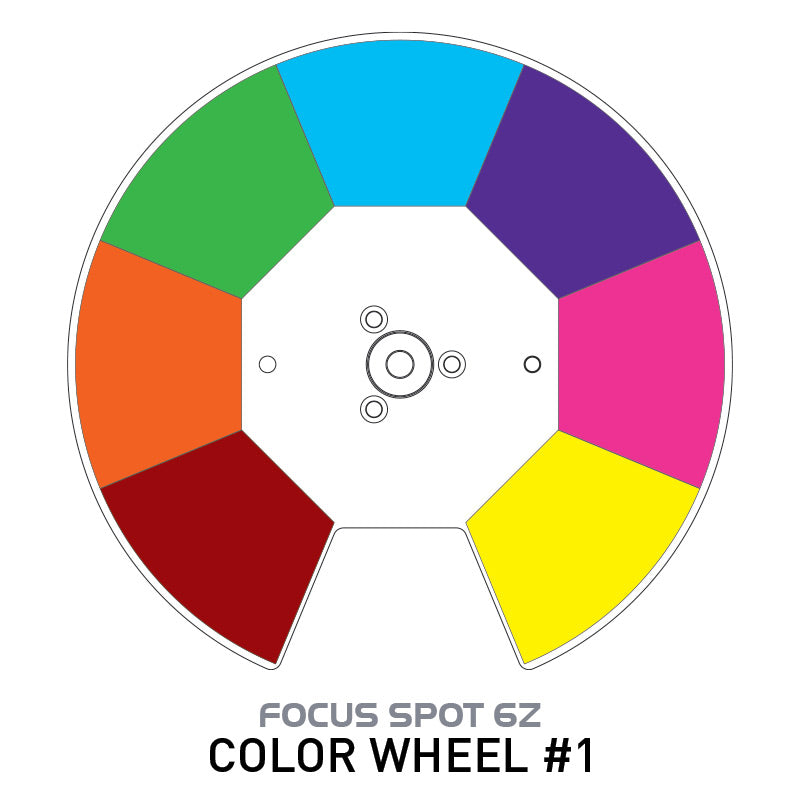

• Color Wheel 1: 7 dichroic colors + white

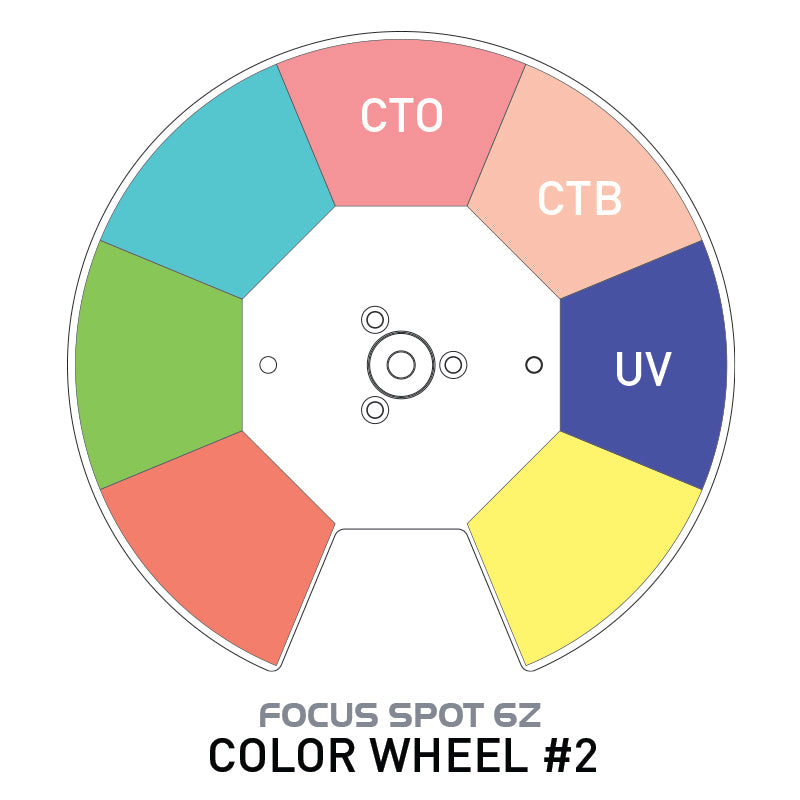

• Color Wheel 2: 7 dichroic colors (includes CTO, CTB and UV filters)

GOBO Wheels:

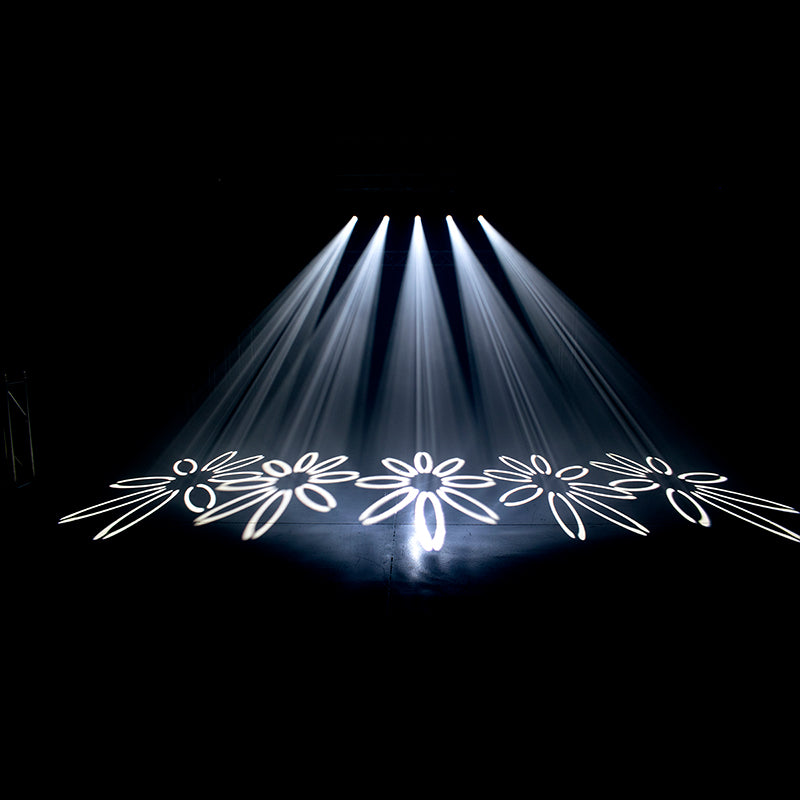

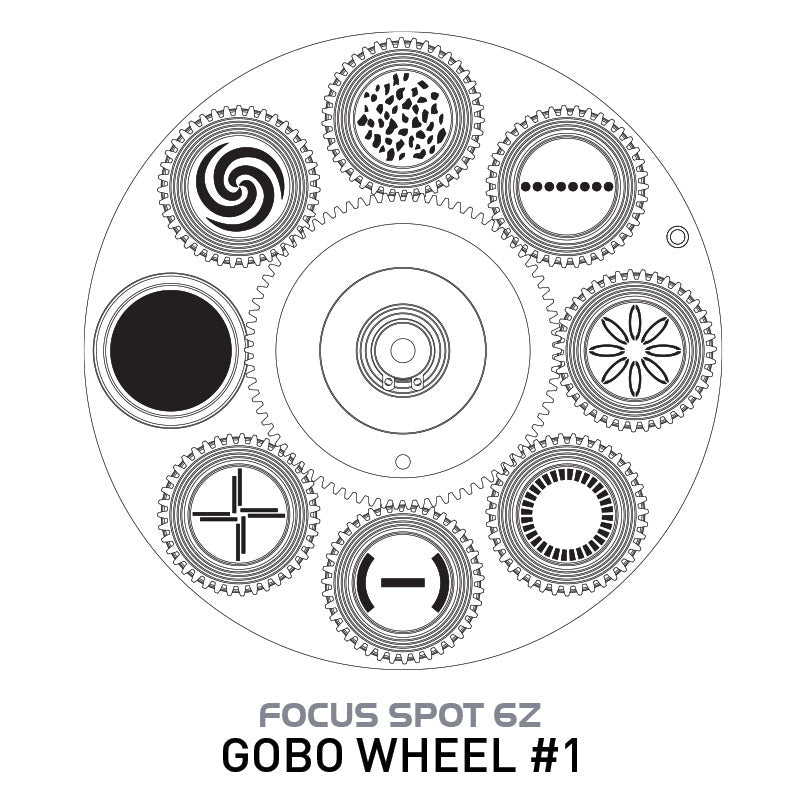

• GOBO Wheel 1: 7 GOBOS + open

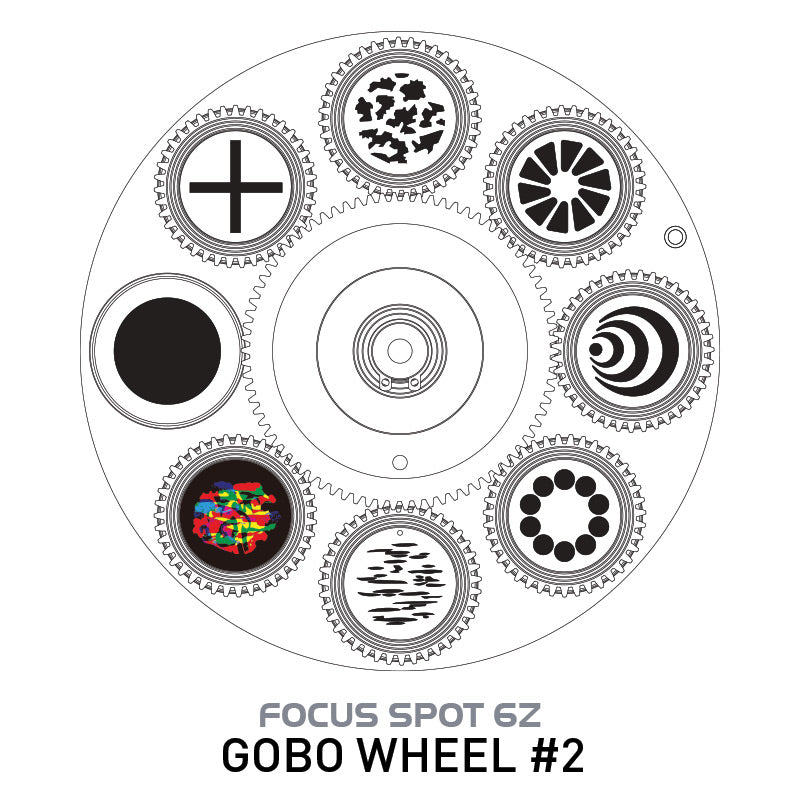

• GOBO Wheel 2: 7 GOBOS + open

• GOBO Morphing

• GOBO Shake Effect

• Metal GOBO Size: 23mm (outer), 19mm (viewable), 0.5mm (thickness)

• Glass GOBO Size: 23mm (outer), 19mm (viewable), 1.6mm (thickness)

Prism Wheel:

• Prism Wheel 1: Rotatable 6-facet Linear

• Prism Wheel 2: Rotatable 6-facet Circular

• Each Prism is indexable

Frost Filters:

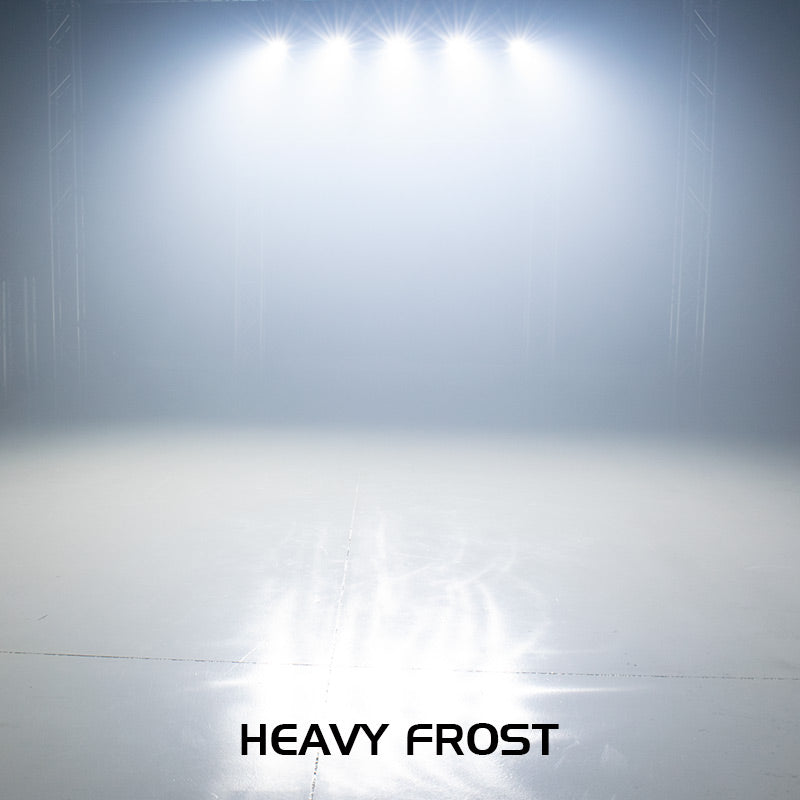

• Frost 1: Heavy frost for wash effect

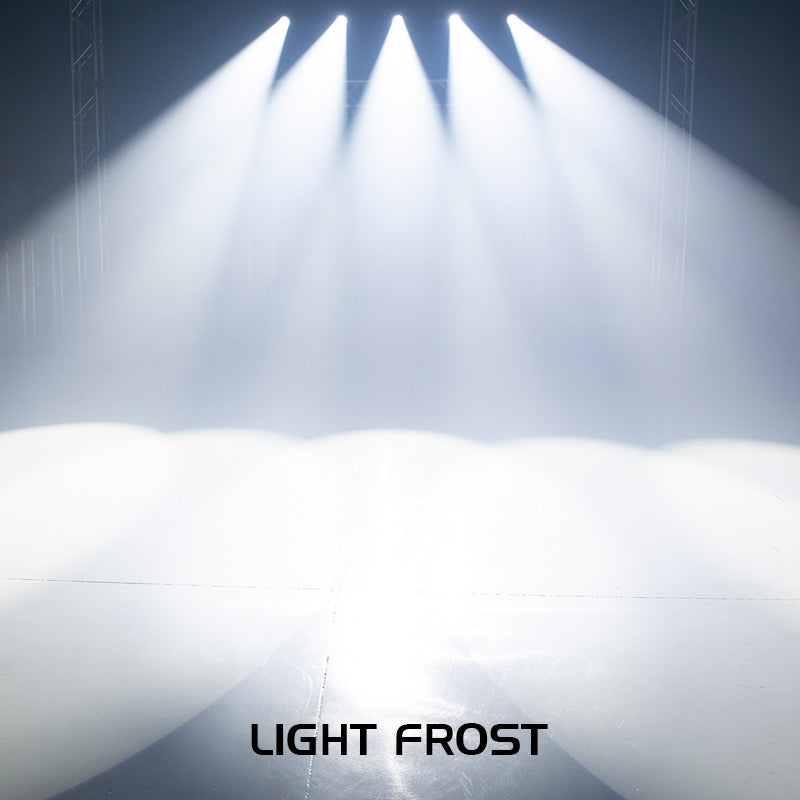

• Frost 2: Light frost creates lightly blurred edges for GOBO and Prism FX

Control:

• 2 DMX Channel Modes: 22/25 Channels

• Color LCD display with 6-button function menu

• Control Mode: DMX512, sACN, ArtNet and Internal programs

• 6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2

• 0-100% smooth dimming

• Various strobe speeds

• USB firmware update port

• With Wired Digital Communication Network

• RDM (Remote Device Management)

Pan/Tilt:

• Pan: 630 degrees

• Tilt: 270 degrees

• 16-bit fine Pan Tilt

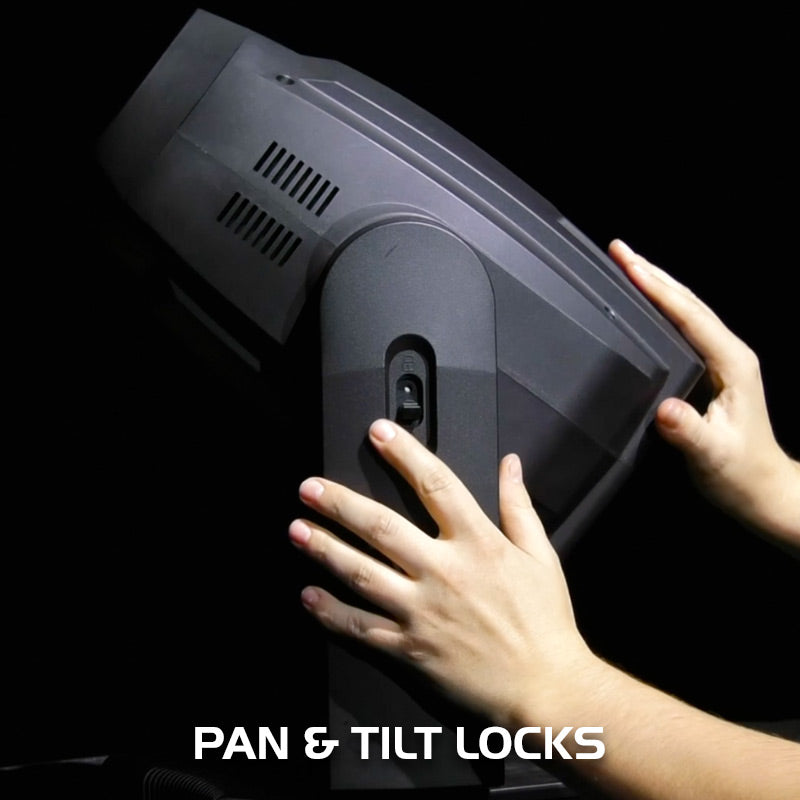

• Pan Tilt locks

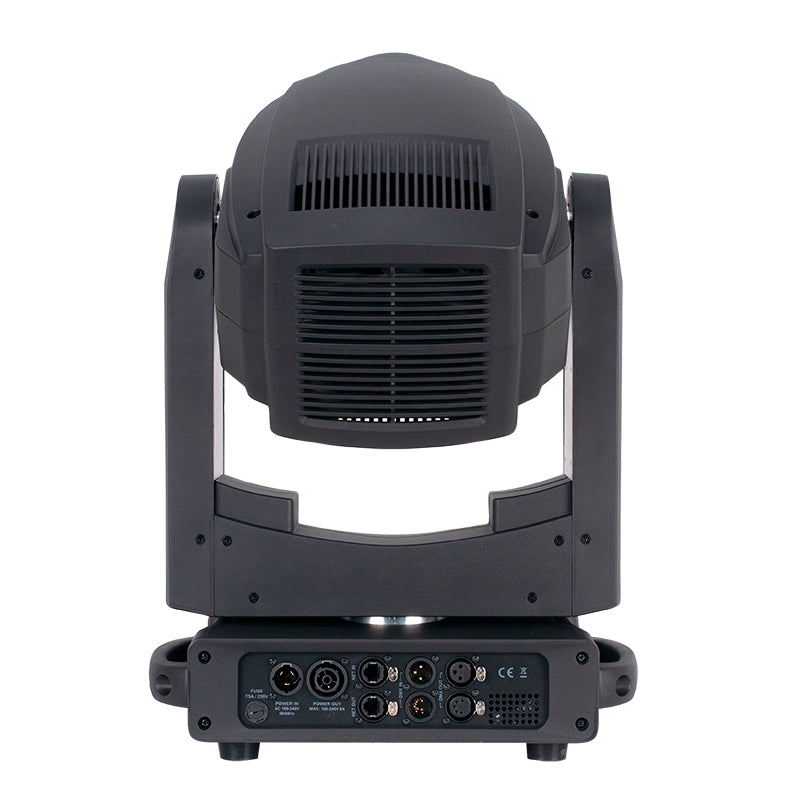

Connections:

• DMX Connections: 3-pin 5-pin XLR In/Out

• Power Connections: PowerLock In/Out to daisy chain power

• RJ45 In/Out connections for Art-Net sACN control

Electrical:

• Multi-voltage operation: AC 90-240V, 50/60Hz

• Max power consumption: 380W

Dimensions Weight:

• Dimensions (LxWxH): 14.18” x 9.21” x 22.125” / 360x234x562mm

• Weight: 43.6 lbs. / 20 kg.

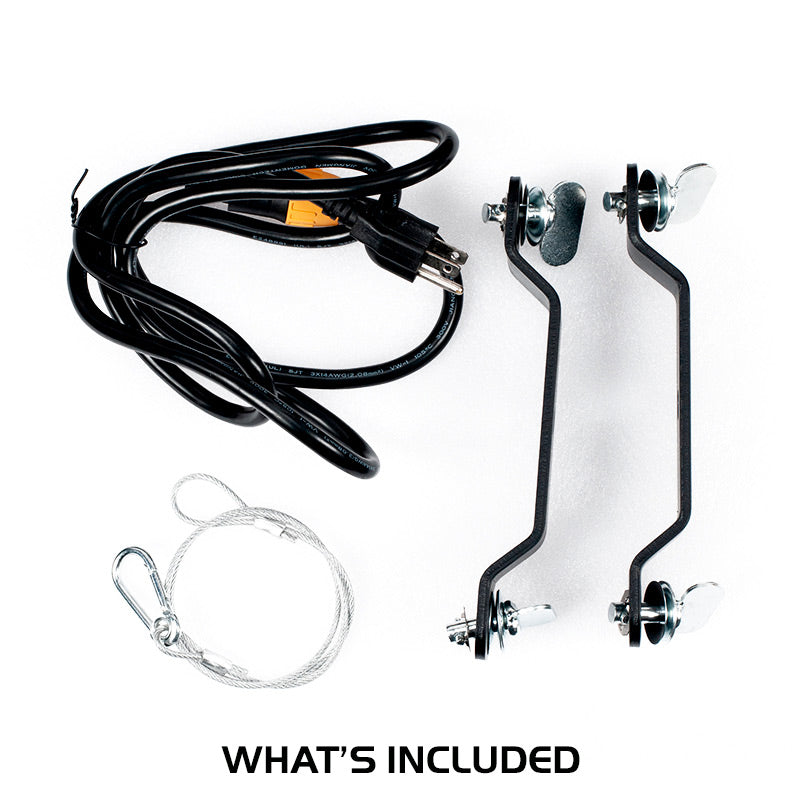

What's in the box:

• Locking power cord

• 2 Omega brackets

• Safety cable

Approvals / Ratings:

ETL Approved

CE Certified

Specifications are subject to change without notice.

Downloads

Photometrics

User manual

Focus Spot 6Z User Manual

Vectorworks symbol

Focus Spot 6Z Vectorworks Symbol

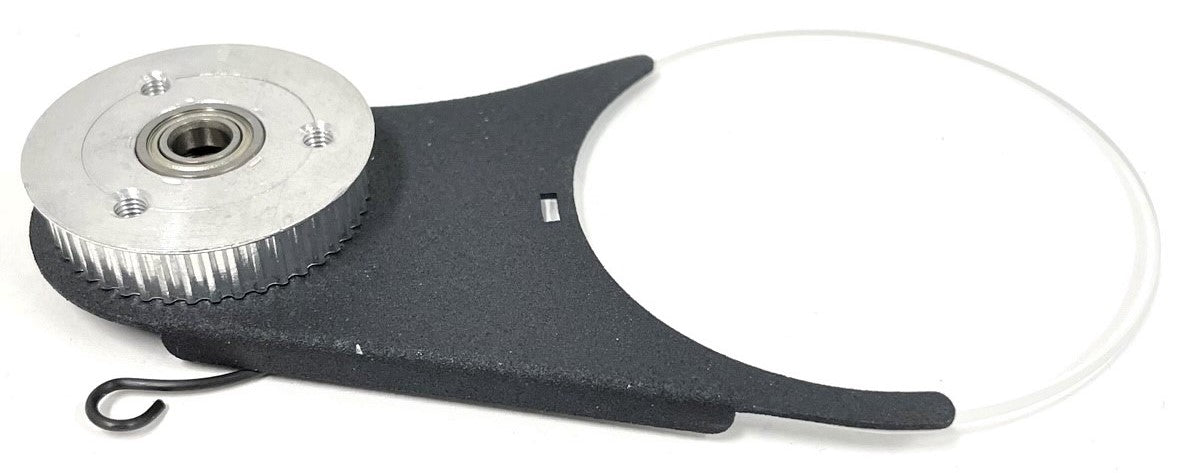

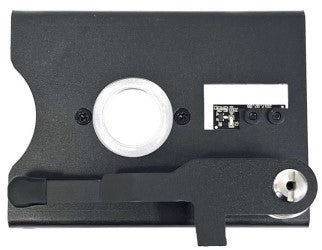

Focus Spot 6Z Parts & Service

Our Focus Spot 6Z Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your Focus Spot 6Z. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.

Focus Spot 6Z Parts & Service
