Focus Spot 2X

Name: Focus Spot 2X
Brand: ADJ
SKU: FOC286
Availability: InStock

This item is discontinued

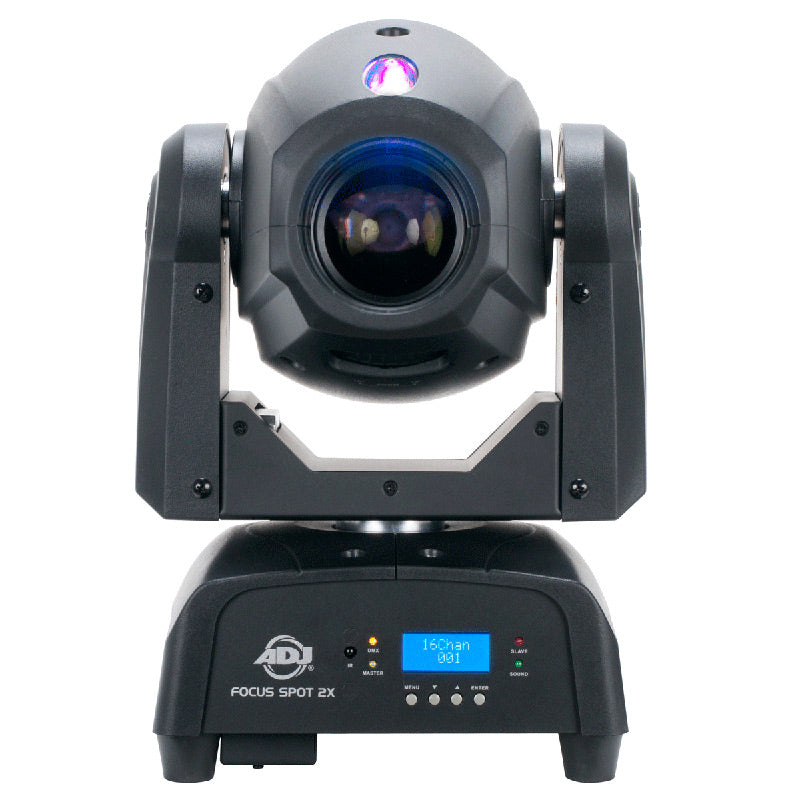

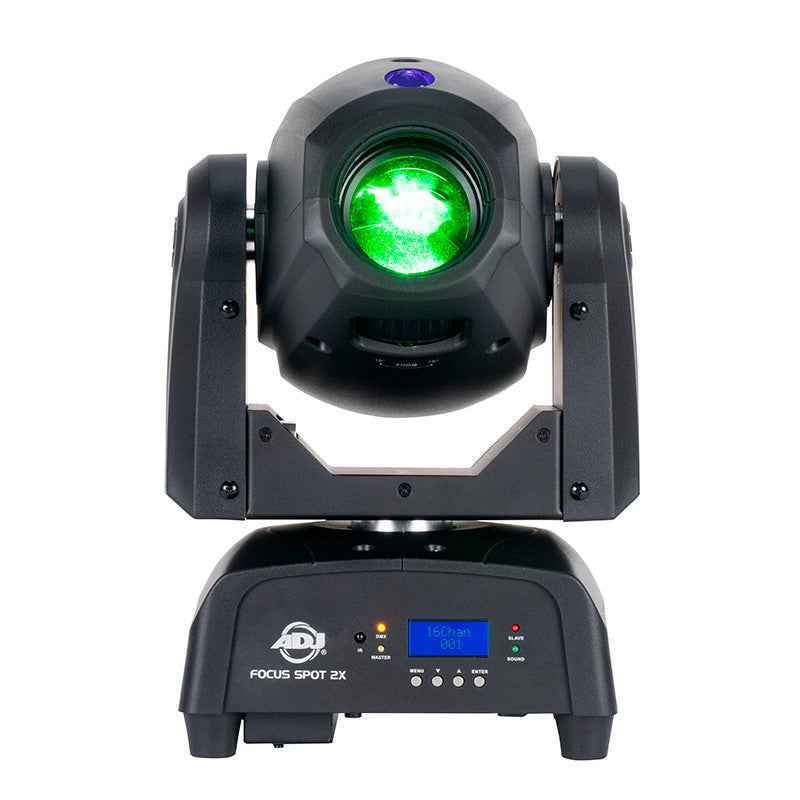

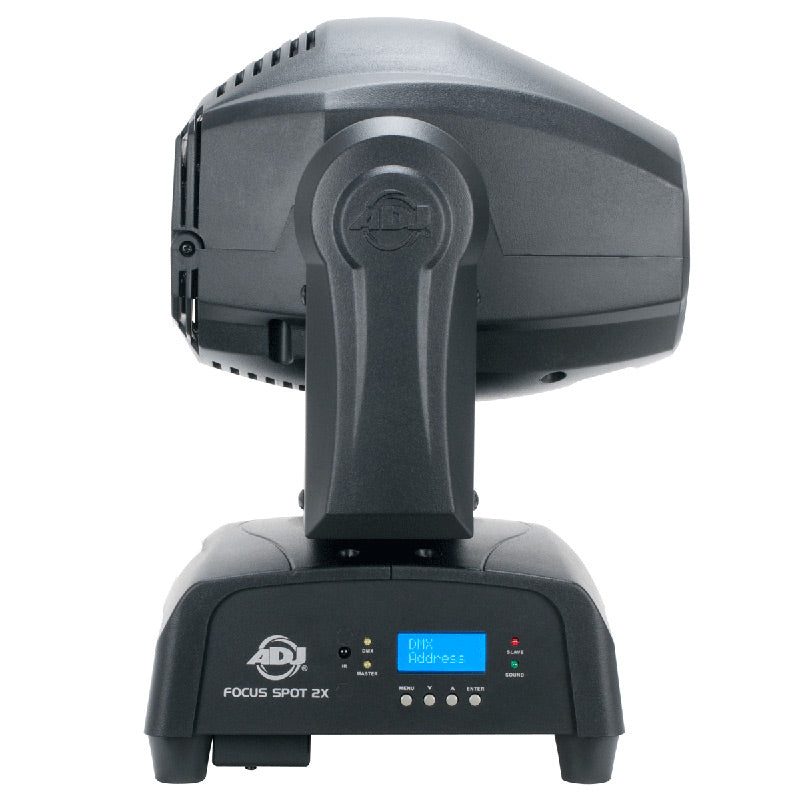

The ADJ Focus Spot 2X is a 100W LED Moving Head with a 3W UV LED included. It features two prism effects (6-facet circular prism and 6-facet linear prism), 6 rotating, replaceable Gobos + Spot, 8 colors + spot & split colors and an easy to replace GOBO system.

UPC: 818651027358

SKU: FOC286

Focus Spot 2X

$0.00

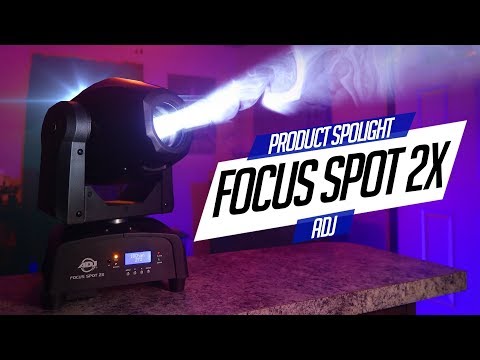

Video

Focus Spot 2X

Available now from ADJ USA

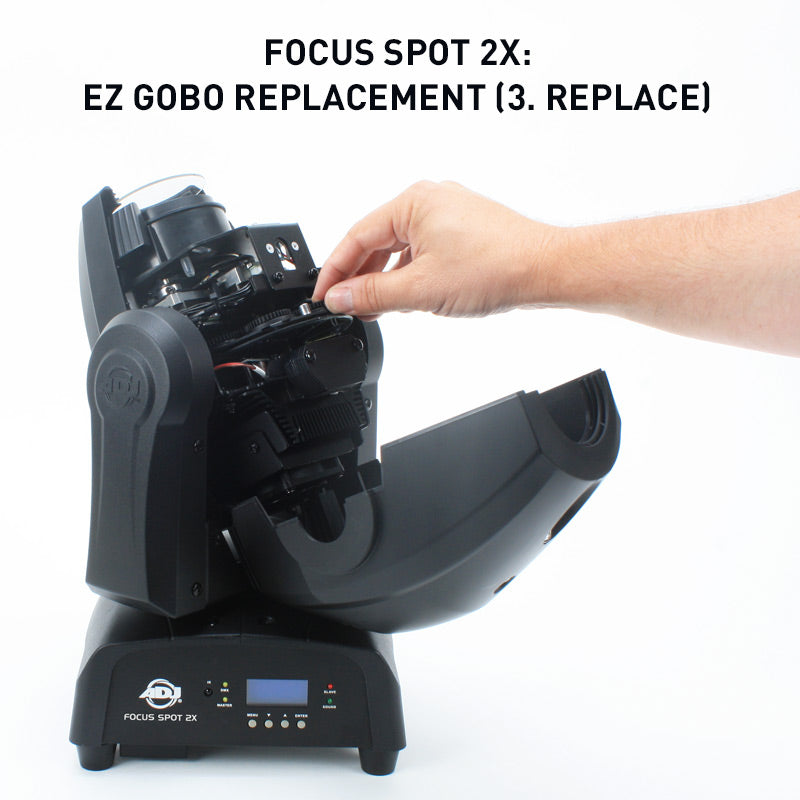

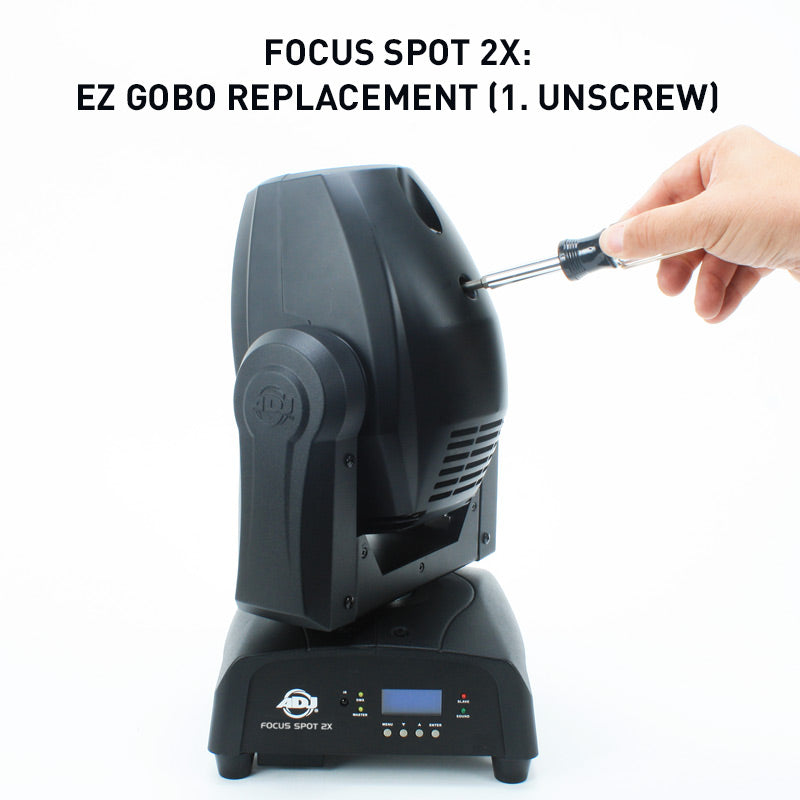

The ADJ Focus Spot 2X is a 100W LED Moving Head with a 3W UV LED included for black lighting or additional color hues. It features two prism effects; a 6-facet circular prism and a 6-facet linear prism. In addition, ADJ has fitted the FS2X with a GOBO wheel with replaceable, rotating and indexable GOBOs. The GOBOs are easy to replace by removing the top housing with one screw that’s on a hinge. GOBOs easily lock in and out of the GOBO wheel. This mover is also equipped with motorized focus, Gobo Indexing, EZ Gobo replacement and a manual zoom knob near the lens to change the beam angle from 16 ~ 19 degrees.

The Focus Spot 2X is extremely versatile and has everything clubs, theaters, churches, concert productions and lighting professionals are looking for in a LED spot moving head. It has 16 & 18 DMX channel modes, Pan/Tilt Inversion, 16-Bit Fine Pan/Tilt, 3-pin DMX In/Out, locking In/Out power connectors, and a 4-Button DMX LCD menu.

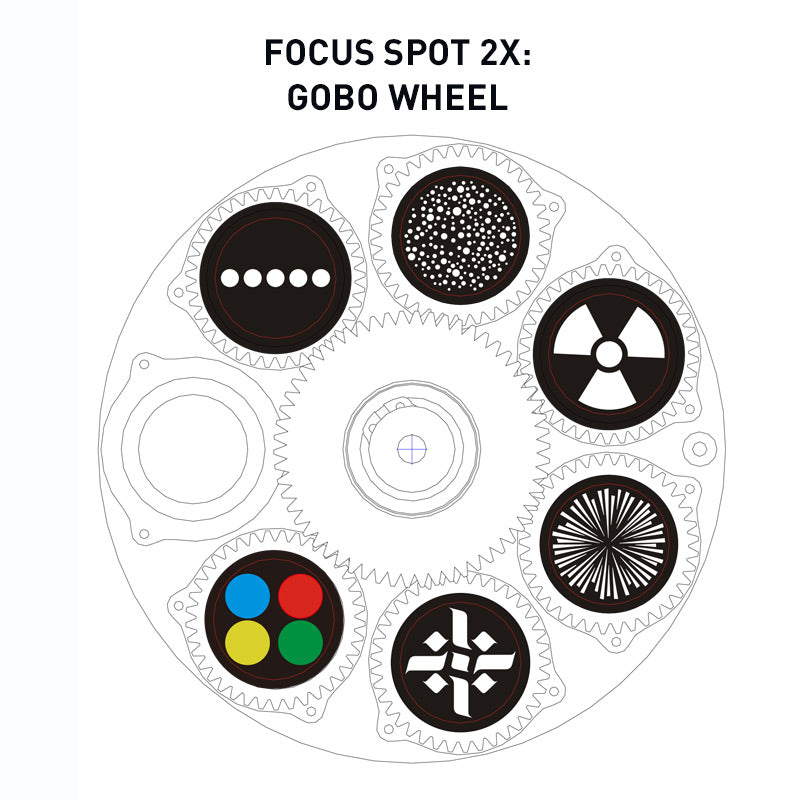

The Focus Spot 2X is fitted with 8 colors plus spot and split colors. It has 6 rotating, replaceable GOBO patterns plus spot. The color wheel and GOBO wheel work independent of each other. All GOBOs are indexable.

Click here to read the Focus Spot 2X press release.

Specifications

Light Source:

• 1 x 100W Cold White LED (7600˚K, 50,000 hr.)

• 1 x 3W UV LED

Features:

• Motorized Focus

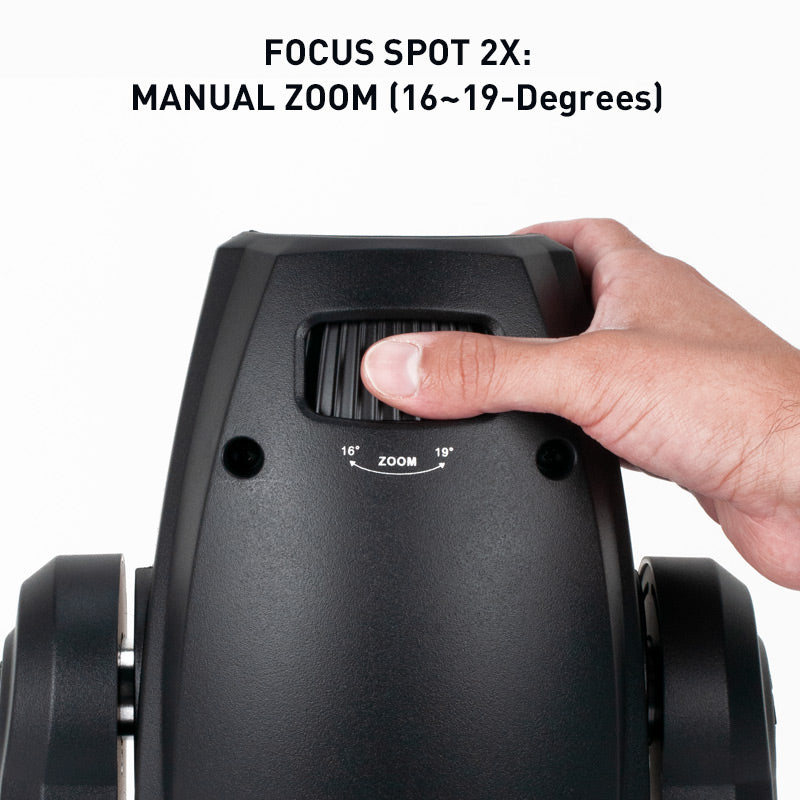

• Manual Zoom knob on head: 16 ~ 19 degree beam angle

• Fan cooled

• Strobe/Pulse effect; random strobe slow to fast

• UC IR Airstream IR Compatible (Sold Separately)

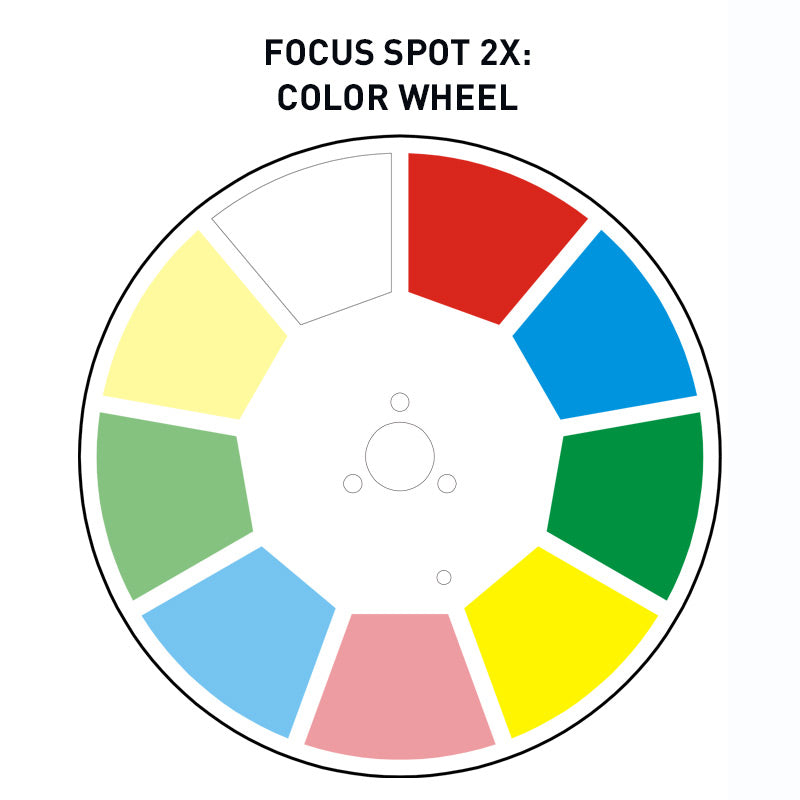

Color Wheel:

• 8 Colors + White Split Colors

GOBO Wheel:

• 6 Rotating, replaceable Gobos + Spot

• Gobo Size: Outer: 23mm/Inner:19mm/Thickness: 0.5mm

• Gobo Indexing

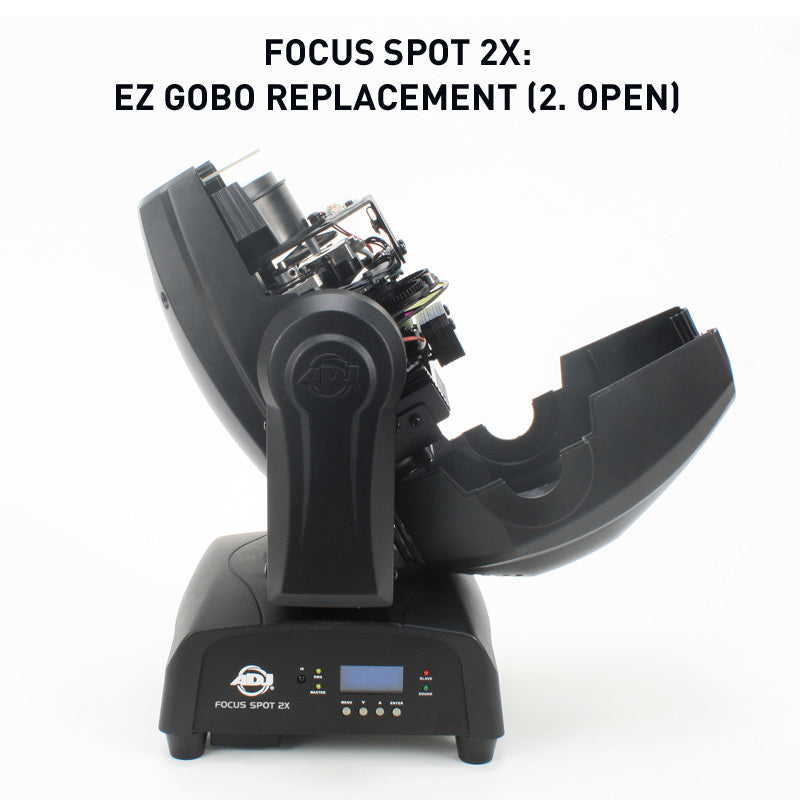

• EZ Gobo replacement with hinged head cover

• Gobo Shake effect

Prism Wheel:

• 6-facet circular prism

• 6-facet linear prism

Control:

• 3 Operational Modes: Sound Active, Show Mode, DMX Controlled

• Primary/Secondary

• 4 Built-in lighting shows

• 16 18 DMX channel modes

• Electronic Dimming: 0% - 100%

• 5 Dimmer Curves

• 4-Button DMX LED menu

• Stepper motors with micro stepping

• With Wired Digital Communication Network

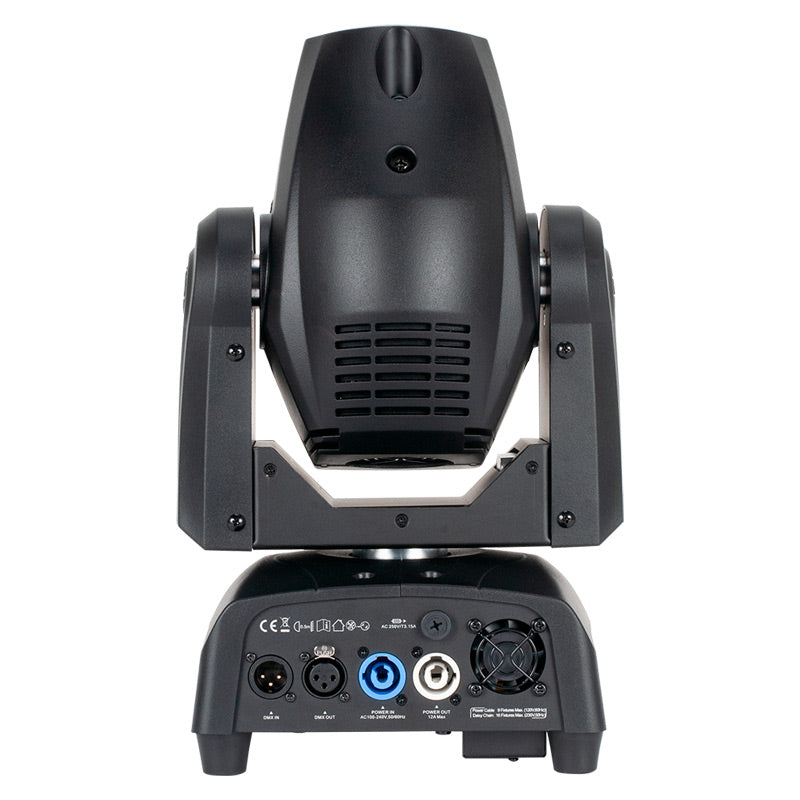

Connections:

• 3-pin DMX In/Out

• Twist locking power In/Out connections on rear to daisy chain power (up to 9 Focus Spot 2X’s @ 120V and 16 Focus Spot 2X’s @ 230V)

Pan/Tilt:

• Fast and precise Pan/Tilt Movements

• 16-Bit Fine Pan/Tilt control

• Pan: 540-degree

• Tilt: 270-degree

• Pan/Tilt Invert Mode

• 4, Built-In, Pan/Tilt Target Modes

Electrical:

• Multi-voltage Operation: 100-240V, 50Hz/60Hz

• Power Consumption: 180W

Dimensions / Weight:

• Dimensions (LxWxH): 9.3” x 6.8” x 15.2”/ 237 x 175 x 385mm

• Weight: 14.5 lbs. / 6.5 kgs.

What’s Included:

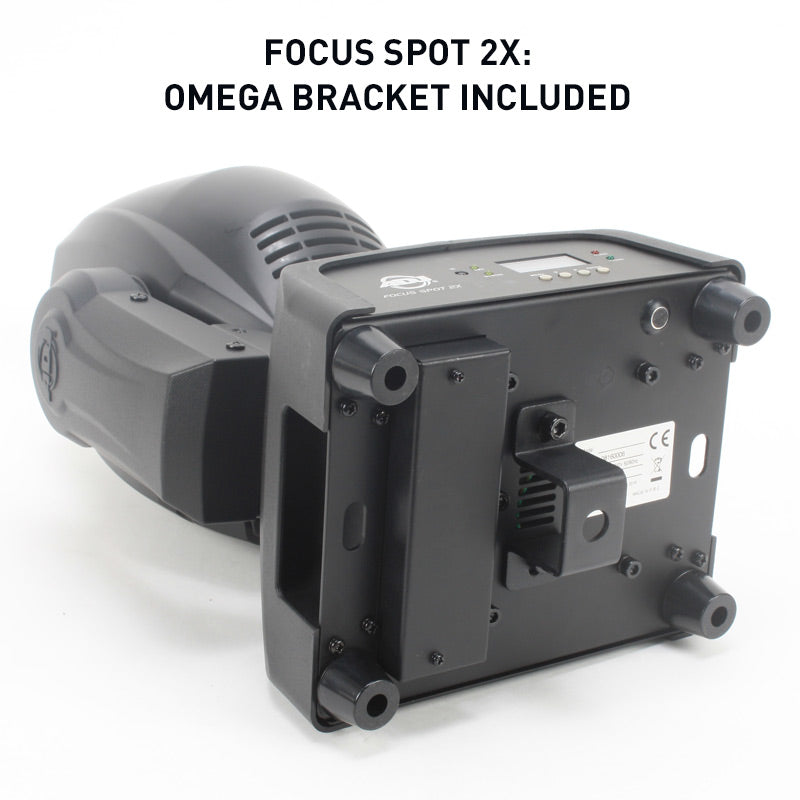

• Includes Omega bracket for truss mounting

• Includes power cable

Approvals:

• CE | cETLus Approved (Control #4010765)

Downloads

Cad drawing

Dimensional drawings

Focus Spot 2X Dimensional Drawing

Dmx traits

Focus Spot 2X DMX Traits

Photometrics

User manual

Focus Spot 2X User Manual
